SK120X CNC DC Regulated Power Supply DC-DC Step Up Down Bench 6-36V

Discover the SK120X CNC DC Regulated Power Supply DC-DC Step Up Down Bench 6-36V — a standout decor pick featuring adjustable, professional, soft design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

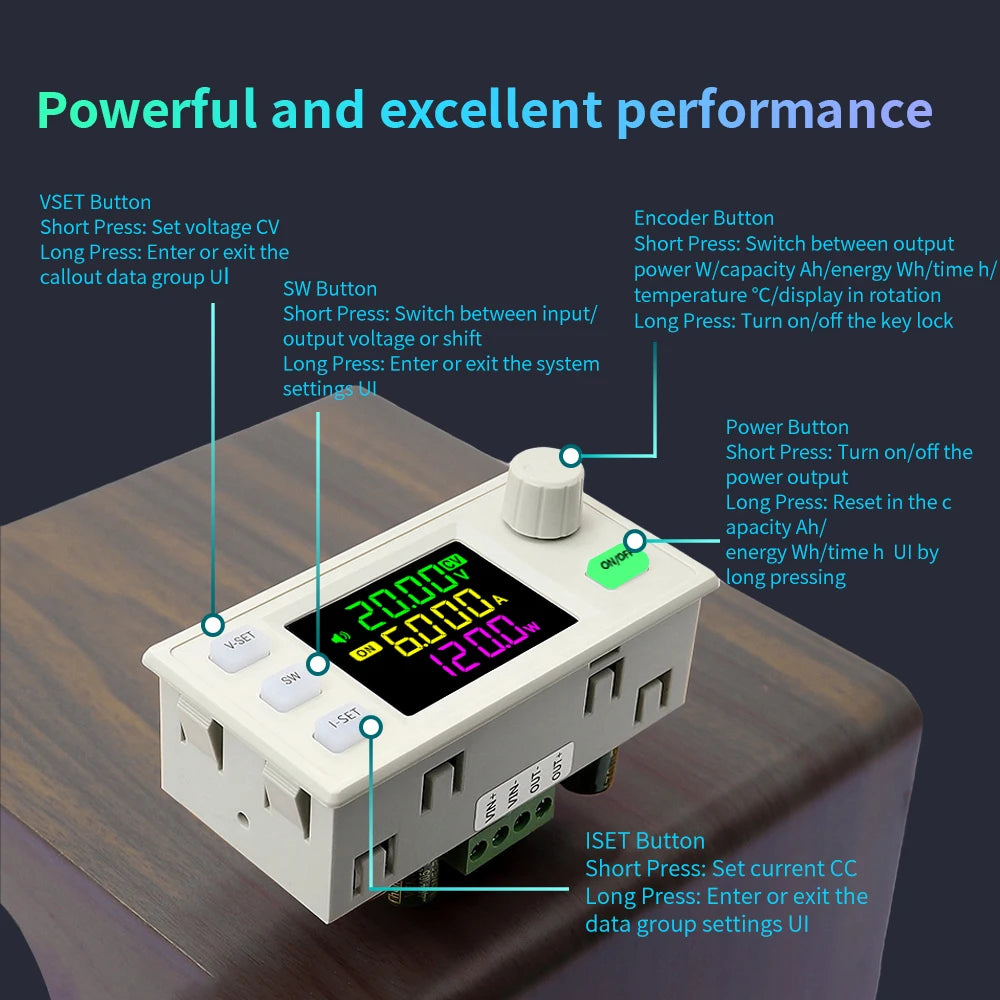

1. The X Series features silicone buttons for a comfortable feel, each with a cool indicator light.

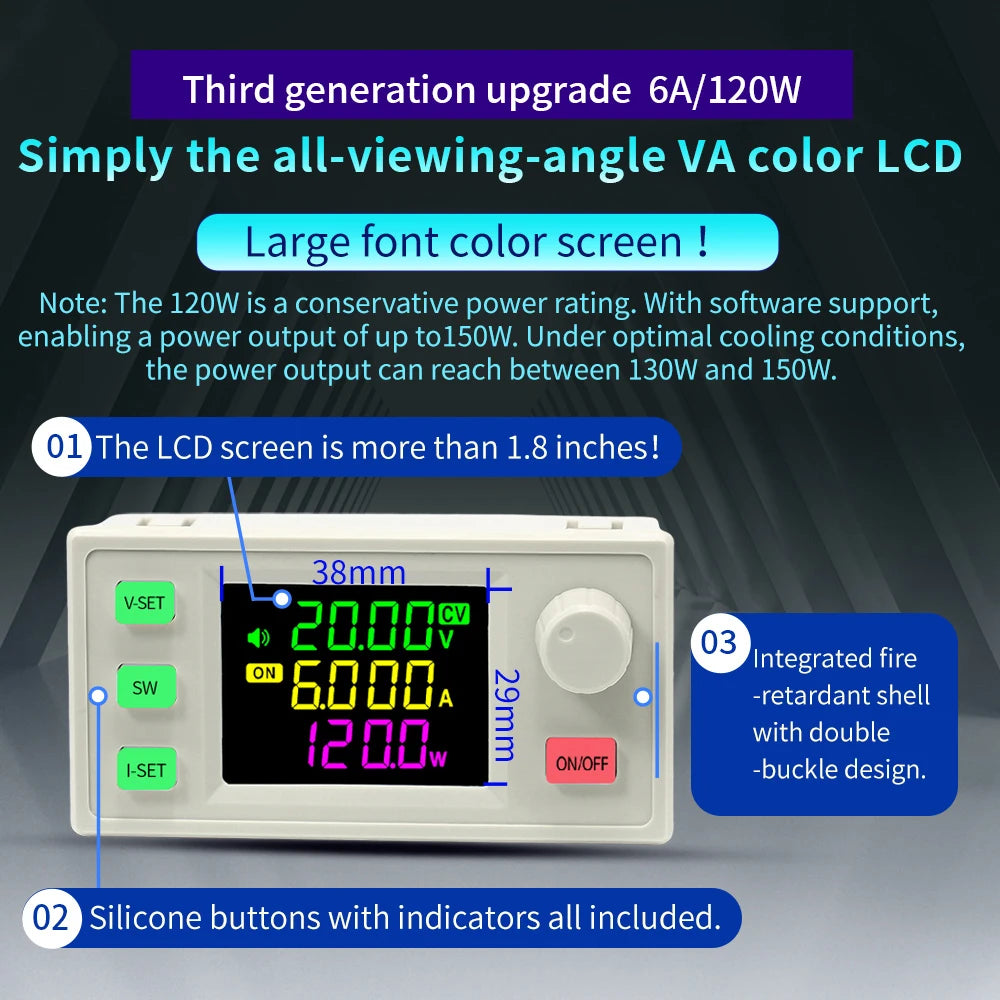

2. The LCD screen boasts a well-organized layout with large, bold, and rounded fonts. This professional power supply display offers all the functions you need.

3. The display board uses a gold-plated design for oxidation resistance, better conductivity, and enhanced durability! Features an integrated injection-molded housing with flame-retardant material for enhanced safety! Dual-layer snap-fit design secures the dual circuit boards firmly.

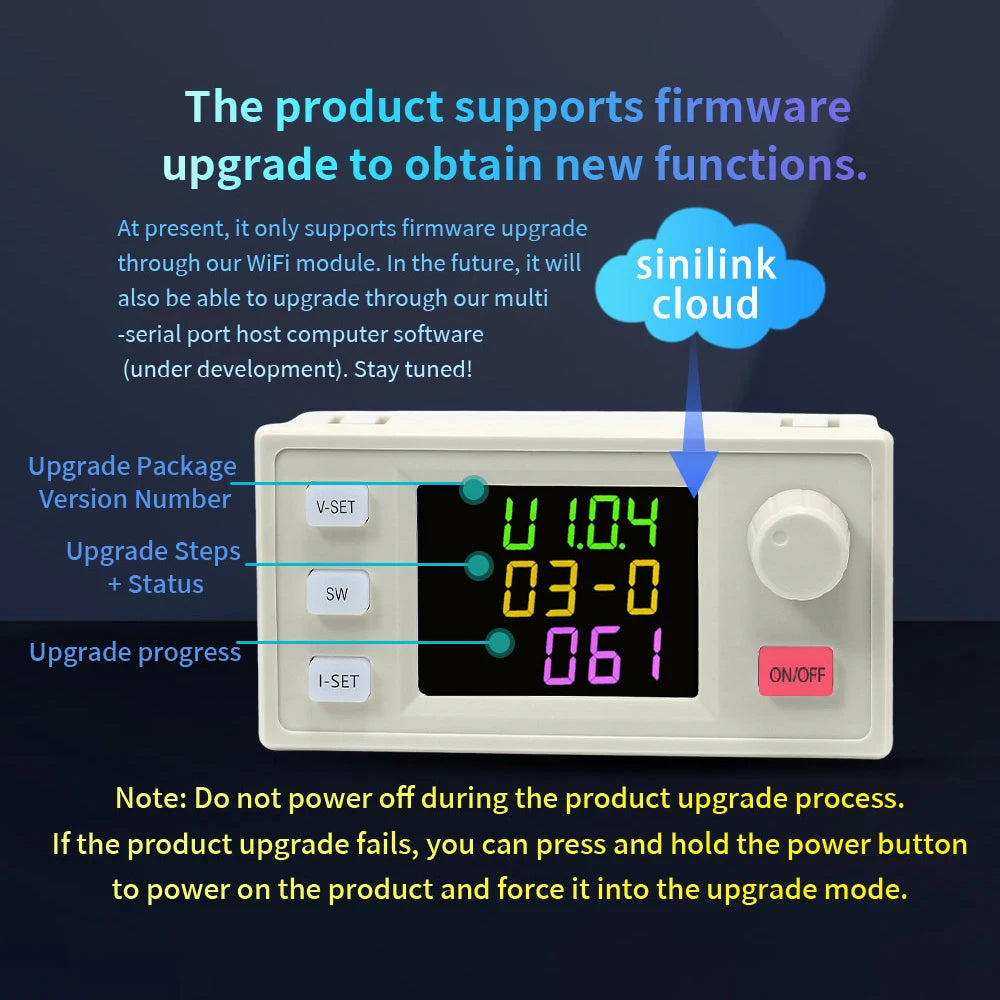

4. Supports Modbus serial communication protocol, firmware upgrades, and MPPT solar charging for comprehensive functionality.

5. Incorporates a high-precision external clock crystal oscillator for accurate time keeping and precise capacity/energy statistics. Powered by a robust 48-pin MCU controller with 64 MHz processing speed.

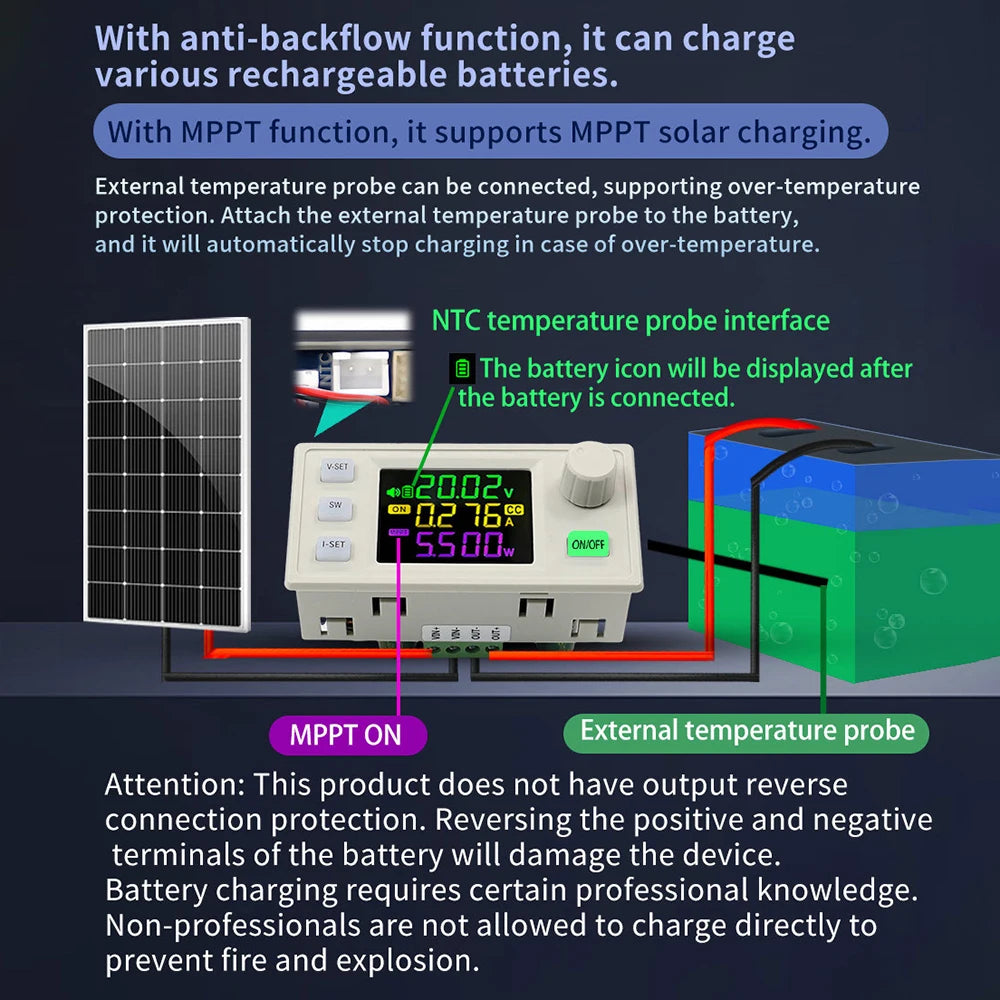

6. Wide application range with backflow prevention for charging various batteries. MPPT functionality supports solar charging. External temperature probe connection enables over-temperature protection.

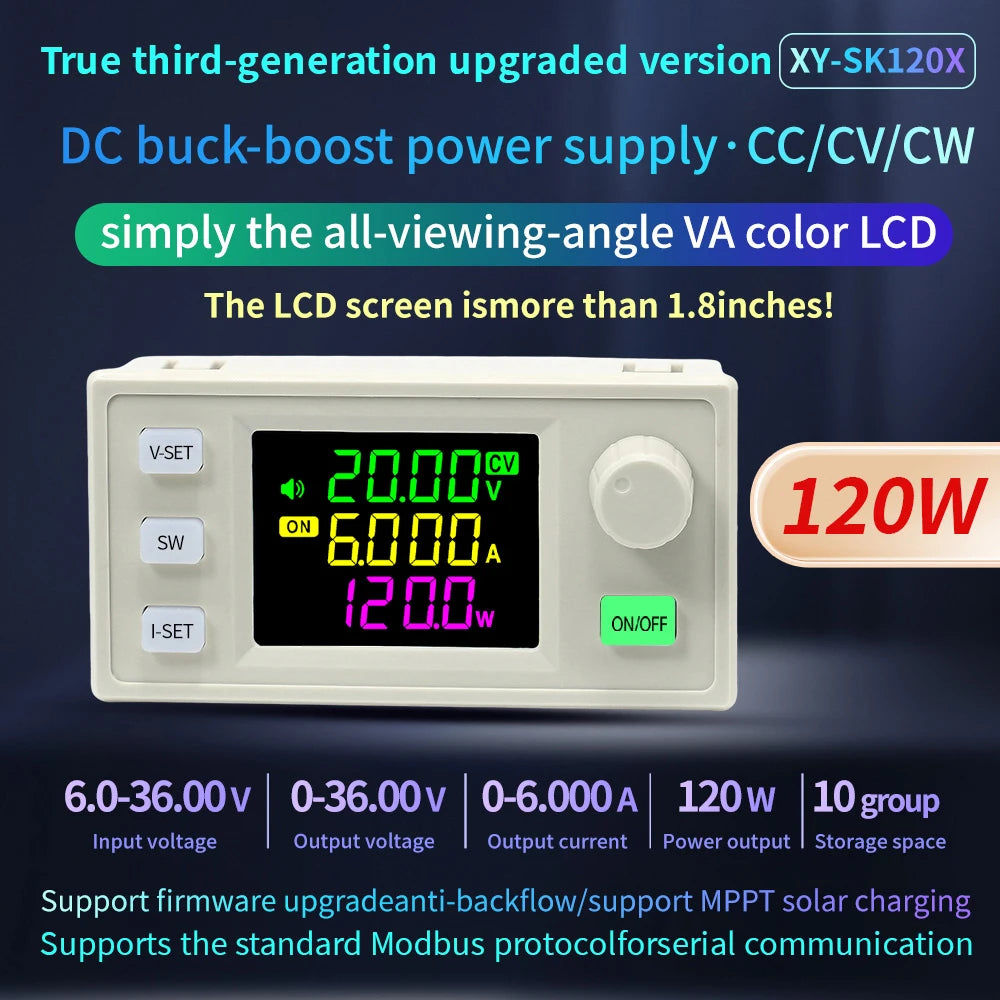

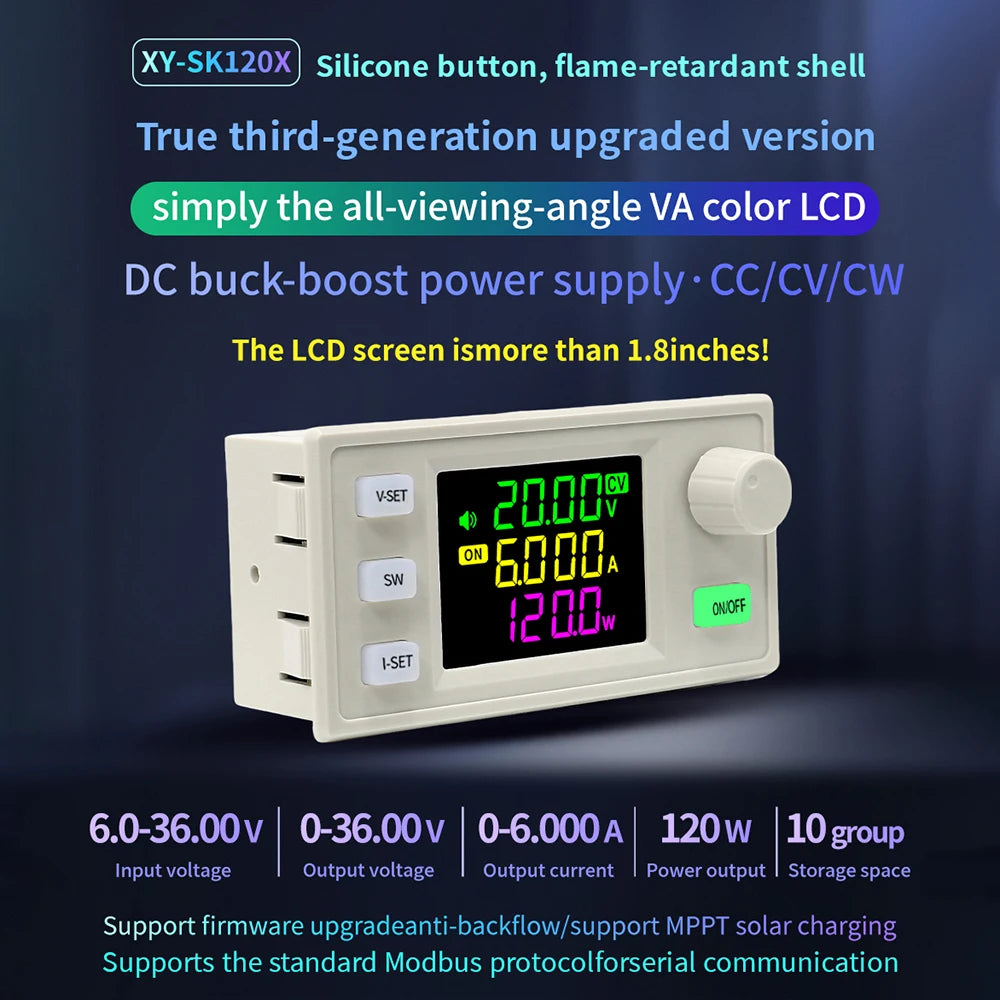

Product Specifications:

Input Voltage: 6.0~36V

Output Current: 0~6.000A

Output Power: 120W

Voltage Resolution: 0.01V

Conversion Efficiency: Approx. 88%

Output Voltage: 0~36V

Voltage Accuracy: ±0.5% + 1 digit

Current Accuracy: ±0.5% + 3 digits

Current Resolution: 0.001A

Stored Data Sets: 10 sets

MPPT Function: Supports MPPT solar charging

Typical Output Ripple: VPP-150mV

Buzzer: Yes

Soft Start: Yes

Protection Mechanisms:

Input reverse polarity protection: Yes

Output backfeed protection: Yes

Input under-voltage protection: Adjustable 5.5-36V, default 5.5V

Output over-voltage protection: Adjustable 0-38V, default 38V

Output over-current protection: Adjustable 0-6.2A, default 6.2A

Output over-power protection: Adjustable 0-150W, default 125W

Over-Temperature Protection: Adjustable 0-110°C, default 95°C

Timeout Protection: Adjustable 0-100H, default Off

Over-Capacity Protection: Adjustable 0~9999AH, default Off

Over-Energy Protection: Adjustable 0~4200KWH, default Off

Package Contents:

Adjustable Buck-Boost Module*1

Frequently Asked Questions

Q: What is the SK120X CNC DC Regulated Power Supply DC-DC Step Up Down?

A: The SK120X CNC DC Regulated Power Supply DC-DC Step Up Down is a quality decor pick. The X Series features silicone buttons for a comfortable feel, each with a cool indicator light.

Q: How do I use the SK120X CNC DC Regulated Power Supply DC-DC Step Up Down?

A: The SK120X CNC DC Regulated Power Supply DC-DC Step Up Down is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the SK120X CNC DC Regulated Power Supply DC-DC Step Up Down?

A: The SK120X CNC DC Regulated Power Supply DC-DC Step Up Down stands out in our decor range — The LCD screen boasts a well-organized layout with large, bold, and rounded fonts.
