SK150C 150W DC Buck Boost Converter 7-36V Power Module Adjustable

Discover the SK150C 150W DC Buck Boost Converter 7-36V Power Module Adjustable — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

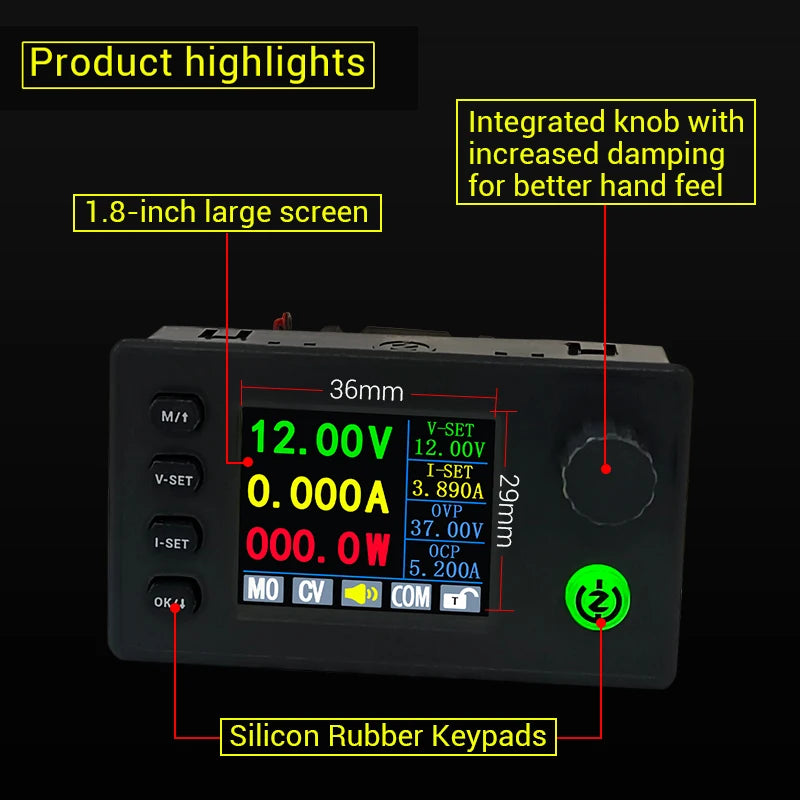

1. 1.8-inch LCD Screen: Features a large LCD display for clear data readability and wide viewing angles.

2. Buzzer Alerts: Built-in buzzer provides audible feedback for button presses and alarm notifications, ensuring every action is acknowledged.

3. Reverse Polarity/Backflow Protection: Includes reverse polarity and backflow protection to safeguard the power supply against damage during incorrect connections or abnormal load conditions.

4. Multi-Protection Mechanism: Offers comprehensive safeguards including under-voltage, over-voltage, over-current, over-temperature, and over-power protection.

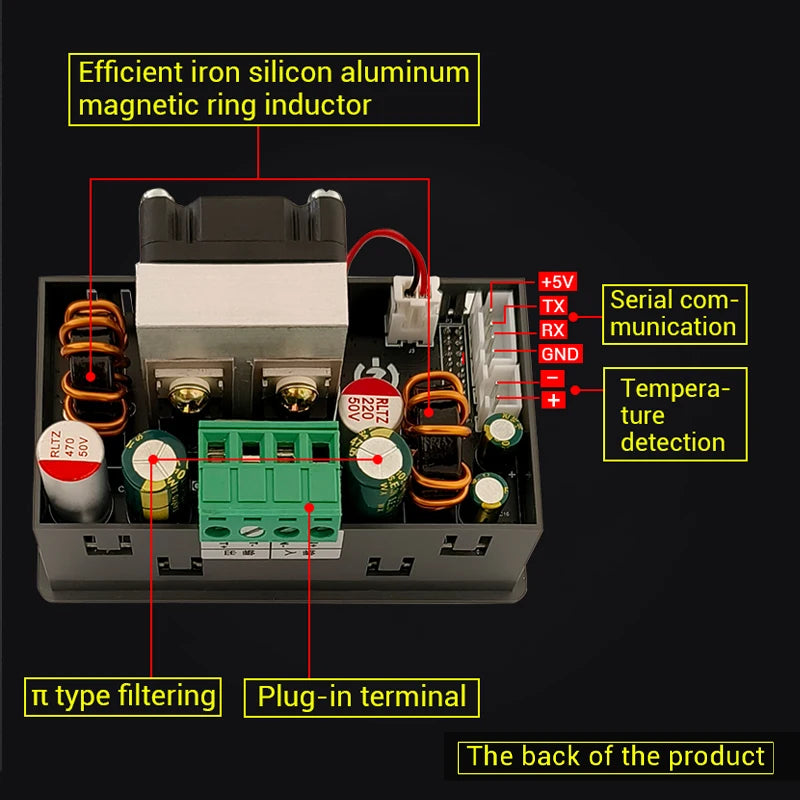

5. Upgraded Plug-in Terminals: Features upgraded plug-in terminal design for quick disassembly and replacement.

Product Specifications:

Input Voltage: DC 7-36V

Output Voltage: 0.5-40V

Voltage Resolution: 0.01V

Accuracy: ±0.3% + 3 digits (calibratable)

Output Current: 0-8A

Current Resolution: 0.001A

Accuracy: ±0.5% + 3 digits (calibratable)

Output Power: 150W

Data Set Storage: 11 sets

Silicone Buttons: 5

Conversion Efficiency: Approx. 88%

Screen Size: 1.8-inch, 36*29mm visible area

Product Dimensions: 83*48*25mm

Protection Mechanisms:

Input Reverse Polarity Protection: Yes

Output Backfeed Protection: Yes

Input Low Voltage Protection (LVP): Adjustable 6.0-40V, factory default 6.0V

Output Over Voltage Protection (OVP): Adjustable 0.5-42V, factory default 42V

Output Overcurrent Protection (OCP): Adjustable 0.001-8.2A, factory default 8.2A

Output Overpower Protection (OPP): Adjustable 0.01-180W, factory default 160W

Over-Temperature Protection (OTP): Adjustable 30-99°C, factory default 60°C

Over-Hour Protection (OHP): 1 minute - 99 hours 59 minutes, factory default: disabled

Over-Ah Protection (OAH): 0.001-9999Ah, factory default: disabled

Over-Wh Protection (OWH): 0.001-4000KWh, factory default: disabled

Package Contents:

Power Module*1

Frequently Asked Questions

Q: What is the SK150C 150W DC Buck Boost Converter 7-36V Power Module?

A: The SK150C 150W DC Buck Boost Converter 7-36V Power Module is a quality decor pick. 1.8-inch LCD Screen: Features a large LCD display for clear data readability and wide viewing angles.

Q: How do I use the SK150C 150W DC Buck Boost Converter 7-36V Power Module?

A: The SK150C 150W DC Buck Boost Converter 7-36V Power Module is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the SK150C 150W DC Buck Boost Converter 7-36V Power Module?

A: The SK150C 150W DC Buck Boost Converter 7-36V Power Module stands out in our decor range — Reverse Polarity/Backflow Protection: Includes reverse polarity and backflow protection to safeguard the power supply against damage during incorrect connections or abnormal load conditions.
