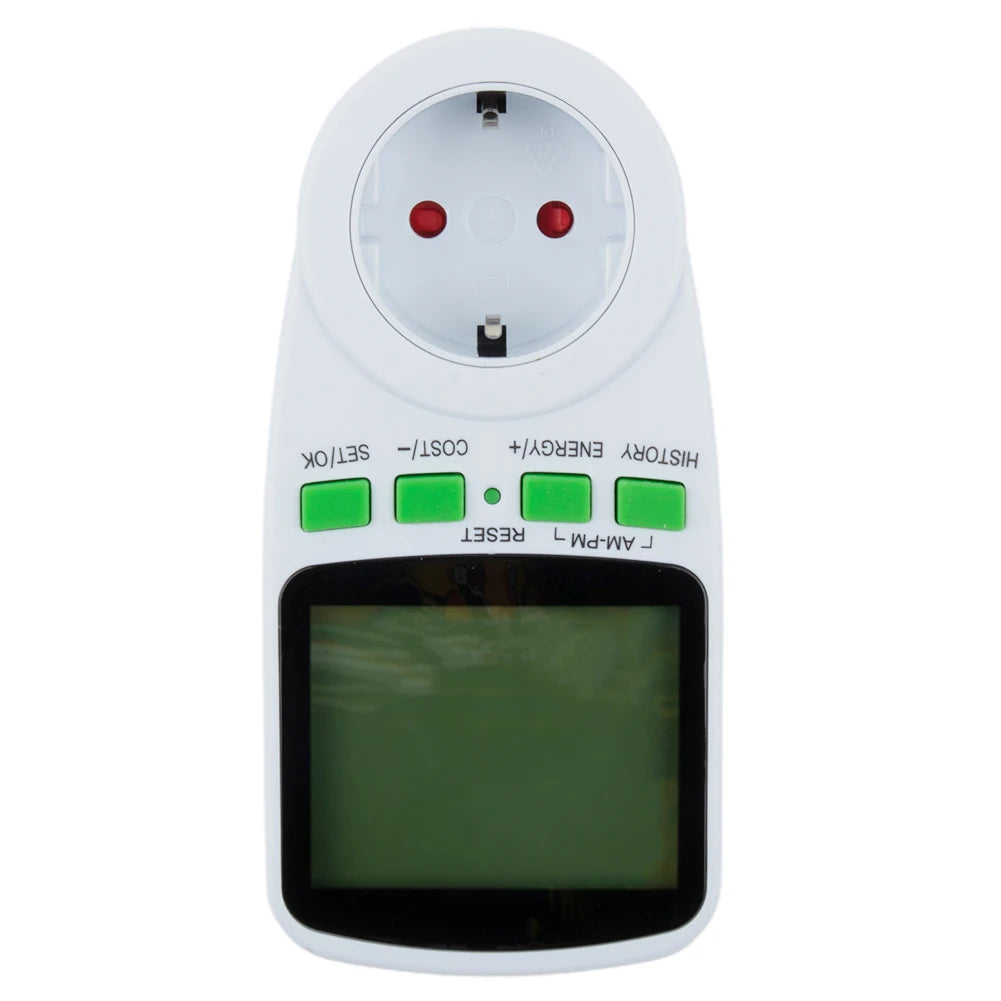

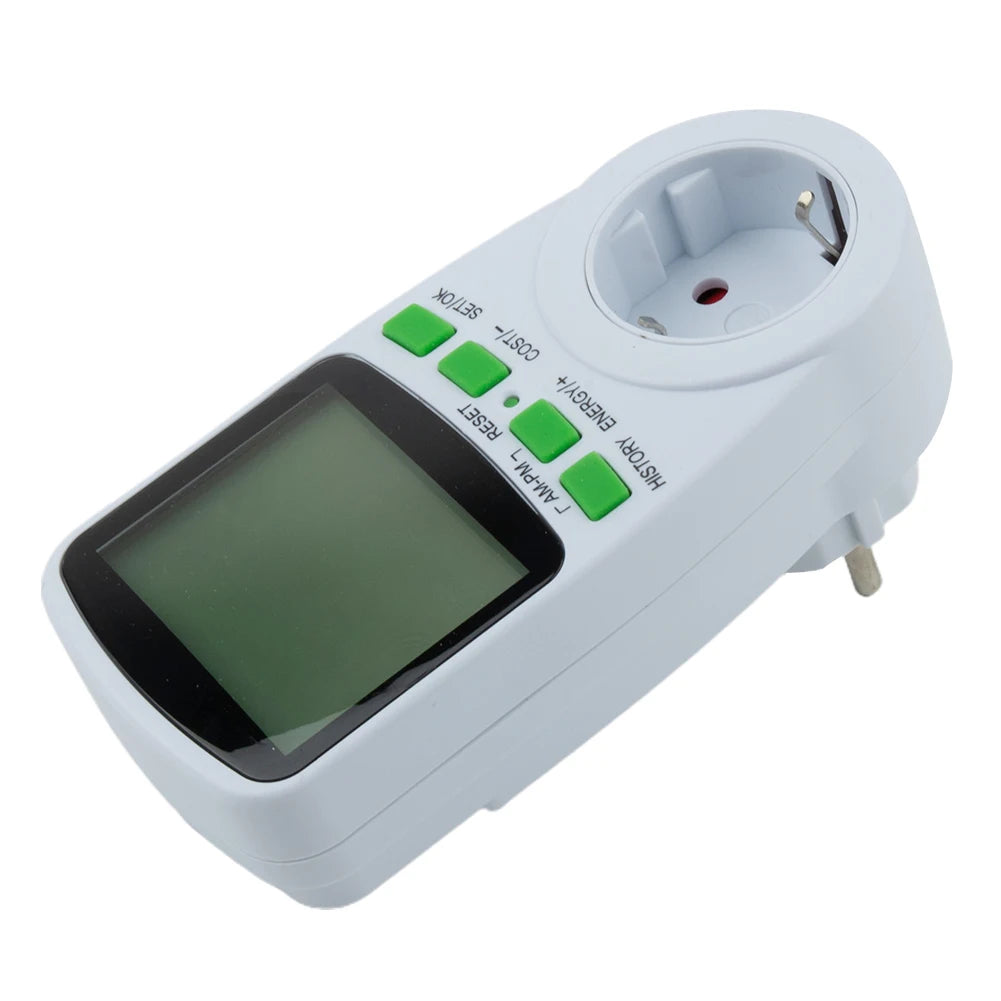

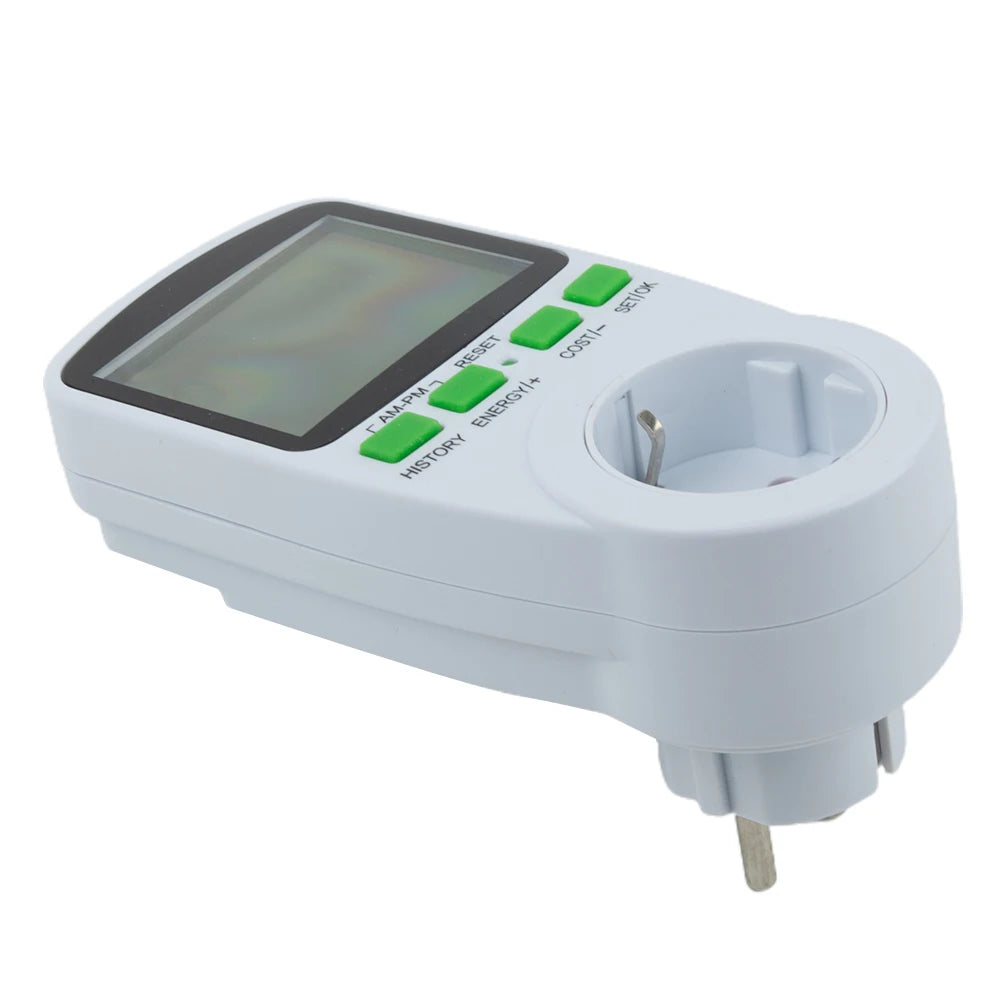

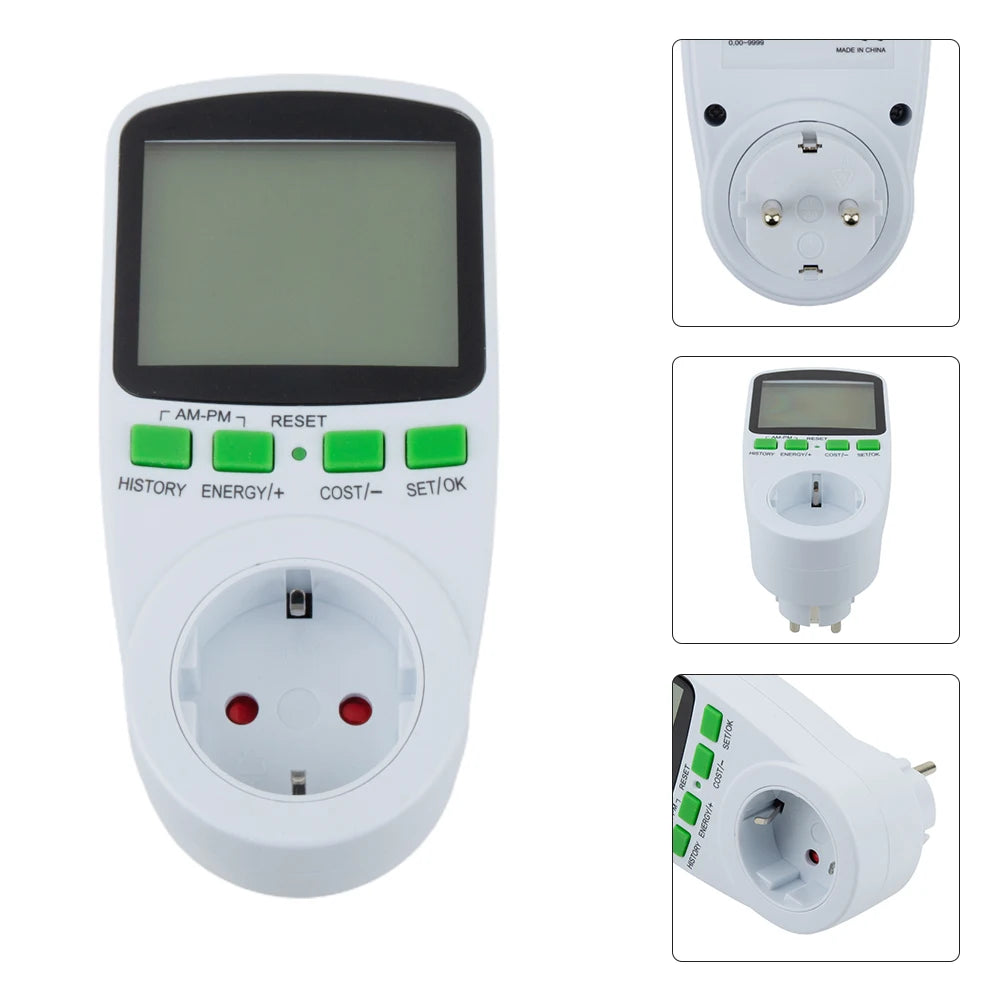

Solar PV Electric Energy Meter Monitor – Real-Time Power Tracking for Home & Garden

Stay on top of your electricity consumption with this fully functional Solar PV Electric Energy Meter. Specially developed for feed-in measurement with mini solar setups, this compact monitor lets you track voltage, current, power, total kWh usage, and estimated energy cost — all at a glance. Whether you're monitoring your solar system's grid feed-in or keeping tabs on your household appliances, this meter delivers accurate, real-time data in a durable PVC and metal housing.

Key Features

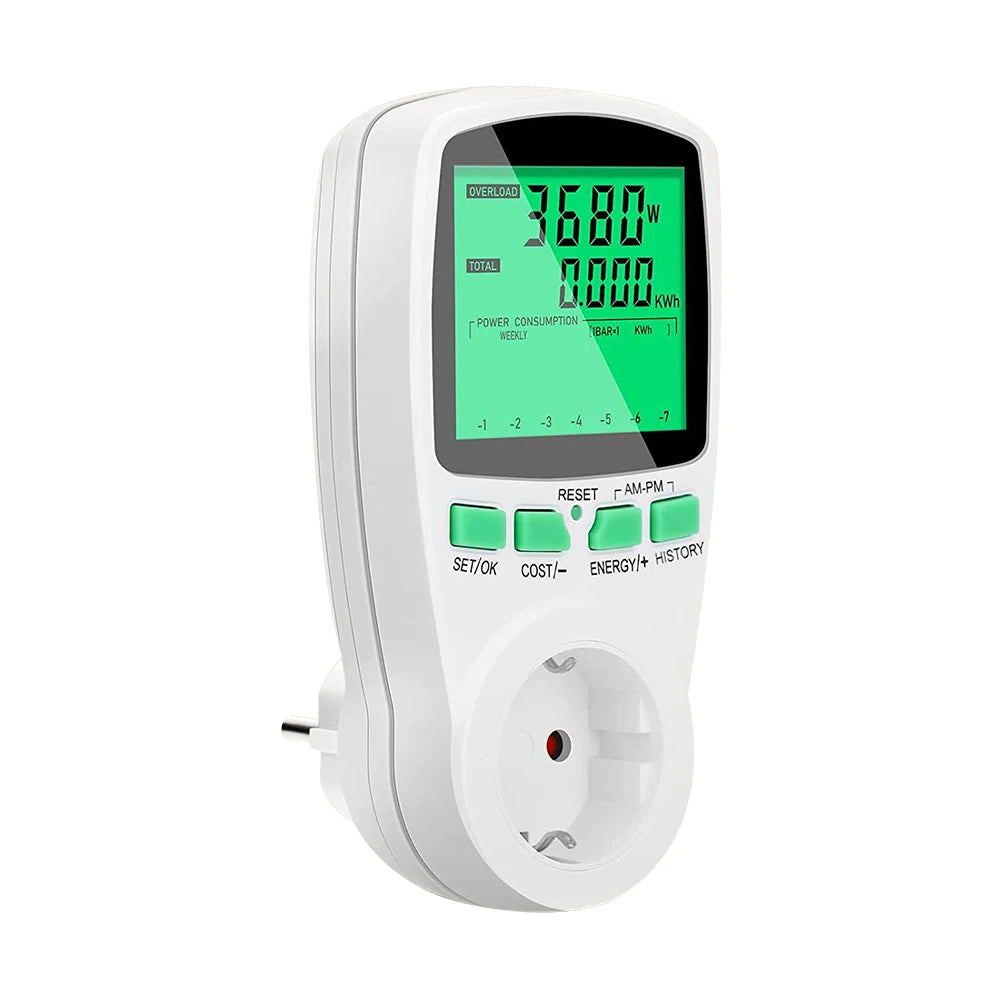

Multi-Parameter Monitoring: Measures power (W), voltage (V), current (A), frequency (Hz), total energy (kWh), and estimated cost — all on one clear backlit display.
Green Backlit Display: Easy-to-read green backlight for clear visibility in any indoor lighting condition.
Wide Voltage Range: Operates across 230V–250V (EU standard), suitable for standard household and solar feed-in circuits.
High Current Capacity: Supports up to 16A operating current (max load: 3,680W), making it compatible with most household appliances.
Long Timing Range: Timing display spans from 0 seconds up to 9,999 days — ideal for long-term solar energy monitoring.
Cost Tracking: Set your electricity rate and instantly see your cost-per-kWh — no more guessing about your electricity bill.
Compact & Sturdy Build: PVC and metal construction in a space-saving 150 × 75 × 35 mm form factor. White finish for a clean, modern look.
Indoor Use Only: Designed for dry indoor environments — ideal for home energy management and solar monitoring stations.
Simple Operation: Just plug into a standard wall socket — no complicated setup required.

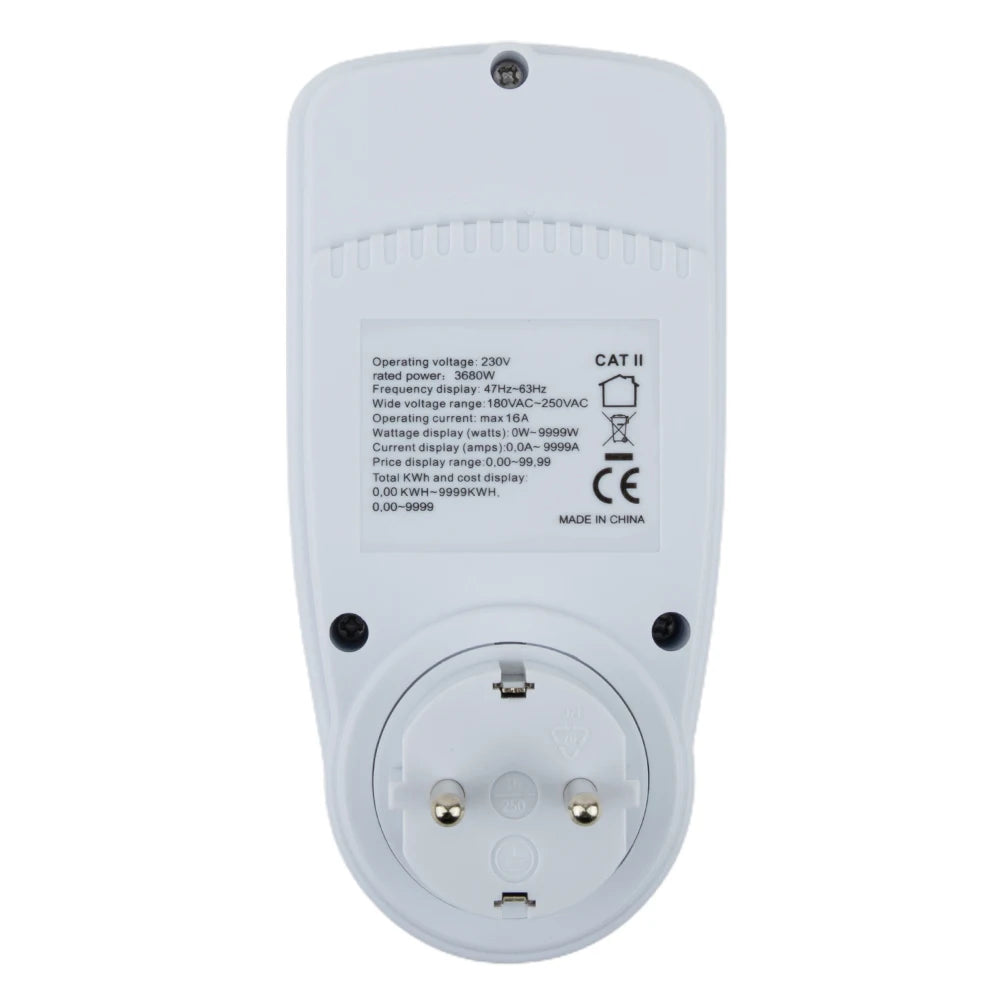

Technical Specifications

Material	PVC + Metal
Color	White with Green Backlight
Dimensions	150 × 75 × 35 mm
Voltage Range	230V – 250V (EU: 230V / 50Hz)
Max Operating Current	16A
Max Load	3,680W
Power Consumption (Meter)	0.5W
Frequency Display	0 Hz – 9,999 Hz
Voltage Display Range	0V – 9,999V
Current Display	0.000A – 16.000A
Energy Display	0.000 kWh – 9,999 kWh
Cost Display Range	0.00 – 9,999 COST/kWh
Timing Display	0 seconds – 9,999 days
Use Environment	Indoor / Dry Conditions Only

What's in the Box

1 × Electric Energy Meter Monitor

Made in Mainland China.

Related Products You May Like

For more information on home energy monitoring and solar power systems, visit the U.S. Department of Energy – Electricity Usage Guide.

Learn more: Electricity meter

Frequently Asked Questions

Q: Is this solar PV electric energy meter compatible with standard EU wall outlets?

A: Yes. This energy meter is designed for EU-standard 230V/50Hz wall sockets and supports a voltage range of 230V–250V, making it fully compatible with standard European residential electrical circuits.

Q: Can I use this meter to monitor regular household appliances, not just solar setups?

A: Absolutely. While this PV meter was specially developed for solar feed-in measurement, it works equally well for monitoring the power consumption of any household appliance plugged into a standard wall outlet — up to 16A / 3,680W.

Q: Does this energy monitor display electricity cost in real time?

A: Yes. You can enter your local electricity rate, and the meter will calculate and display the running cost in real time — so you always know exactly how much energy your devices are consuming and what it's costing you.

Q: Is the electric energy meter suitable for outdoor use?

A: No. This meter is designed for indoor use under dry conditions only. It should not be exposed to moisture, rain, or outdoor environments.
