STM8S103F3P6 System Board Micro USB STM8S Development Minimum Core
$6.18
Sale price
$6.18
Regular price
$7.66
Shipping calculated at checkout.
Discover the STM8S103F3P6 System Board Micro USB STM8S Development Minimum Core — a standout hobbies & creative arts pick featuring compact, soft design for dependable, everyday performance.
Specifications
Condition: New
Type: Module
Product Features:
Compact design
User-friendly operation
Stable performance
Simple and intuitive data lines

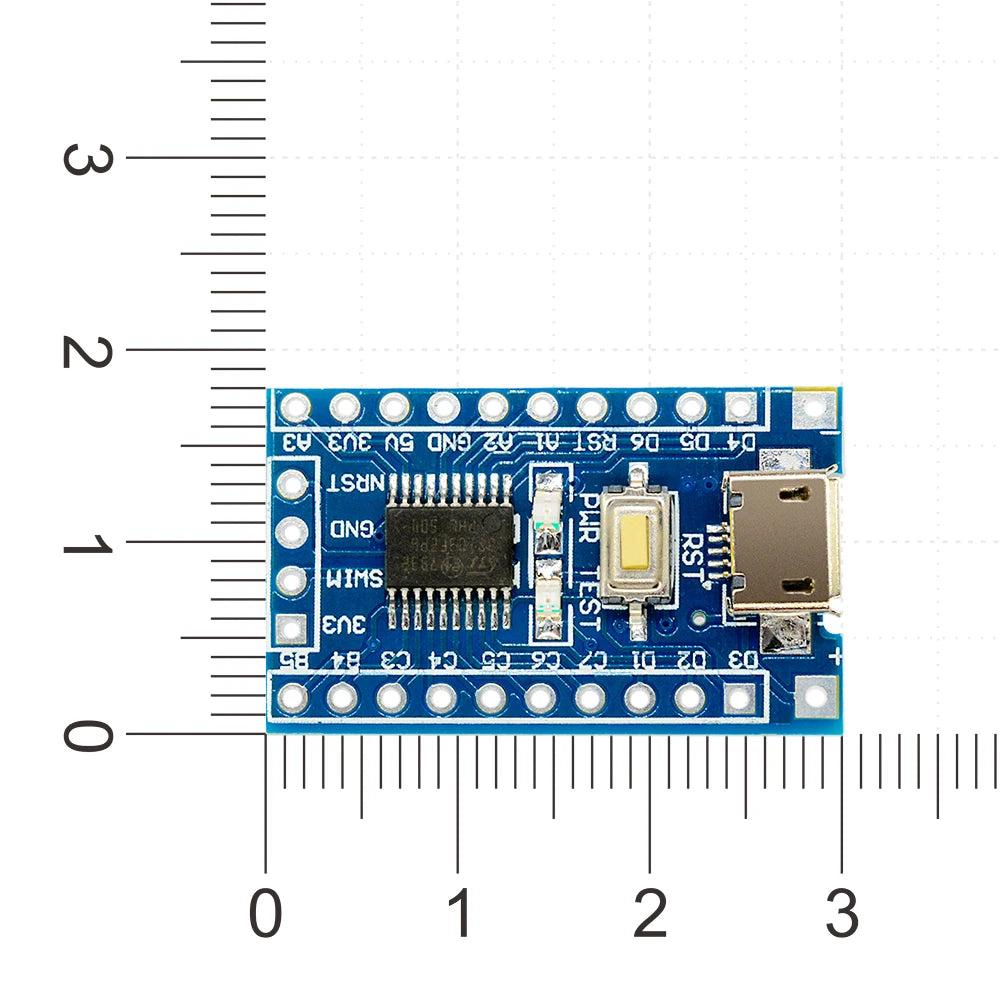

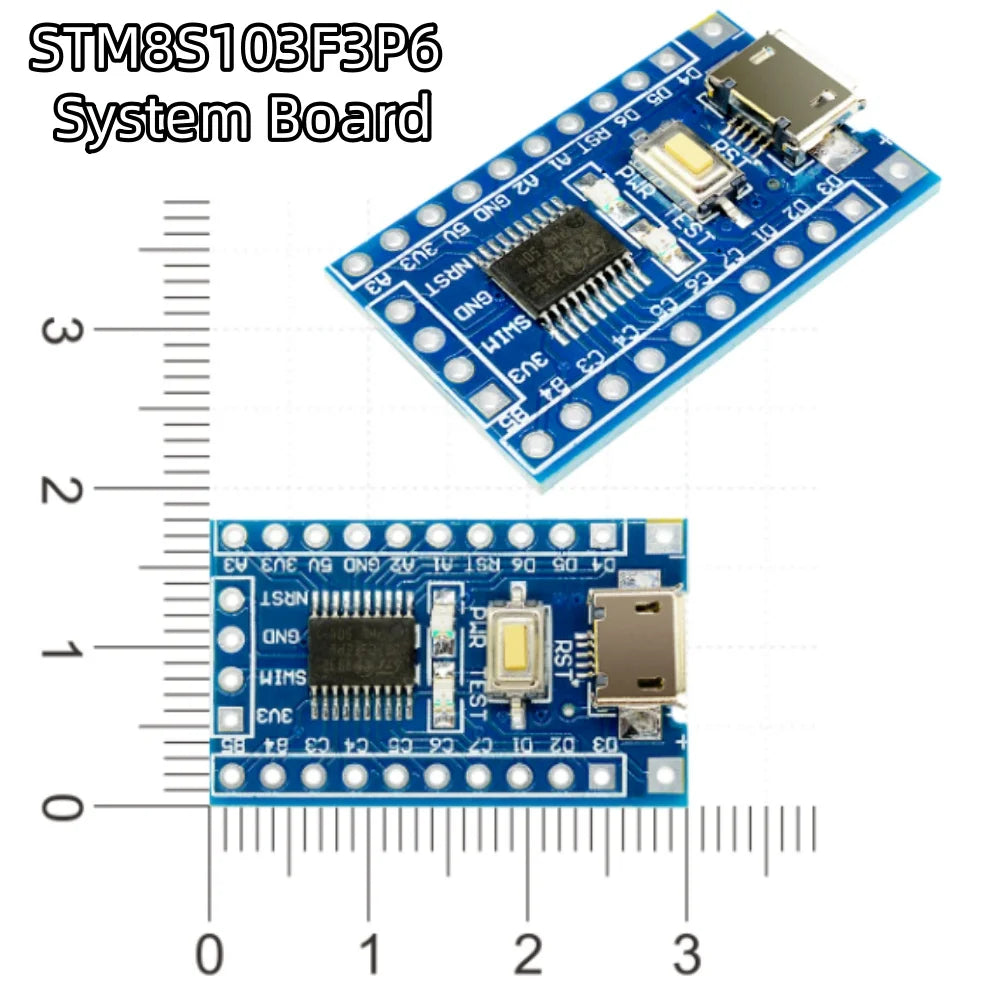

Access to all pins with clearly labeled markings beside each pin. Includes a reset button and power LED. The demo program controls the LED. Though small, it boasts a perfect form factor.
Highlights of the STM8S Core Board:
The development board powers via MicroUSB cable, compatible with smartphone cables. Data lines are straightforward, though it lacks USB MINI power supply—USB MINI cables are hard to find and phased out. MINI-USB ports use third-party components, which may not suit customers.
Affordable pricing, user-friendly design, and complete data save you money, time, effort, and worry!
Key Features of the STM8S Core Board:
1. Utilizes the STM8S103F3P6 as the main IC.

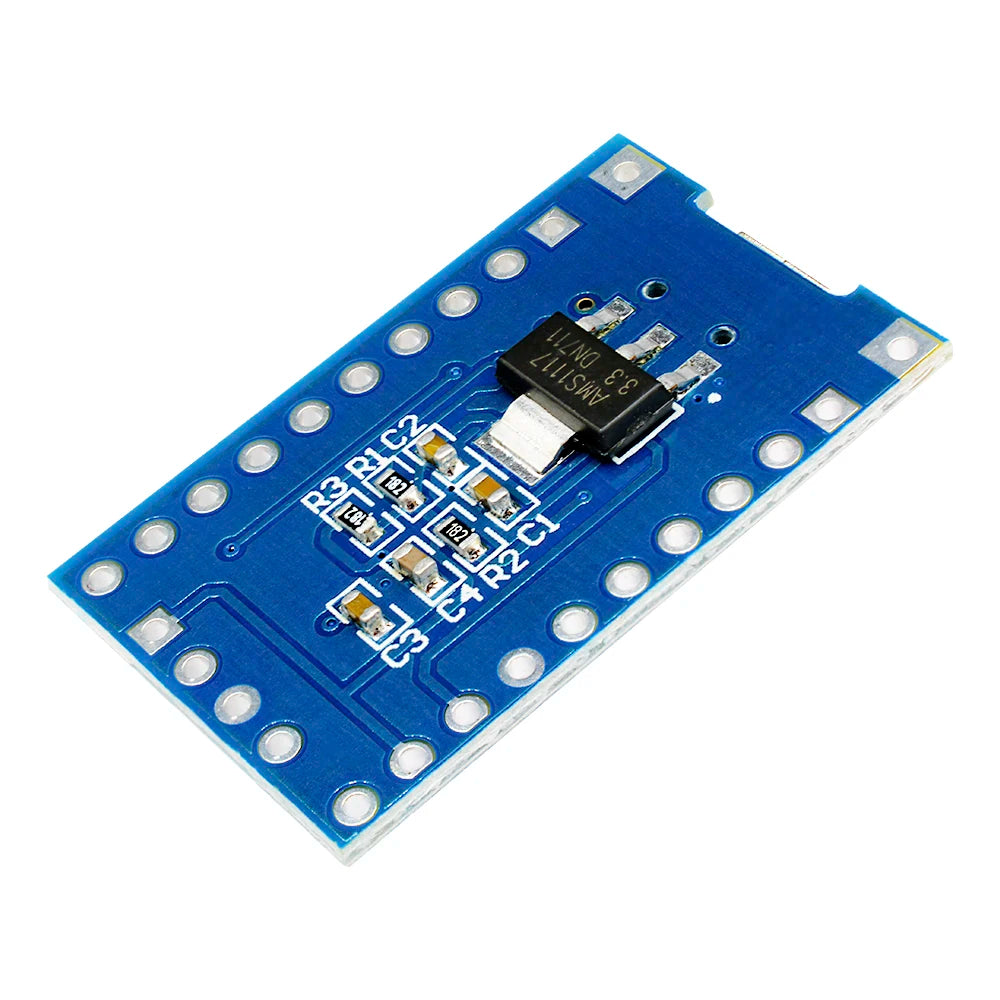

2. Supports either 2.54mm pins or power pads on the board. When using the power pads, the input voltage range is 4.5V-15V, which can be output to external devices via the 3.3V pin!
Note: The 5V pin voltage corresponds to the module's input voltage.

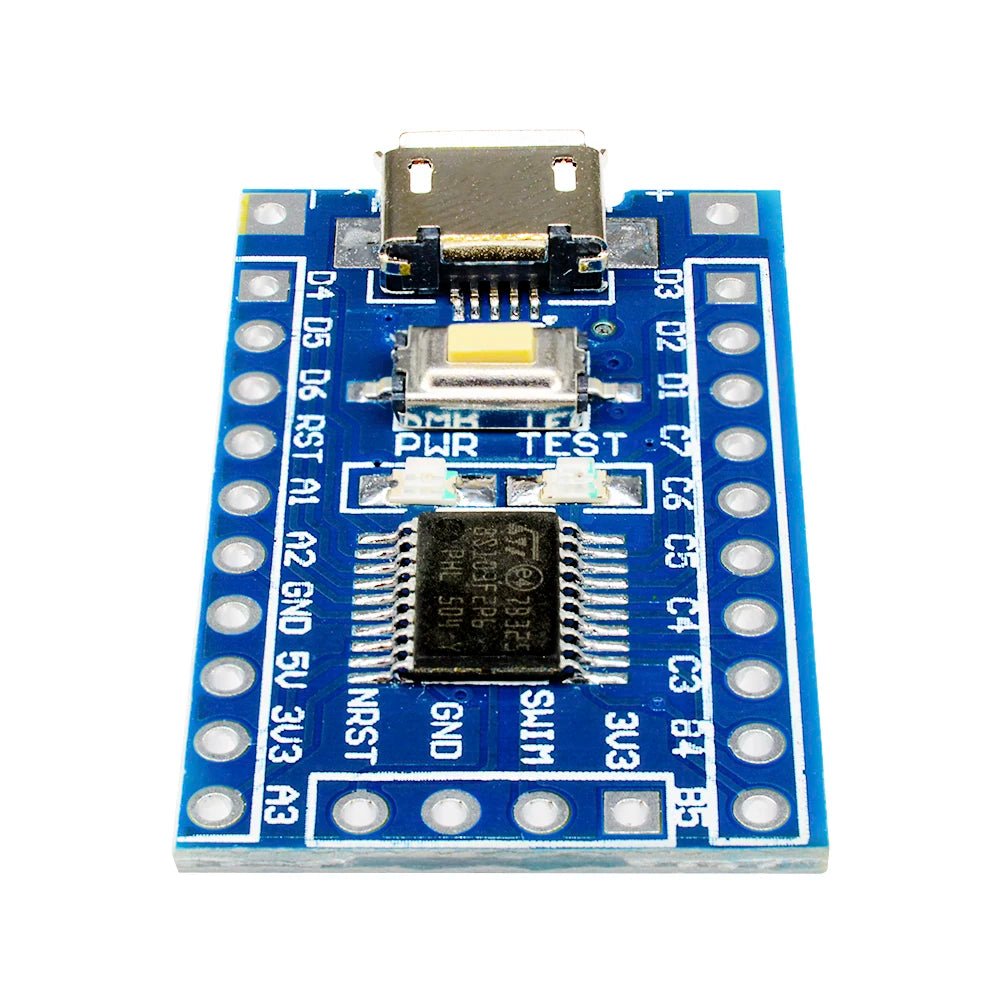

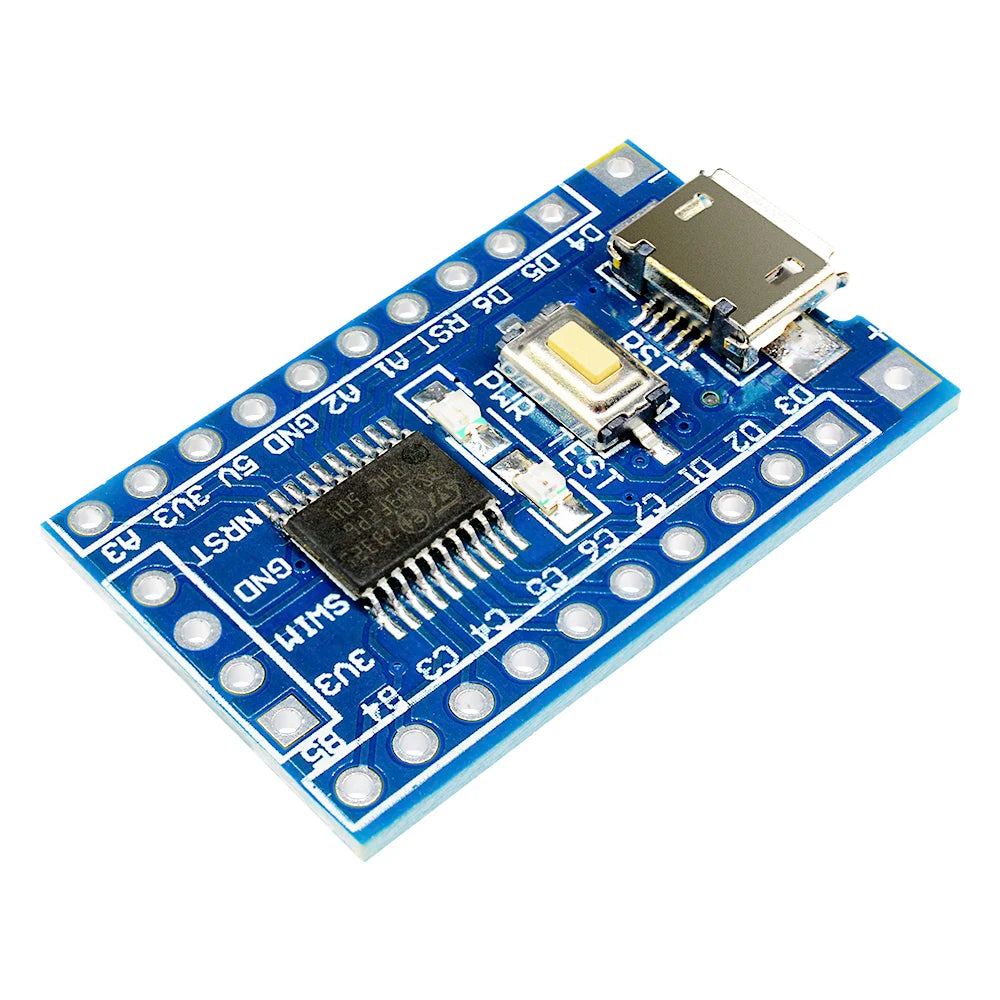

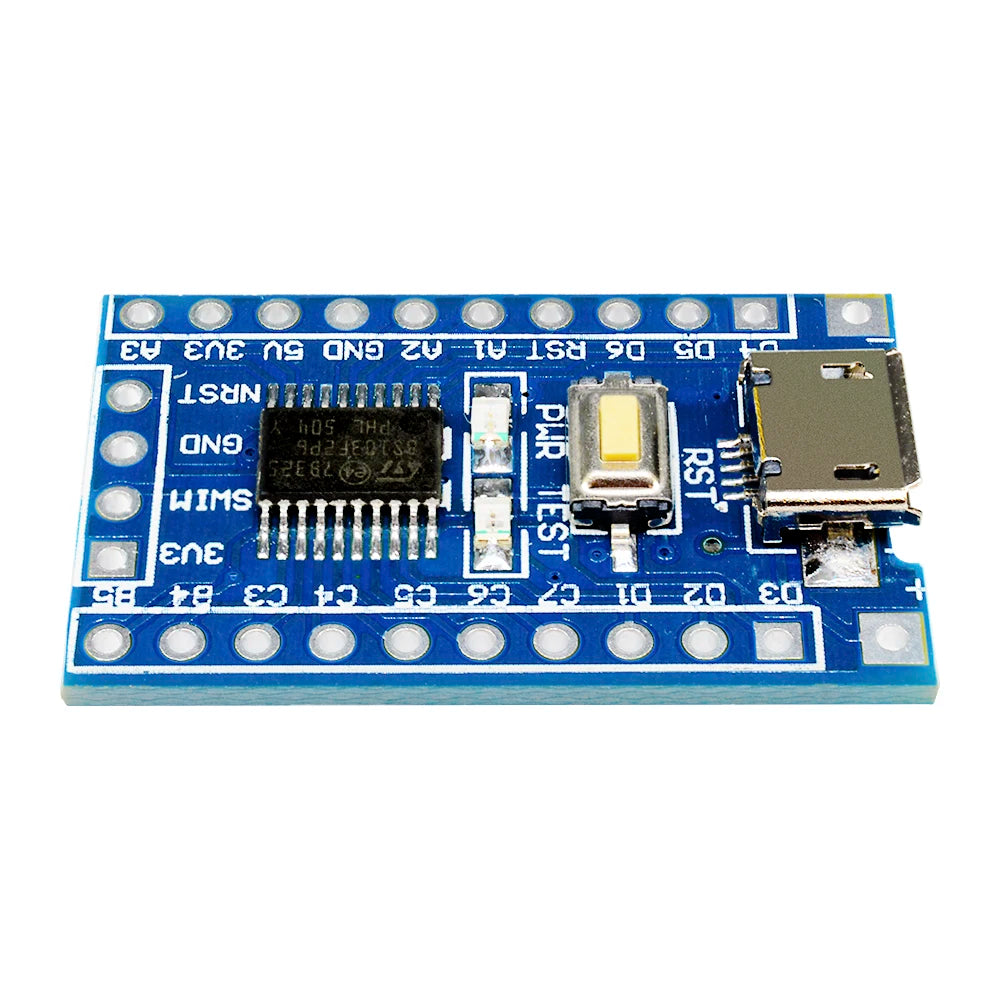

3. Access to all pins with labeled markings beside each pin. Includes a reset button and power LED. The demo program controls the LED—small yet perfectly shaped.
4. Supports SWIM debugging mode.
Technical Information:
Download Links
STM8 Family Program Information: http://pan.baidu.com/s/1dDF3QNJ
STM8 Software Tools IAR+STVP: http://pan.baidu.com/s/1mgKFpSs
Other STM8 Information: http://pan.baidu.com/s/1o6Jpox0
1. Core board schematic (PDF format) and test source. The test program flashes an LED, allowing you to verify core board functionality.
2. Library functions for register operations and routine operations provided in both IAR and STVD development environments. Includes timer routines, general asynchronous transceiver send routines, general serial transceiver receive routines, clock switching routines, AD routines, and more.
3. STM8 Applications.
4. STM8 Program Package Library.
5. IAR Development Environment, STVP Programming Software.
WER Power Amplifier ICE125ASX2 Digital Stereo Channel Amplifier Main Board HIFI Stage Amplifier with Accessories H3-001
Product List
1X Core Board
