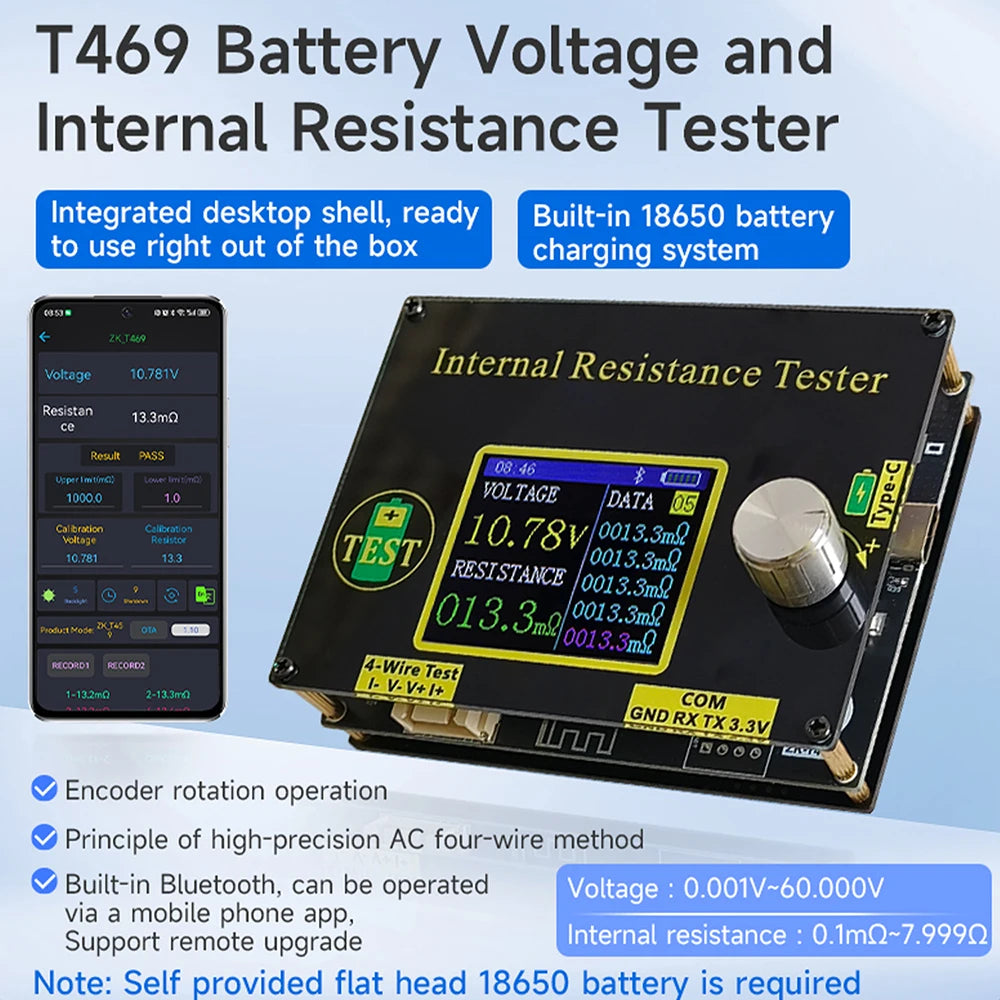

T469 Lithium Battery Voltage Internal Resistance Tester

Discover the T469 Lithium Battery Voltage Internal Resistance Tester — a standout decor pick featuring adjustable, wireless, premium design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Electronic Load Tester

Output Voltage: Electronic Load Tester

Semi-finishedproduct: No

Size: Electronic Load Tester

Style: Electronic Load Tester

Type: Electronic Load Tester

Features:

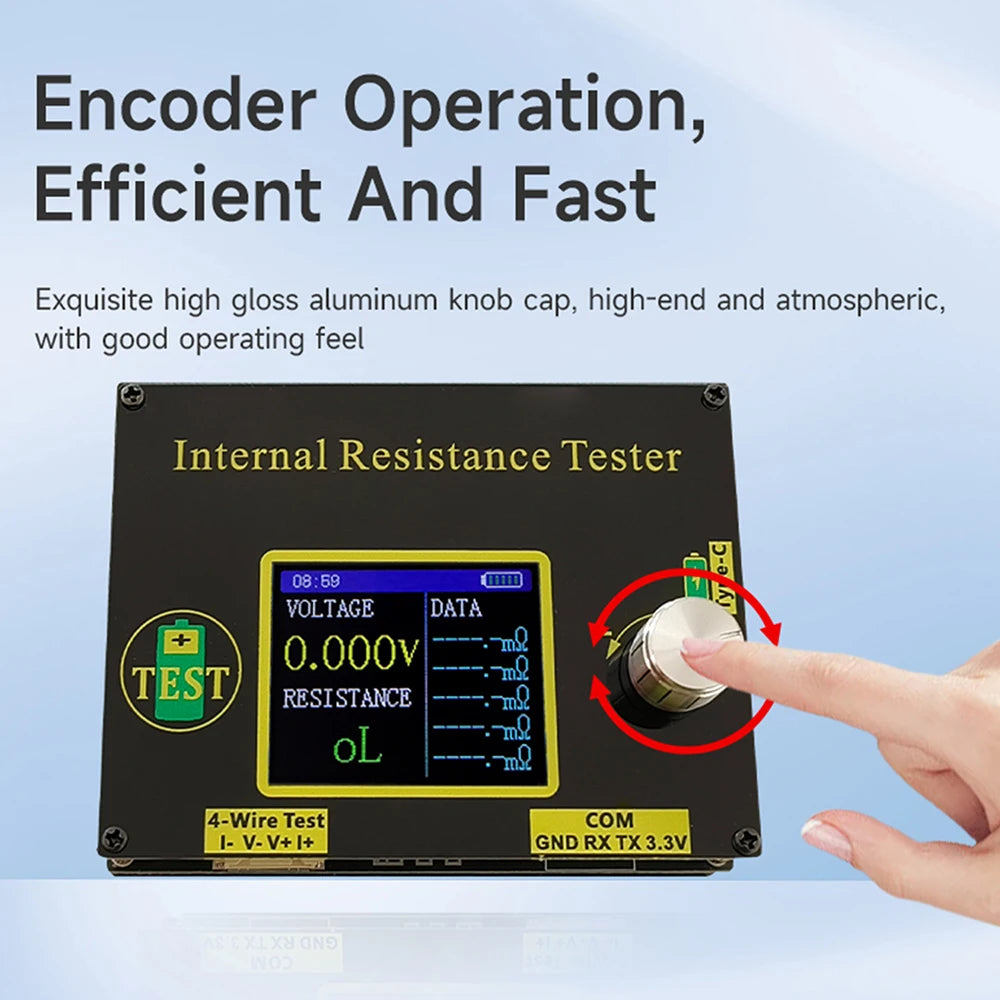

1. High-gloss aluminum knob cap for efficient operation and a premium, refined feel

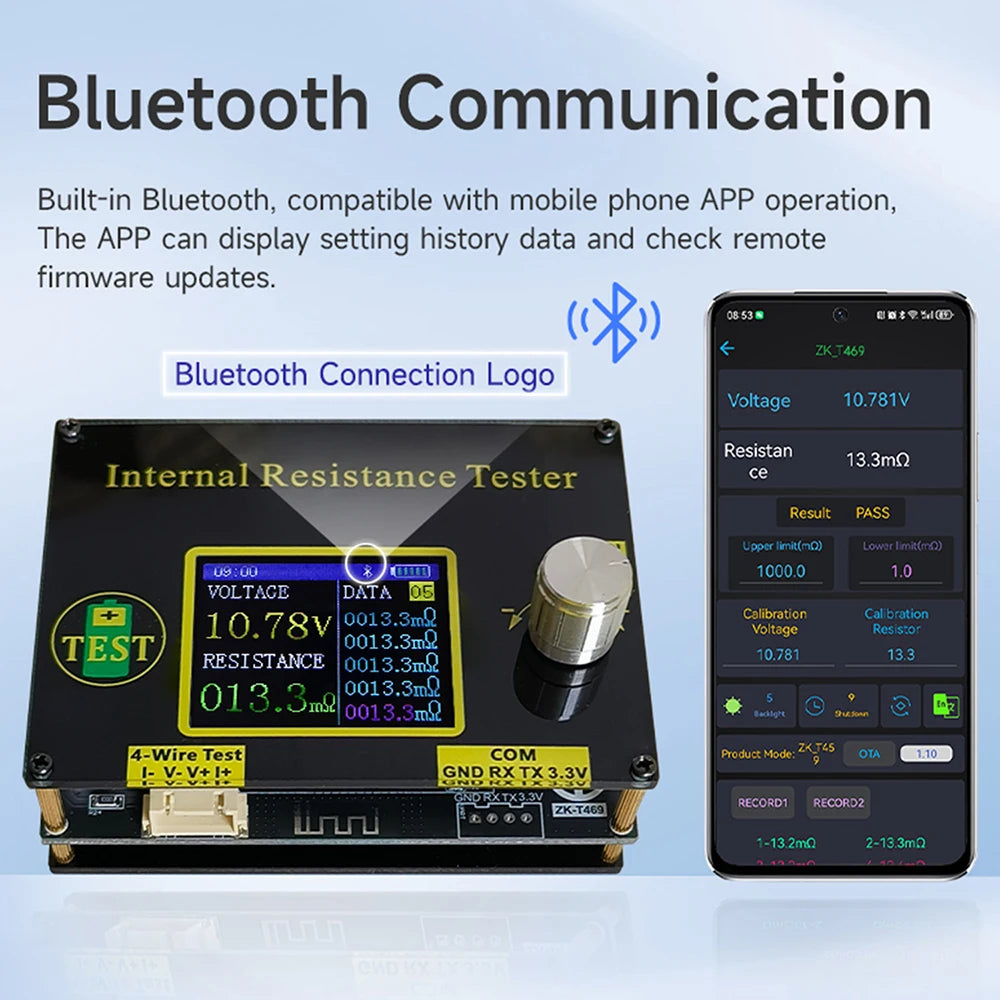

2. Built-in Bluetooth + dedicated app for one-stop remote monitoring and configuration

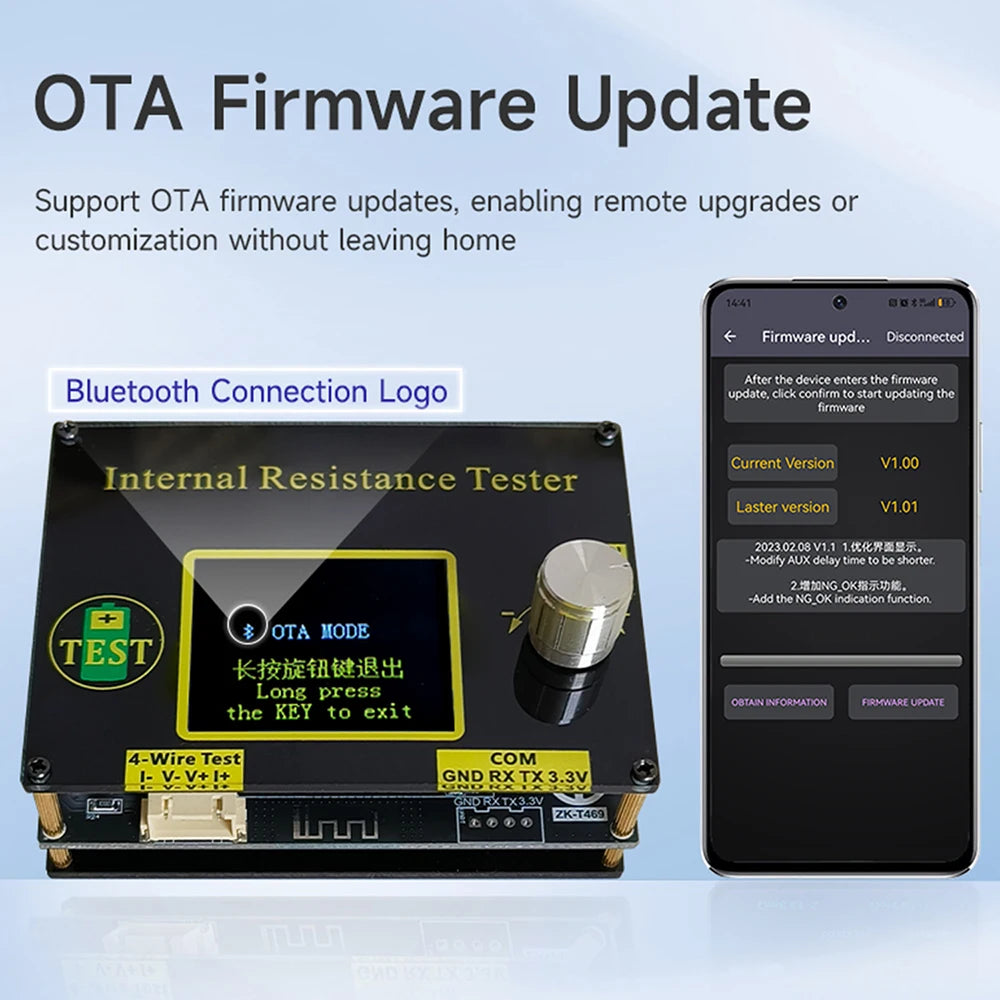

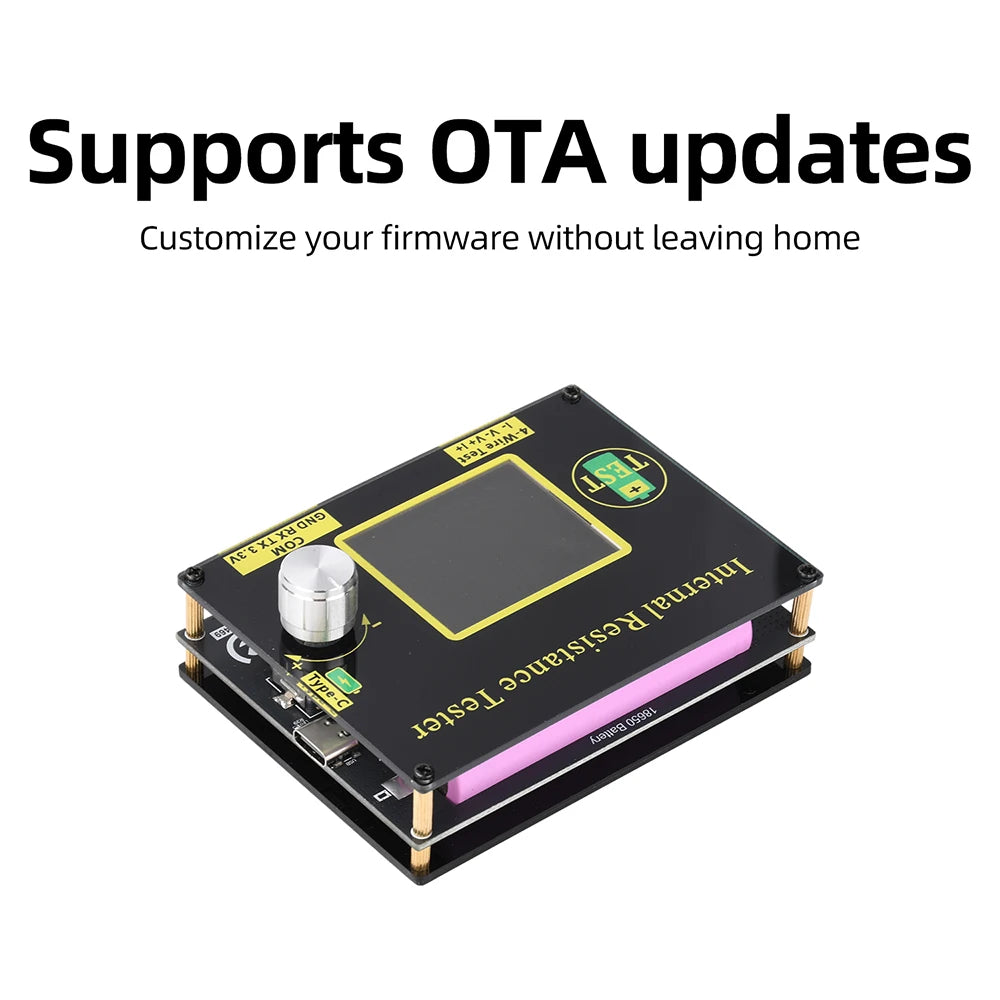

3. Supports OTA wireless updates for firmware customization without leaving your home

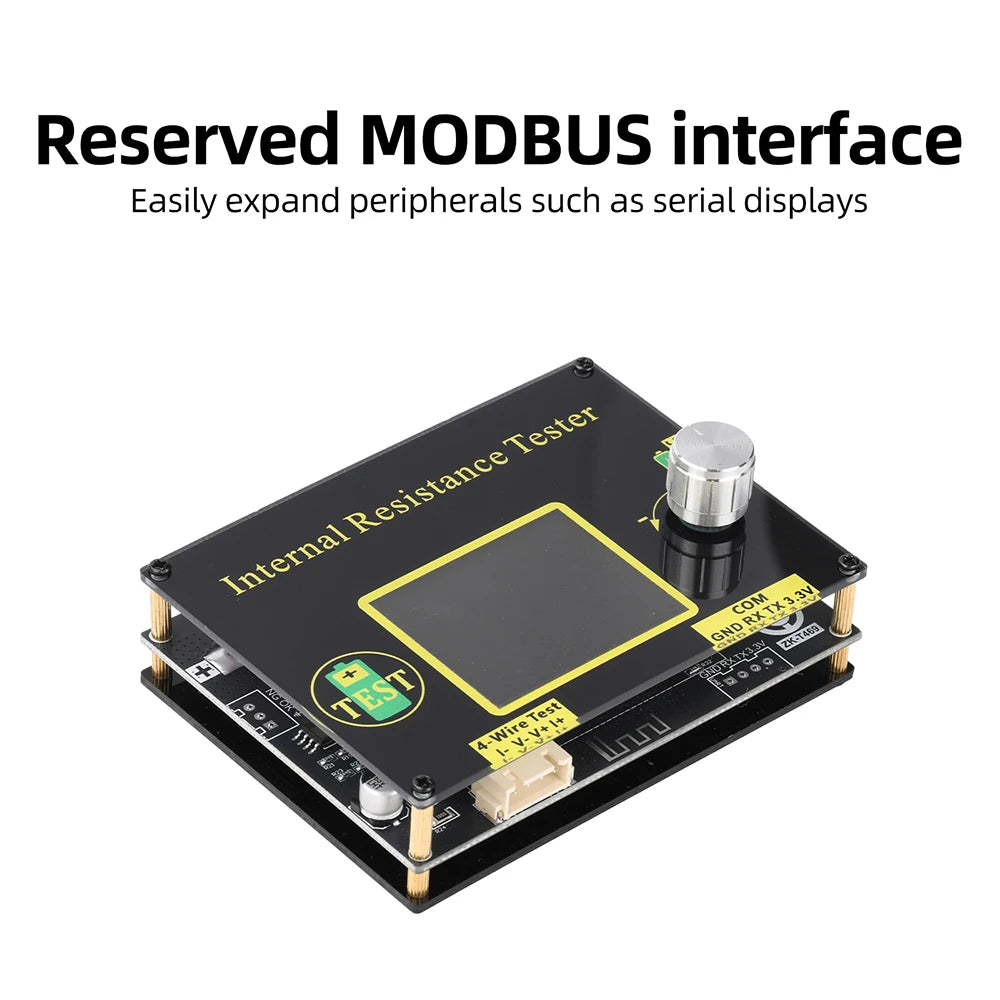

4. Reserved MODBUS interface for easy expansion with peripherals such as serial displays

5. Customizable upper and lower thresholds for intelligent pass/fail determination

6. Open NG/OK signal ports for seamless integration with automated production lines

7. 20 sets of local storage + calibration fine-tuning + 9-level backlight/power-saving adjustment

Product Specifications

Precautions: Do not test AC power; do not test voltages above 60V

Power Supply: DC 5V, 18650 flat-top battery, or lithium battery

Testing Principle: 4-wire AC method

Voltage Measurement Range: 0.001V to 60.00V; Maximum Resolution: 0.001V

Internal Resistance Measurement Range: 0.1mΩ to 7.999Ω; Maximum Resolution: 0.1mΩ

Data Logging: Supports logging of 20 sets of internal resistance measurement data; the meter can store 20 sets of data, but only the most recent 5 sets can be viewed; the app can view all data

Voltage display fine-tuning: Supported

Internal resistance display fine-tuning: Supported

Auto power-off: Supported; standby time adjustable from 1 to 9 minutes

Backlight brightness: Supported; 1 to 9 levels of backlight brightness adjustment

Accessories: , length 400 mm

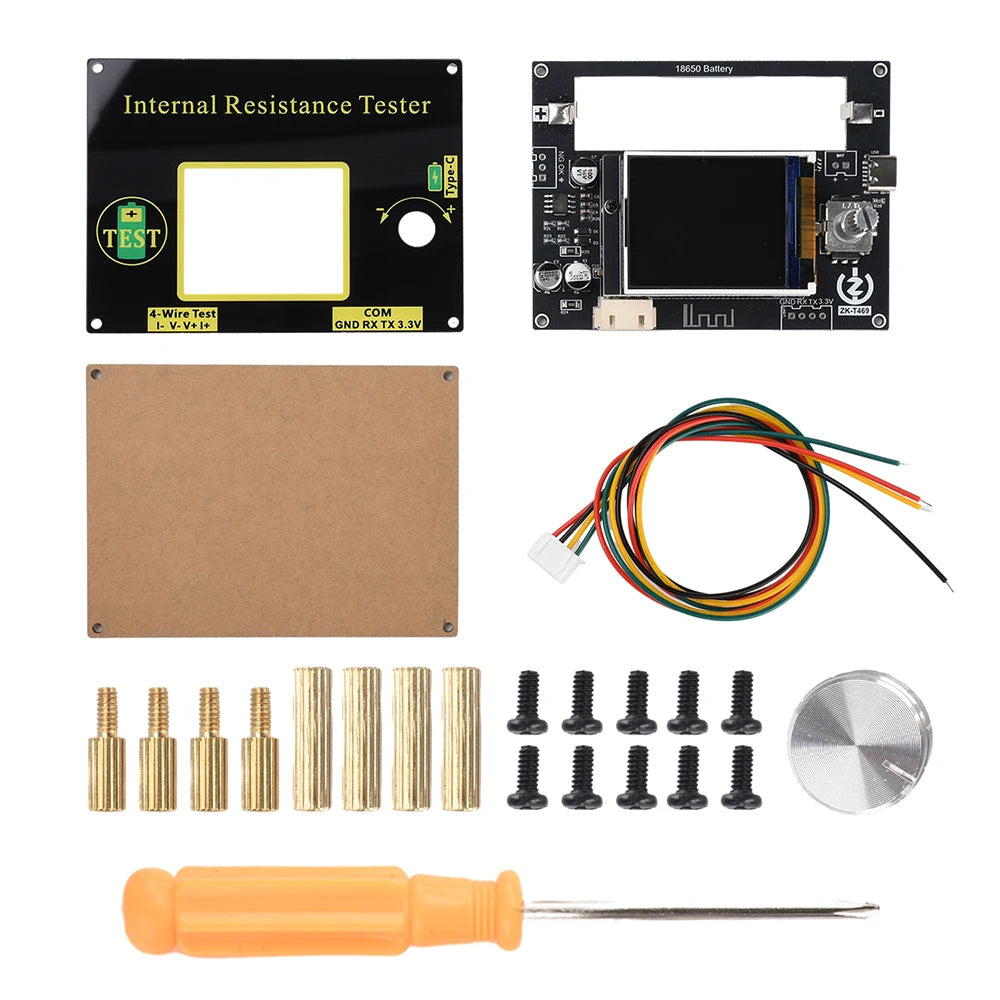

Package Contents

Internal Resistance Tester Kit *1

XH-2.54-4P Signal Acquisition Cable *1

Options

• Color: DC 5V
