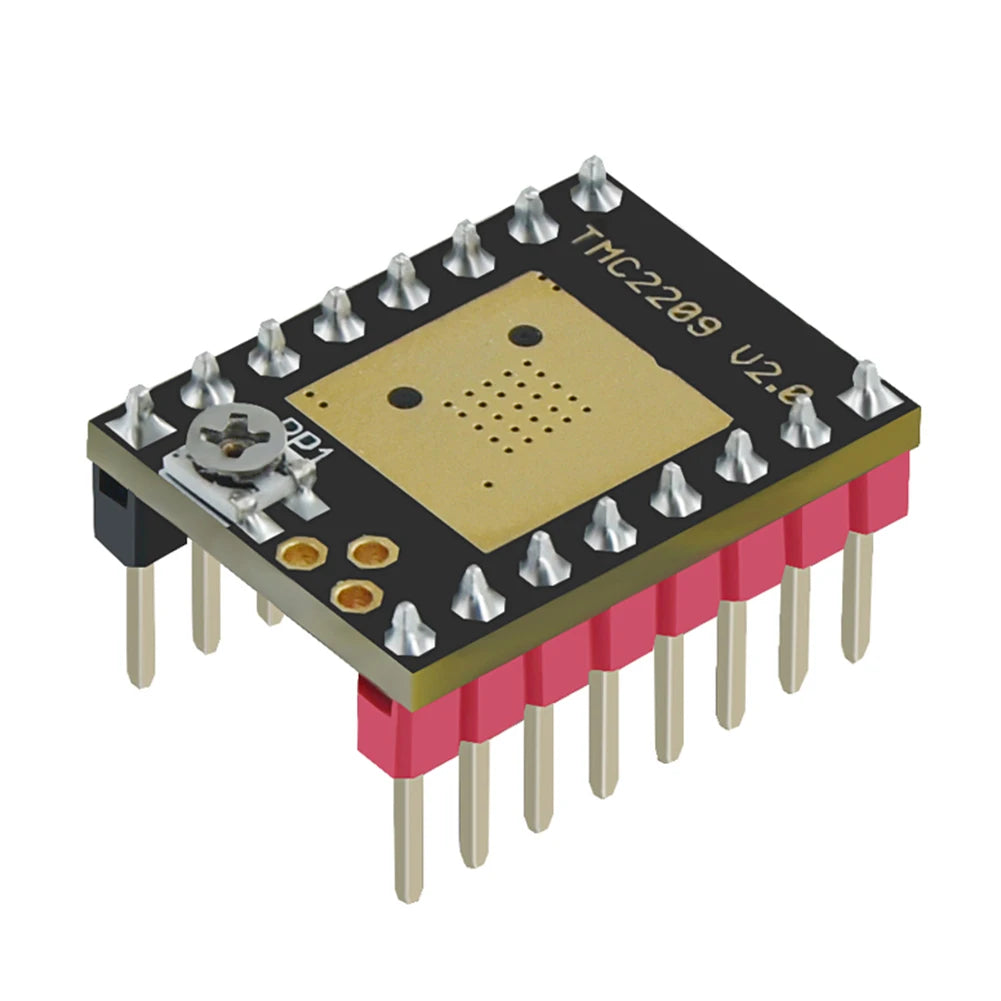

TMC2209 V2.0 Silent Stepper Motor Driver – Ultra-Quiet 2.5A UART Stepstick for 3D Printers

Upgrade your 3D printer with the TMC2209 V2.0 Stepper Motor Driver — a high-performance, ultra-silent stepstick driver that dramatically reduces motor noise, improves print quality, and runs cooler than the competition. Whether you're building or upgrading a 3D printer, this drop-in replacement for the TMC2208 delivers outstanding results right out of the box.

Key Features

• Ultra-Silent Operation: Advanced StealthChop2 technology provides whisper-quiet stepper motor control, making it ideal for home and workshop 3D printing environments.
• 2.5A Peak Current: Handles up to 2.5A peak current (default 1.25A) for powerful and reliable motor control — supporting a wide range of stepper motors.
• Full TMC2208 Compatibility: A true plug-and-play replacement for the TMC2208, with added benefits including higher current capacity and enhanced heat dissipation.

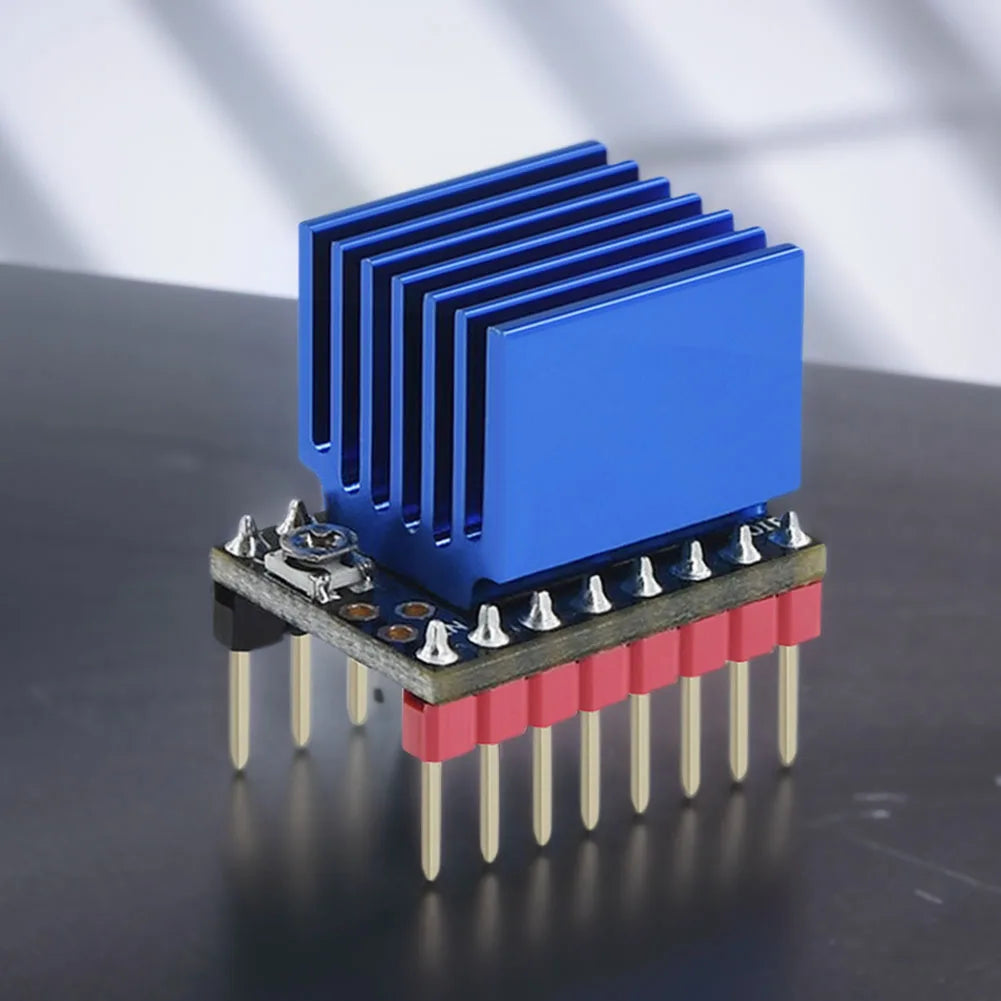

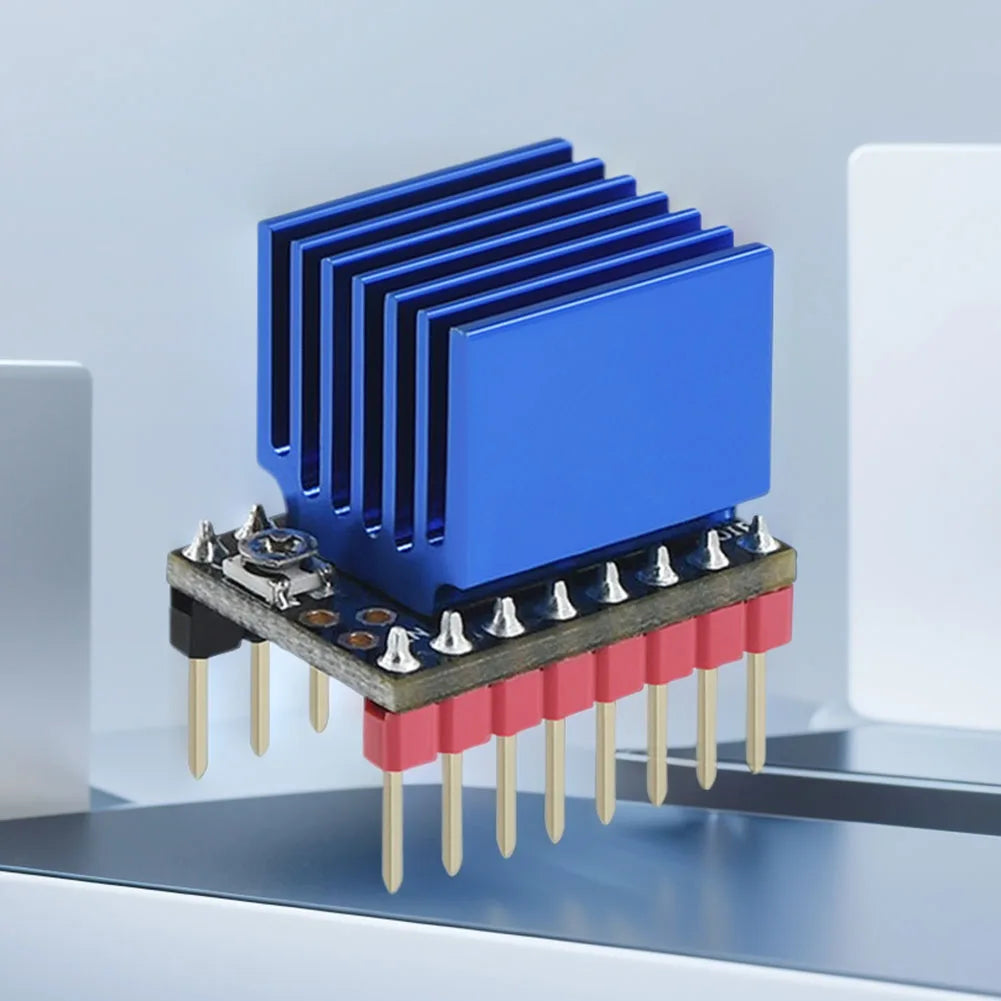

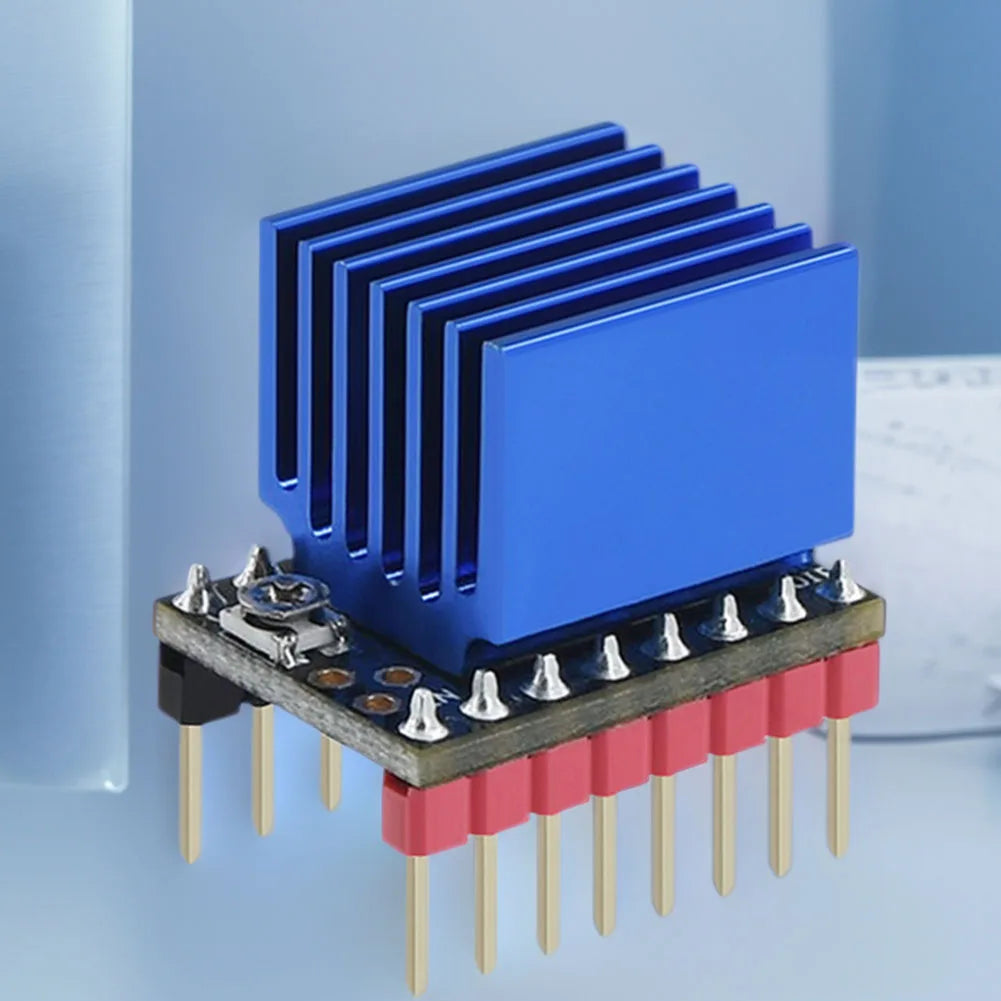

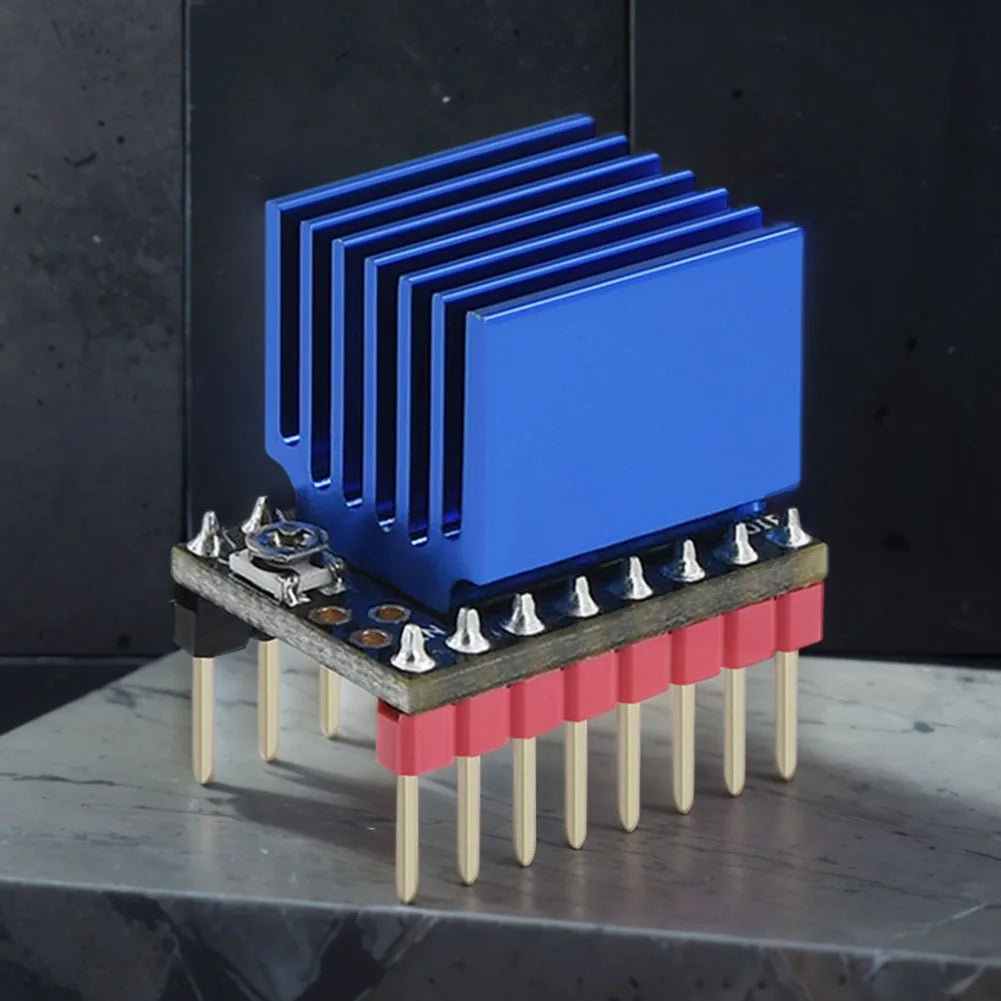

• Built-In Heatsink: Comes equipped with a large integrated heat sink to keep temperatures in check during long print sessions, ensuring consistent performance.
• Sensorless Homing (StallGuard4): Supports sensorless feedback functionality, eliminating the need for physical endstop sensors and simplifying your printer's wiring.
• Easy UART Mode Configuration: Simply add a jumper cap (no soldering required) to enable UART mode on popular boards including KS Gen_L V2.0, SKR 1.3/1.4, and MKS SGen_L.
• Up to 1/256 Microstepping: Delivers extremely smooth motor motion with microstepping resolution up to 1/256, resulting in finer detail and better print surface quality.
• Wide Voltage Range: Operates on an input voltage of 5.5V–28V with 3.3V/5V logic compatibility, making it versatile across many control board setups.

Technical Specifications

What's in the Box

• 1 × TMC2209 V2.0 Stepper Motor Driver (with heatsink)

Compatible Boards

Works with a wide range of popular 3D printer controller boards, including:

• KS Gen_L V2.0
• SKR 1.3 / 1.4
• MKS SGen_L
• Any board compatible with TMC2208/TMC2209 pinout

Related Products You May Like

• 10-Pack 22AWG Glass Tube Fuse Holder 5x20mm & 6x30mm Screw – Great for wiring and electronics projects
• 140W USB-C Fast Charger with Auto Power-Off Overcharge Protection – Keep your devices powered safely

Further Reading

For guidance on electronics safety standards and component quality, visit the U.S. Consumer Product Safety Commission (CPSC) for relevant consumer electronics safety information.

Note: Due to monitor settings and lighting conditions, the actual product color may vary slightly from images shown. Please allow ±1–2cm measurement deviation due to manual measurement.

Frequently Asked Questions

Q: Is the TMC2209 V2.0 a drop-in replacement for the TMC2208?

A: Yes! The TMC2209 V2.0 stepper motor driver is fully compatible with the TMC2208 pinout, making it a direct plug-and-play replacement. It also offers improvements over the TMC2208, including higher peak current (2.5A vs 1.4A), better heat dissipation via the integrated heatsink, and added sensorless homing (StallGuard4) support.

Q: How do I enable UART mode on the TMC2209 V2.0?

A: Enabling UART mode is easy — no soldering required. Simply add a jumper cap to the designated UART header on the driver board. This allows the driver to communicate with supported controller boards such as SKR 1.3/1.4, KS Gen_L V2.0, and MKS SGen_L via UART protocol for advanced configuration options.

Q: What is the maximum microstepping resolution supported?

A: The TMC2209 V2.0 supports microstepping resolutions up to 1/256, which results in extremely smooth and precise stepper motor movement. This translates to better print surface quality, reduced vibration, and quieter operation compared to lower-resolution drivers.

Q: Does the TMC2209 V2.0 support sensorless homing?

A: Yes. The TMC2209 V2.0 includes StallGuard4 technology, which enables sensorless homing. This feature detects motor stall conditions, allowing your 3D printer to home its axes without physical endstop switches — simplifying your build and reducing wiring complexity.
