Tonearm Cartridge Alignment Ruler – Stylus Overhang LP Vinyl Tool

Precision Tonearm Alignment Made Simple

Get your vinyl setup sounding its absolute best with this compact Headshell Cartridge Alignment Ruler. Designed for audiophiles and turntable enthusiasts alike, this handy tool takes the guesswork out of stylus overhang and cartridge positioning — so every record plays with optimal clarity and channel balance.

Using the SME-style alignment method with a precise 52mm stylus-to-tonearm-joint reference distance, this ruler gives you clearly visible, accurate measurements at a glance. Whether you're mounting a new cartridge or fine-tuning an existing setup, this is an essential accessory for any serious LP listener.

Key Features

• SME-Style Alignment: 52mm stylus-to-tonearm joint reference for accurate overhang adjustment
• Multi-Function Design: Works as both a measurement ruler and a convenient resting stand for cartridge and headshell kits
• Easy Leveling & Centering: Simplifies overhang, leveling, and centering when mounting phono cartridges
• Universal Compatibility: Suitable for most turntables and tonearm configurations
• Compact & Portable: Small form factor (approx. 3 × 6.5 cm / 1.18 × 2.56 in) — fits neatly in any record care kit
• Durable Plastic Construction: Lightweight yet sturdy for repeated use

Specifications

• Material: Plastic
• Alignment Method: SME-style
• Reference Distance: 52mm (stylus to tonearm joint)

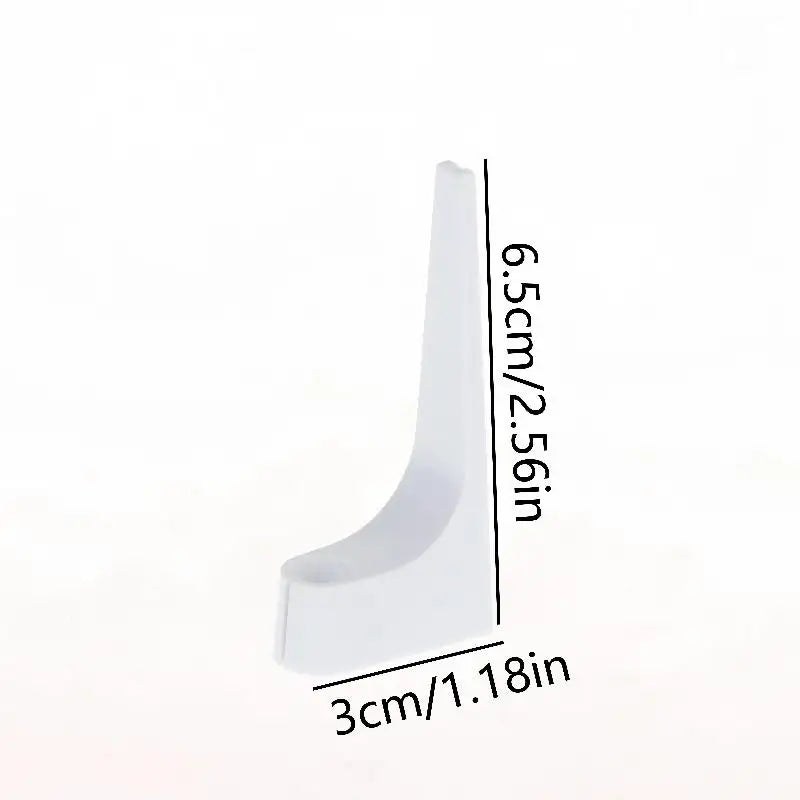

• Dimensions: Approx. 3 × 6.5 cm / 1.18 × 2.56 in
• Compatible Speeds: 33 & 45 RPM turntables
• Package Includes: 1 × Alignment Ruler
• Country of Origin: Made in China

Note: Due to manual measurement, a tolerance of up to 5mm may exist. Slight color differences from product images may occur due to lighting conditions.
