Turret Boring & End Face Tool Holder LS-120/160A/200

Turret Boring & End Face Tool Holder – LS-120 / 160A / 200

Upgrade your lathe setup with this precision-engineered Turret Boring and End Face Tool Holder, designed for compatibility with LS-120, LS-160A, and LS-200 turret lathes. Whether you're machining cast iron or steel components, this versatile tool holder delivers consistent positioning, rigid clamping, and reliable performance across a range of turning and boring operations.

Available in multiple configurations to suit your exact machining needs — from end-face operations to internal boring — each variant is built to exacting tolerances for accurate, repeatable results on the shop floor.

Available Variants

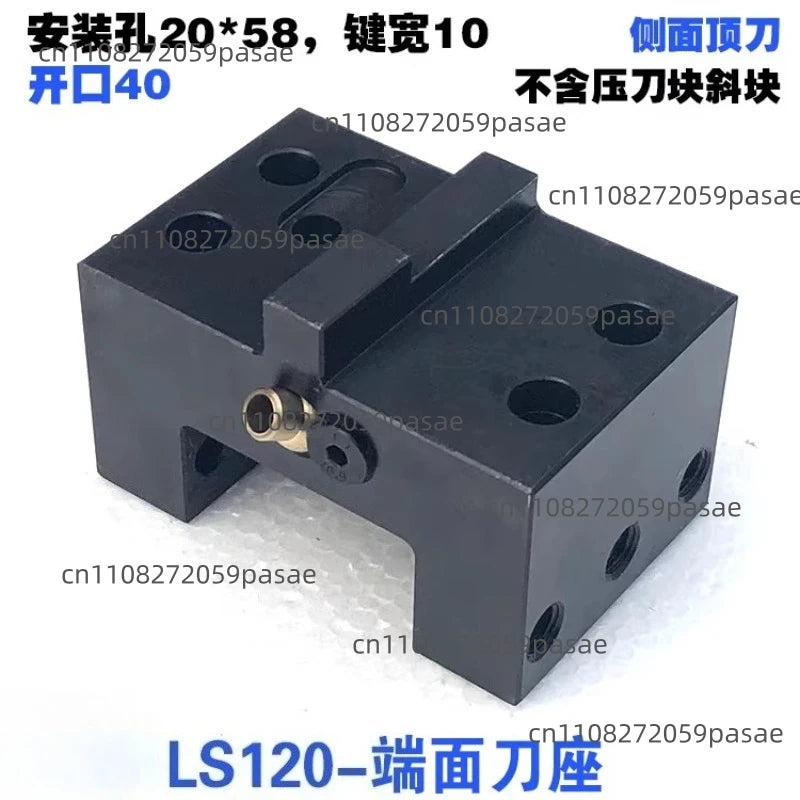

• A: LS120 – End Face – 20×58 – Key 10 – Opening 40

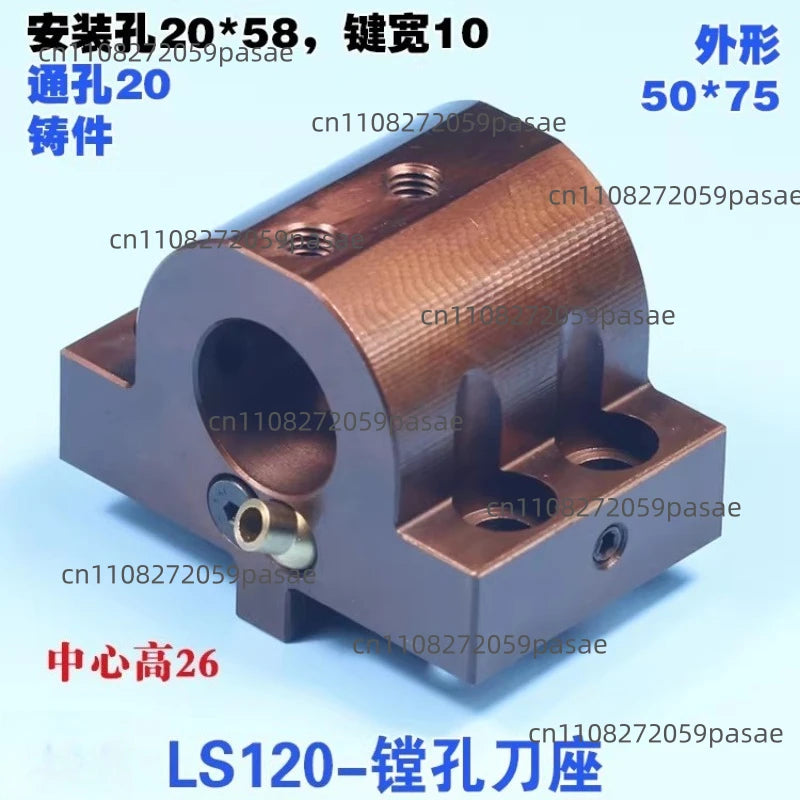

• B: LS120 – Boring – 20×58 – Key 10 – Hole 20 – Cast Iron

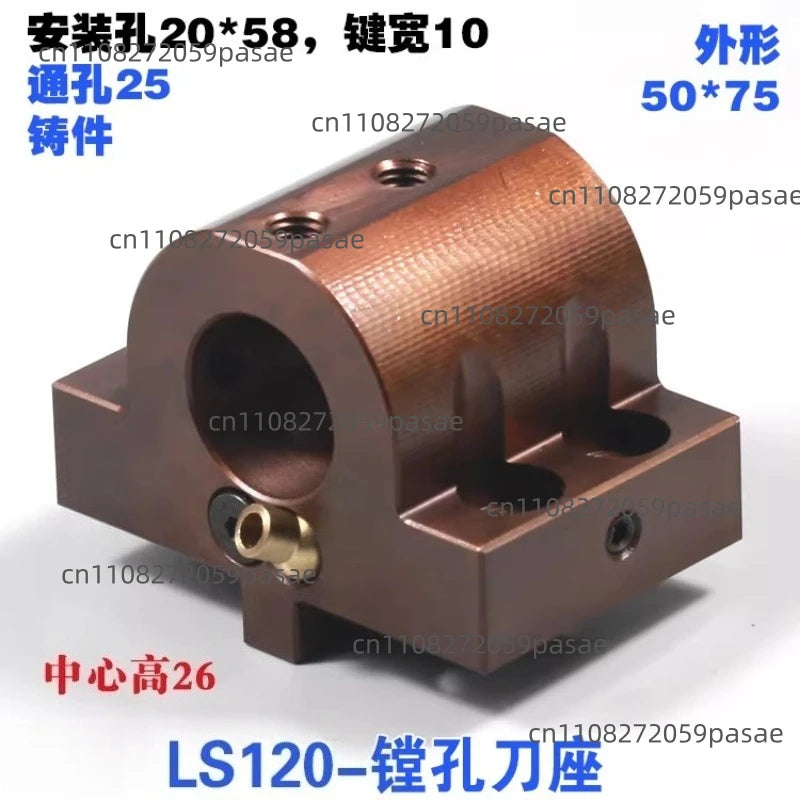

• C: LS120 – Boring – 20×58 – Key 10 – Hole 25 – Cast Iron

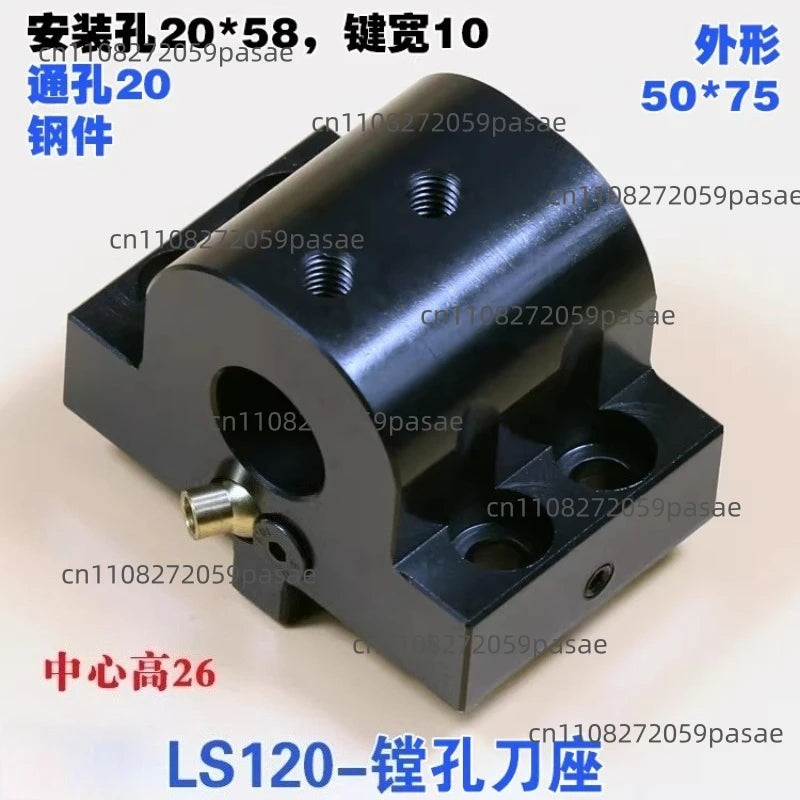

• D: LS120 – Boring – 20×58 – Key 10 – Hole 20 – Steel Parts

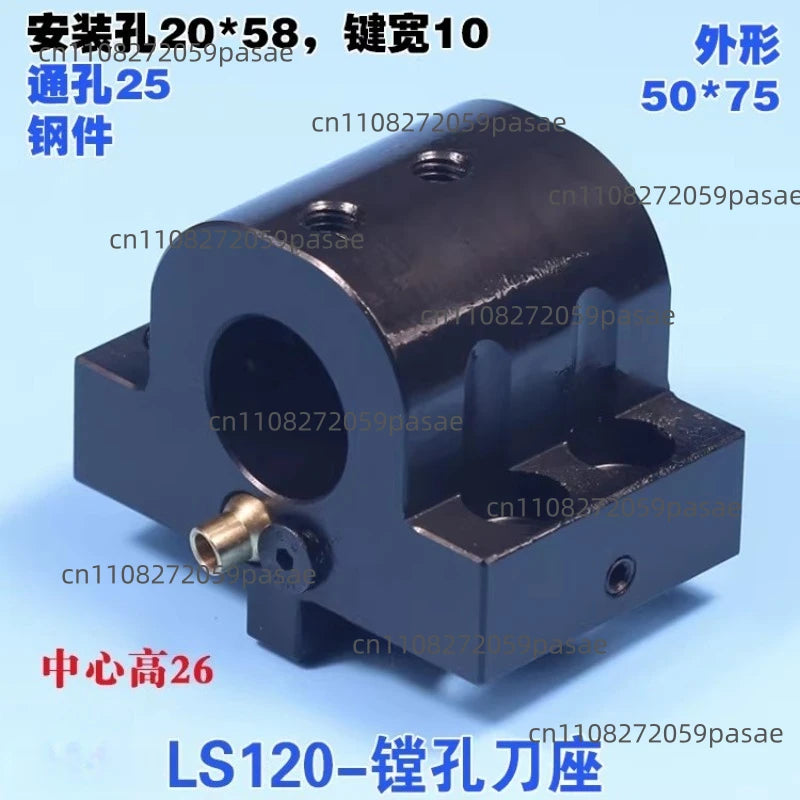

• E: LS120 – Boring – 20×58 – Key 10 – Hole 25 – Steel Parts

Key Features

• Multi-Model Compatibility: Designed for LS-120, LS-160A, and LS-200 turret lathes — a single, flexible solution for multiple machine platforms.
• End Face & Boring Options: Choose the right holder for end-face turning or internal boring operations, with variants for both cast iron and steel workpieces.
• Precision Shank Dimensions: 20×58 mm shank with 10 mm keyway for secure, repeatable positioning with minimal runout.
• Robust Construction: Made from high-grade materials to withstand the demands of continuous industrial machining.
• Multiple Bore Sizes: Available with 20 mm and 25 mm bore hole configurations to match your tooling requirements.
• Rigid Clamping: Engineered for solid tool retention, reducing chatter and improving surface finish quality.

Specifications

• Compatible Models: LS-120, LS-160A, LS-200
• Shank Size: 20×58 mm
• Key Width: 10 mm
• Bore Options: 20 mm / 25 mm
• Material Options: Suitable for cast iron and steel workpieces
• Country of Origin: Made in China

Why Choose This Tool Holder?

Machinists and workshop professionals rely on consistent, well-fitting tooling to maintain production efficiency. This turret tool holder eliminates guesswork with clear variant options and standard dimensions, making it straightforward to match to your existing lathe setup. Its durable build means it handles high-cycle production runs without losing accuracy.

For more information on safe machining practices and machine tool standards, visit the OSHA Machine Guarding resource page.

Related Products You May Like

• 1/4" Hex Wire Twister Drill Attachment – Rebar Tie Wire Tool
• 1/4" & 3/8" to M4–M10 Thread Conversion Screw Mount Adapter

Frequently Asked Questions

Q: Which lathe models is this turret boring tool holder compatible with?

A: This tool holder is designed specifically for LS-120, LS-160A, and LS-200 turret lathes. The 20×58 mm shank and 10 mm keyway ensure a precise fit on all three compatible machine models.

Q: What is the difference between the cast iron and steel parts variants?

A: The cast iron variants (B & C) are optimized for boring cast iron workpieces, while the steel parts variants (D & E) are engineered for machining steel components. Selecting the correct variant ensures optimal cutting performance and tool longevity for your specific material.

Q: What bore sizes are available for the boring tool holder?

A: The boring tool holders are available with either a 20 mm or 25 mm bore hole, giving you flexibility to match your existing boring bars and tooling setup.

Q: Is this tool holder suitable for continuous production use?

A: Yes. This tool holder is built from high-grade materials with rigid clamping geometry, making it well-suited for high-cycle, continuous production environments where dimensional consistency and durability are critical.
