C 3 Levels Adjustable Fog Volume Single Spray Humidifier Module Mist

Discover the C 3 Levels Adjustable Fog Volume Single Spray Humidifier Module Mist — a standout decor pick featuring adjustable, lightweight, compact design for dependable, everyday performance.

Specifications

Electric: No

Type: Humidifier Parts

Product Features:

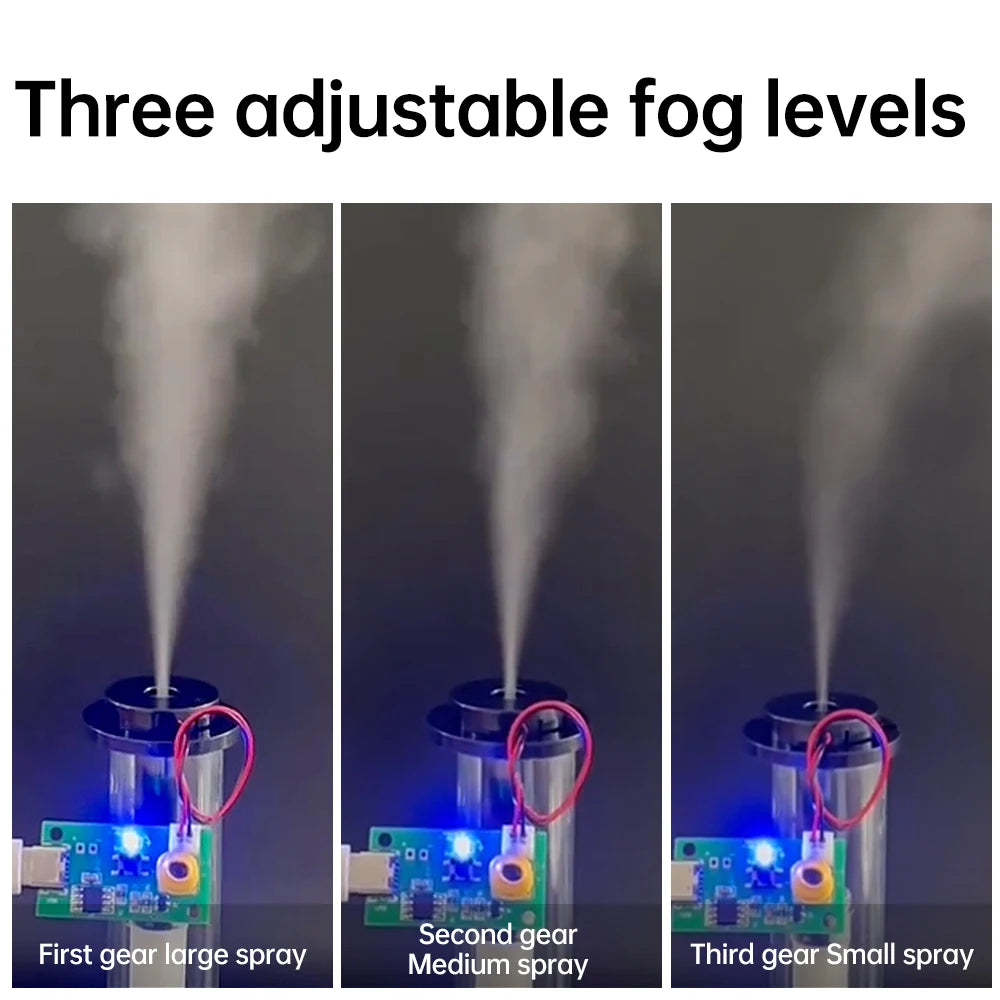

1. Three-level mist output adjustment: Meets diverse environmental needs with flexible misting effects for enhanced adaptability.

2. High-efficiency atomization: Micro-pore atomization plate with a resonant frequency of 108-110KHz delivers fine, uniform mist.

3. Low-power design: Rated power 1.5-2W for effective energy savings, ideal for prolonged stable operation.

4. Compact and lightweight structure: Small footprint for easy integration into various devices.

5. Convenient operation: Simple four-step installation; activates upon water contact for effortless use.

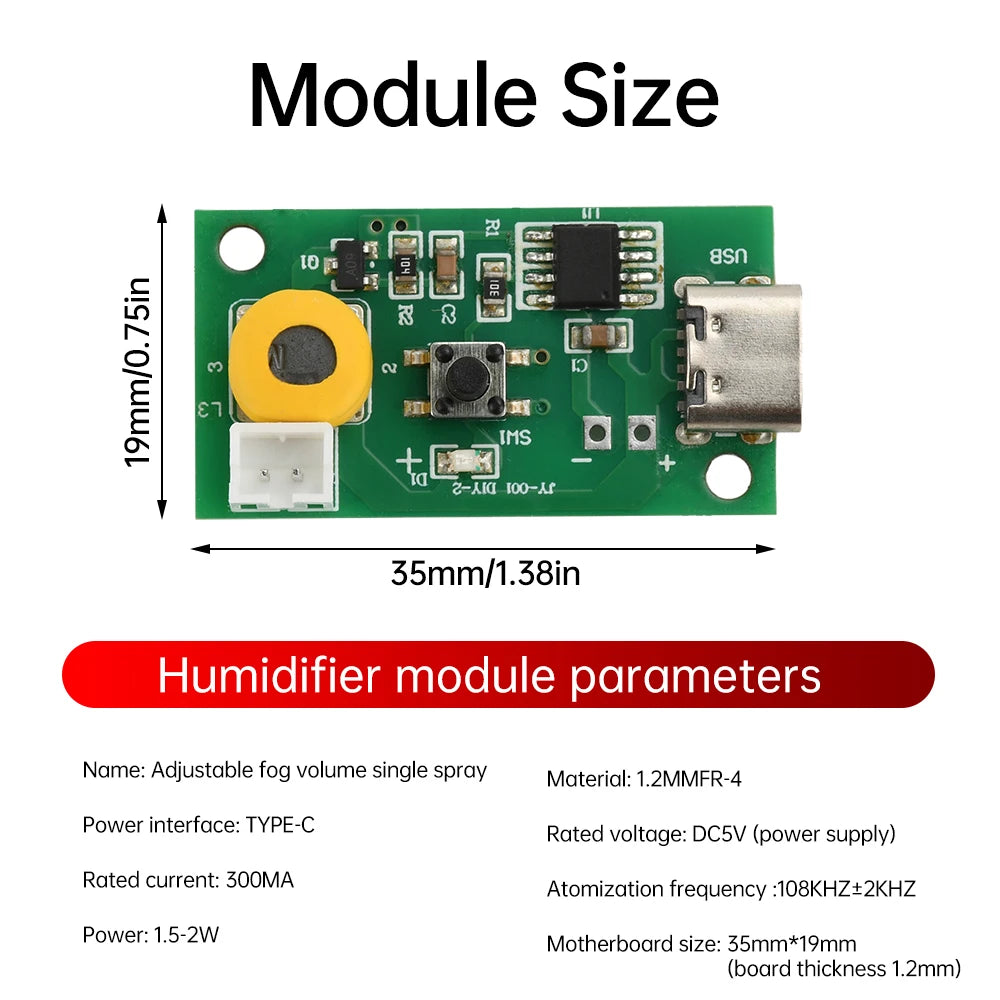

Module Specifications:

Name: Single-nozzle adjustable mist output

Material: 1.2MM FR-4

Power Interface: Type-C

Rated Voltage: DC5V (Power Supply)

Rated Current: 300mA

Power: 1.5-2W

Atomization Frequency: 108kHz ± 2kHz

Mainboard Dimensions: 35mm × 19mm (Board Thickness: 1.2mm)

Atomization Plate Parameters:

Name: Micro-Pore Atomization Plate

Drive Voltage: 5V

Resonance Frequency: 108-110kHz ± 5kHz

Rated Power: 2W

Pore Size: 4-5μm

Number of Holes: 800

Silicone Sleeve Outer Diameter: 20mm

Rubber Ring Thickness: 3mm

Steel Plate Diameter: 16mm

Wire Length: 100mm

Wire Terminal: PH2.0

Plastic Holder Cotton Swab: 100mm x 8mm

Usage Instructions:

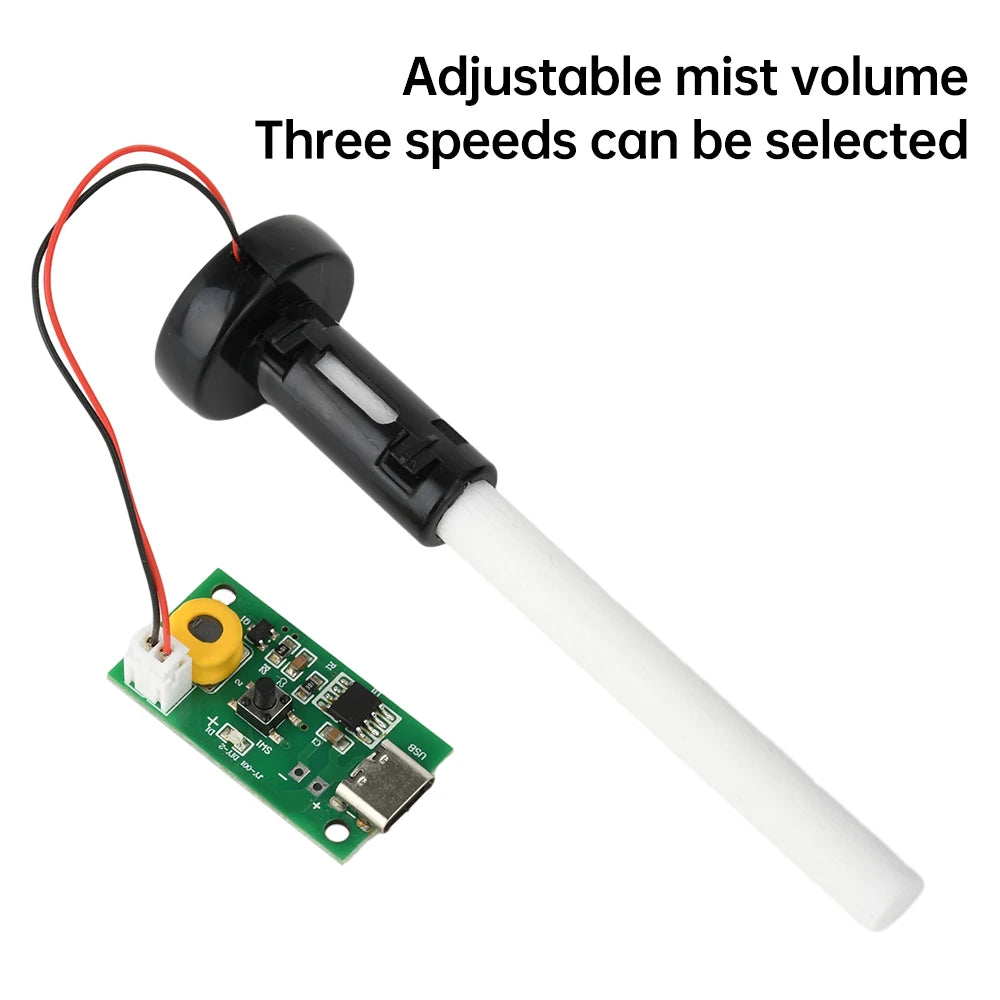

1. First install the atomizer sheet onto the cotton swab holder

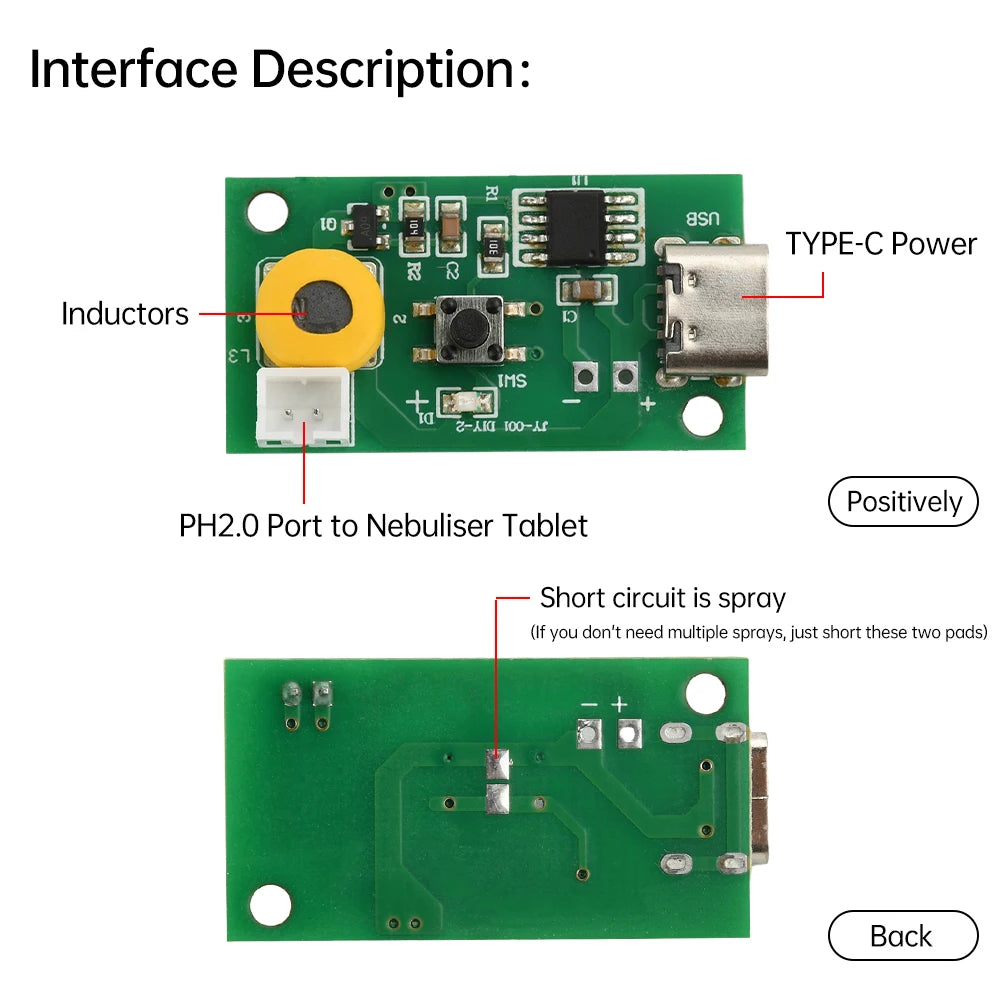

2. Connect the atomizer sheet to the atomizer port on the module

3. Then connect the power supply to the power port on the module

4. Press the power switch

5. The atomizer sheet will spray mist upon contact with water

Precautions:

1. Never puncture the atomizer sheet; do not bend or pull the solder joints

2. Never power on without an atomizer sheet connected

3. Never use a fast charger.

4. Never modify the module.

5. Keep the module away from water.

6. Position the full steel plate (raised side) downward for contact; the cotton swab absorbs water.

7. Use rated power input.

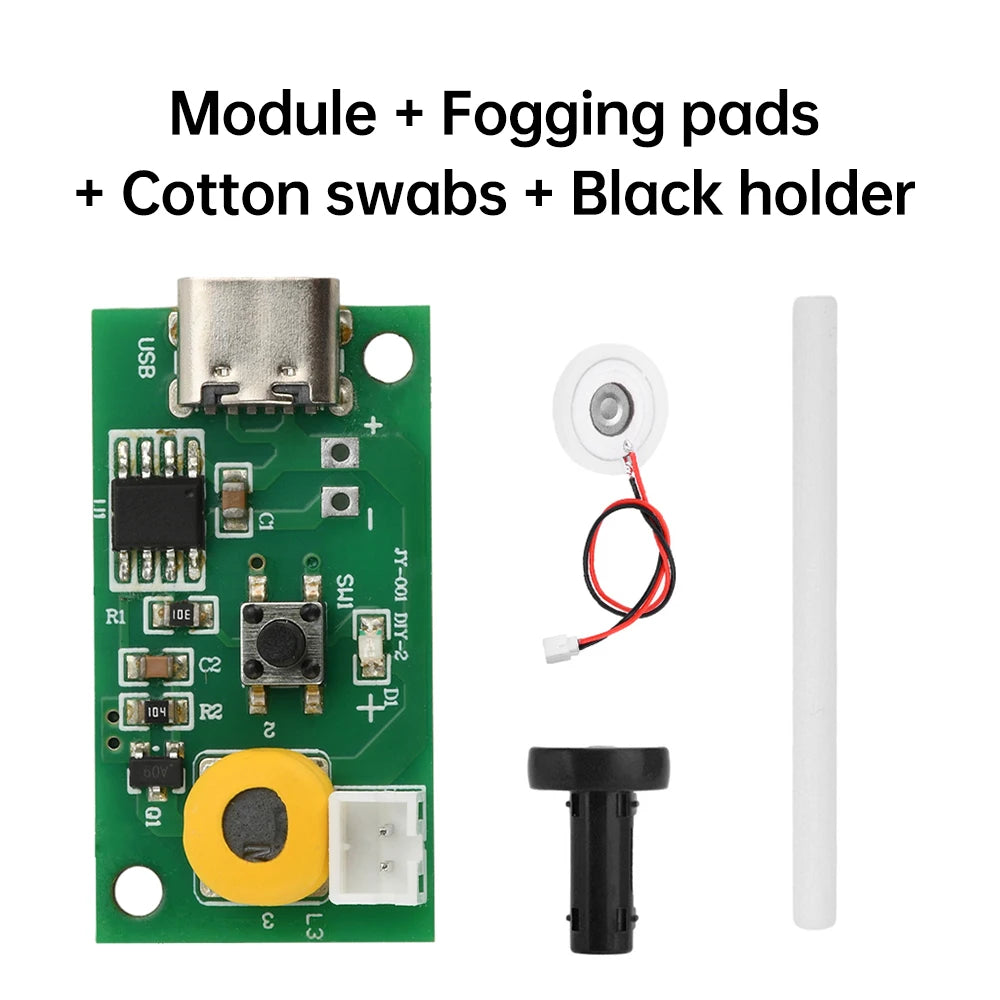

Product List:

Set 1:

1X Humidifier Module

Set 2:

1X Humidifier Module

1X Atomization Plate

1X Holder

1X Cotton Swab

Frequently Asked Questions

Q: What is the C 3 Levels Adjustable Fog Volume Single Spray Humidifier?

A: The C 3 Levels Adjustable Fog Volume Single Spray Humidifier is a quality decor pick. Three-level mist output adjustment: Meets diverse environmental needs with flexible misting effects for enhanced adaptability.

Q: What is the C 3 Levels Adjustable Fog Volume Single Spray Humidifier made of?

A: The C 3 Levels Adjustable Fog Volume Single Spray Humidifier is made from 1.2MM FR-4 Power Interface, measuring 35mm.

Q: Why choose the C 3 Levels Adjustable Fog Volume Single Spray Humidifier?

A: The C 3 Levels Adjustable Fog Volume Single Spray Humidifier stands out in our decor range — High-efficiency atomization: Micro-pore atomization plate with a resonant frequency of 108-110KHz delivers fine, uniform mist.
