Type-c Power Meter Voltmeter Current Charging Detector DC4 5-48V 6A

Discover the Type-c Power Meter Voltmeter Current Charging Detector DC4 5-48V 6A — a standout electronics accessories pick featuring fast-charging design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Power Meter

Output Voltage: Power Meter

Semi-finishedproduct: No

Size: Power Meter

Style: Power Meter

Type: Power Meter

Features:

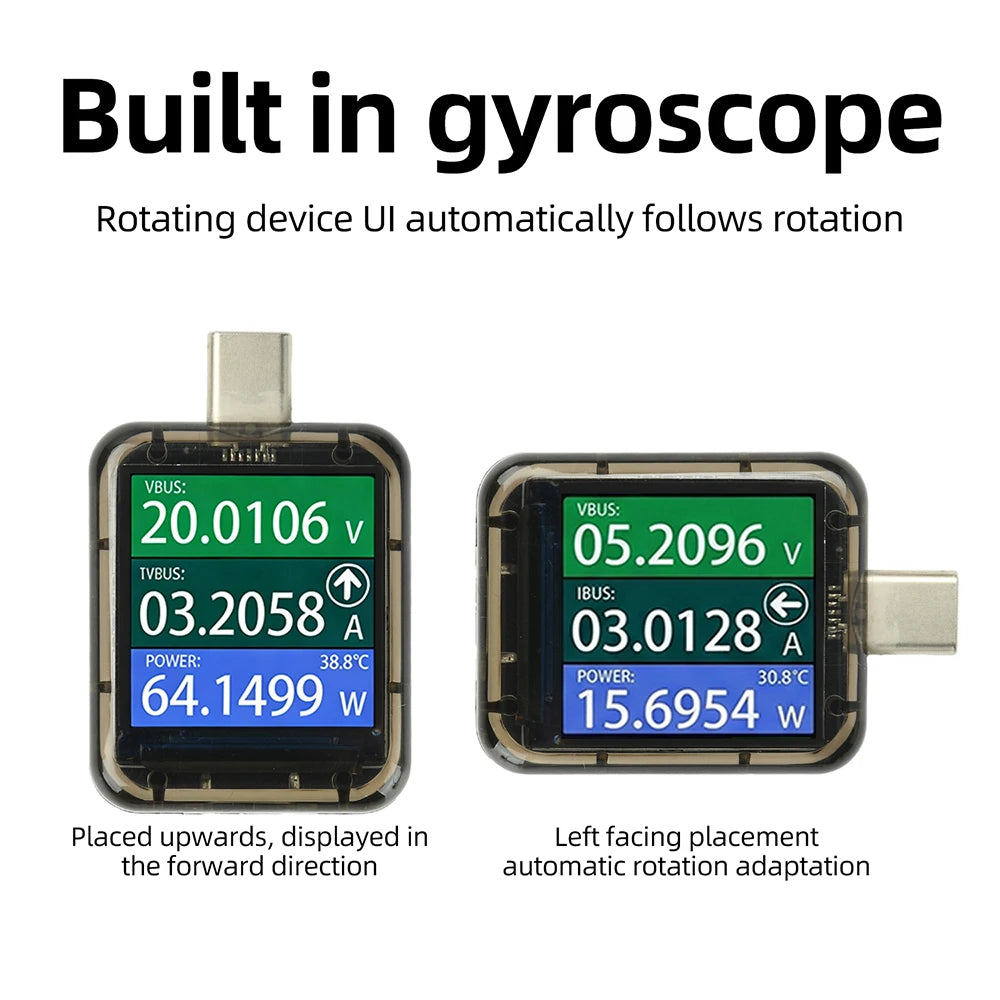

1. Built-in gyroscope supports adaptive rotation, temperature display, charging timer, and maximum power recording.

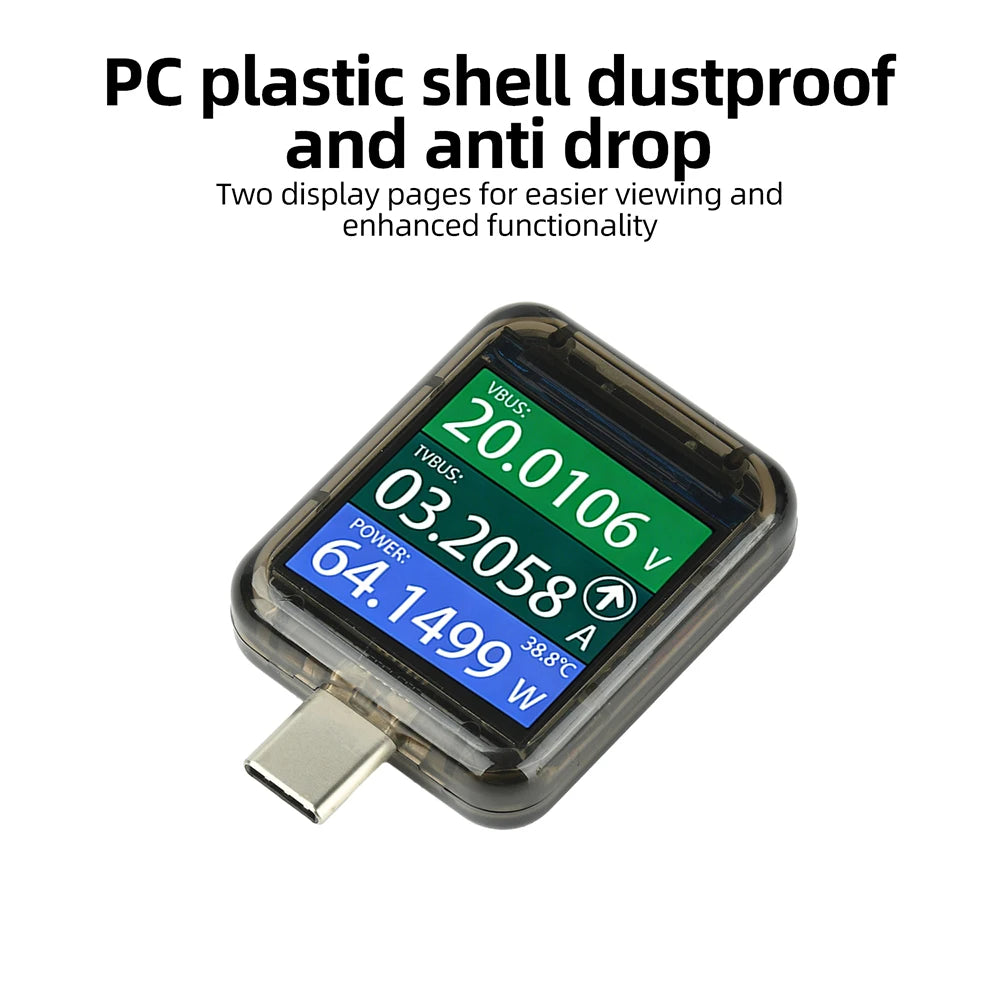

2. Dust-proof and drop-resistant PC plastic housing; two display modes for easier viewing and enhanced functionality.

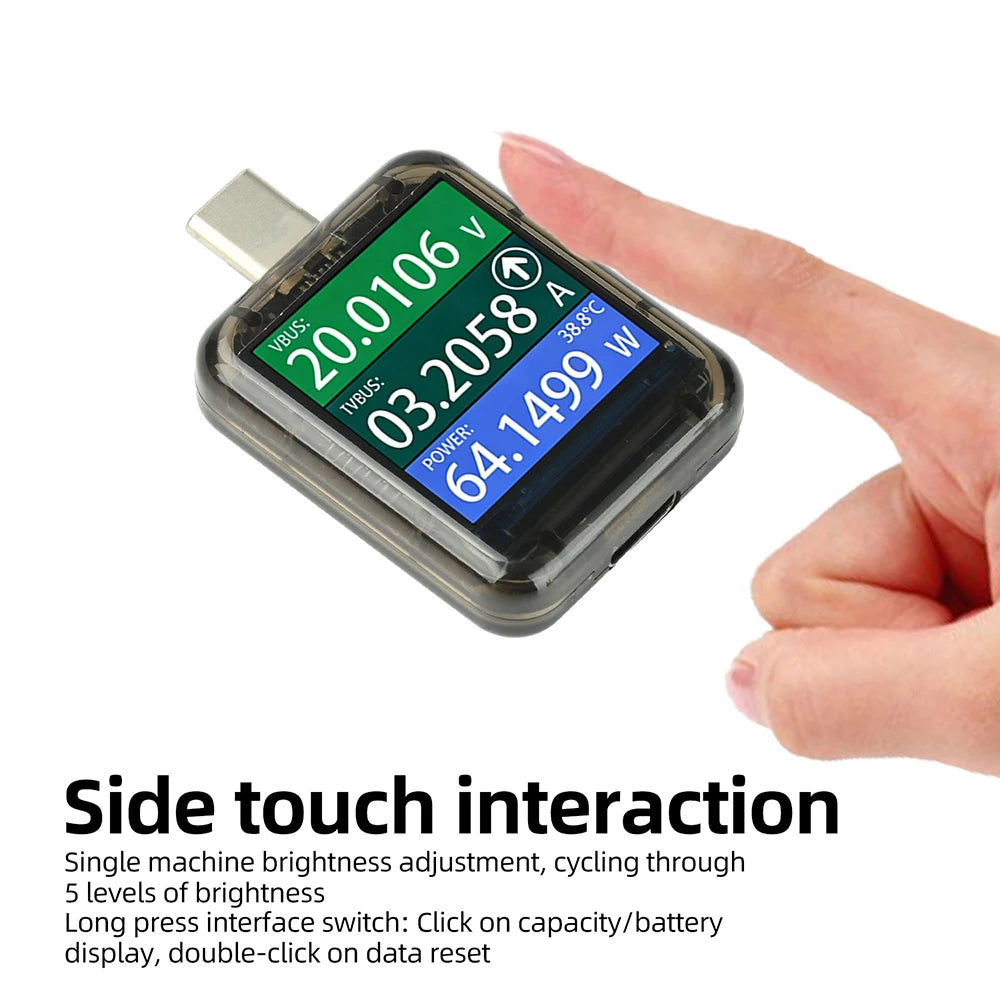

3. Touch interaction: Tap to adjust brightness (cycling through 5 levels); long-press to switch screens; tap to display capacity/battery level; double-tap to clear data.

4. Fully compatible with all interfaces; features bidirectional current testing, real-time charging power detection, and supports fast charging testing.

5. Monitors the charging status of connected devices in real time, displaying various parameters such as charging voltage and current at a glance.

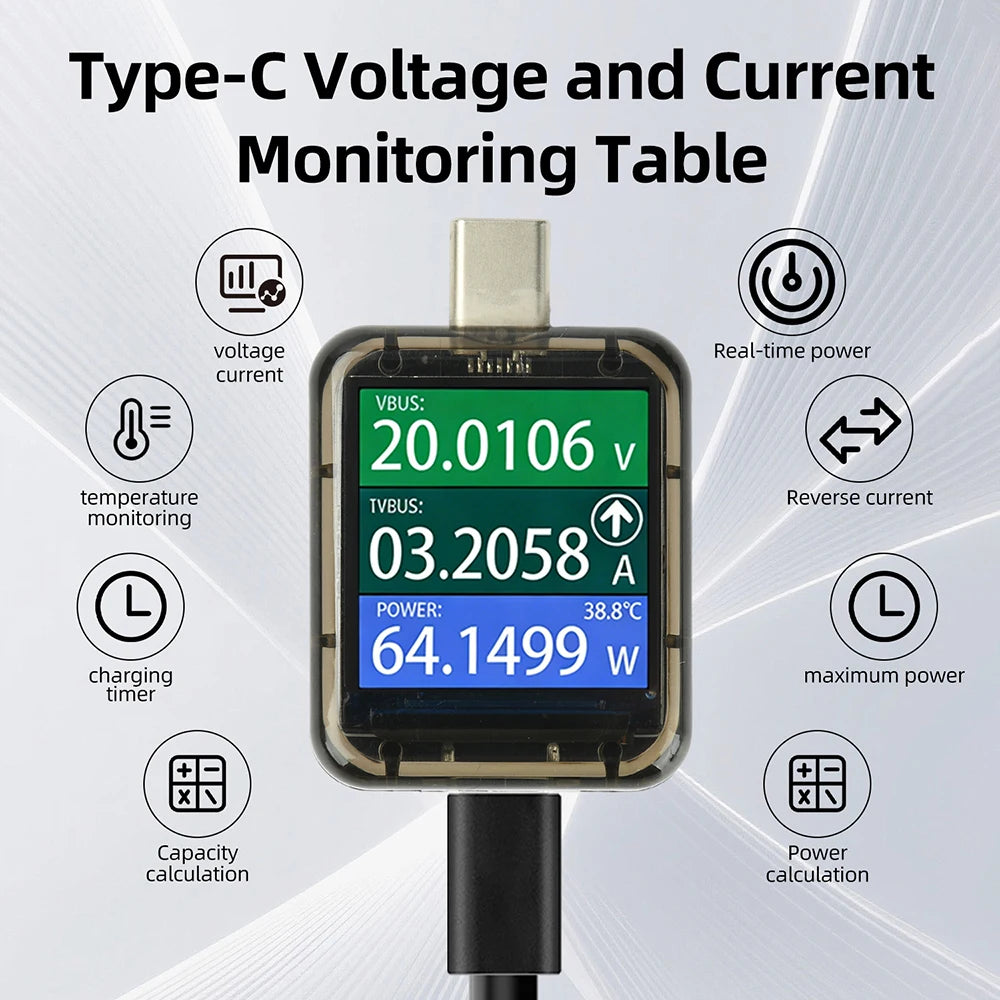

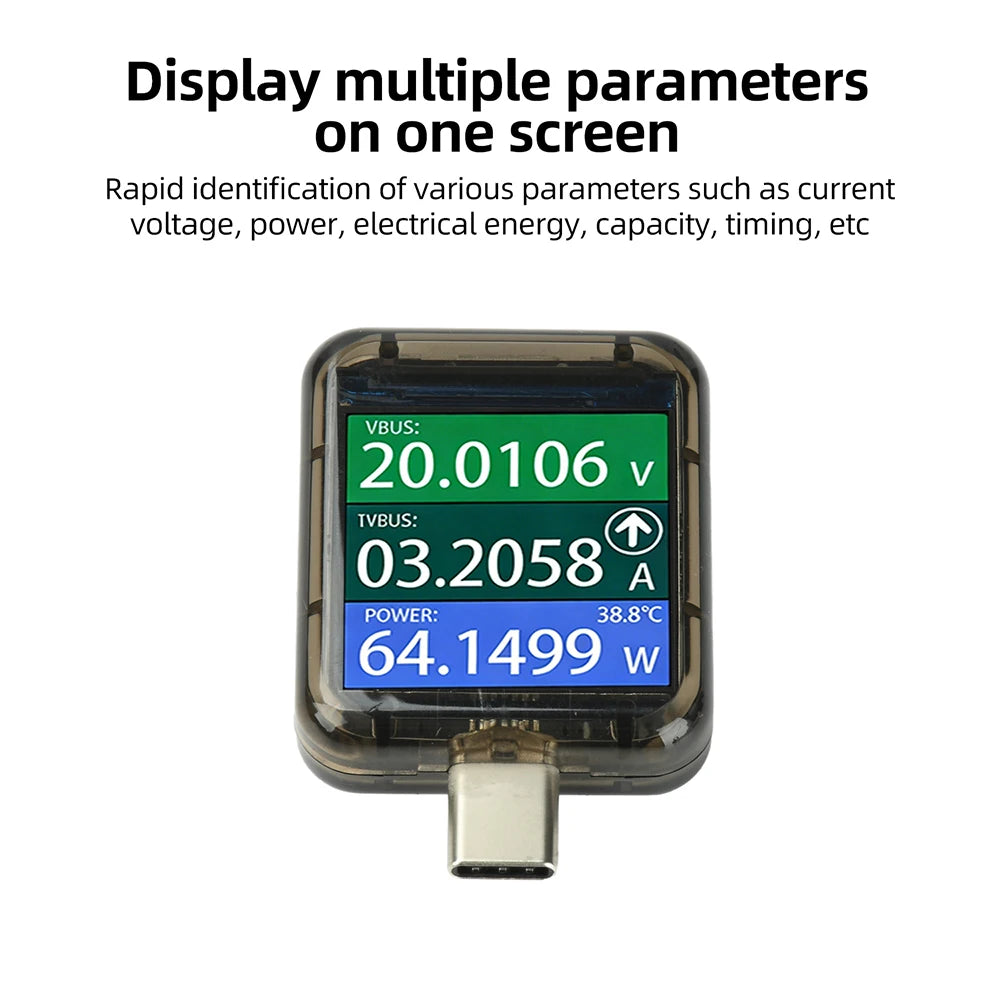

6. Multi-function display: Current, voltage, real-time power, peak power, energy calculation, capacity calculation, charging timer, current direction, temperature monitoring, and more.

Product Specifications

Product Name: USB Multifunction Power Meter

Voltage: DC 4.5V–48V

Current: 0–6A

Peak Current: 8A

Timer: 0–99 hours

Power: 240W

Capacity: 0–999,999 mAh

Energy: 0–999,999 mWh

Operating Temperature: 50°C

Dimensions: 31.5mm × 38.5mm × 12mm

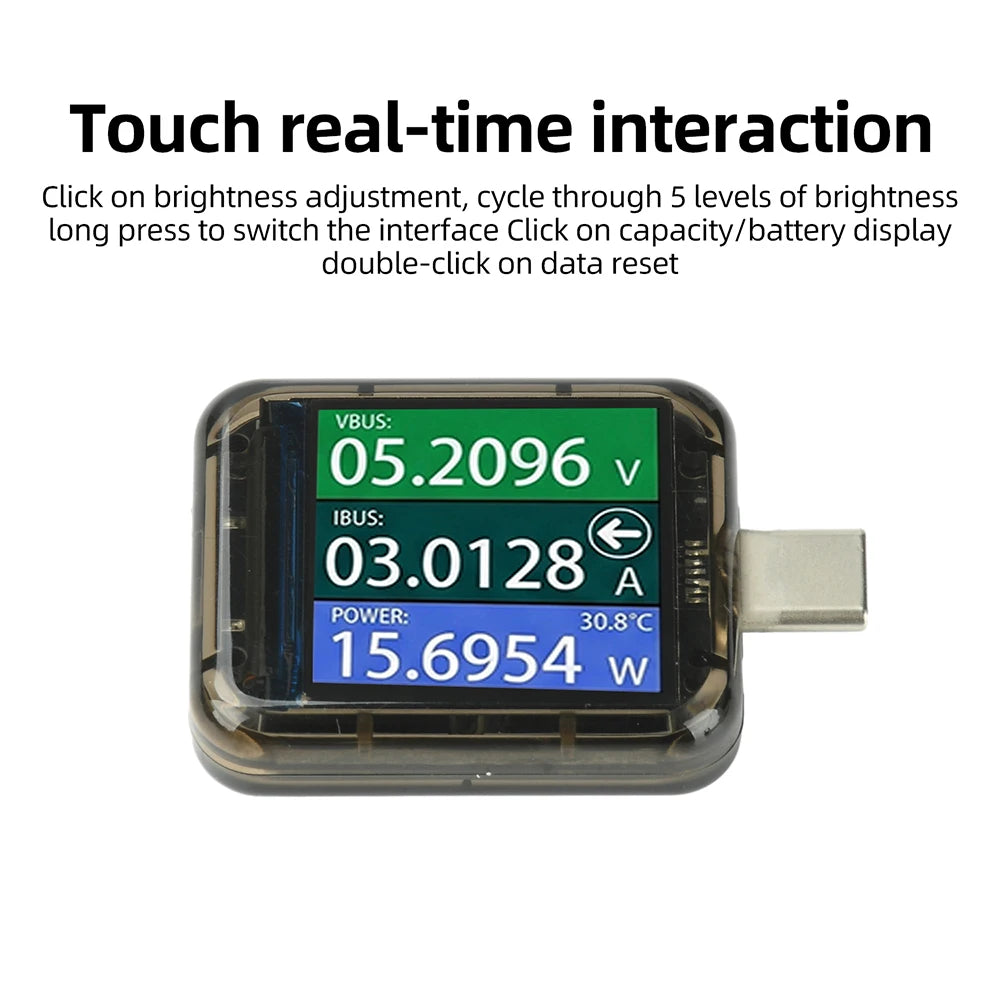

Touch Button Operation:

Single tap: Adjust display brightness (5 levels available)

Long press: Cycle through information display screens

Single tap: Toggle between capacity and energy display

Double tap: Clear information log

Notes:

1. For A-to-C cables, the A port is 5V and always on; the display works even without a phone connected. For C-to-C cables, the C port must be connected to a phone or other device being charged for the display to work.

2. The power meter only displays power; it does not determine the power output. The power output is determined by the handshake between the phone and the charger.

3. Supports monitoring and displaying charge/discharge information for all mainstream phones (including Apple and Huawei), as well as calculating battery mAh/mWh for various charger models.

4. The battery’s rated mAh is calculated based on the current at the battery terminal, while the power meter calculates based on the current at the charging terminal.

5. The current at the battery terminal and the current at the charging terminal are not consistent; for example, the higher the fast-charging voltage, the lower the detected current at the charging terminal.

6. Megawatt-hours (mWh) = Charging terminal (mAh) × Fast-charging voltage = Battery terminal (mAh) × Battery voltage

Package Contents

Power Meter × 1

Options

• Color: A

Frequently Asked Questions

Q: What is the Type-c Power Meter Voltmeter Current Charging Detector DC4?

A: The Type-c Power Meter Voltmeter Current Charging Detector DC4 is a quality electronics accessories pick. Built-in gyroscope supports adaptive rotation, temperature display, charging timer, and maximum power recording.

Q: What is the Type-c Power Meter Voltmeter Current Charging Detector DC4 made of?

A: The Type-c Power Meter Voltmeter Current Charging Detector DC4 is made from Plastic Model Number, measuring Power Meter Style.

Q: Why choose the Type-c Power Meter Voltmeter Current Charging Detector DC4?

A: The Type-c Power Meter Voltmeter Current Charging Detector DC4 stands out in our electronics accessories range — Dust-proof and drop-resistant PC plastic housing; two display modes for easier viewing and enhanced functionality.
