Ultra Thin Mini OLED Digital Voltmeter DC 0-30V Display 12Bit ADC
$13.48
Sale price
$13.48
Regular price
$16.70
Shipping calculated at checkout.
Discover the Ultra Thin Mini OLED Digital Voltmeter DC 0-30V Display 12Bit ADC — a standout decor pick featuring adjustable, compact design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
DIY Supplies: Electrical
Data Record: No
Electronic: No
Material: Plastic
Measurement Range: DC 0-30 V
Model Number: Digital Voltmeter
Output Voltage: DC 3.5-30V
Resolution: 88 x 48
Semi-finishedproduct: No
Size: Voltmeter
Style: Digital Voltmeter
Type: Digital Voltmeter
Features:

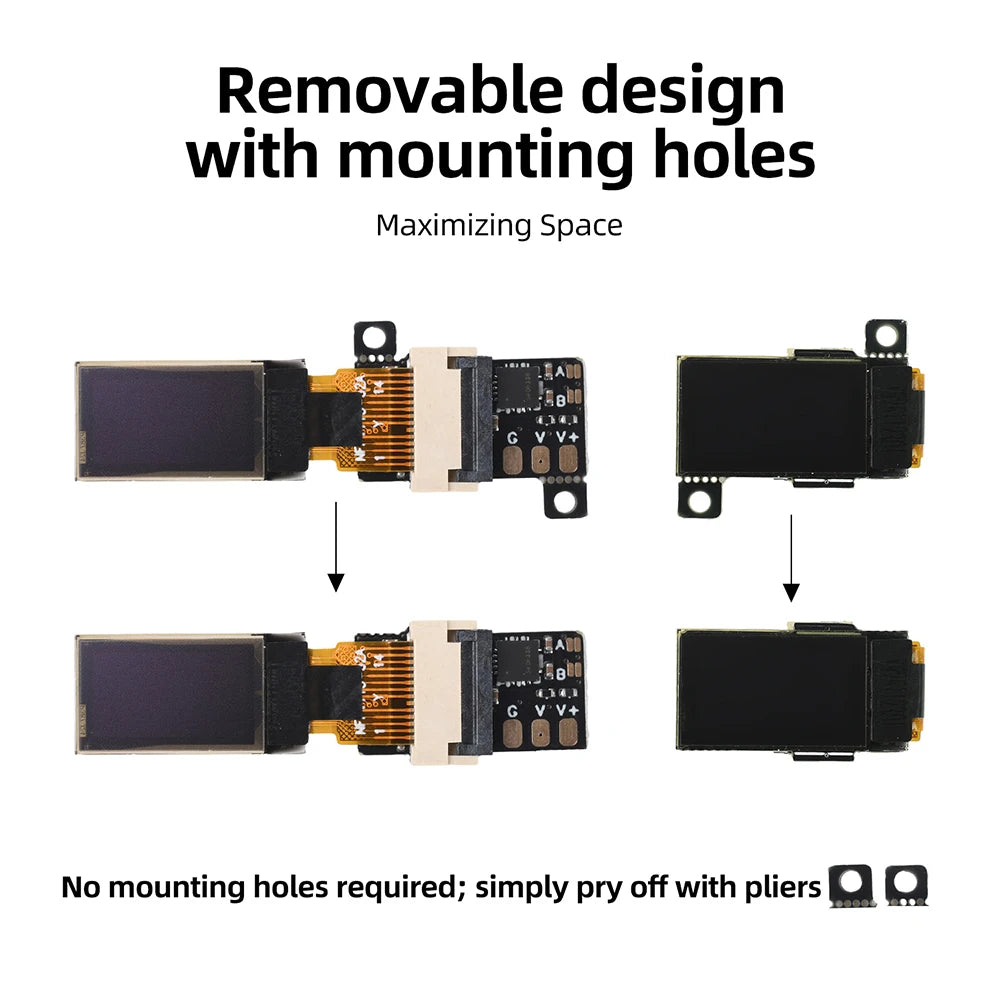

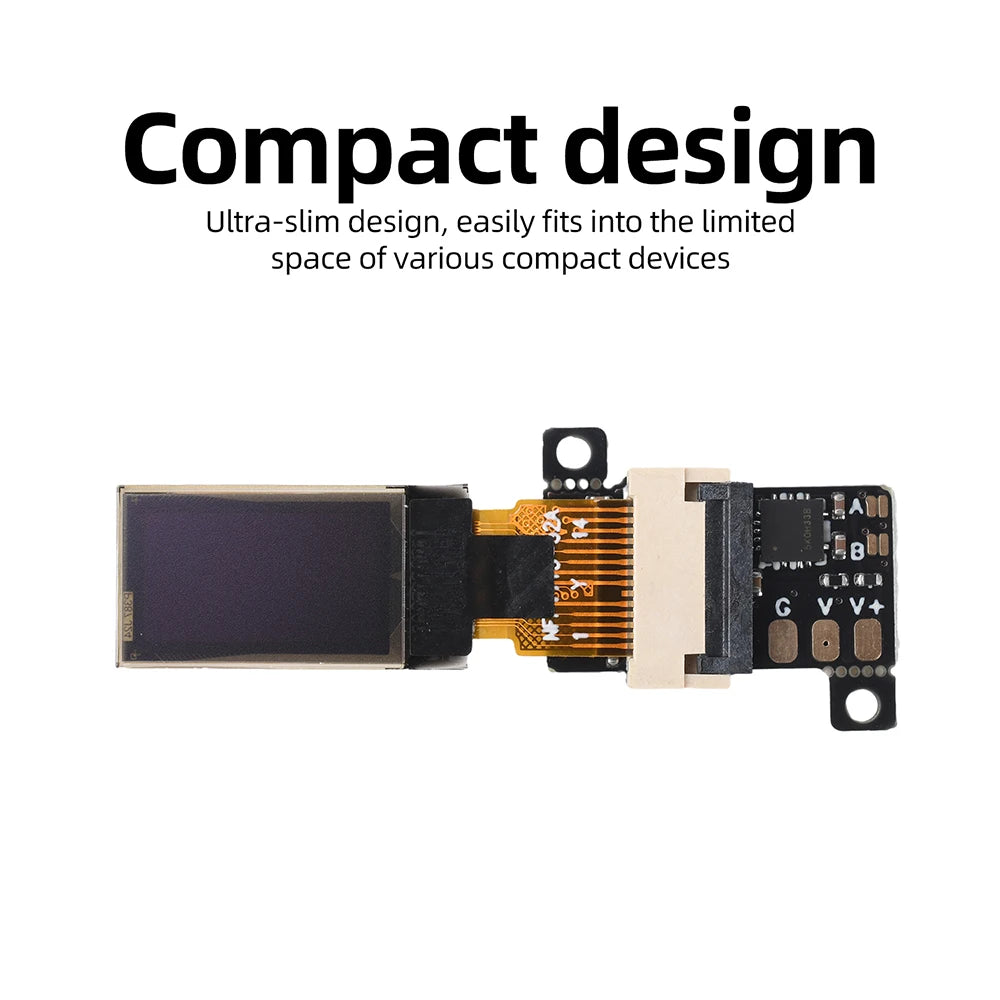

1. Compact, ultra-slim design that easily fits into various compact device spaces

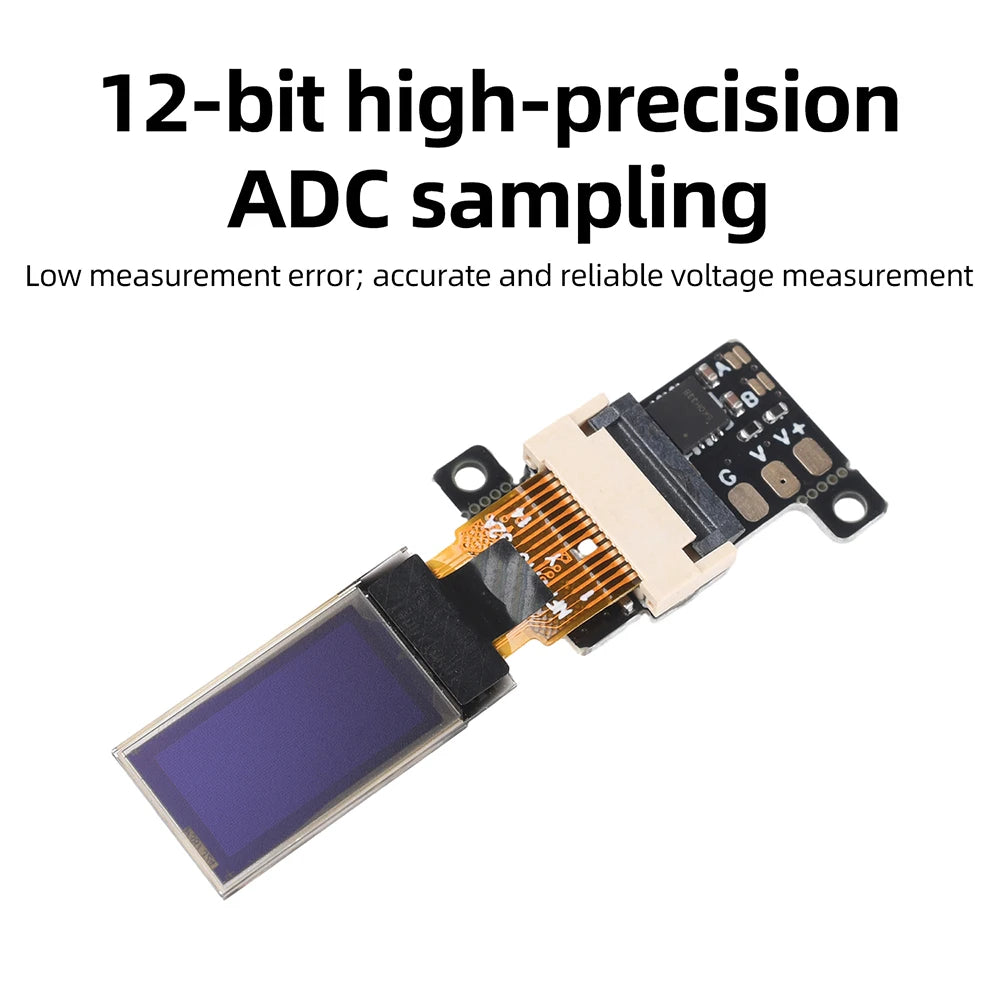

2. 12-bit high-precision ADC sampling ensures low detection error and accurate, reliable voltage measurement

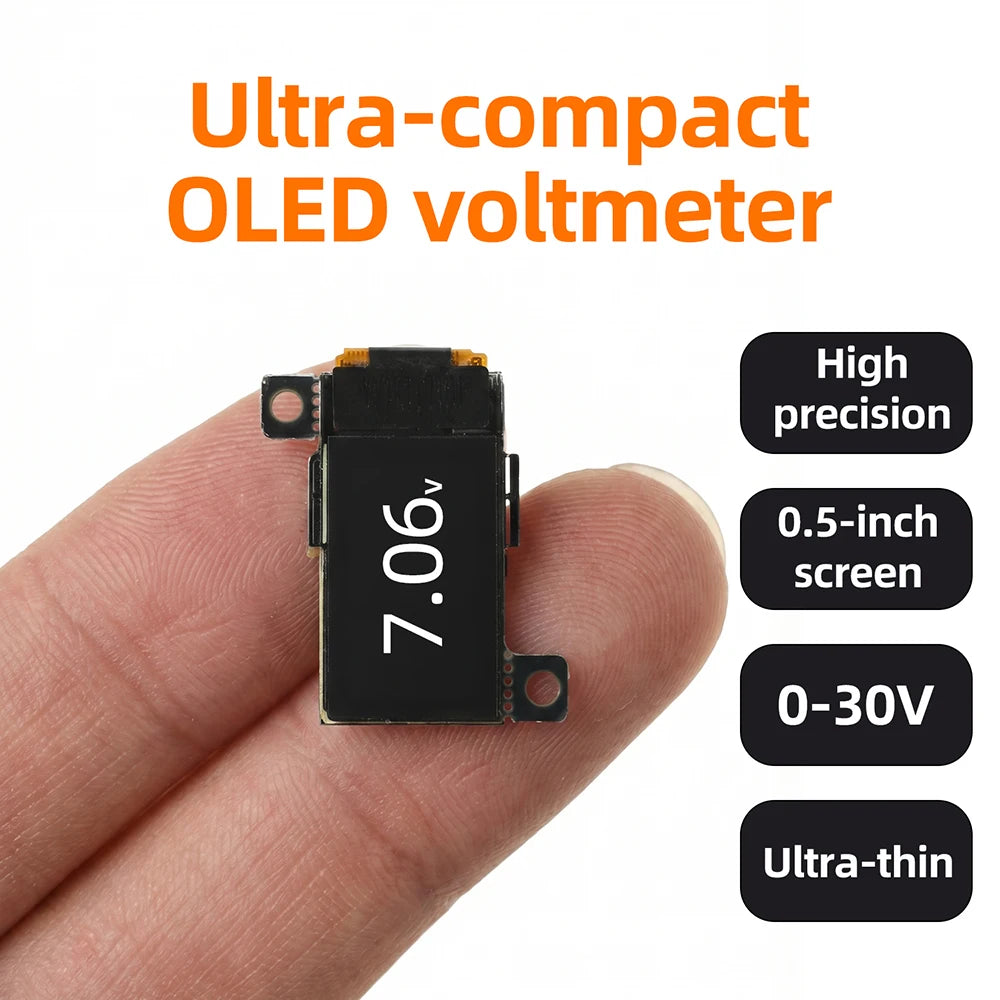

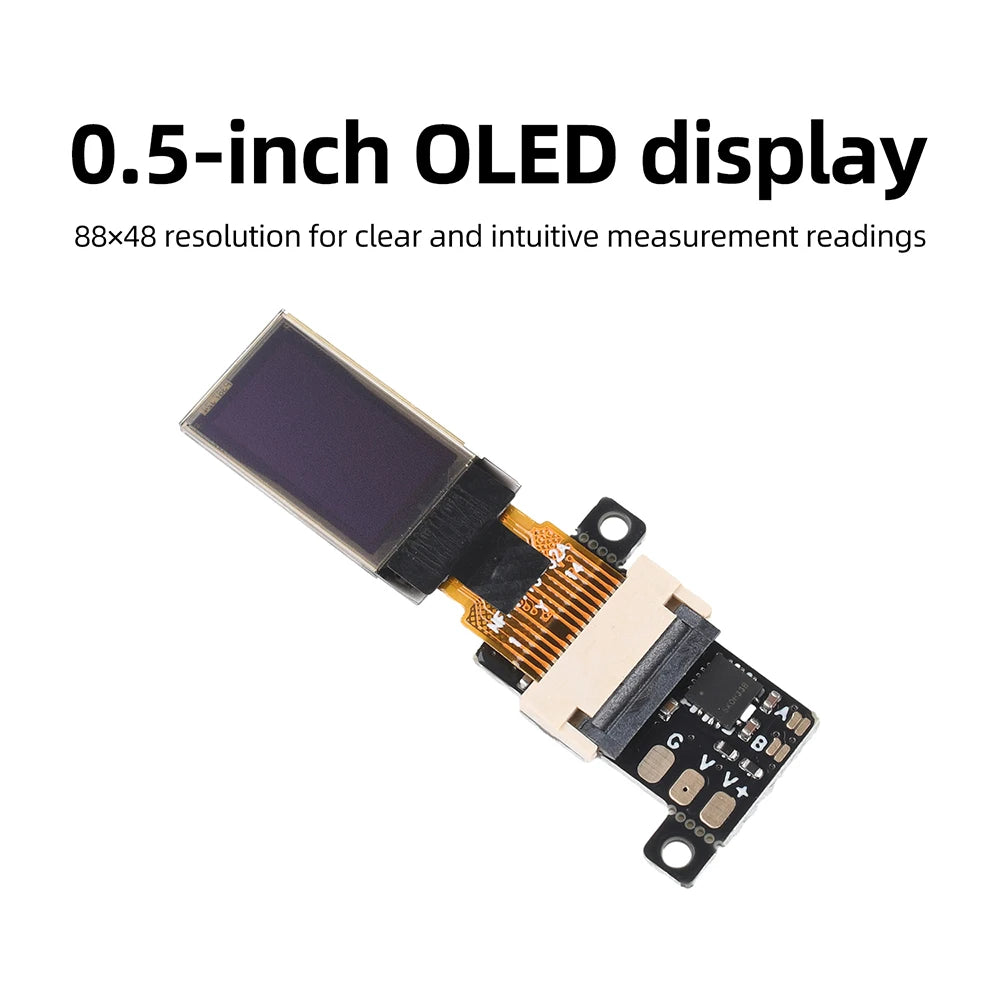

3. 0.5-inch OLED display with 88×48 resolution for clear and intuitive measurement readings

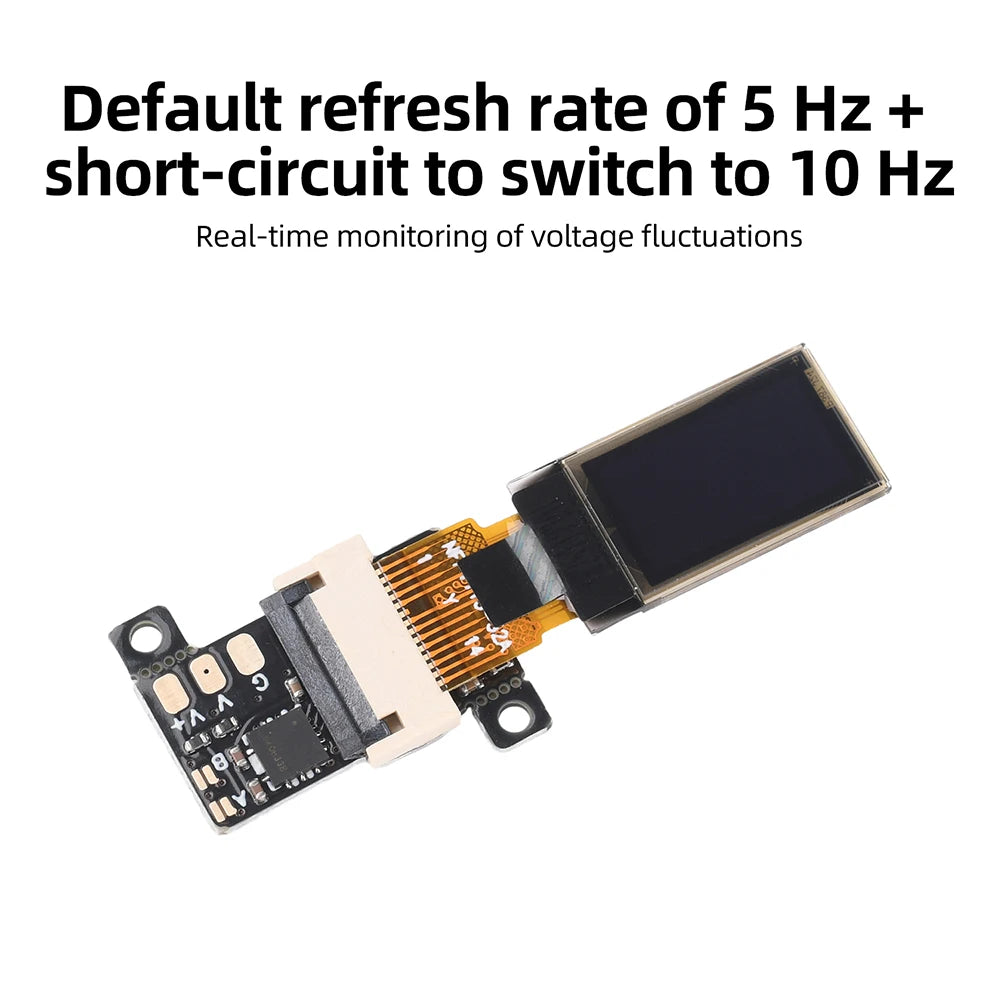

4. Default 5Hz refresh rate + switchable to 10Hz via short-circuiting, enabling real-time tracking of dynamic voltage changes
5. Wide range of applications, suitable for embedded scenarios such as adjustable power supply voltage display
Product Specifications:
Product Name: Digital Voltage Meter
Supply Voltage: DC 3.5–30V
Measurement Range: DC 0–30V
Operating Current: <20mA
Refresh Rate: 5Hz (switchable to 10Hz by shorting Pin B)
Measurement Accuracy: Approx. 0.7% (e.g., for a 10V input, display error is 10 × 0.007 = 0.07V)
Display Digits: Three-digit white text (automatic decimal point shifting)
Display: 0.5-inch OLED display
Resolution: 88 × 48
Applications: Industrial control equipment, adjustable power supply output voltage display, sensor supply voltage detection, vehicle battery voltage monitoring, and other embedded applications
Jumper Configuration:
Jumper A: By default, displays the voltage symbol (V); when jumpered, the (V) symbol will not be displayed
Jumper B: Default refresh rate is 5Hz; jumpering B switches to 10Hz
Package Contents:
Voltmeter x1
Options

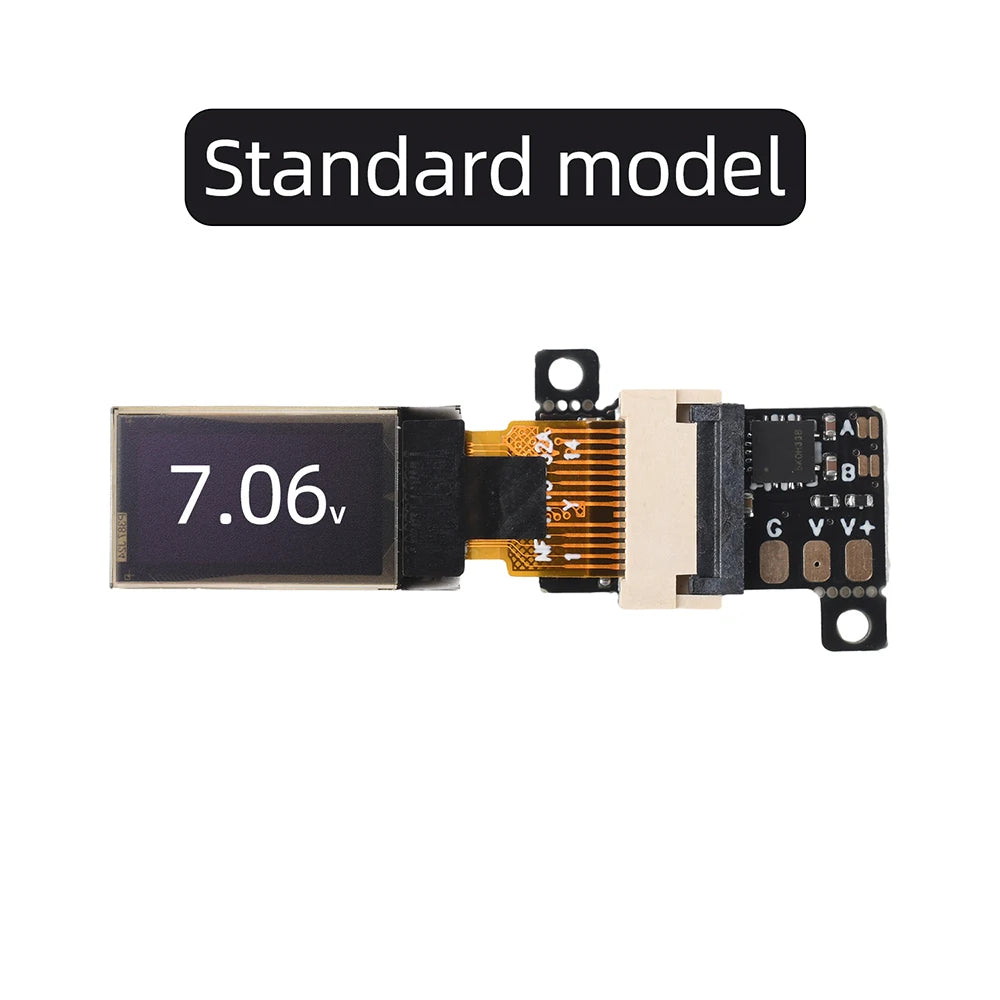

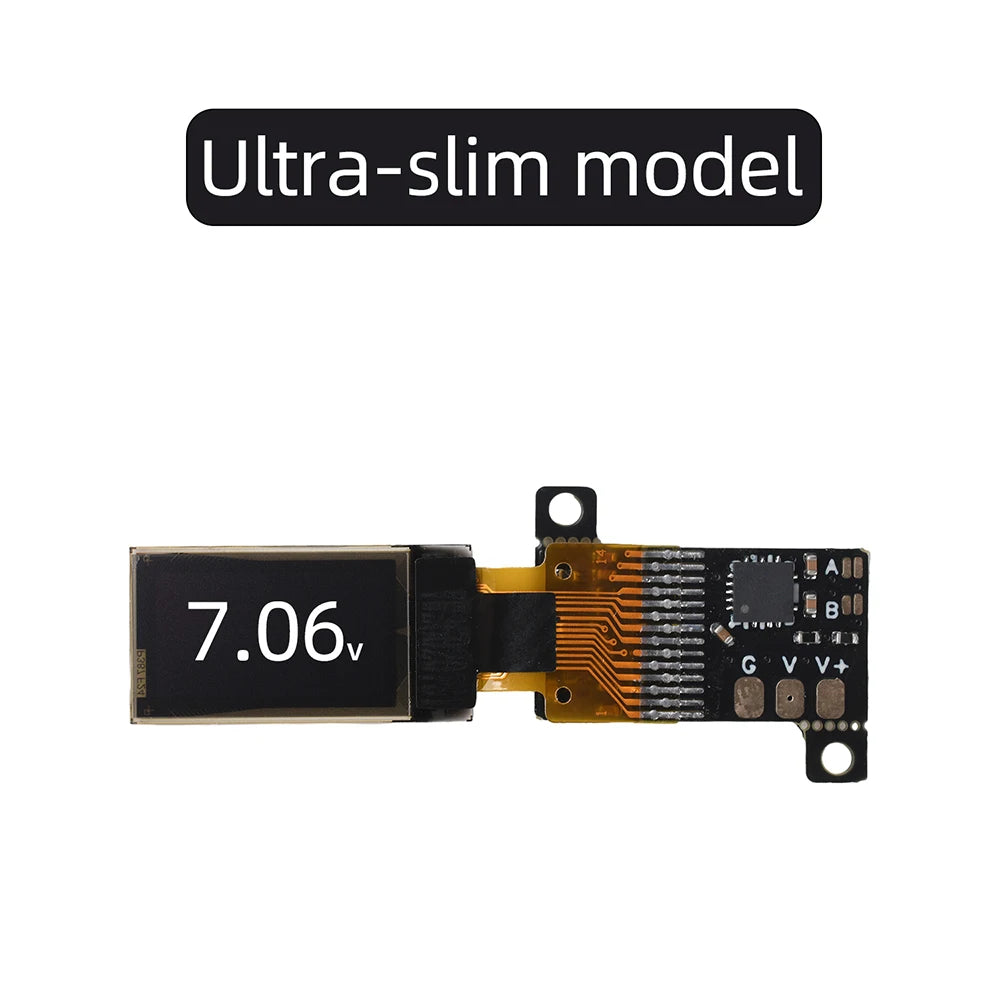

- Color: ultra-thin, standard version
