UCAN USB to CAN Adapter – STM32F072 | CANable / CandleLight / Klipper

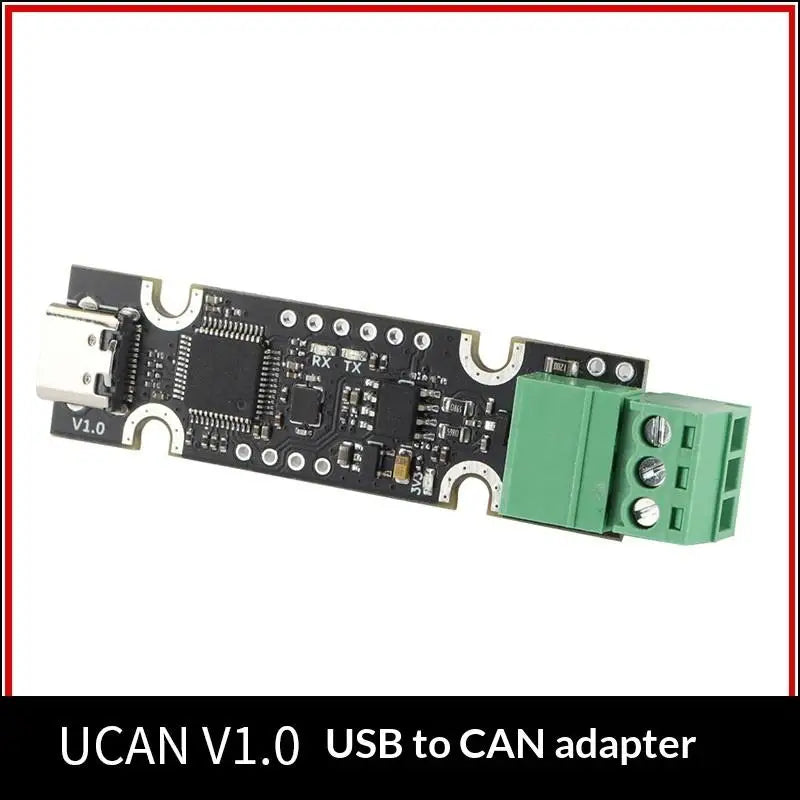

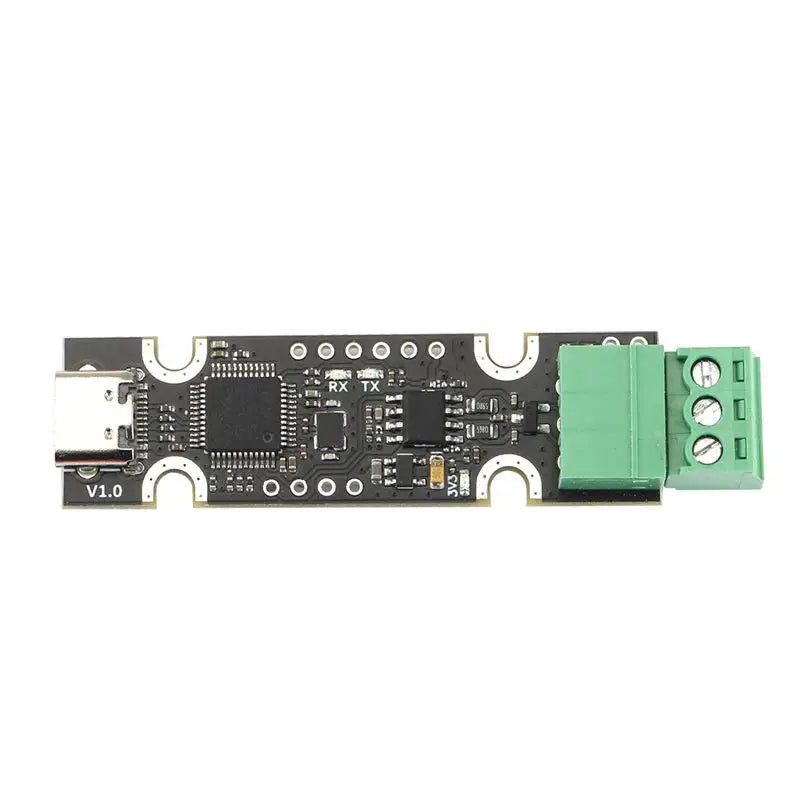

The UCAN Board is a compact, low-cost, open-source USB to CAN bus adapter built on the STM32F072 microcontroller. Whether you're running a 3D printer on Klipper firmware, developing on a Raspberry Pi, or debugging a CAN bus network, this versatile adapter bridges your computer's USB port directly to a CAN bus with ease.

It enumerates as a virtual serial port (CANable/slcan mode) or, with the alternative CandleLight firmware, as a native CAN interface on Linux — making it an ideal tool for embedded developers and makers alike.

Key Features

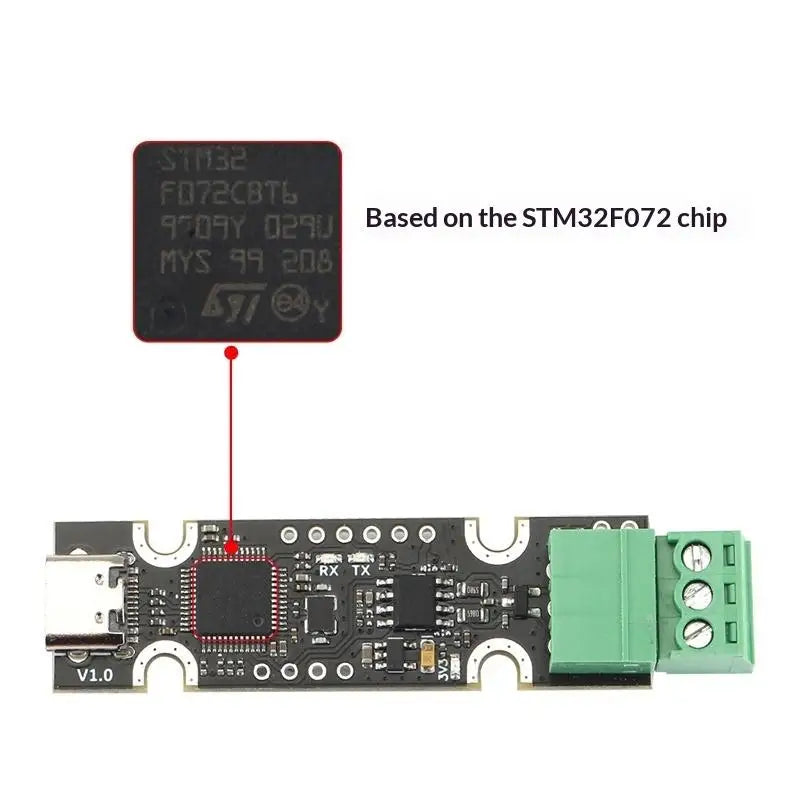

MCU: STM32F072 ARM Cortex-M0
Connectivity: Type-C USB socket for modern, secure connections

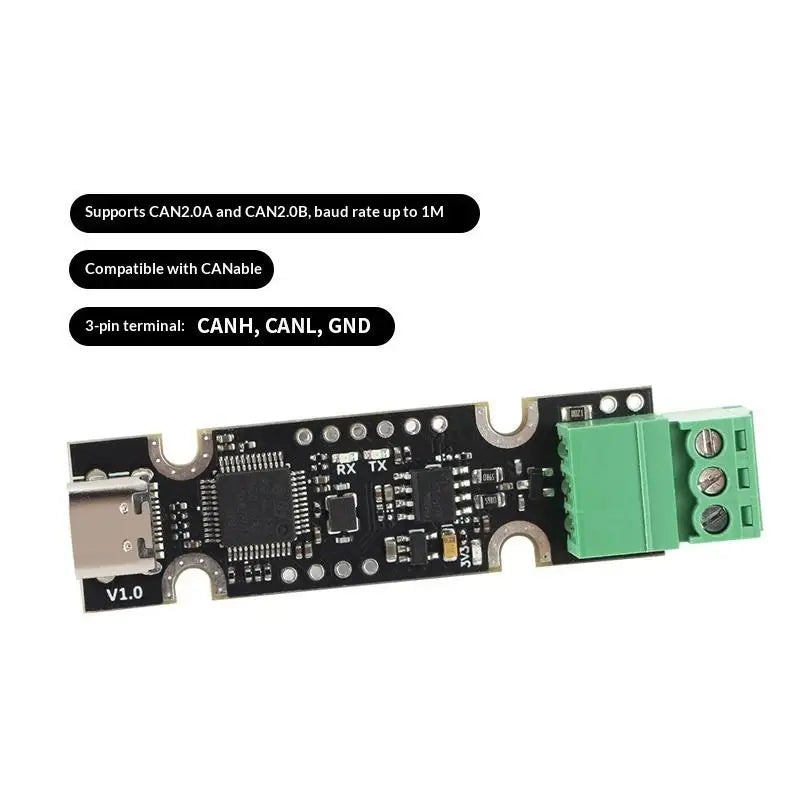

CAN Protocol: Supports CAN 2.0A and CAN 2.0B with baud rates up to 1 Mbps

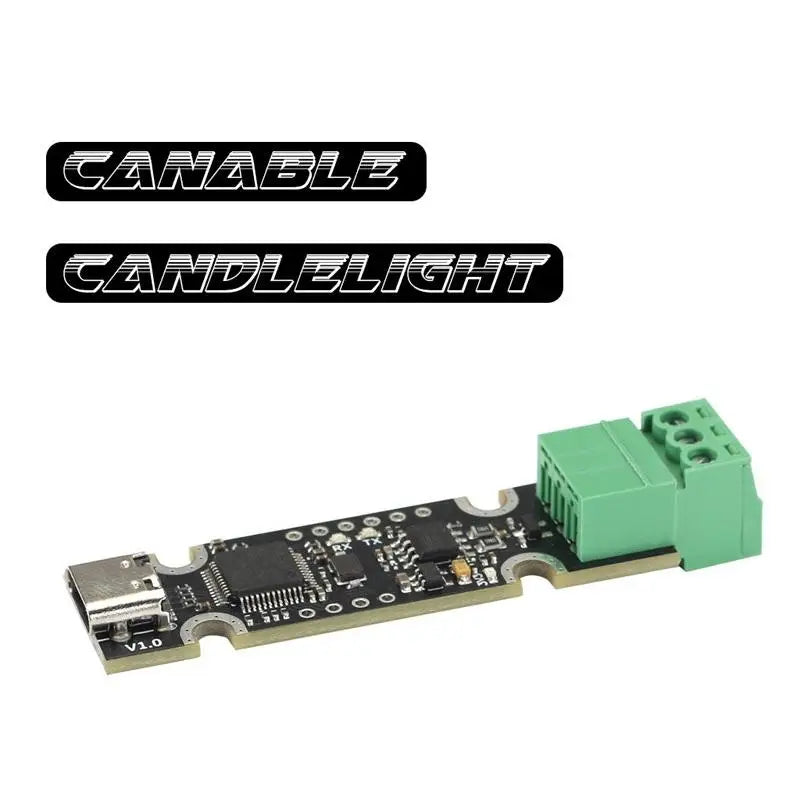

Firmware Compatible: CANable, CandleLight, and Klipper firmware

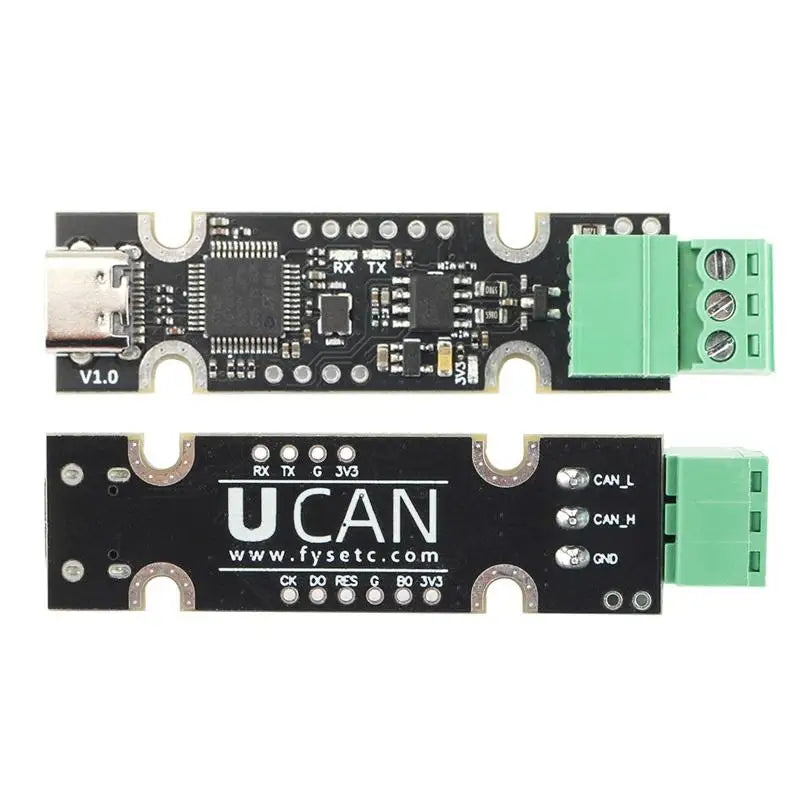

Terminal Block: 3-pin screw terminal — CANH, CANL, GND for easy wiring
Bootloader Access: Onboard jumper for entering bootloader mode during firmware updates
120Ω Termination: Onboard 120R termination resistor, enabled/disabled via jumper
Platform Compatibility: Raspberry Pi, Raspberry Pi Zero, ODROID, BeagleBone, and other ARM-based platforms
Build: Plastic + Metal construction

Specifications

MCU	STM32F072
USB Port	Type-C
CAN Standard	CAN 2.0A / CAN 2.0B
Max Baud Rate	1 Mbps
Termination	120Ω (jumper selectable)
Material	Plastic + Metal
Package Size	12 × 8 × 1 cm
Quantity	1 pc
Country of Origin	Made in Mainland China

What Is the UCAN Adapter Used For?

The UCAN adapter is perfect for:

3D Printing: Use with Klipper firmware to communicate over a CAN bus with toolheads and peripherals
Embedded Development: Connect CAN bus devices to Linux-based single-board computers
Network Debugging: Monitor and interact with CAN networks via a simple USB connection

Related Products You May Like

Frequently Asked Questions

Q: Is the UCAN adapter compatible with Klipper firmware for 3D printing?

A: Yes! The UCAN board with STM32F072 fully supports Klipper firmware, making it an excellent choice for 3D printer builds that use a CAN bus for toolhead communication and peripheral control.

Q: What operating systems does the UCAN USB to CAN adapter support?

A: With CANable/slcan firmware, it enumerates as a virtual serial port on Windows, macOS, and Linux. With the CandleLight firmware, it appears as a native CAN interface on Linux, enabling use with socketcan tools.

Q: Can I use the UCAN adapter with a Raspberry Pi or other single-board computers?

A: Absolutely. The UCAN adapter is compatible with ARM-based embedded platforms including Raspberry Pi, Raspberry Pi Zero, ODROID, and BeagleBone via its standard Type-C USB connection.

Q: How do I update the firmware on the UCAN board?

A: The board includes an onboard jumper that puts it into bootloader mode, allowing you to flash CANable, CandleLight, or Klipper firmware using standard DFU or serial flashing tools.
