USB IC2 IIC TTL Serial Port Uart 2-In-1 Communication Module Ch341T
$19.46
Sale price
$19.46
Regular price
$24.10
Shipping calculated at checkout.
Discover the USB IC2 IIC TTL Serial Port Uart 2-In-1 Communication Module Ch341T — a standout decor pick featuring adjustable design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Features:

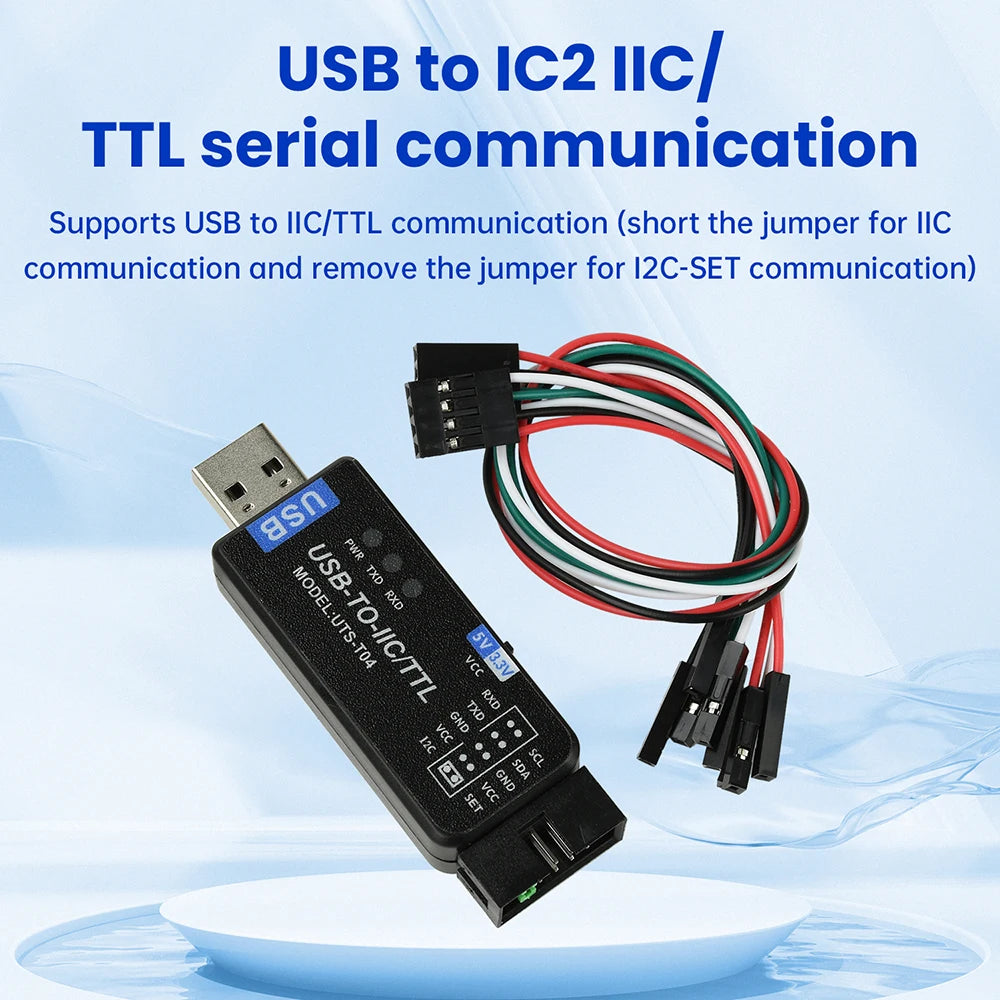

1. Supports USB to IIC/TTL communication (IIC communication: jumper pin connected; I2C-STTL communication: jumper pin removed)
2. USB to UART (serial data, ISP programming for STC/STM series MCUs); serial data communication (50bps~2Mbps, configurable for non-standard baud rates) ISP programming (STC/STM series MCUs)

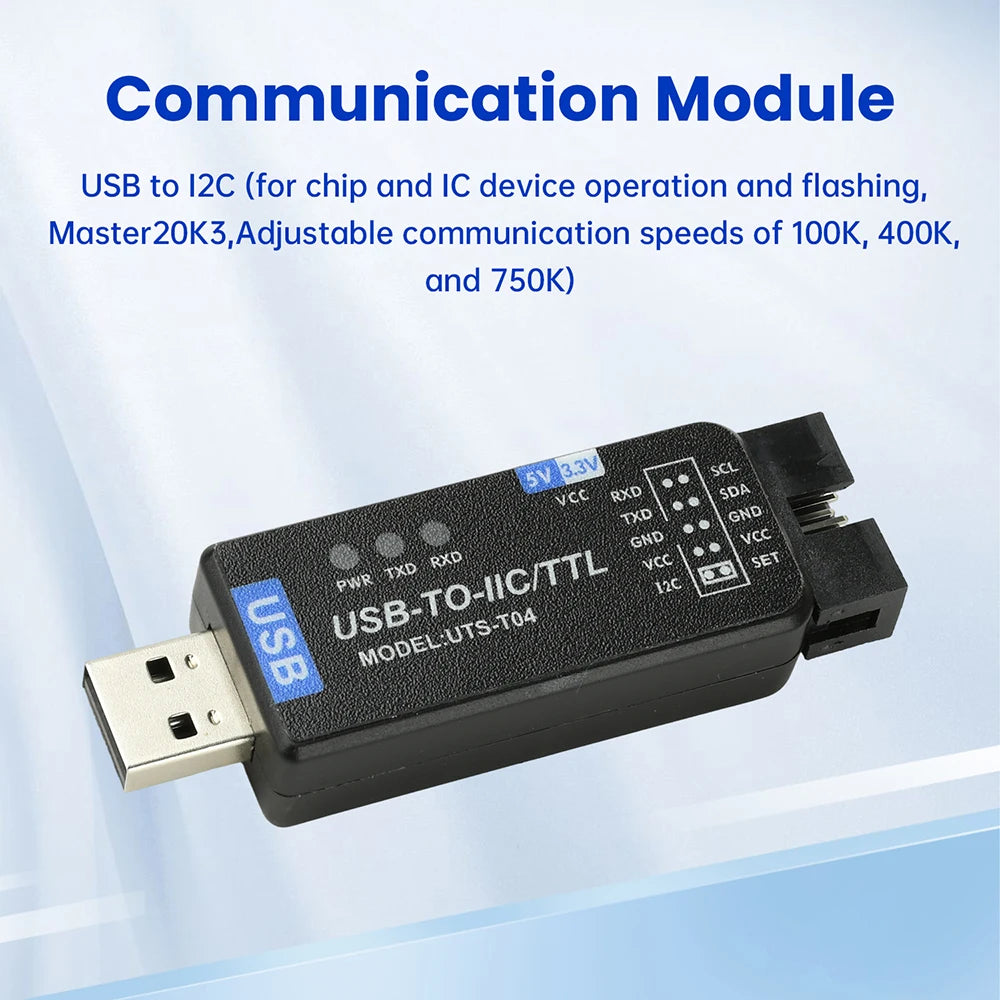

3. USB to I²C (chip/IC device operation, flashing; supports adjustable communication speeds: Master 20K3, 100K, 400K, 750K)

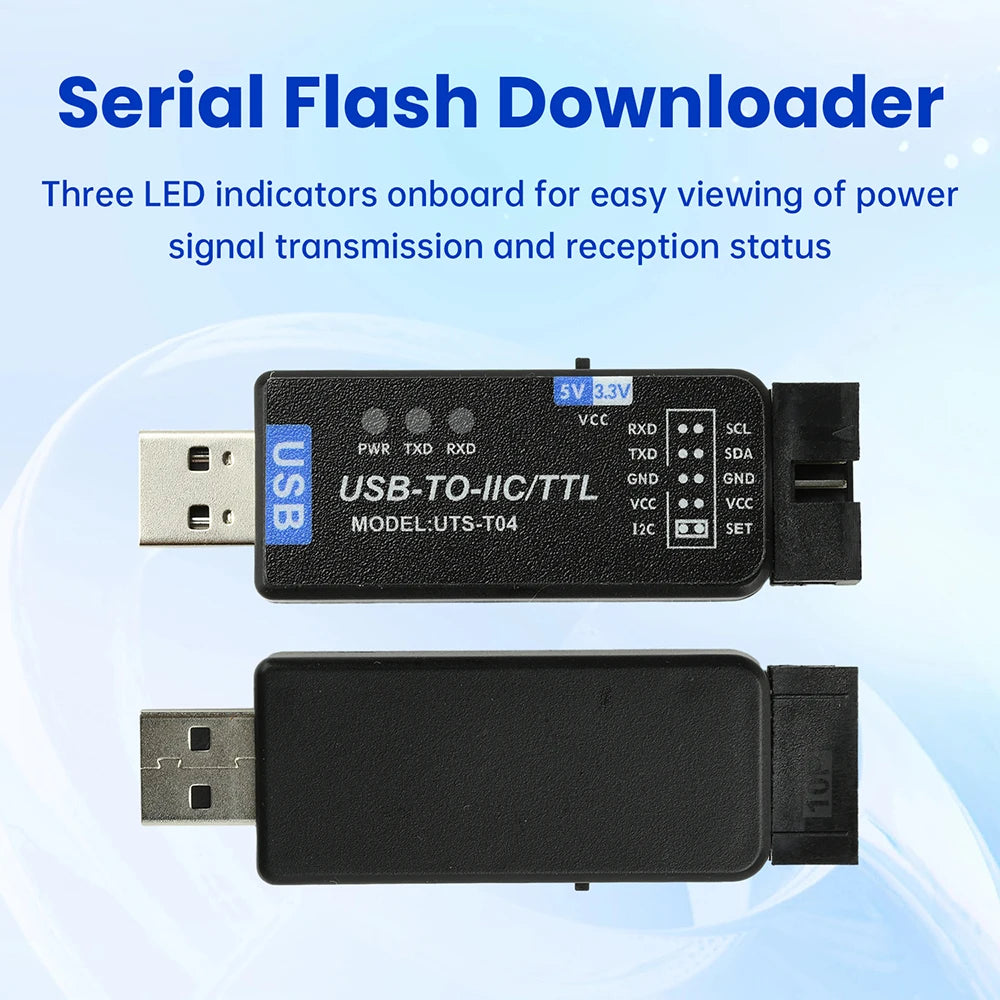

4. Three onboard LED indicators for monitoring power and signal transmission/reception status

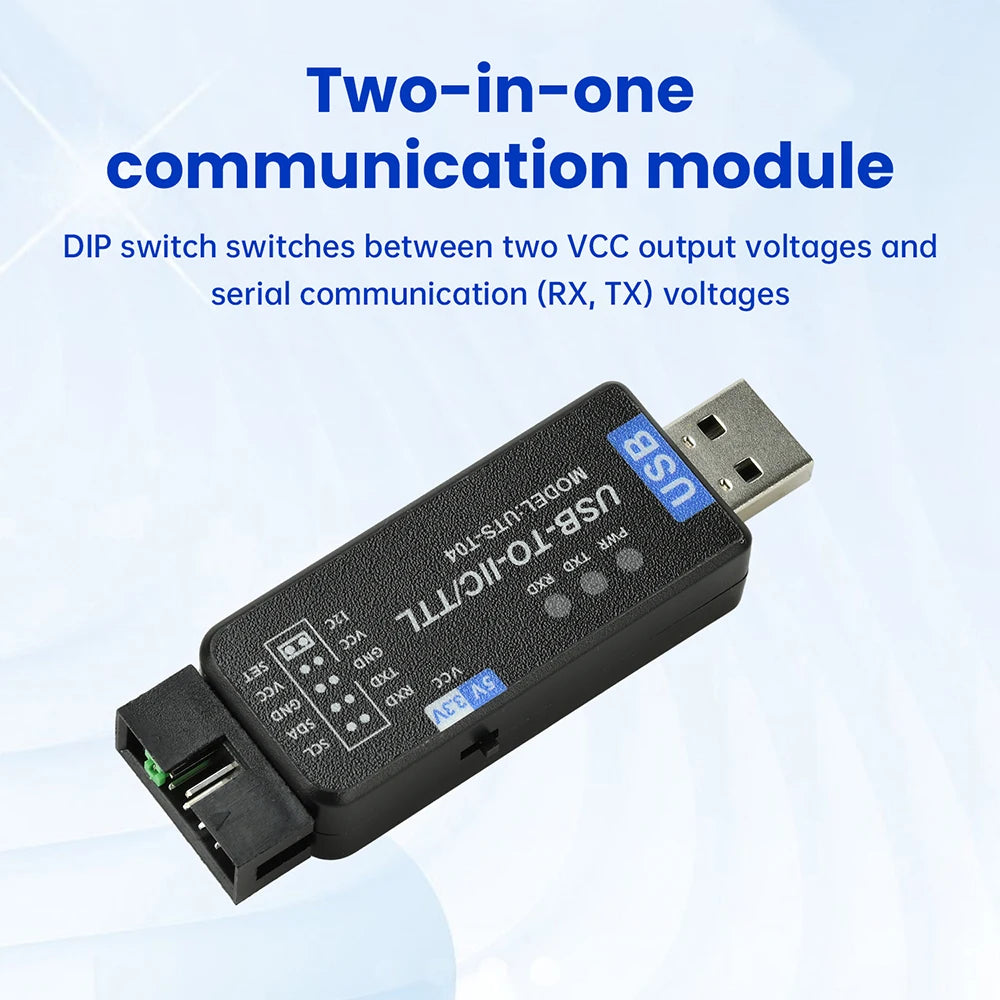

5. DIP switch toggles two VCC output voltages and serial communication (RX, TX) voltages

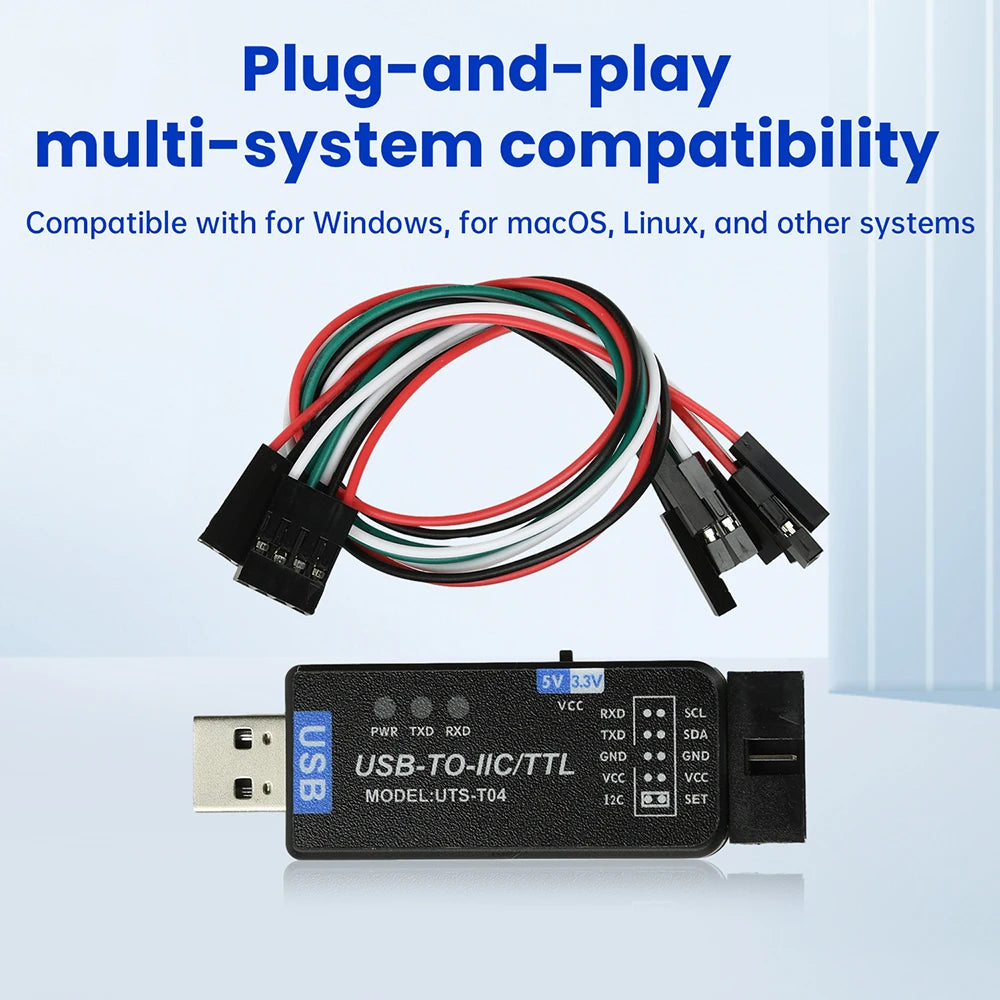

6. Plug-and-play multi-system compatibility with Windows, macOS, Linux, and more
Product Specifications:
Name: USB to IIC/TTL Module
Dual Voltage: DIP switch toggles 3.3V/5V
Expansion Module Compatibility: WIN7/win10/11
Processor Architecture: ARM
Expansion Slot Type: USB
Network Interface Configuration: I²C Communication
Supported Operating Systems: Windows, Linux
Dimensions: 73.5 × 23.5 × 14 mm
Product Use Cases:
Serial Port Expansion: Emulates standard serial ports for upgrading legacy serial peripherals or adding additional serial ports via USB.
Serial Debugging: Debugs I²C interface chips via I²C, programs I²C interface EEPROMs.
MCU Programming: Uploads firmware to MCUs via UART interface.
Program Debugging: Captures program output and monitors runtime status through UART interface.
Data Acquisition: Retrieves and stores sensor device data via I²C.
Flashing: Serial flashing for firmware updates on TVs, routers, motherboards, and similar devices.
Product Listing:
1x Communication Module
2x 4-pin Dupont Cables
