VNA Test Board Kit – High Accuracy NanoVNA SMT Demo Board

VNA Test Board Kit – High Accuracy Test Demo Board for Vector Network Analyzers

Take your RF and electronic component testing to the next level with this High Accuracy VNA Test Board Kit. Designed specifically for NanoVNA and other vector network analyzer (VNA) users, this versatile testboard makes it easy to measure link-in and SMT (surface-mount) components with exceptional precision. Whether you're an RF engineer, electronics hobbyist, or lab technician, this kit delivers the flexibility and accuracy you need.

Made in Mainland China.

Key Features

• Universal VNA Compatibility: Compatible with NanoVNA and other vector network analyzers (VNWA), making it a versatile addition to any RF testing setup.
• Comprehensive SMT Test Circuits: Includes link-in test circuits compatible with VNWA testing boards, plus dedicated 0805 and 1206 SMT patch test circuits for a wide range of testing scenarios.
• Customizable & DIY-Friendly: Delivered unassembled so you can build the exact test circuit configuration you need. Ideal for users who want full control over their test setup.
• High-Precision Measurements: Accurately measure inductors, capacitors, resistors, and other SMT components. Some test setups may require minor splicing for specific devices.
• Compact & Durable Build: Constructed from PC and metal materials, with a compact onboard size of 50 x 31 mm — easy to handle and store in any workbench environment.
• Full Hardware Kit Included: Comes with all the connectors, standoffs, and calibration components needed to get started right away (soldering tools and skills required).

Specifications

• Material: PC + Metal

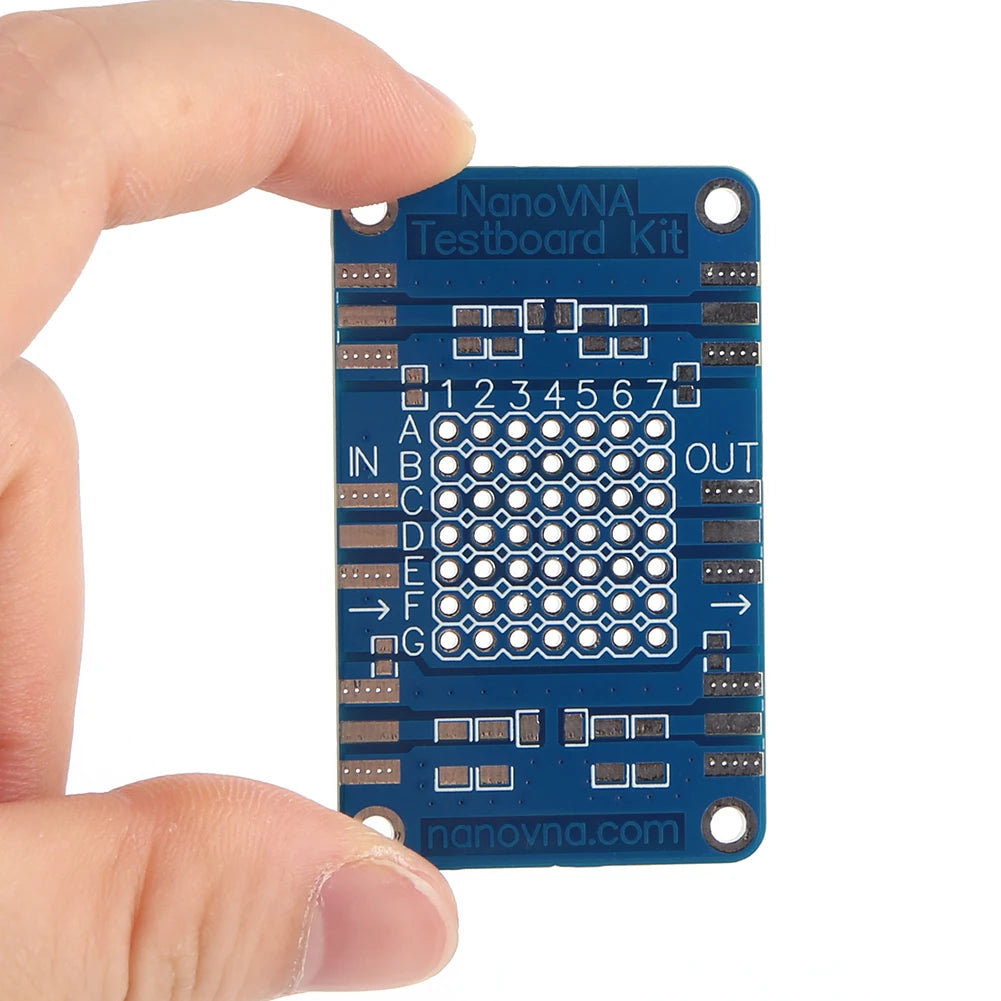

• Onboard Size: 50 x 31 mm (1.97 x 1.22 inches)
• SMT Footprints: 0805 and 1206 patch circuits
• Connector Type: SMA Female
• Condition: New (unassembled)

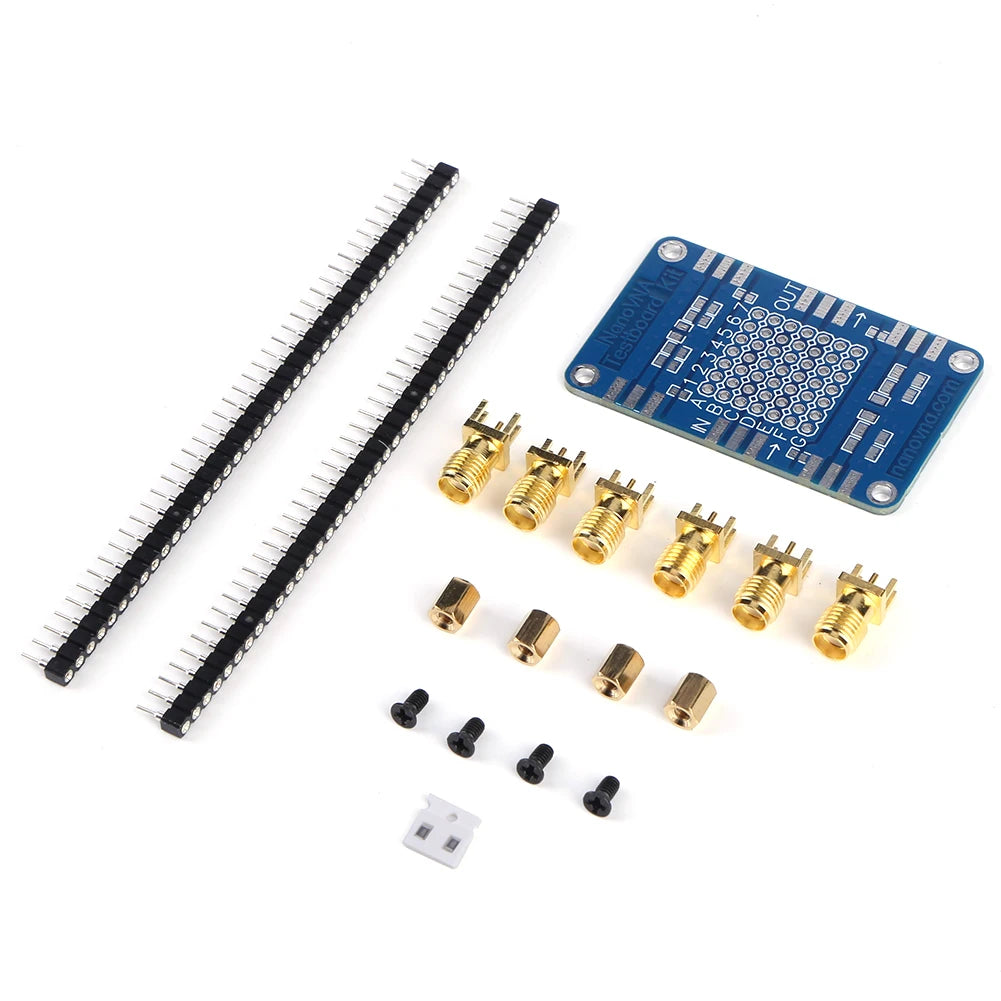

Package Contents

• 1 × Motherboard (PCB Test Board)
• 6 × SMA Female Connectors
• 4 × 6mm Copper Standoff Studs
• 4 × M2.5 Screws
• 2 × Round Sockets
• 1 × Calibration Resistor

Important Notes

This board is delivered unassembled. You will need your own soldering tools, soldering skills, and basic DIY knowledge to assemble and configure the test circuits. Due to the variety of SMT test scenarios, some device measurements may require minor circuit splicing. Please ensure you have sufficient hands-on ability before purchasing.

Colors may vary slightly due to monitor settings and lighting. Please allow a 1–2 cm tolerance due to manual measurement.

Related Products You May Like

If you enjoy DIY electronics and precision testing tools, you might also be interested in:

• 10-Pack 22AWG Glass Tube Fuse Holder 5x20mm & 6x30mm Screw
• 100W Dual-Port Car Charger for Starlink Mini – Fast Charging
• 140W USB-C Fast Charger with Auto Power-Off Overcharge Protection

Learn More About RF Measurement Standards

For technical standards related to electronic test equipment and measurement accuracy, refer to the National Institute of Standards and Technology (NIST) – Metrology resource.

Frequently Asked Questions

Q: Is this VNA test board compatible with NanoVNA models?

A: Yes, this test board kit is specifically designed for NanoVNA and other vector network analyzers (VNA/VNWA). It includes link-in test circuits compatible with VNWA testing boards and adds 0805 and 1206 SMT patch circuits for versatile measurements.

Q: Does this test board come pre-assembled?

A: No, the VNA test board kit is delivered unassembled. You will need soldering tools and basic soldering skills to build your test circuits. This design allows you to fully customize the board for your specific testing needs.

Q: What SMT component sizes can I test with this board?

A: The board supports 0805 and 1206 SMT footprints, which cover the most common surface-mount resistors, capacitors, and inductors used in RF and general electronics testing. Some specific devices may require minor circuit modifications or splicing.

Q: What is included in the kit?

A: Each kit includes 1 × PCB motherboard, 6 × SMA female connectors, 4 × 6mm copper standoff studs, 4 × M2.5 screws, 2 × round sockets, and 1 × calibration resistor — everything you need to get started (soldering tools sold separately).
