Voltage Converter DC 48V 24V 22A 528W Waterproof Power Transformer

Discover the Voltage Converter DC 48V 24V 22A 528W Waterproof Power Transformer — a standout decor pick featuring waterproof, compact design for dependable, everyday performance.

Specifications

Brand Name: kangwobei

Certification: CE,RoHS

Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.

Type: DC/DC Converters

Product Description

• Waterproof IP68 Voltage Converter DC 48V to DC 24V 22A 528W.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Recovery when the device is back to normal operating; high transfer efficiency of 96% max.
• Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability.

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry-grade DC48V to DC 24V converter, efficiency up to 96%.
4. Die-cast aluminum shell, epoxy seal, cooling by free air convection.
5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when the device is back to normal operating.

Applications:
- Trucks
- Golf Carts
- Forklifts
- Buses
- Loaders
- Wind Power System
- Solar Power System
- Telecommunications
- Boat and Yacht
- and so on.

Specifications:
* Input Rated Voltage: DC 48V
* Input Voltage Range: 38-60V DC
* Output voltage: DC24V 22A
* Output Rated Power: 528W
* Efficiency: 96% (half load); 94% (full load)
* Output Peak Power: 660W
* Voltage Converter: Less Than 1%
* Load Converter: Less Than 2%
* Ripple(full load test): Less Than 50mV
* No Load Current: Less Than 25mV

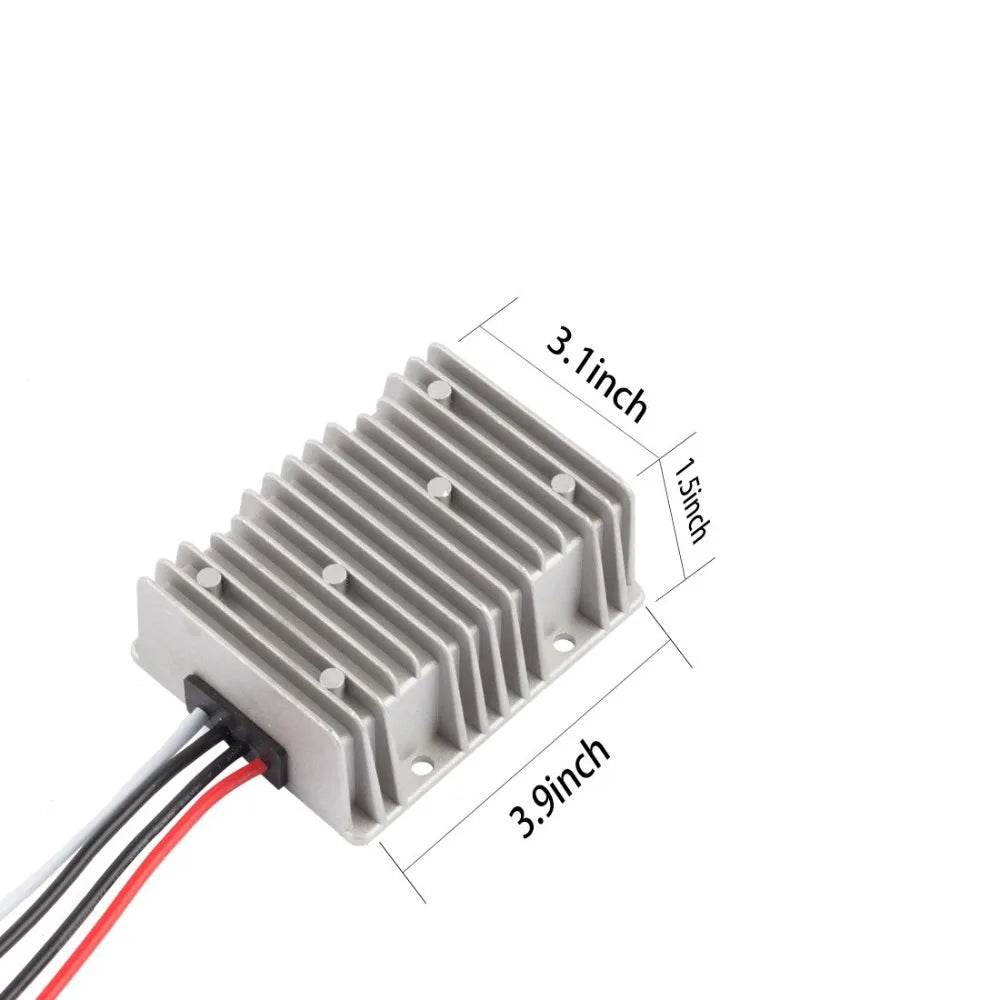

* Total Size: 100*80*39mm(L*W*H)
* Fixing Hole Diameter: 6mm(0.23 inch)
* Weight: 514g

Package included:
1 x DC 48V to DC24V 22A Voltage Converter
Instructional Manual:
1. Can not use a long time Under the MAX. LISTED LOAD POWER.

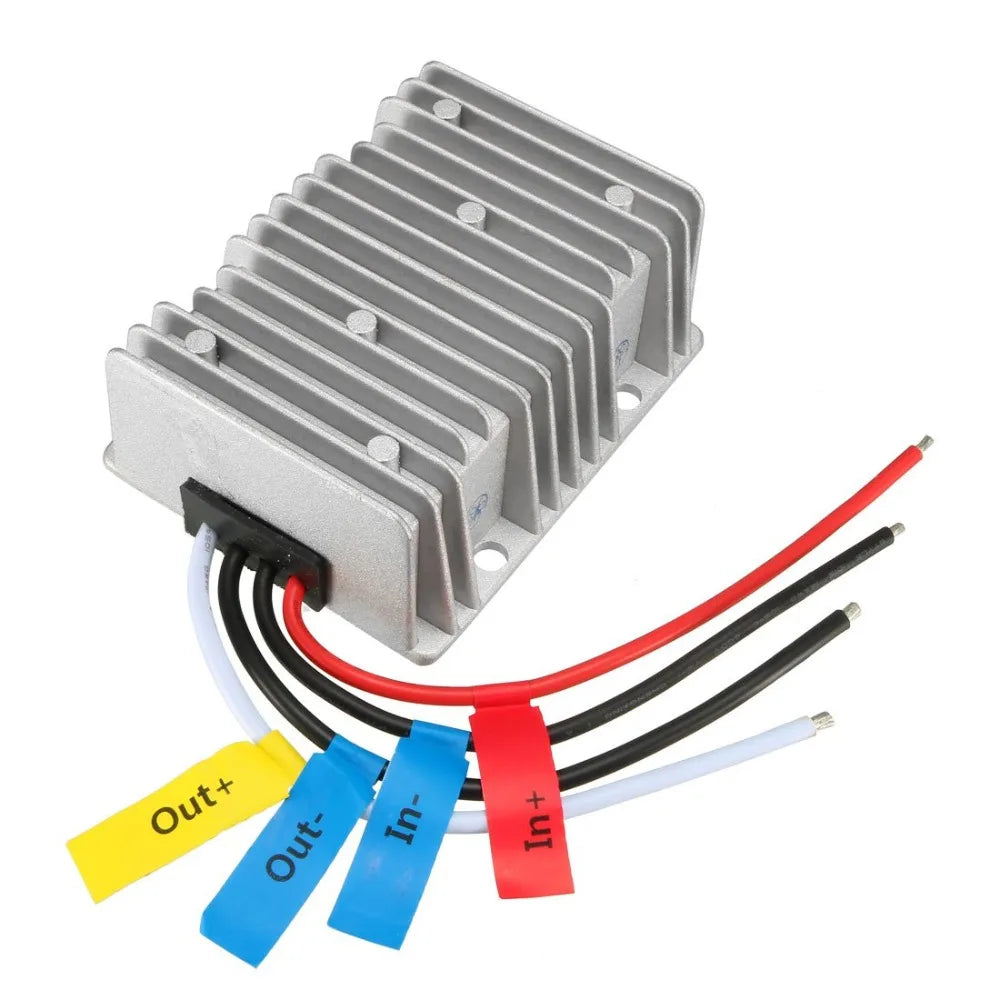

2. Please connect the converter and your device as the wiring diagram provided in the above picture.
