Voltage Meters Current Capacity Battery Tester USB Volt Doctor

Discover the Voltage Meters Current Capacity Battery Tester USB Volt Doctor — a standout decor pick featuring fast-charging design for dependable, everyday performance.

Specifications

DIY Supplies: Electrical

Data Record: No

Display Type: Digital Only

Operating Temperature: 0~80℃

Semi-finishedproduct: No

Voltage range: Other

Product Features:

1. Multiple parameters displayed simultaneously on a single screen, including current, voltage, power, energy consumption, capacity, resistance, elapsed time, number of capacity groups, Celsius, Fahrenheit, and quick identification.

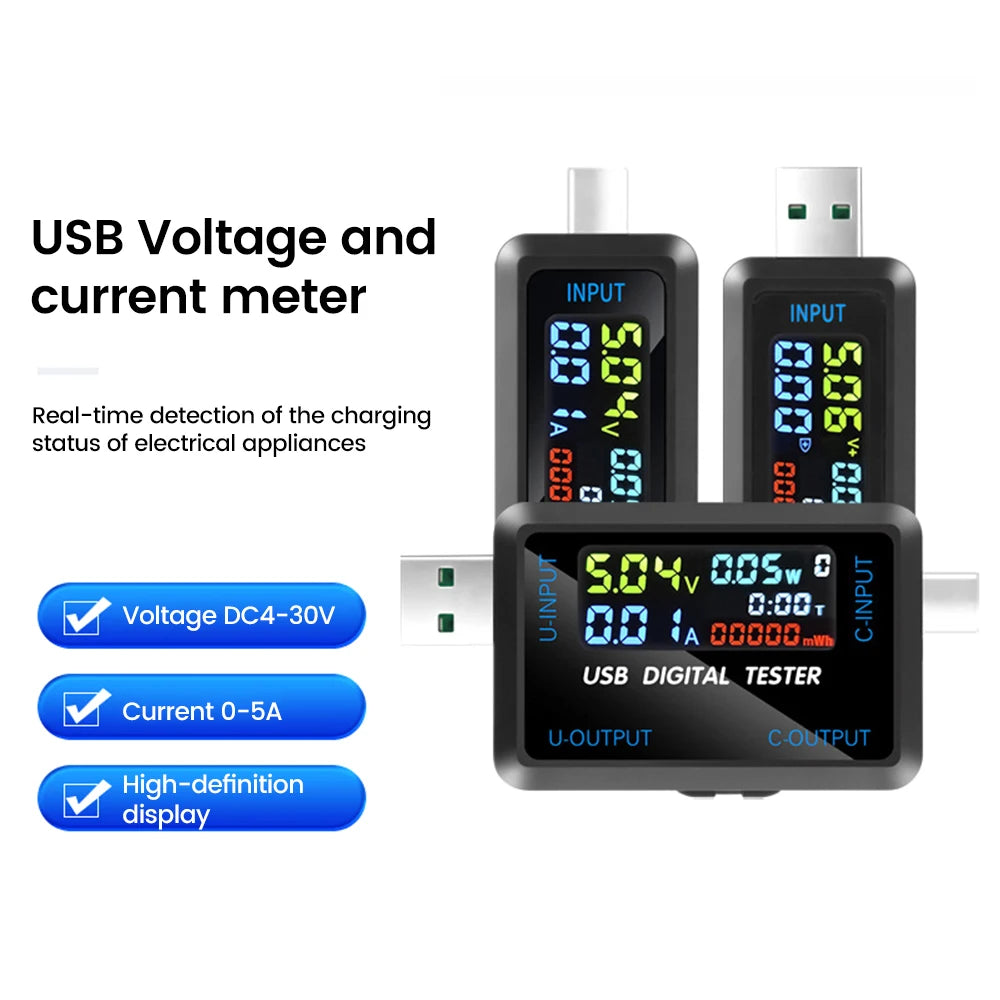

2. Real-time monitoring of charging status for connected devices, displaying parameters like charging voltage and current at a glance.

3. Display on/off function: Briefly press the multifunction button to switch to the sleep screen interface for display off, while still enabling normal charging for nighttime use.

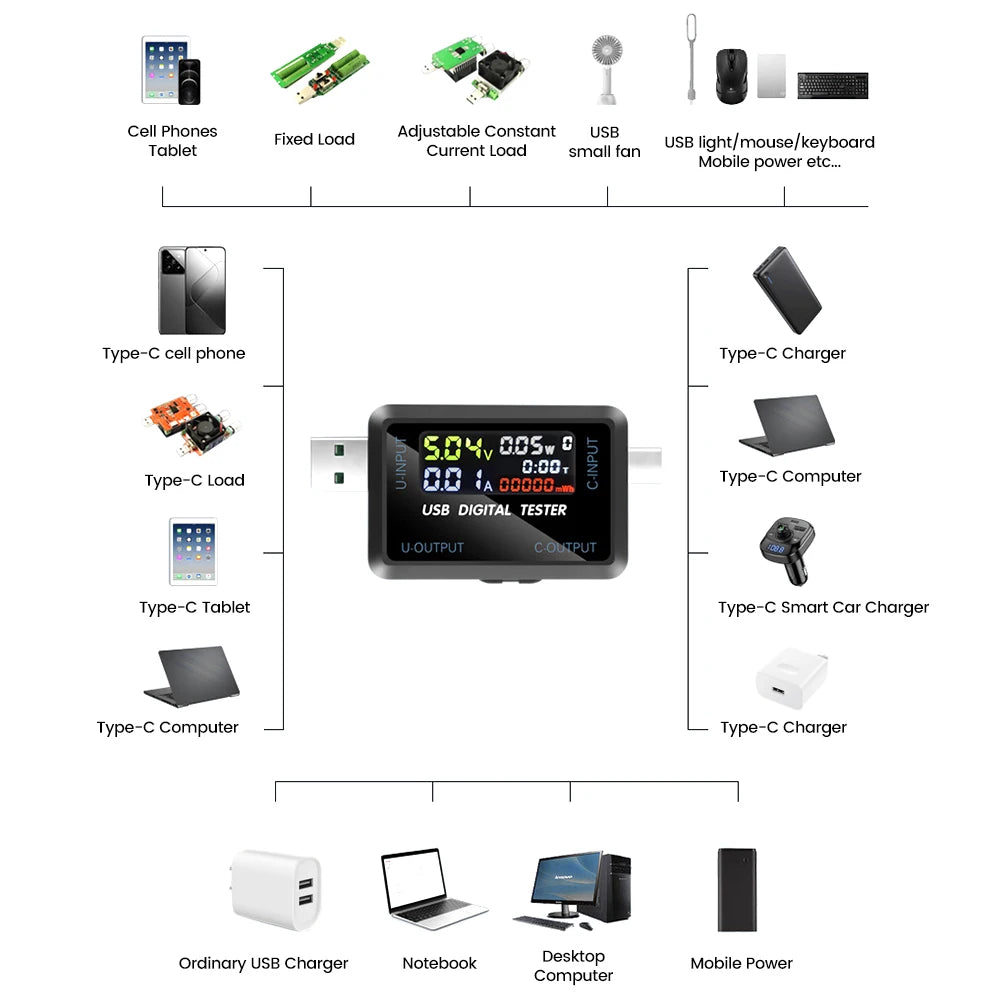

4. Tests various USB and Type-C digital devices: Easily tests chargers, data cables, power banks, laptops, phones, Type-C devices, and more.

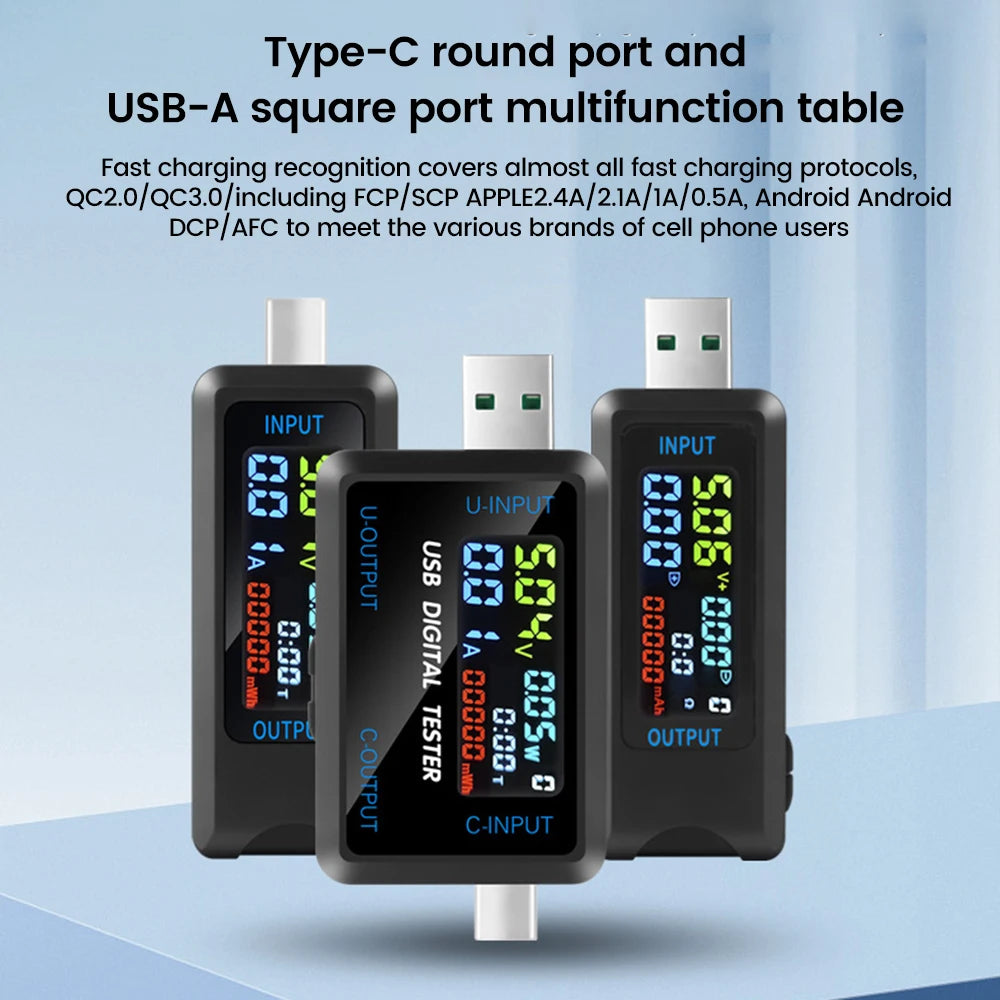

5. Automatic detection of multiple fast-charging protocols: Fast-charging recognition covers nearly all protocols, meeting the needs of diverse smartphone users.

Product Specifications:

Voltage Measurement Range: DC 4.5~36V

Current Measurement Range: 0-5A / 0-8A

Capacity Accumulation Range: 0-99999mAh

Energy Accumulation Range: 0-99999mWh

Power Measurement Range: 0-150W

Impedance Measurement Range: 1-999.9Ω

Temperature Measurement Range: 0~80℃

Timing Duration: 999 hours 59 minutes

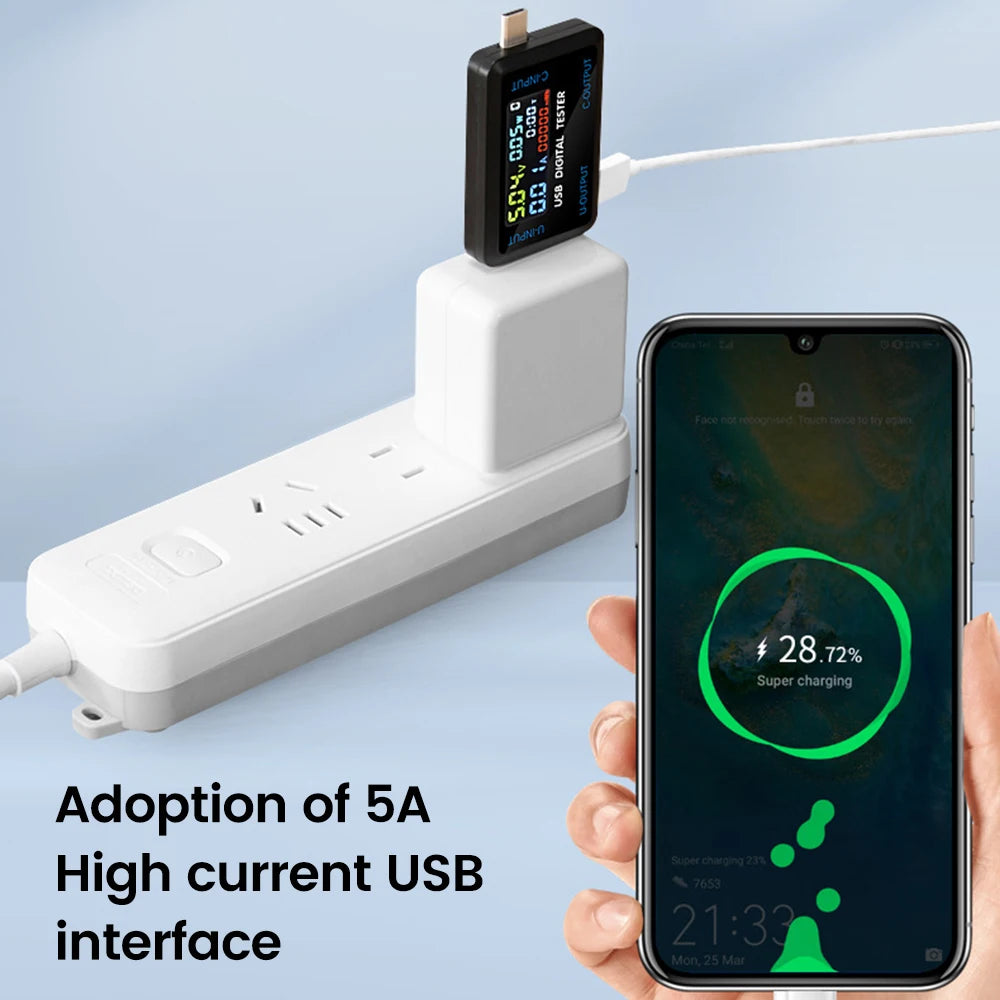

Input Ports: 5A High-Current USB Port / Type-C Port

Output Ports: USB / Type-C

USB D+ Voltage Range: 0~2.99V

USB D- Voltage Range: 0~2.99V

Refresh Time: >500mS/cycle

Measurement Rate: Approx. 0.5 cycles/second

Display: IPS true-color digital LCD

Self-consumption current: <0.02A

Operating temperature: -10~60℃

Operating humidity: 10~80%RH (non-condensing)

Operating pressure: 80~106kPa

Product dimensions:

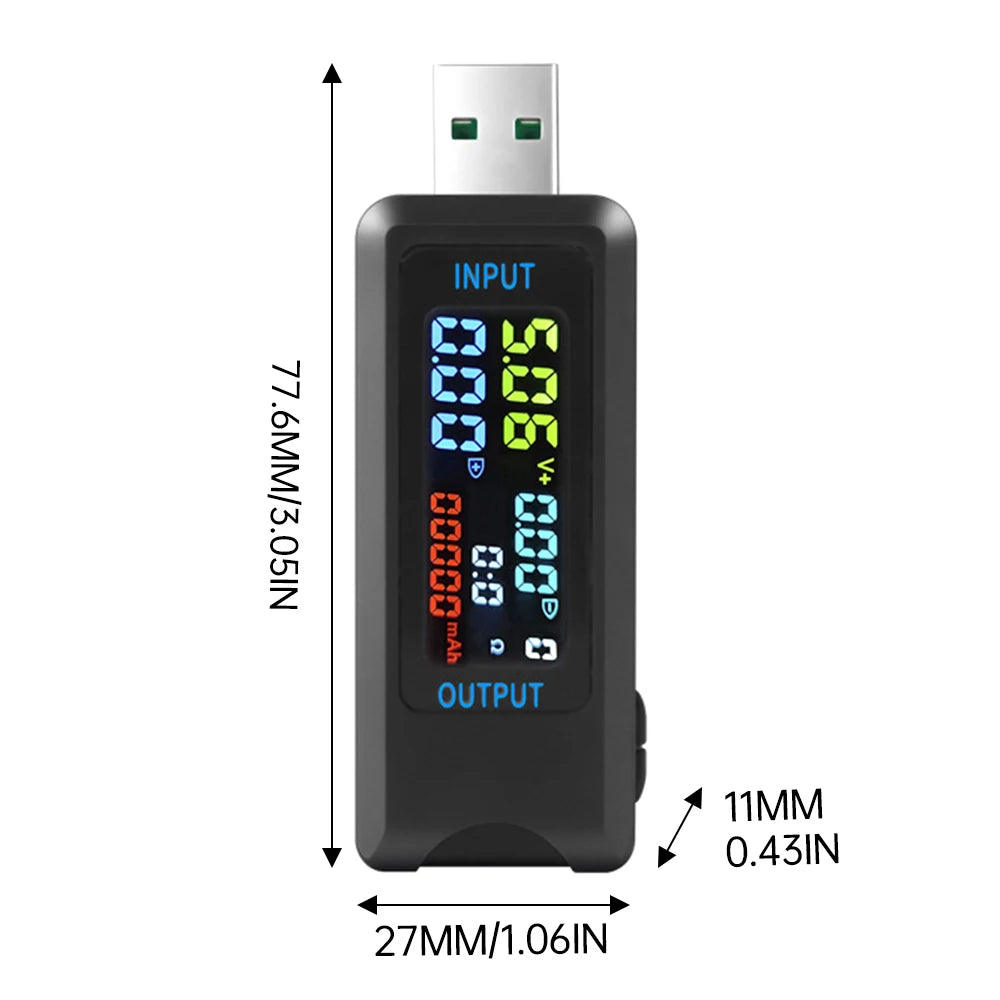

USB: 77.6*27*11mm

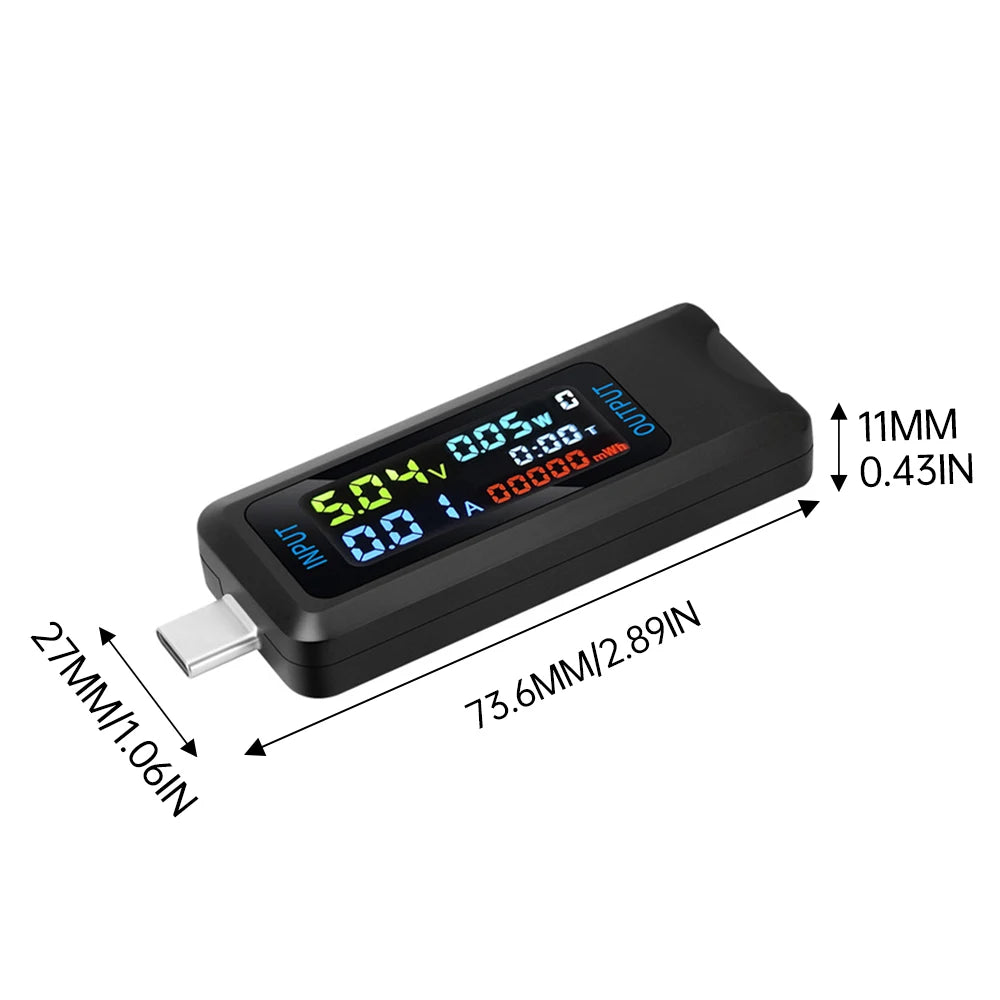

Type-C: 73.6*27*11mm

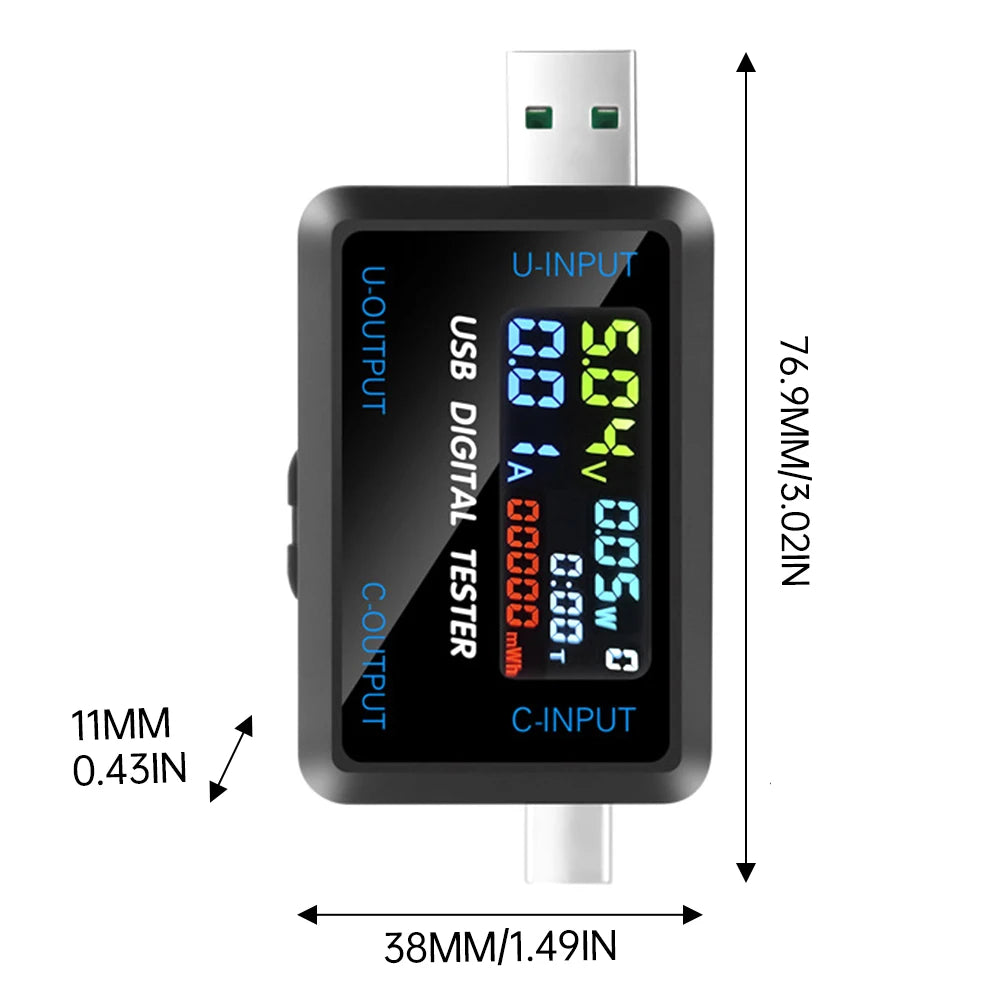

USB+Type-C: 76.9*38*11mm

Multi-function Button Operation Guide:

Short press mode button

1: Toggle screen display

2: Triple-tap power button to reset battery level (mWh) and clear current group timer (0.00)

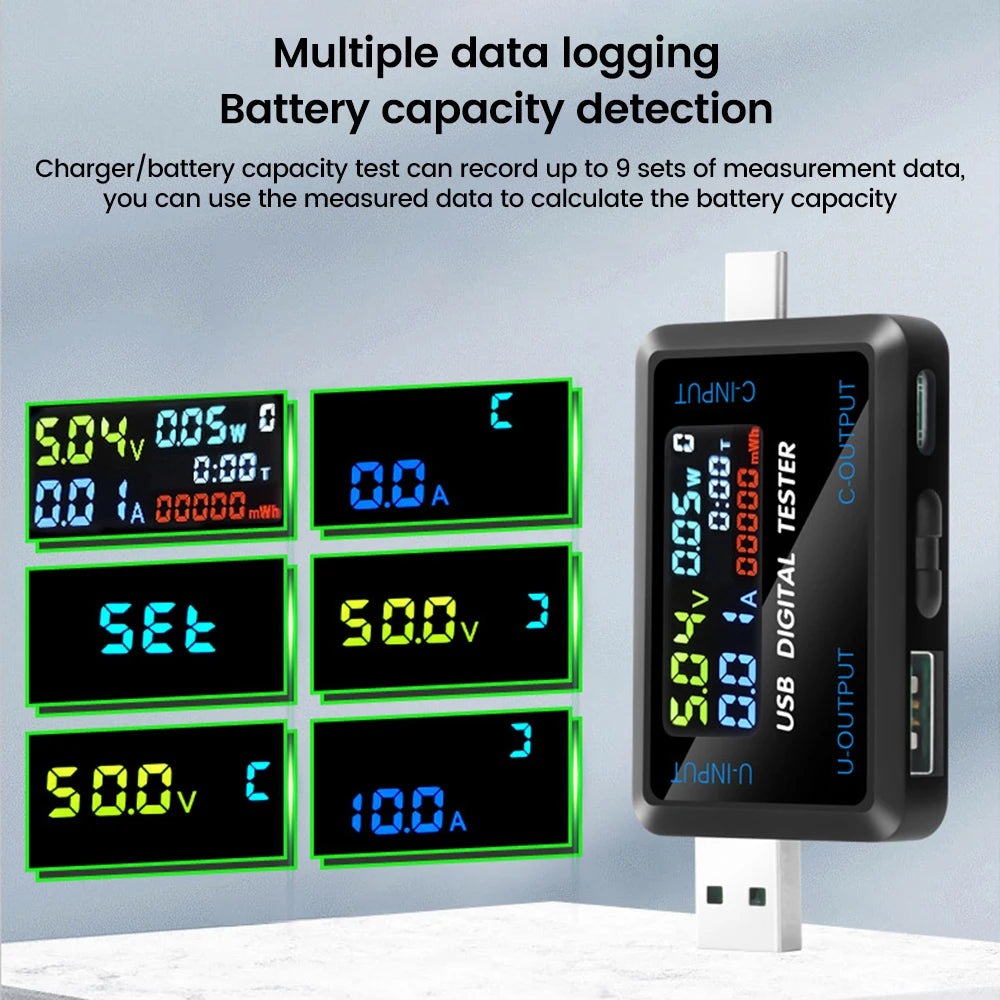

3: Long press power button for 2 seconds to change cumulative data storage group number (NO.X)

Interface Description:

USB/Type-C ports: “INPUT” connects to power source, “OUTPUT” connects to load

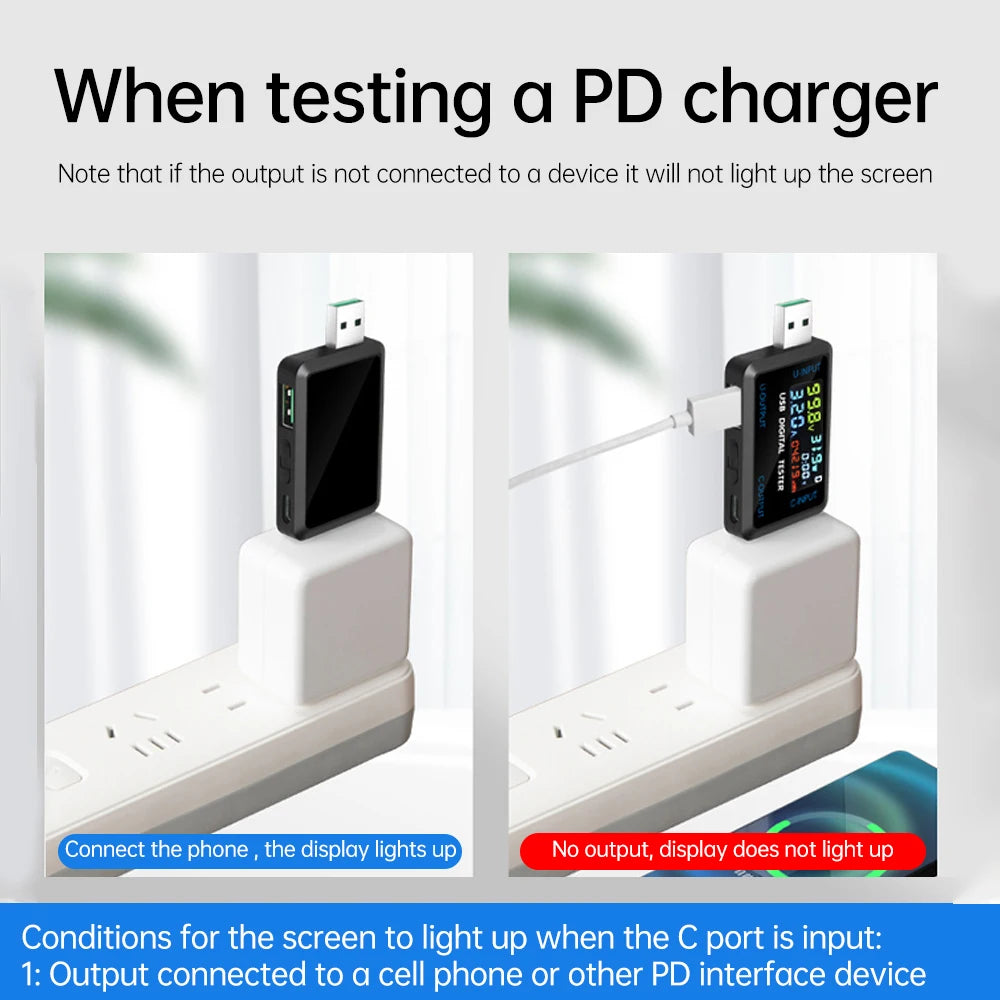

USB+Type-C port: USB input = USB output, Type-C input = Type-C output. Note: Type-C port displays no load when unconnected

Package Contents:

Voltage/Current Meter*1 (USB, Type-C, or USB+Type-C configuration optional)
