VTA & Azimuth Adjustment Ruler for Vinyl Tonearm & Cartridge

Precision VTA & Azimuth Adjustment Ruler for Vinyl Record Players

Get the most out of your vinyl listening experience with this high-definition acrylic adjustment ruler, designed to help you perfectly align your phono cartridge azimuth and fine-tune the Vertical Tracking Angle (VTA) of your tonearm. Whether you're a seasoned audiophile or just getting started with LP records, this compact and easy-to-use tool ensures your turntable setup delivers the clearest, most accurate sound possible.

Made in Mainland China from imported, high-quality acrylic, this ruler features exceptional clarity and precision grid lines, making alignment quick and accurate every time.

Key Features

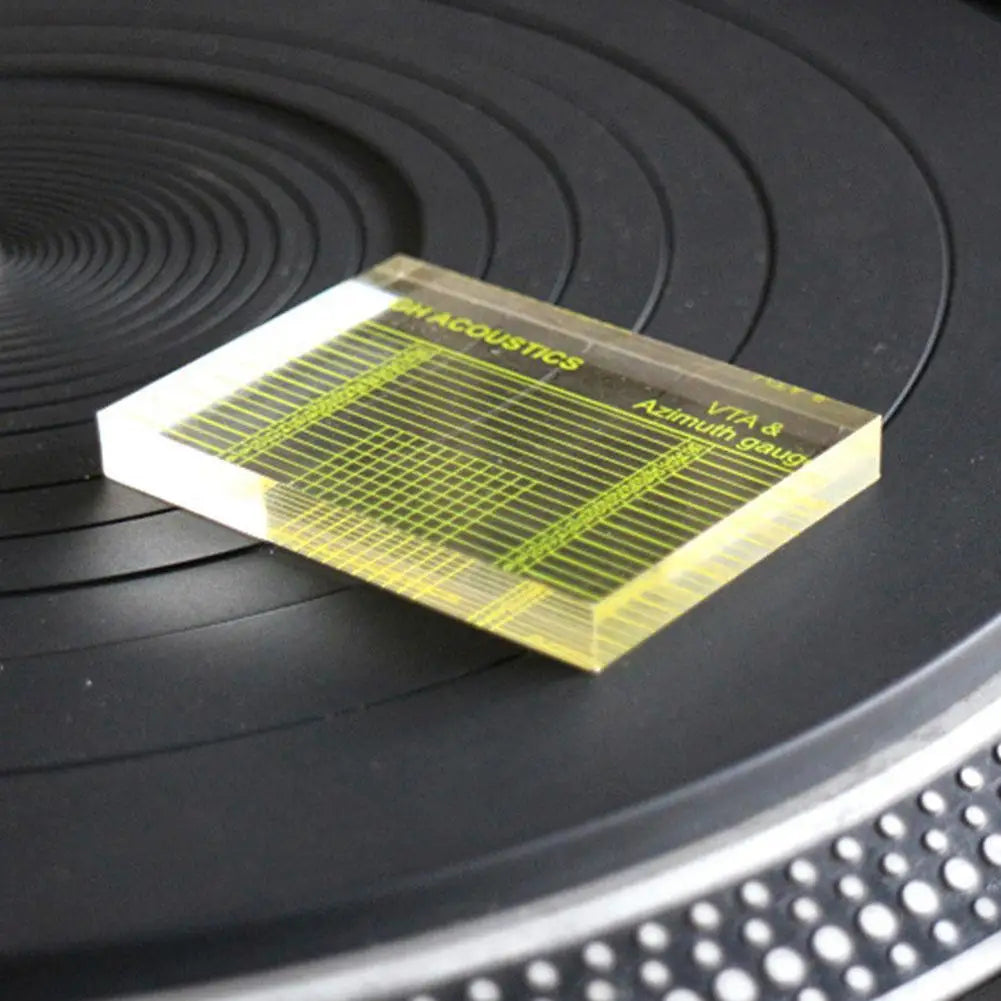

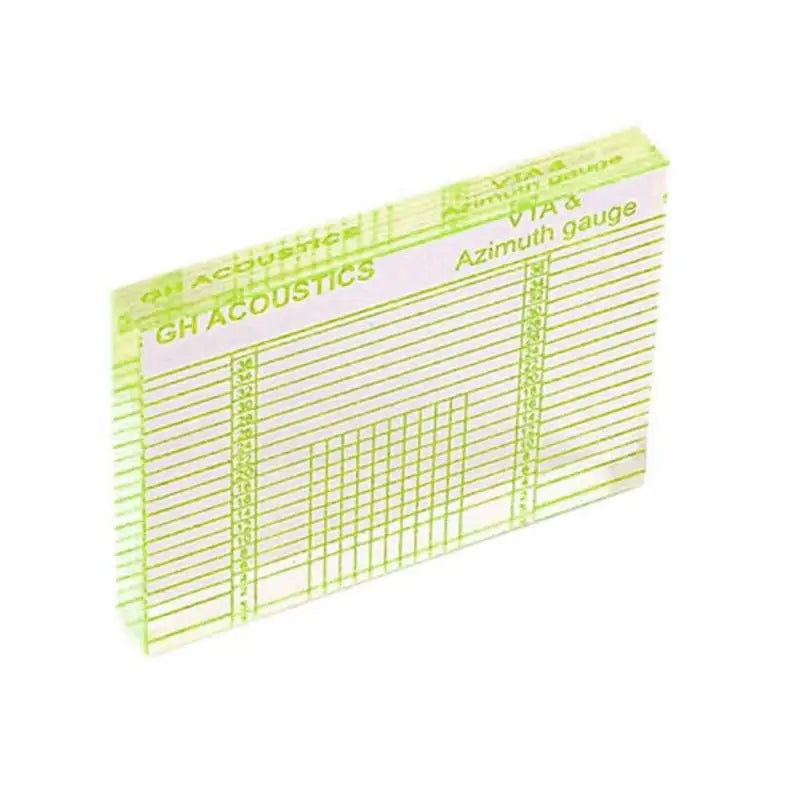

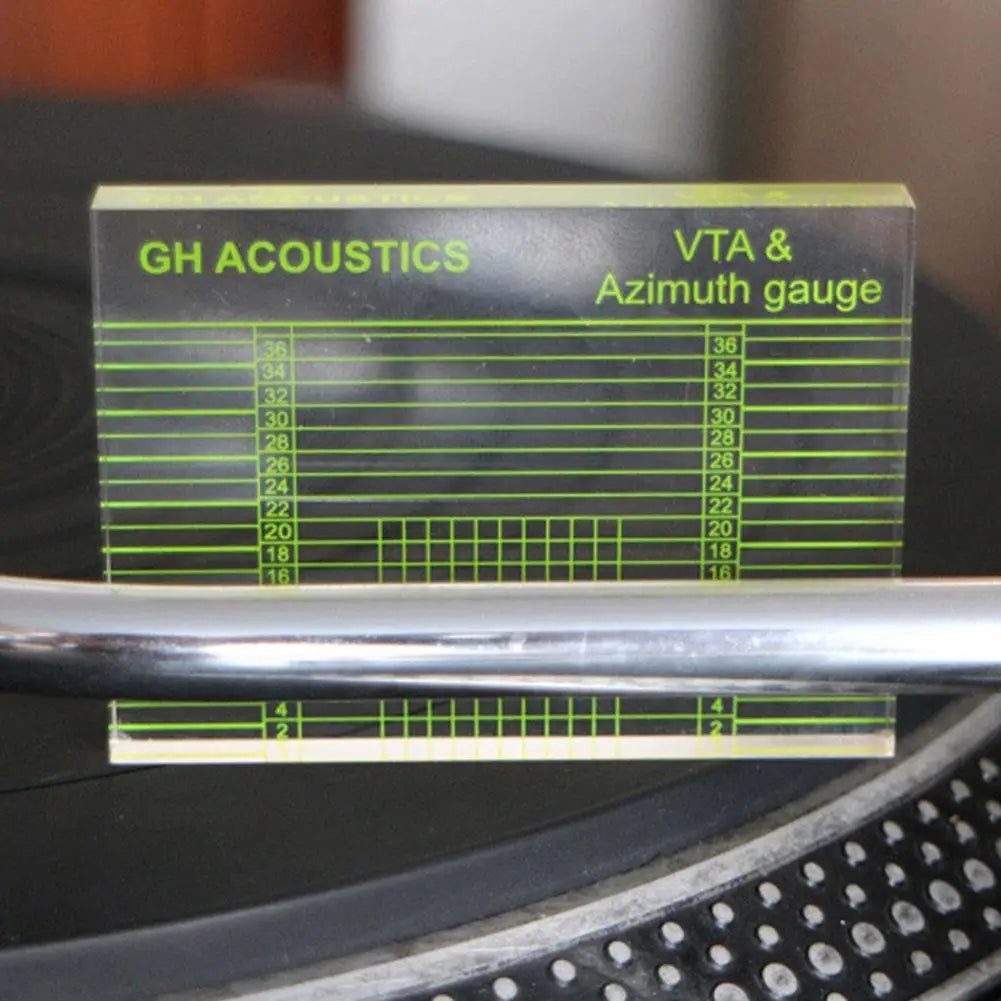

• High-Definition Acrylic Construction: Crystal-clear transparency lets you see cartridge and tonearm alignment at a glance — no guesswork needed.
• Dual-Purpose Design: Use it to adjust both cartridge azimuth (left/right tilt) and tonearm VTA (vertical tracking angle/height), two of the most important turntable alignment settings.
• Compact & Portable: Measuring just 66mm × 48mm × 7.5mm (thickness), it fits easily into your vinyl accessories bag and is ready whenever you need it.
• Compatible with 33 & 45 RPM Turntables: Works with virtually any phono tonearm setup for LP and single vinyl records.
• Easy to Use: Simple grid-line system allows visual alignment without the need for any additional tools or specialist knowledge.
• Protective Film Included: Comes with a protective film over the acrylic surface — simply peel it off before first use to reveal the clear, scratch-free surface.

Product Specifications

• Material: Imported high-quality acrylic

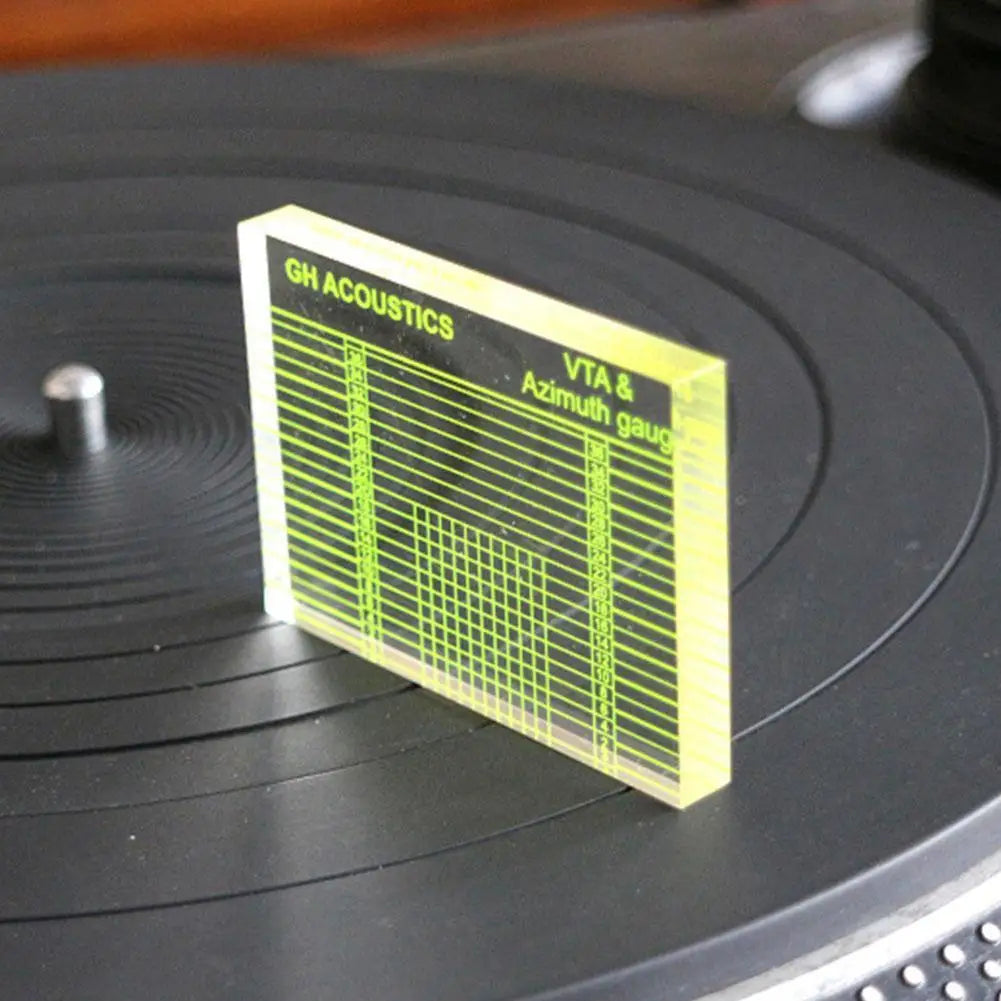

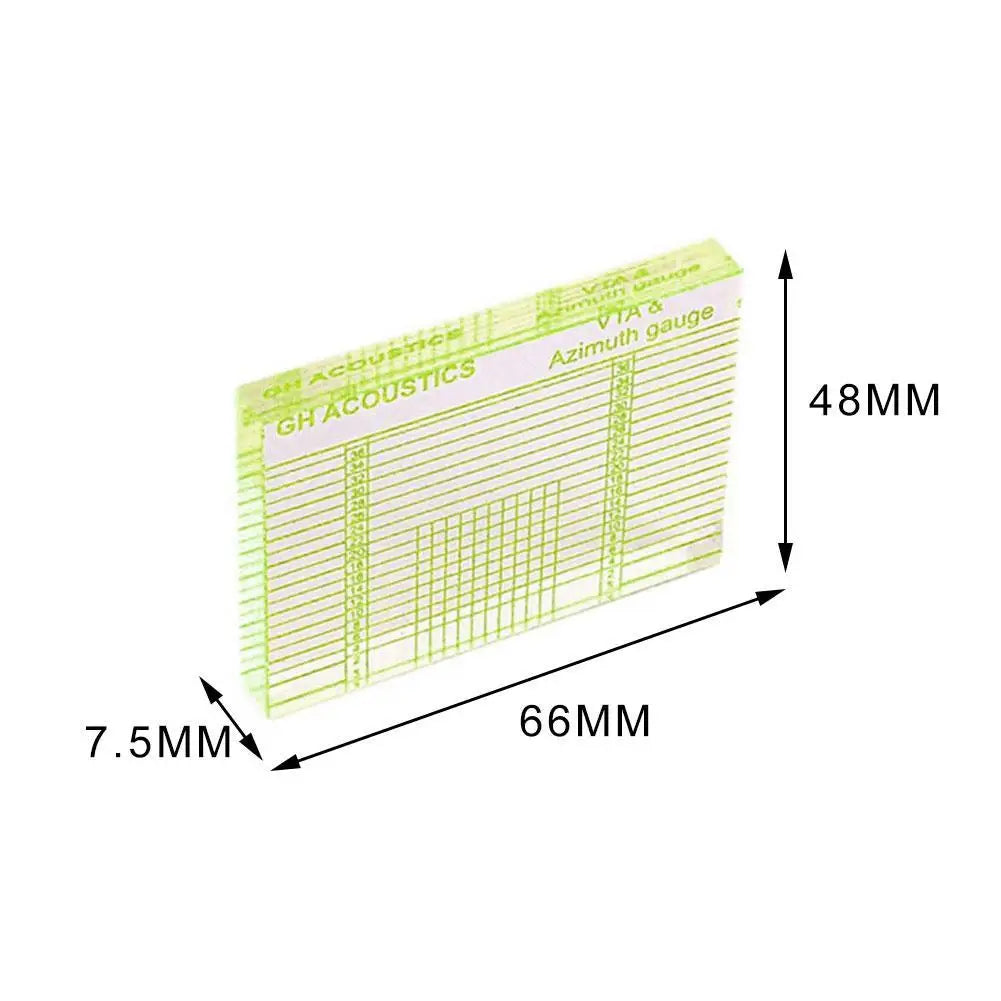

• Dimensions: 66mm × 48mm × 7.5mm (thickness)
• Compatible Speeds: 33 RPM & 45 RPM
• Country of Origin: Made in Mainland China

How to Use — Cartridge Azimuth Adjustment

1. Ensure the turntable platter is not rotating before making any adjustments.
2. Move the tonearm to the middle of a record and gently lower it so the stylus rests on the record surface.

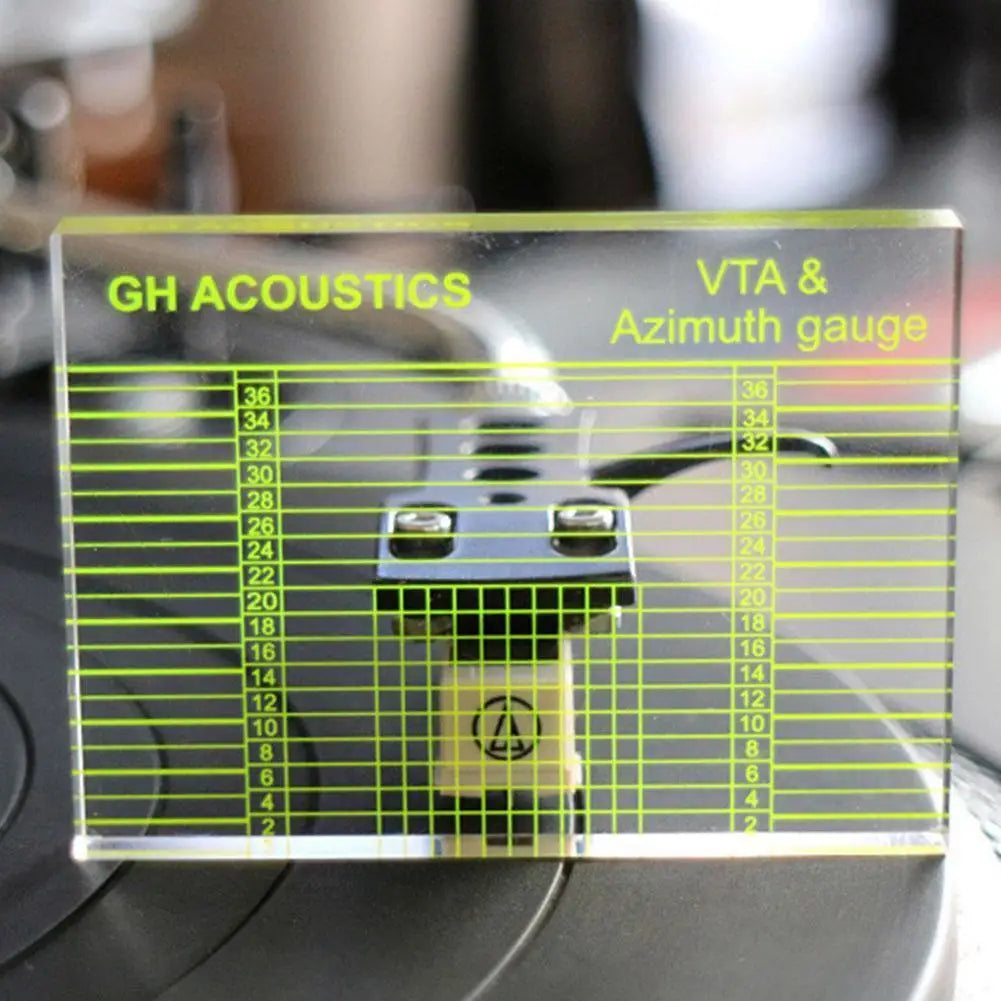

3. Place the ruler in front of the cartridge and check whether the cartridge body aligns with the vertical centre line on the ruler's grid.
4. Adjust the cartridge until it is perfectly aligned with the grid lines for accurate azimuth.

How to Use — Tonearm VTA Adjustment

1. Again, ensure the turntable is not spinning during adjustment.
2. Move the headshell to the middle of the record and lower the arm so the stylus touches the record surface.

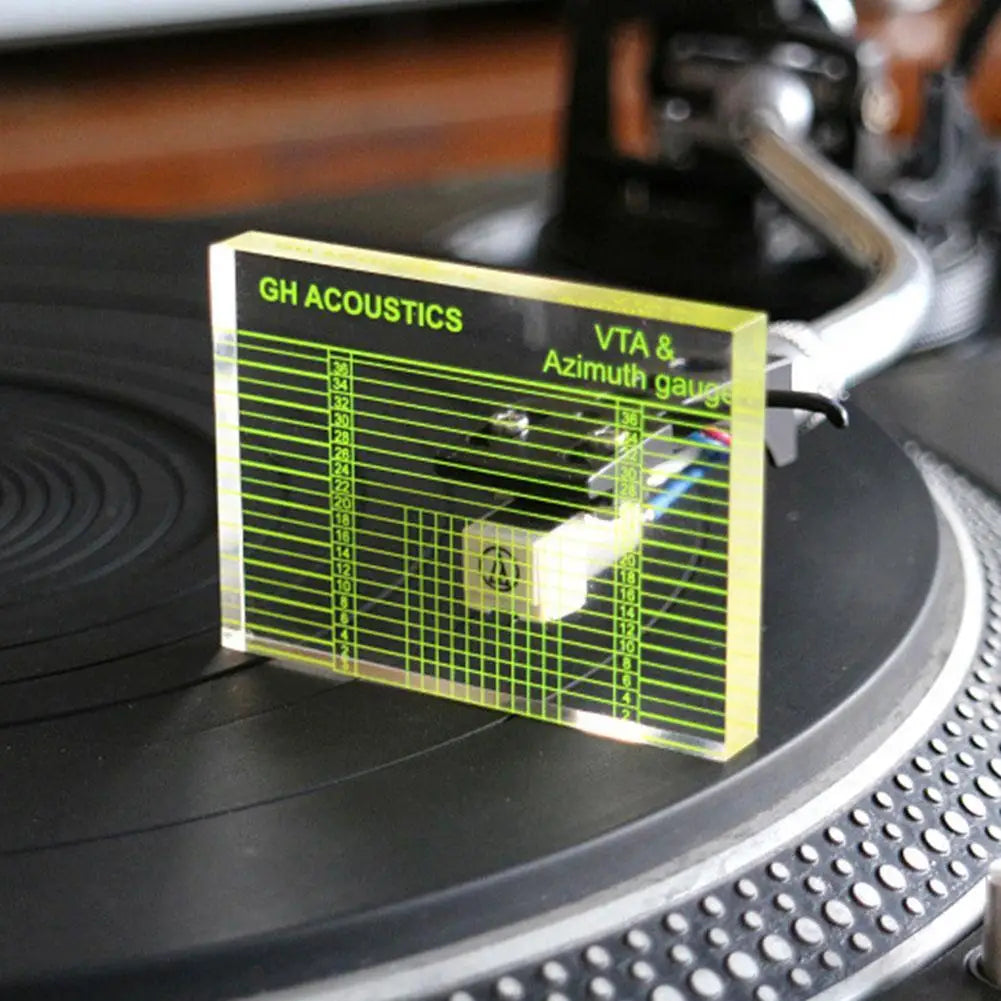

3. Place the ruler along the side of the tonearm and check whether the arm runs parallel to the horizontal lines on the ruler.
4. If the arm is not level, adjust the tonearm height (VTA) until it is perfectly parallel.

Why Proper VTA & Azimuth Alignment Matters

Correct VTA and azimuth alignment directly impacts the quality of sound your turntable produces. Misalignment can cause channel imbalance, poor stereo imaging, premature stylus and record wear, and distorted audio. This simple tool helps you dial in your setup for optimal playback performance. For further reading on how audio equipment standards are maintained, visit NIST — National Institute of Standards and Technology.

Related Products You May Like

• 0–100mm Tiny Digital Vernier Caliper | Portable Measuring Tool
• 0–200mm Jewelry Caliper – Stainless Steel Bead & Stone Gauge

Frequently Asked Questions

Q: What is the purpose of a VTA and azimuth adjustment ruler for a vinyl turntable?

A: A VTA (Vertical Tracking Angle) and azimuth adjustment ruler is a precision alignment tool used to set the correct angle and tilt of your phono cartridge and tonearm. Proper VTA ensures the stylus tracks the record groove at the ideal angle, while correct azimuth alignment ensures the cartridge is perfectly perpendicular to the record surface. Together, these adjustments maximise sound quality, stereo balance, and prolong the life of both your stylus and vinyl records.

Q: Is this ruler compatible with all turntable tonearms?

A: Yes — this ruler is designed to work with virtually any phono tonearm and cartridge setup, including those used for 33 RPM LP records and 45 RPM singles. Its universal grid-line design makes it suitable for both beginner and audiophile-grade turntable systems.

Q: How do I care for the acrylic surface of the ruler?

A: The ruler ships with a protective film on the acrylic surface — be sure to peel this off before first use. To keep the surface clear and scratch-free, clean it gently with a soft, dry or slightly damp cloth. Avoid abrasive materials or harsh chemical cleaners that could scratch or cloud the acrylic.

Q: Do I need any other tools to use this adjustment ruler?

A: No additional tools are required to use this ruler. Simply place it against your cartridge or tonearm while the stylus rests on a stationary record and use the printed grid lines as a visual reference. You will only need standard tonearm adjustment tools (such as a small screwdriver) if you need to physically adjust your tonearm height or cartridge position based on the readings.
