W3002 Digital Control Temperature Microcomputer Thermostat Switch

Discover the W3002 Digital Control Temperature Microcomputer Thermostat Switch — a standout decor pick featuring waterproof design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Semi-finishedproduct: No

Description:

High-brightness LED display ensures clear readings day or night.

Sensors feature 2P terminals for easy interchangeability when switching probes.

ABS housing combines elegant aesthetics with high mechanical strength, excellent electrical properties, and aging resistance.

-50~110℃ ultra-wide temperature control range, suitable for diverse applications. 0.1℃ control accuracy meets precise regulation requirements.

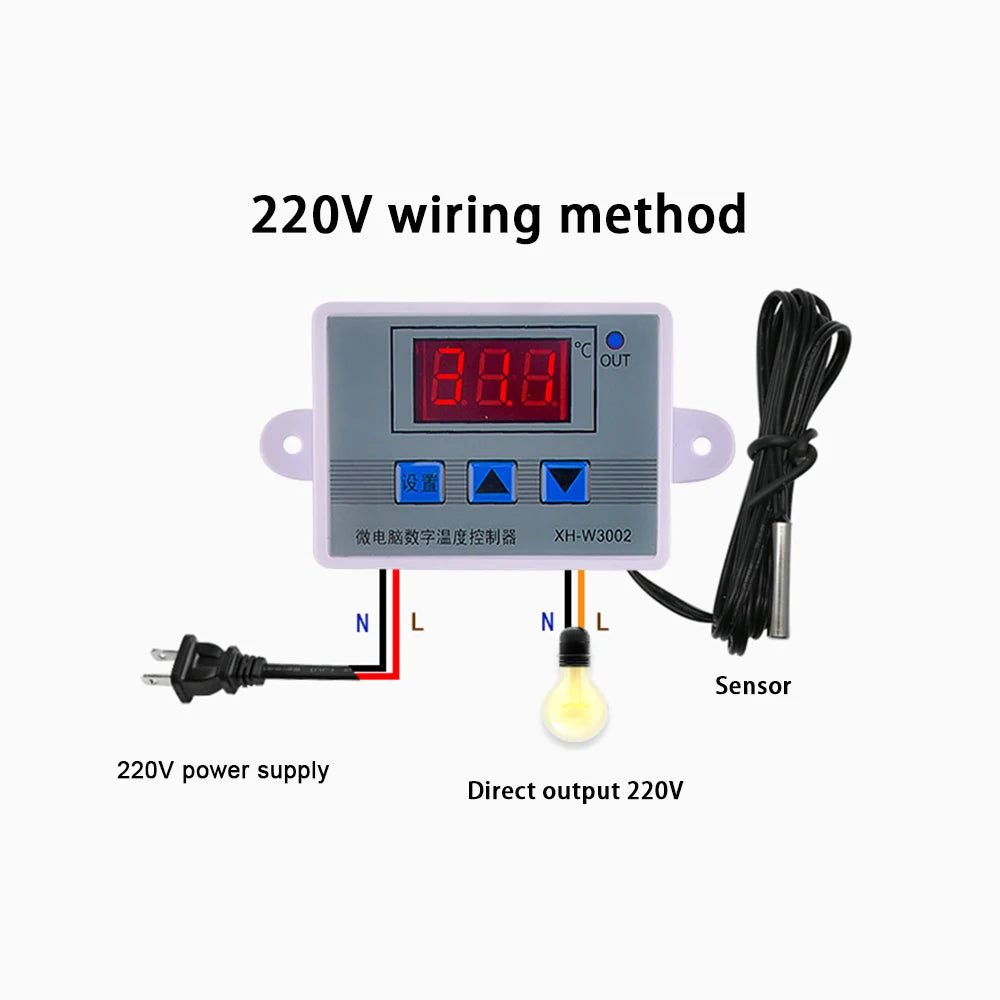

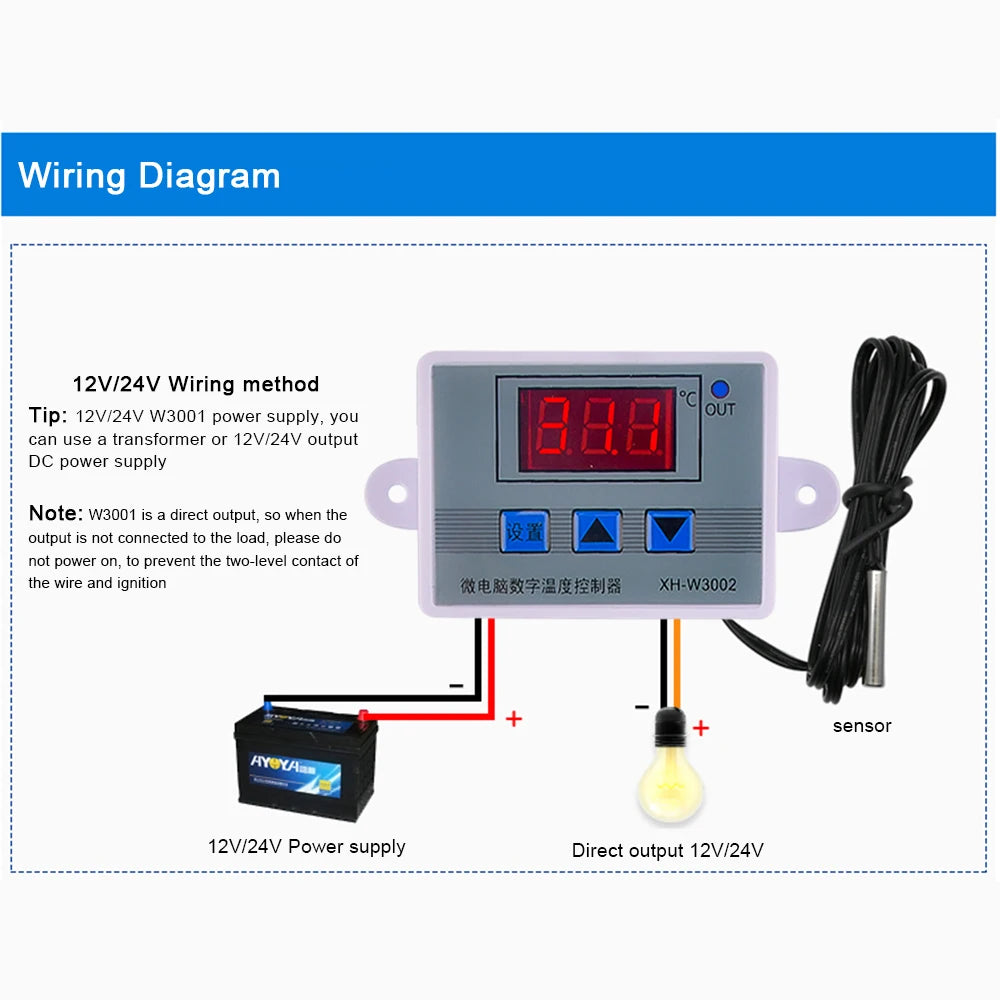

Wiring input/output design facilitates integration into industrial control systems. Multi-strand wiring rated at 300V/20A ensures safety and reliability.

Product Information:

Product Name: Microcomputer Temperature Controller

Model: XH-W3002

Temperature Measurement Range: -50~110℃

Temperature Control Range: -50~110℃

Temperature Measurement Accuracy: ±0.2℃

Temperature Control Accuracy: ±0.1℃

Measurement Input: NTC10K L=1m Waterproof Probe

Input Power: 12/24/220V

Output Power: 120/240/1500W

Output Type: Direct Output

Output Capacity: Max 10A

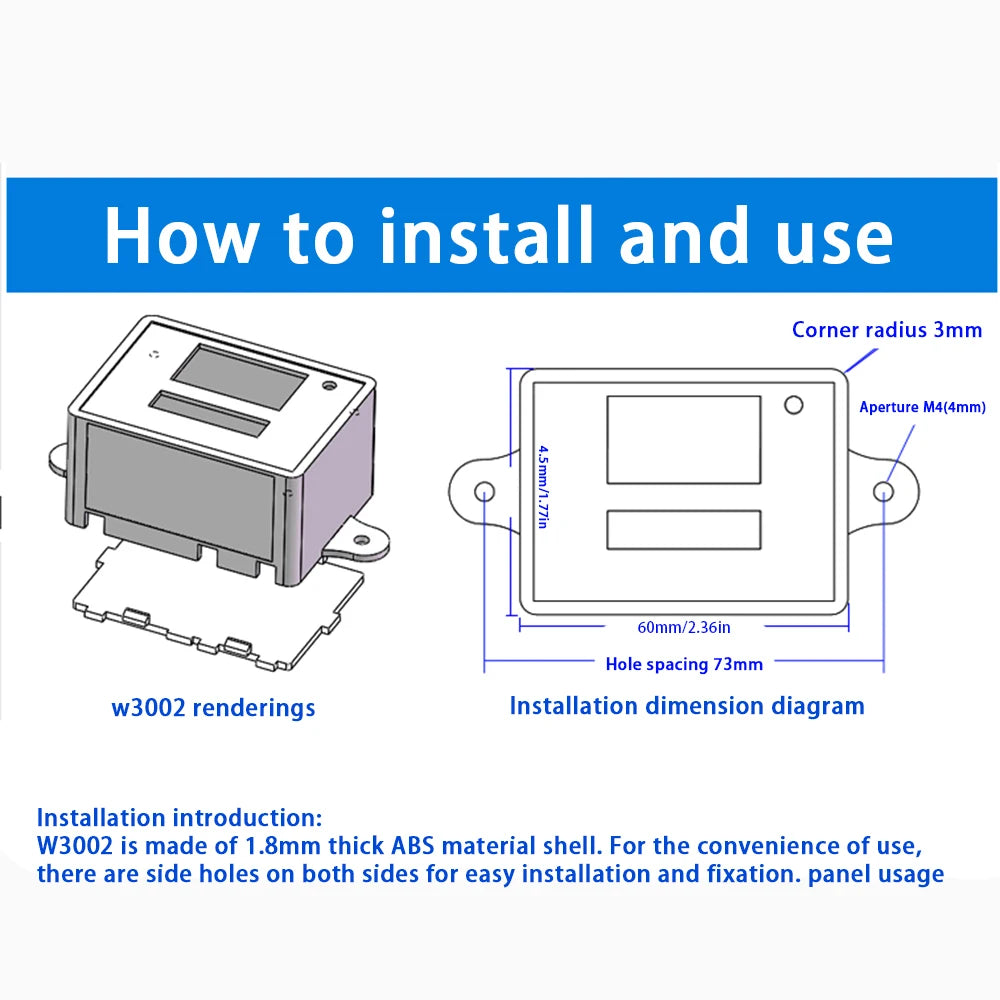

Mounting Hole Spacing: 73mm (4mm Hole Diameter)

Dimensions: 60*45*31mm

Setup and Operation:

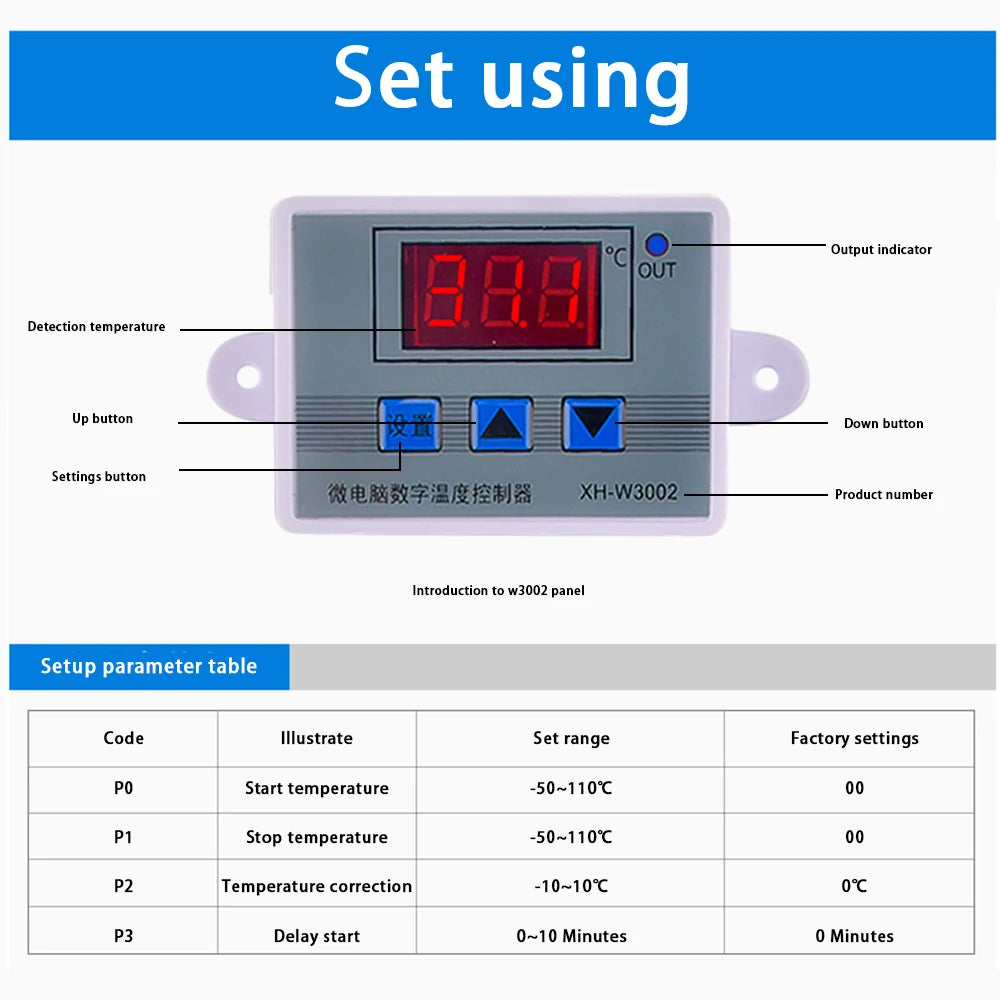

Code and Function Overview

P0 Set Start Temperature

Press the SET key once to enter the internal menu. The default display shows P0. Press the SET key again and use the UP/DOWN keys to set the desired start temperature.

P1 Set Stop Temperature

Press the SET key once to enter the internal menu. The digital display shows P0. Use the UP/DOWN keys to switch to P1. Press the SET key again and use the UP/DOWN keys to set the desired stop temperature.

P2 Set Temperature Calibration

Follow the same procedure to enter the internal menu. Use the up/down keys to switch to P2. Press the set key again and use the up/down keys to set the required calibration temperature. During setup, if the detected temperature value is 0.5°C higher than the actual temperature, the calibration temperature to set is -0.5°C. If the detected temperature is 1°C lower than the actual temperature, the calibration temperature to set is +1°C. Detected Temperature ± Calibration Temperature = Actual Temperature.

P3 Delayed Start Setting

Enter the internal menu using the same method. Use the up/down keys to switch to P3. Press the set key once more. Use the up/down keys to set the desired delay time (in minutes). Delayed start is typically used for compressor refrigeration. If used for refrigerators or freezers, this value should be set based on the compressor back pressure, generally between 3-6 minutes. If not controlling a compressor or not requiring a delay function, skip this item.

Shipping List:

Thermostat x1

Options

• Color: 110-220V, 24V, 12V
