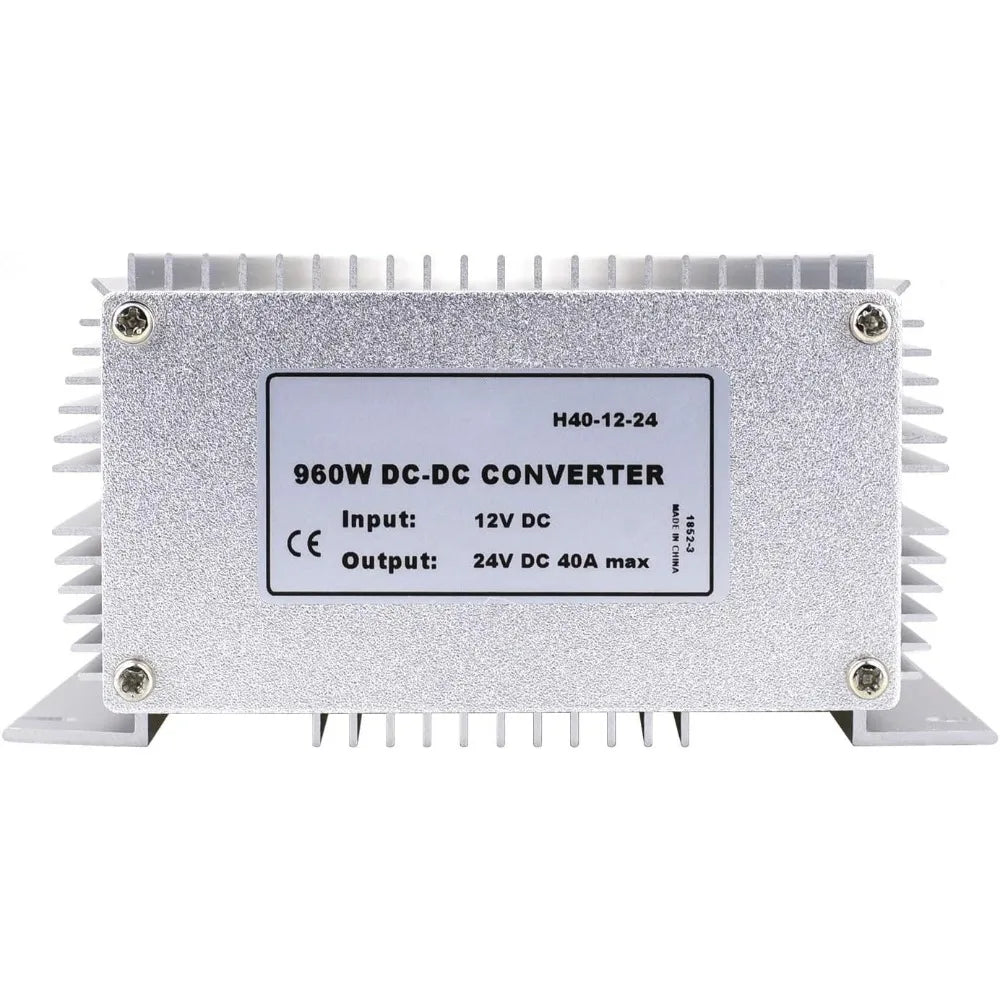

Waterproof DC 12V 24V Boostconverter 40A 960W Step

Discover the Waterproof DC 12V 24V Boostconverter 40A 960W Step — a standout sporting goods pick featuring waterproof, durable, adjustable design for dependable, everyday performance.

Specifications

Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.

Brand Name: kangwobei

Certification: CE,TGA,UL,KC

High conversion efficiency: The conversion efficiency may reach 95%; Its dynamic response speed is 5 percent 200US, please lower the power or enhance heat radiation when temperature over 40℃

Input voltage range: DC 10V-16V; Output voltage: DC 24V(non-adjustable); Output current: 40A (rated working current); Output power 960W.

Model Number: WH-12-24 ,WH-30-57

Output Type: SINGLE

Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.

Type: DC/DC Converters

Wide application: Trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED lights, monitoring system, motors, electronic systems etc.

is_customized: Yes

semi_Choice: yes

Product Description

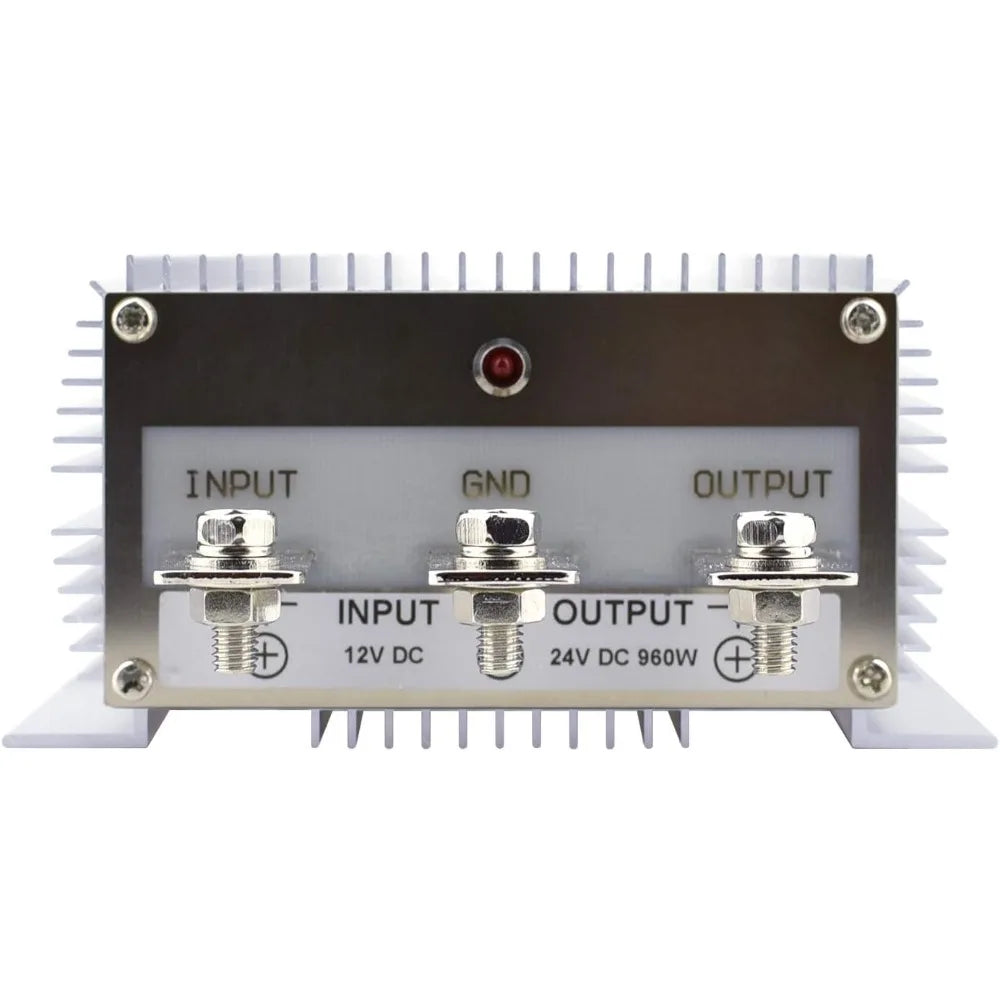

Wiring: INPUT+ to BAT+, GND to BAT-; OUTPUT+ to LOAD+, GND to LOAD-

Note:
* Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.
* Never charge the battery. Keep good air convection.
* Never reverse the polarity.
* Use the enough big cable to avoid the voltage drop.

Application:
12V DC battery as input power to 24V DC appliances as output load.

Specifications:
Input Rated Voltage: 12V DC
Input Voltage Range: 10V-16 DC
Output voltage: 24V DC
Output Current: 40 Amp
Output Rated Power: 960W
Efficiency: 97% (half load); 95% (full load)
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C
Total Size: 265*127*63mm(L*W*H) Weight: 2170g

Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 12V to DC 24V step up converter, efficiency up to 95%.

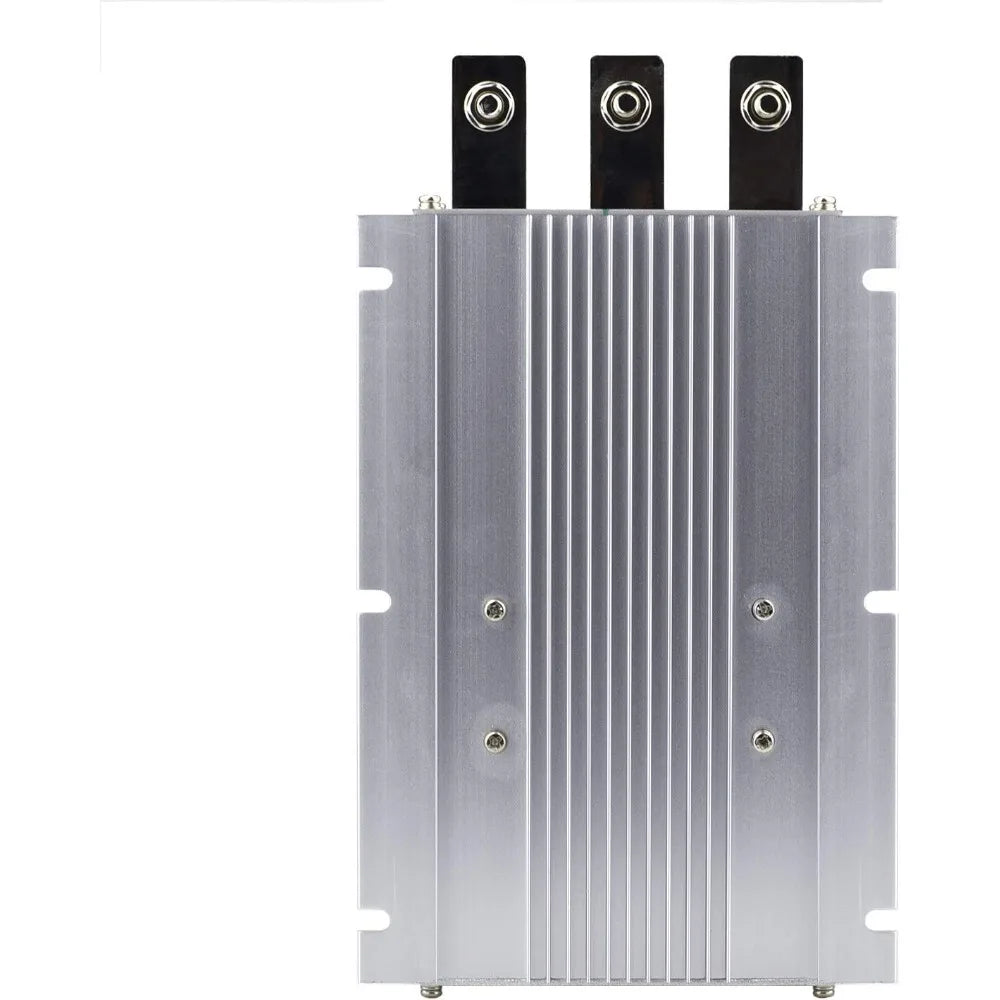

3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.

Package included:
1 x DC 12V-24V 40A Step up Converter

Questions:
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.

Options

• Color: 12V to 24V 25A, 12V to 24V 50A, 12V to 24V 40A, 48V 36V to 12V 20A, 36V 48V to 12V 30A, 24v to 12v 20A, 36V 48V to 12V 10A
