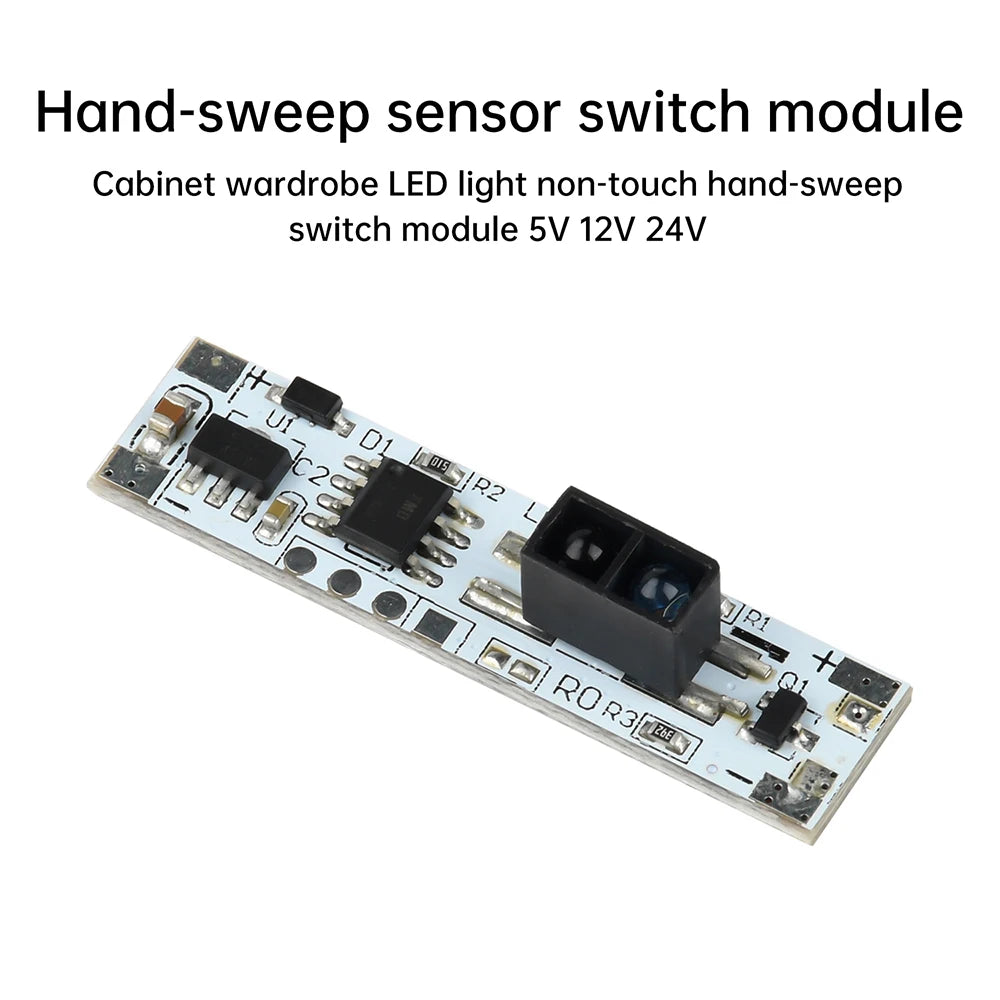

XK-GK-4010A Hand Sweep Sensor Switch Module 5V-24V LED Lights

Discover the XK-GK-4010A Hand Sweep Sensor Switch Module 5V-24V LED Lights, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

Condition: New

Type: Switch

Description:

1. Utilizes infrared sensing technology, supporting hand-wave activation/deactivation and obstruction detection for convenient contactless switch control.

2. Standard model supports up to 72W power, while the multi-function model supports up to 120W, compatible with various LED lighting fixtures.

3. Wide operating voltage range (5V-24V) ensures strong adaptability.

4. Designed exclusively for LED lighting control, eliminating safety risks from inductive loads and ensuring system stability.

5. The multi-function model offers 6 sensing modes for diverse scenarios. Dimming mode activates with a gesture pause, automatically saves settings, and provides intuitive operation.

Parameters:

Product Name: Gesture-Sensing Switch Module

Output Type: Switch + Indicator Light

Operating Voltage: Input: 5V-24V; Output: Equal to input voltage

Sensing Principle: Infrared

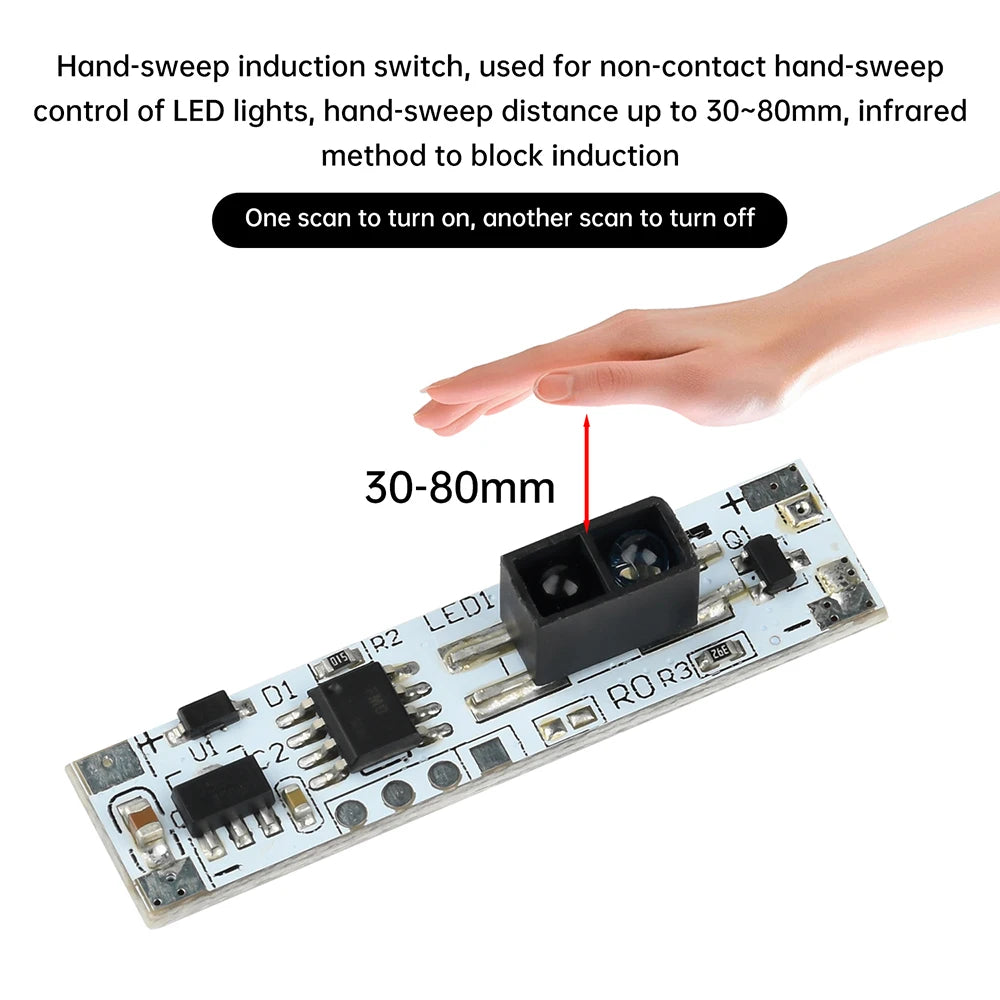

Sensing Range: 30-80mm

Delay Shutdown Time: None (Instant on/off upon gesture)

Application Range: DC, Constant Voltage

The controller is designed exclusively for switching LED lights and must not be used with inductive loads (e.g., inductors, motors, relays, etc.).

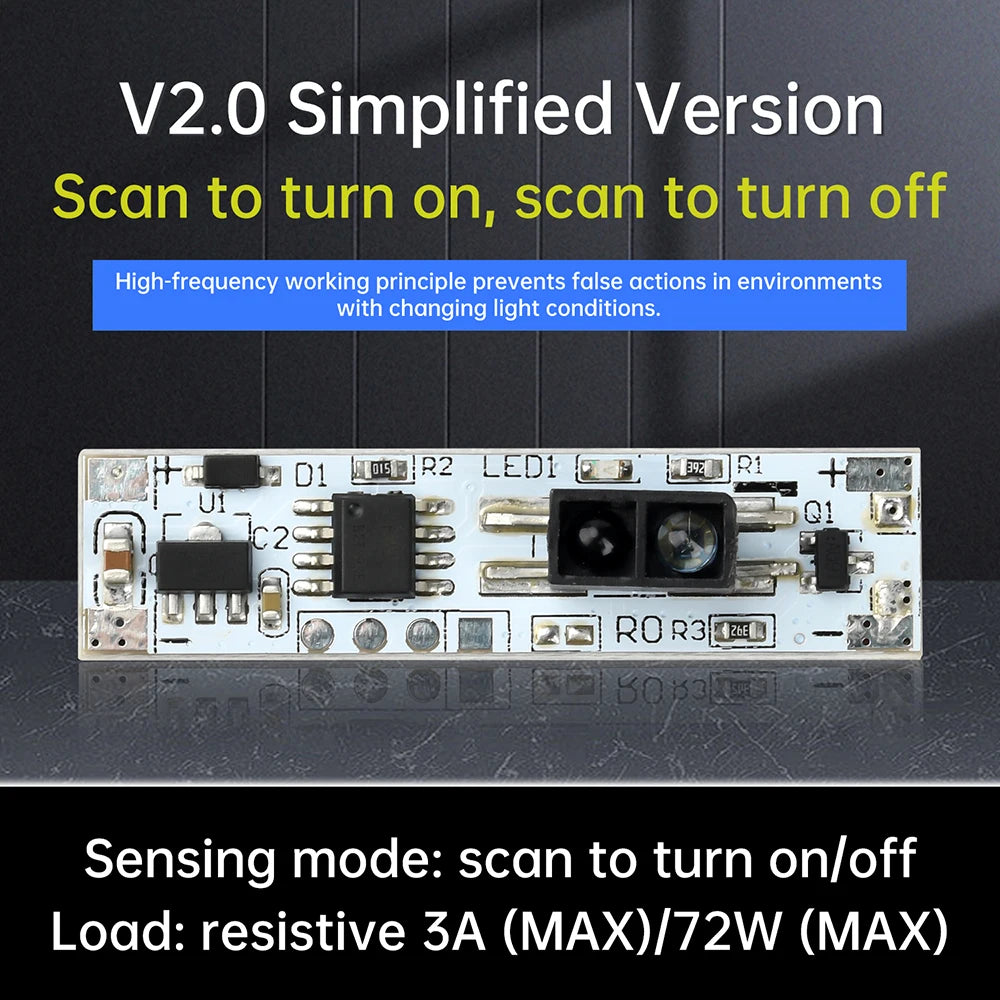

Standard Model:

Sensing Mode: Instant On/Off

Load Power: 72W (MAX)

Load Current: Resistive 3A

Standby Current: 10-15mA

Standard Model Operation: Instant On/Off

Multi-Functional Hex Version:

Sensing Mode: 6 Functions (Hand-Sweep Switch - Slow On/Off, Hand-Sweep Switch - Instant On/Off, Cover Switch - Release to Off, Cover to On, Cover Switch - Release to On, Cover to Off, Hand-Sweep Dimming Switch - Instant On/Off + Dimming, Hand-Sweep Dimming Switch - Slow On/Off + Dimming)

Load Power: 120W (MAX)

Load Current: Resistive 5A

Standby Current: ≤10mA

Multi-Function Version Operation Guide:

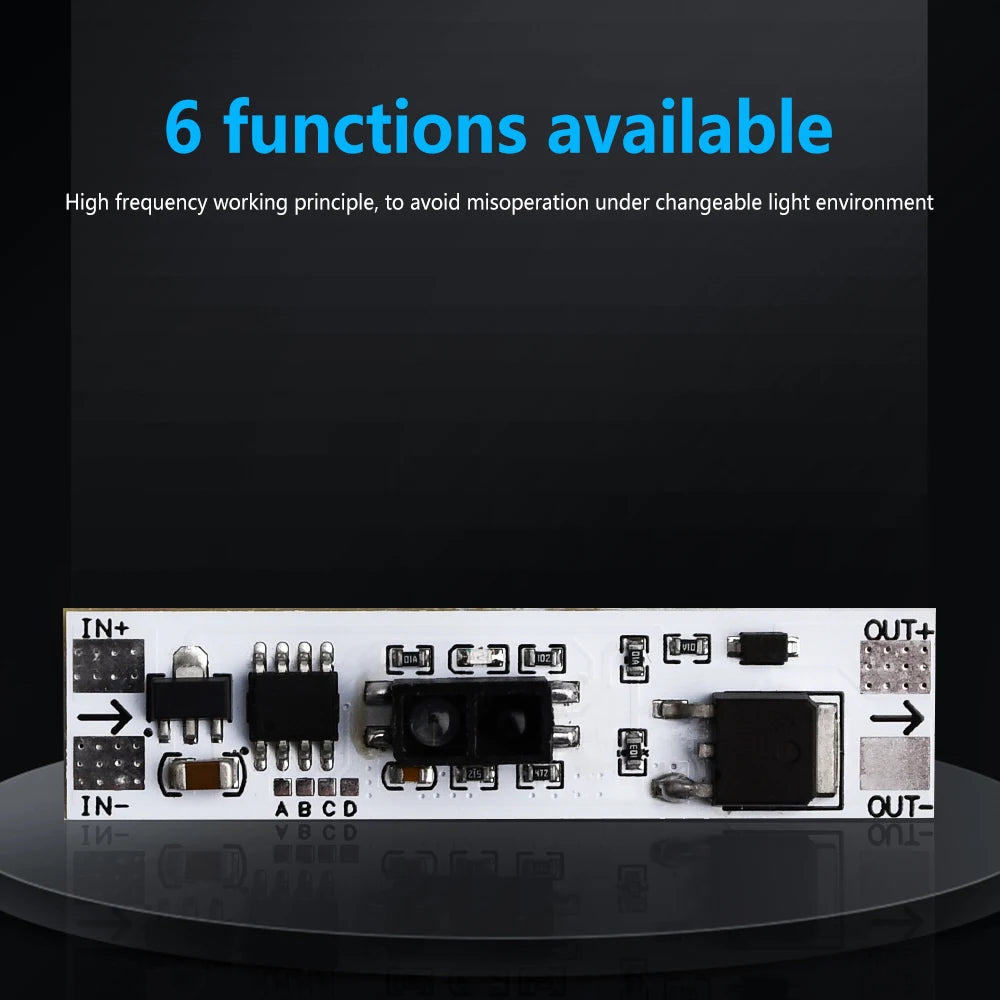

Hand-Sweep Switch - Slow On/Off: No soldering required

Hand-Sweep Switch - Instant On/Off: Solder AB

Cover Switch - Release Off, Cover On: Solder CD

Cover Switch - Release On, Cover Off: Solder AB + CD

Hand-Sweep Dimming Switch - Instant On/Off + Dimming: Solder ABC

Hand-Sweep Dimming Switch - Fade-in/Fade-out + Dimming: Solder BC

Dimming Process: After lighting the LED, keep hand in position. After 2 seconds, enter dimming mode. In dimming mode, remove hand (return within 2 seconds) to toggle between increasing/decreasing brightness. After completing dimming, remove hand for over 2 seconds to save the dimming parameter. Hand-sweeping will then activate the saved dimming setting.

Package Contents:

Hand-Sweep Sensor Module*1
