XL6009 DC-DC Boost Step-Up Power Module 3–32V to 5–35V

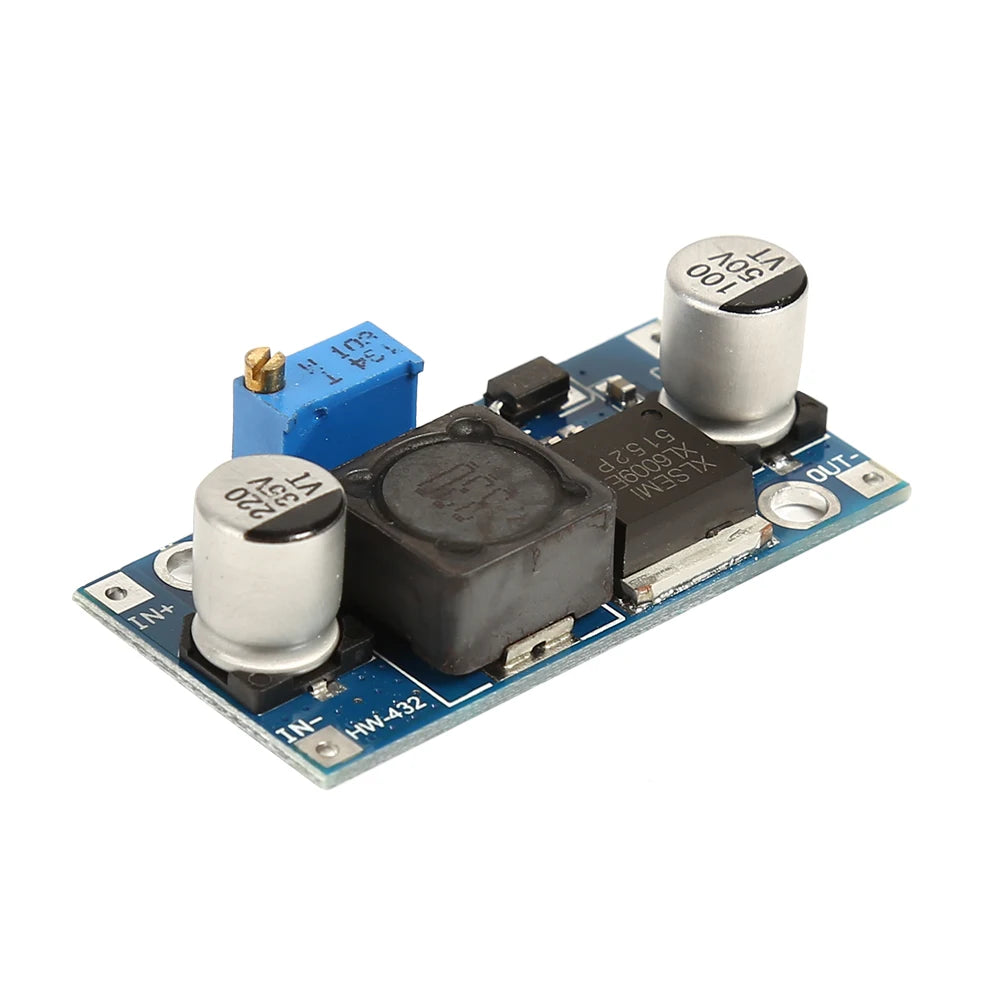

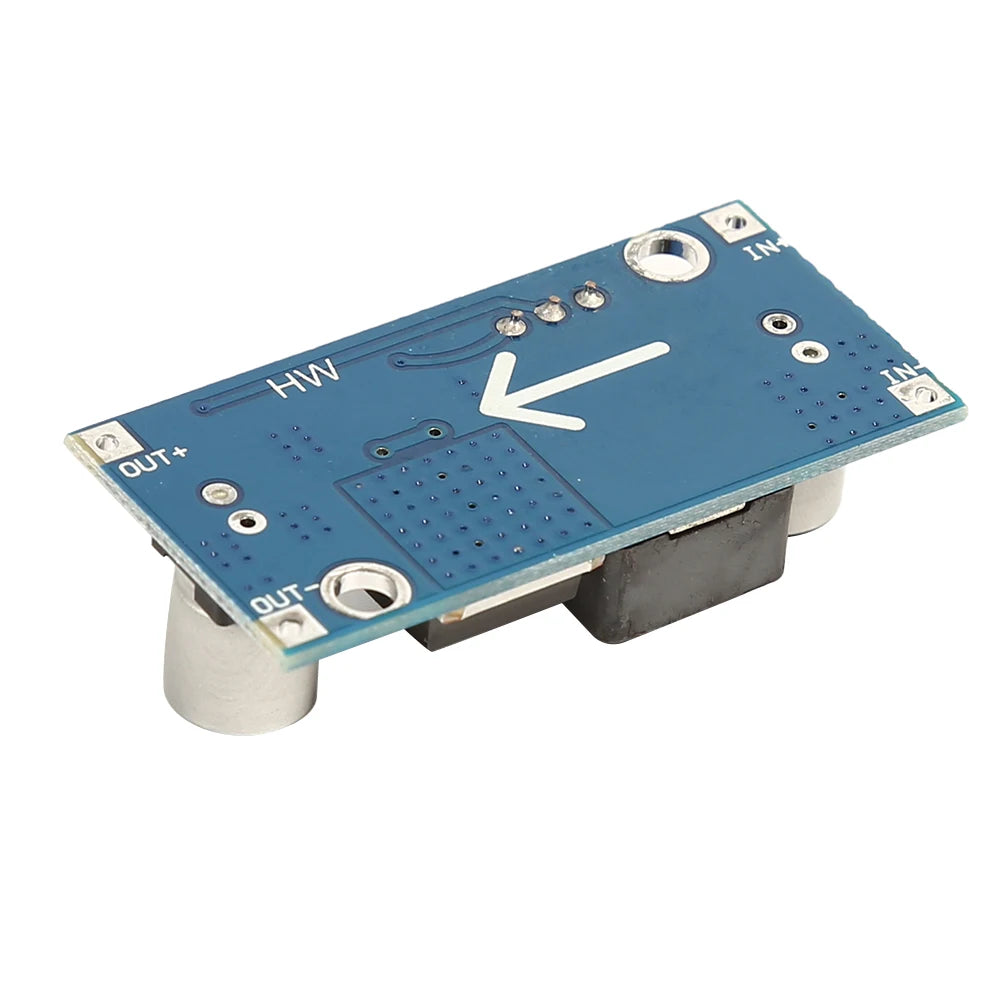

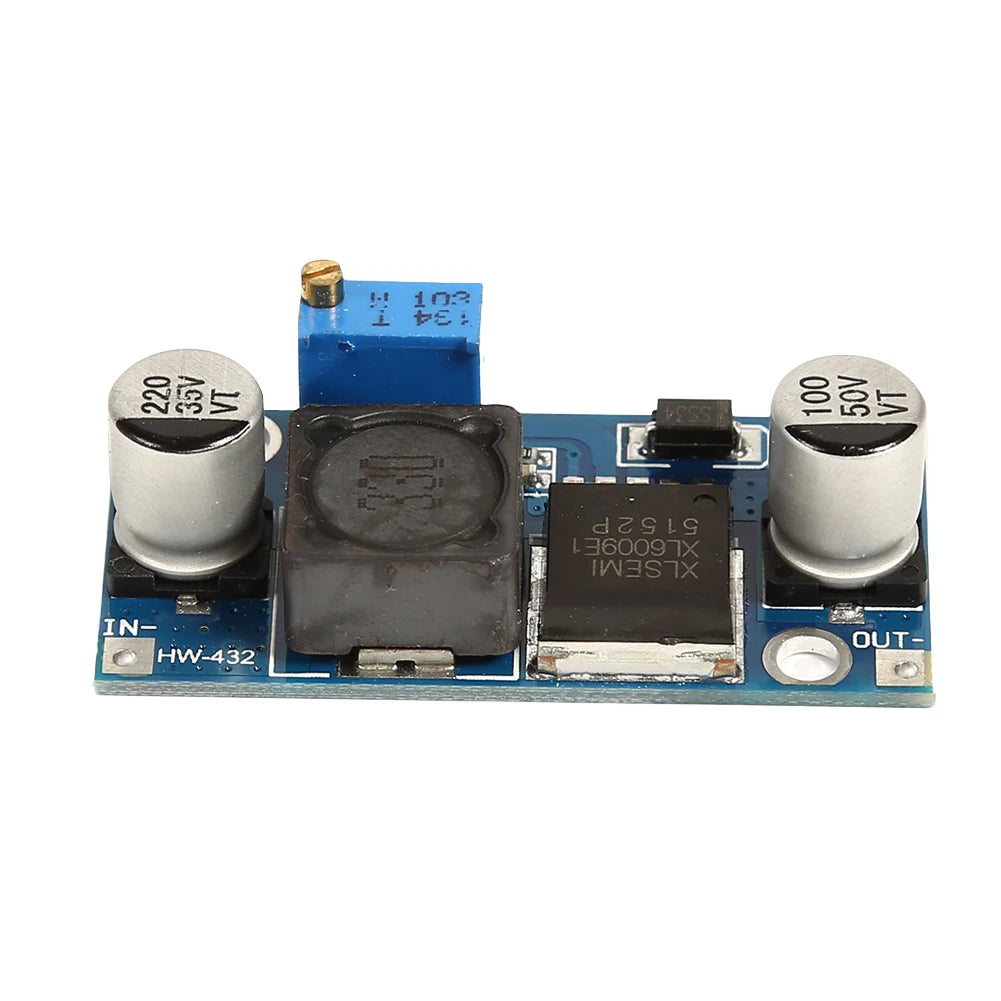

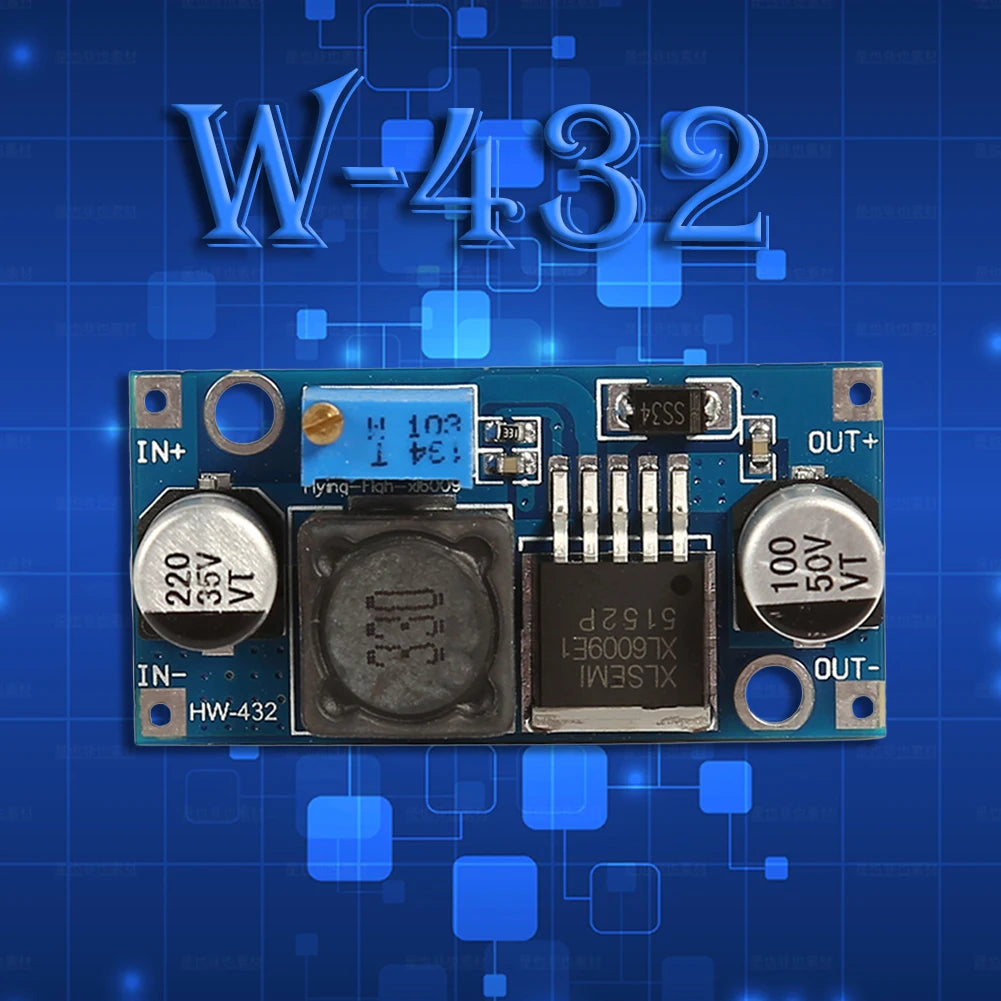

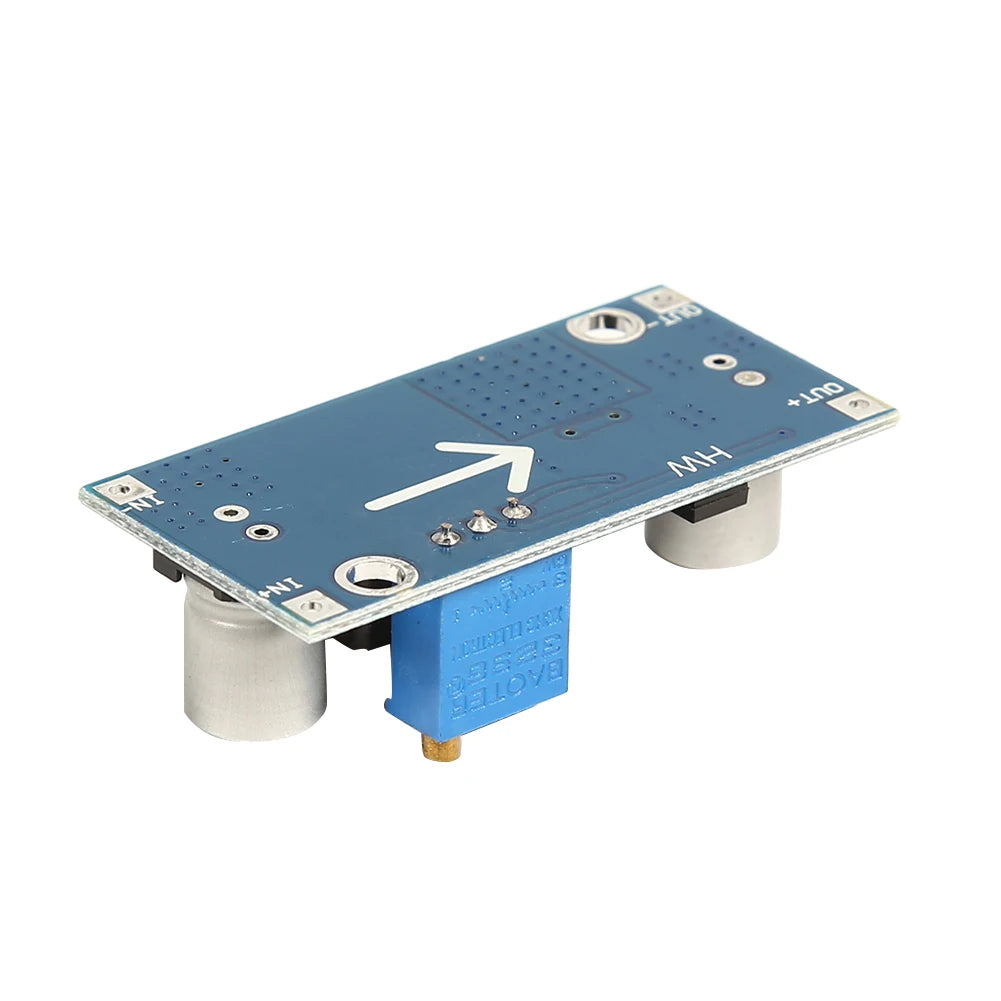

XL6009 DC-DC Boost Step-Up Power Supply Module

Power your projects with precision using this high-performance XL6009 DC-DC Boost (Step-Up) Module. Built around the advanced XL6009E1 chip — a second-generation high-frequency switching technology — this module significantly outperforms older LM2577-based solutions in efficiency, speed, and reliability. Whether you're working on DIY electronics, robotics, or custom power circuits, this compact module delivers stable, adjustable output voltage with impressive efficiency.

Made in Mainland China.

Key Features

• Ultra-Wide Input Voltage: 3V–32V (optimal range: 5V–32V)
• Adjustable Output Voltage: 5V–35V — covers 5V, 6V, 9V, 12V, 24V and beyond
• Built-in 4A High-Efficiency MOSFET Switch: Up to 94% conversion efficiency (vs. 3A on LM2577)
• Ultra-High Switching Frequency: 400 KHz — 8× faster than LM2577's 50 KHz — for smaller ripple and a more compact design
• Non-Isolated Boost (BOOST) Topology with Asynchronous Rectifier
• Low Ripple Output: ~50 mV for clean, stable power delivery
• Tight Regulation: Load adjustment rate ±0.5%, Voltage adjustment rate ±0.5%
• Wide Operating Temperature: -40°C to +85°C — suitable for harsh environments

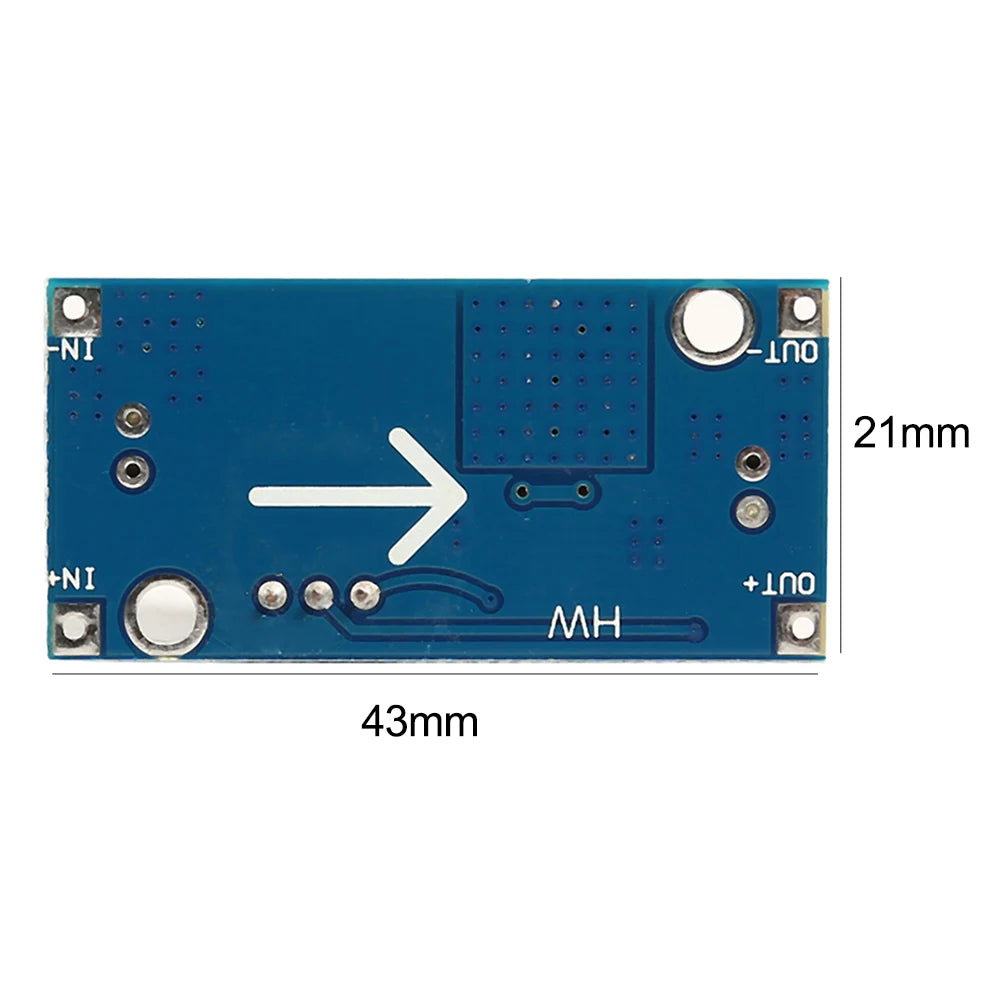

• Compact Size: 43mm × 21mm × 14mm (approx. 1.69″ × 0.82″ × 0.55″), weighing just 11g

Full Specifications

What's in the Box

• 1 × XL6009 DC-DC Boost Power Module

Why Choose XL6009 Over LM2577?

The XL6009E1 chip represents a significant generational leap over the LM2577. With a switching frequency 8× higher (400 KHz vs. 50 KHz), you get cleaner output with smaller filter capacitors, a more compact PCB footprint, and a higher current rating (4A vs. 3A). The result? More power, less noise, and a smaller, more efficient module for professional and hobbyist builds alike.

Common Use Cases

• Boosting 5V USB power to 12V or 24V for LED strips, fans, or sensors
• DIY Arduino / Raspberry Pi power supply projects
• Battery-powered portable electronics requiring higher rail voltages
• Custom embedded systems, IoT devices, and prototyping
• Automotive electronics and RC projects

Related Products You May Like

• 10-Pack 22AWG Glass Tube Fuse Holder 5x20mm & 6x30mm Screw
• 100W Dual-Port Car Charger – Fast Charging
• 140W USB-C Fast Charger with Auto Power-Off Overcharge Protection

For more information on electrical safety standards for electronic components, visit the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: What is the maximum output voltage of the XL6009 DC-DC boost module?

A: The XL6009 boost module can output an adjustable voltage ranging from 5V up to 35V. You can dial in common voltages like 5V, 9V, 12V, or 24V using the onboard trimmer potentiometer.

Q: What input voltage does the XL6009 step-up module require?

A: The module accepts an input voltage between 3V and 32V, with an optimal operating range of 5V–32V. It's compatible with a wide range of power sources including USB (5V), LiPo batteries, and benchtop supplies.

Q: How does the XL6009 compare to an LM2577-based boost module?

A: The XL6009 is a second-generation chip that offers a higher switching frequency (400 KHz vs. 50 KHz), a higher maximum current (4A vs. 3A), and up to 94% efficiency — making it significantly more capable and compact than older LM2577 designs.

Q: Is the output voltage on this module fixed or adjustable?

A: The output voltage is fully adjustable via an onboard potentiometer. You can set it to any voltage between 5V and 35V, making it extremely versatile for a wide range of electronics projects.

Q: Can this module be used in automotive or outdoor applications?

A: Yes. With an operating temperature range of -40°C to +85°C, this module is well-suited for automotive electronics, outdoor sensor systems, and other environments with temperature extremes.
