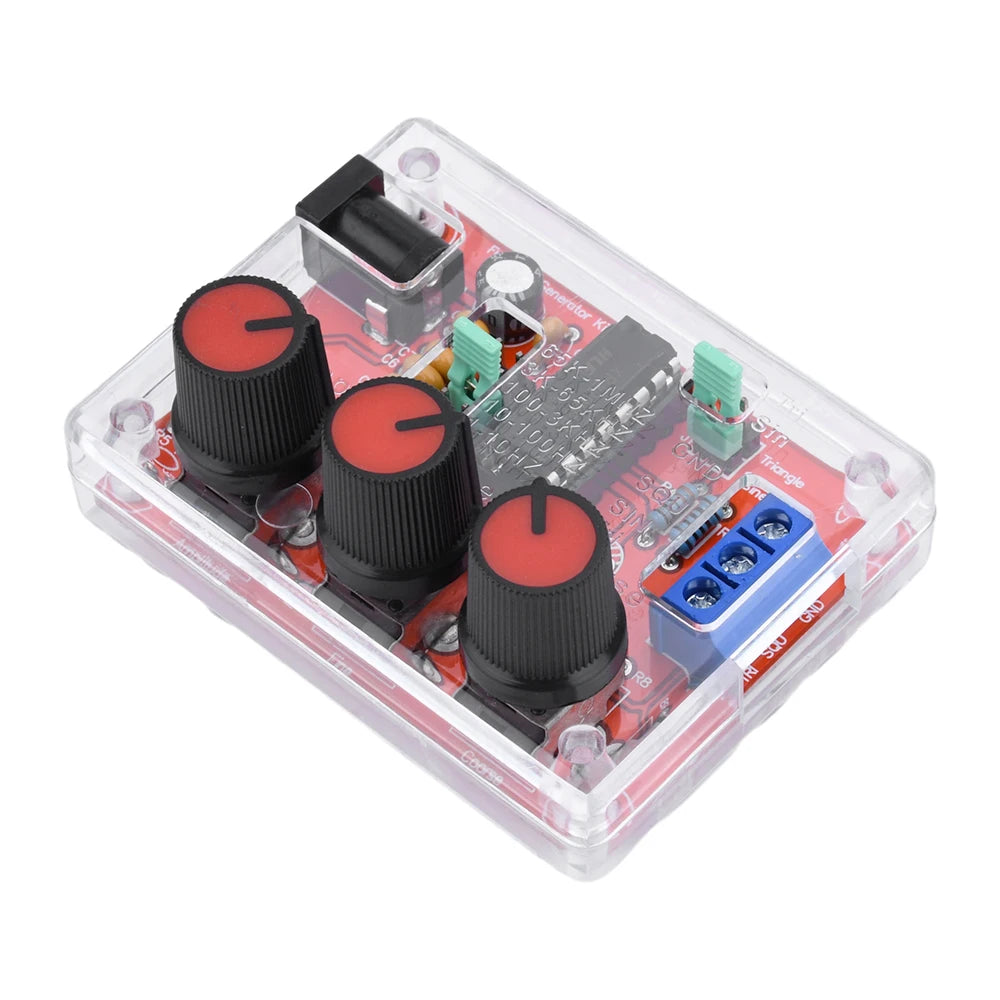

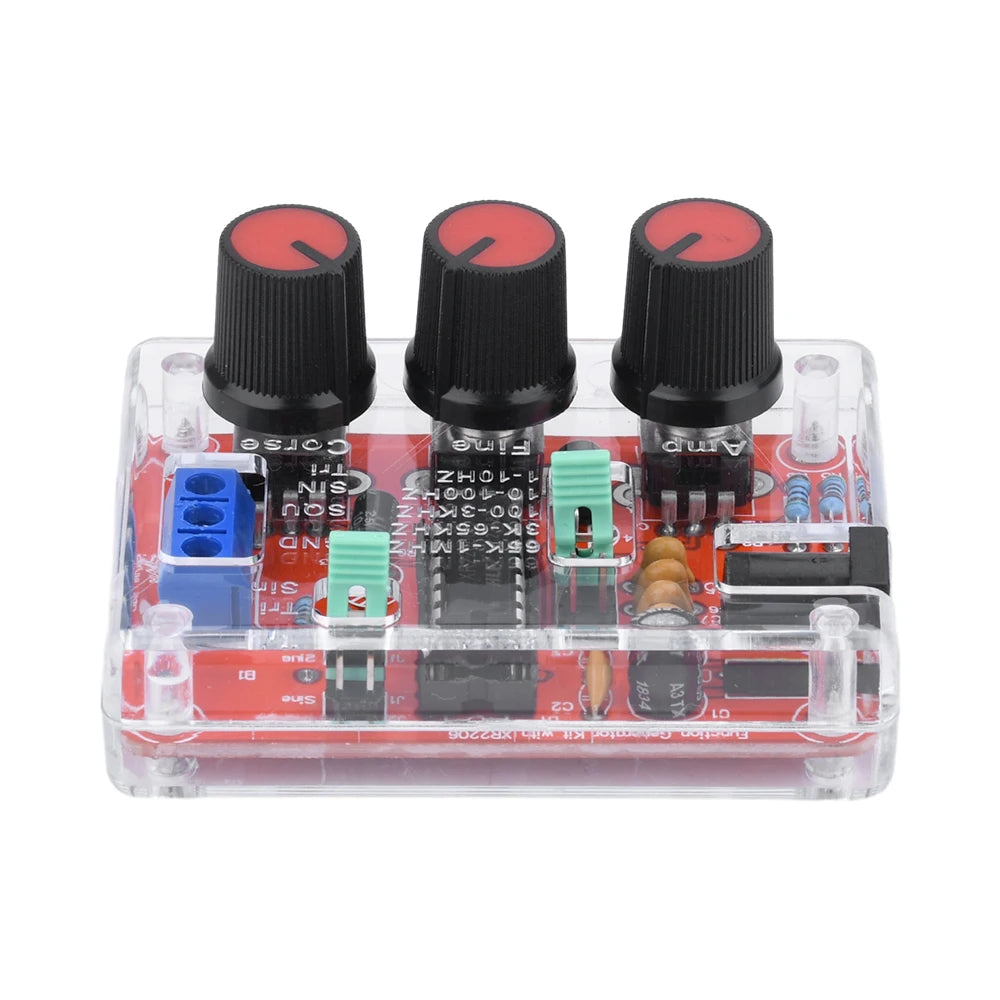

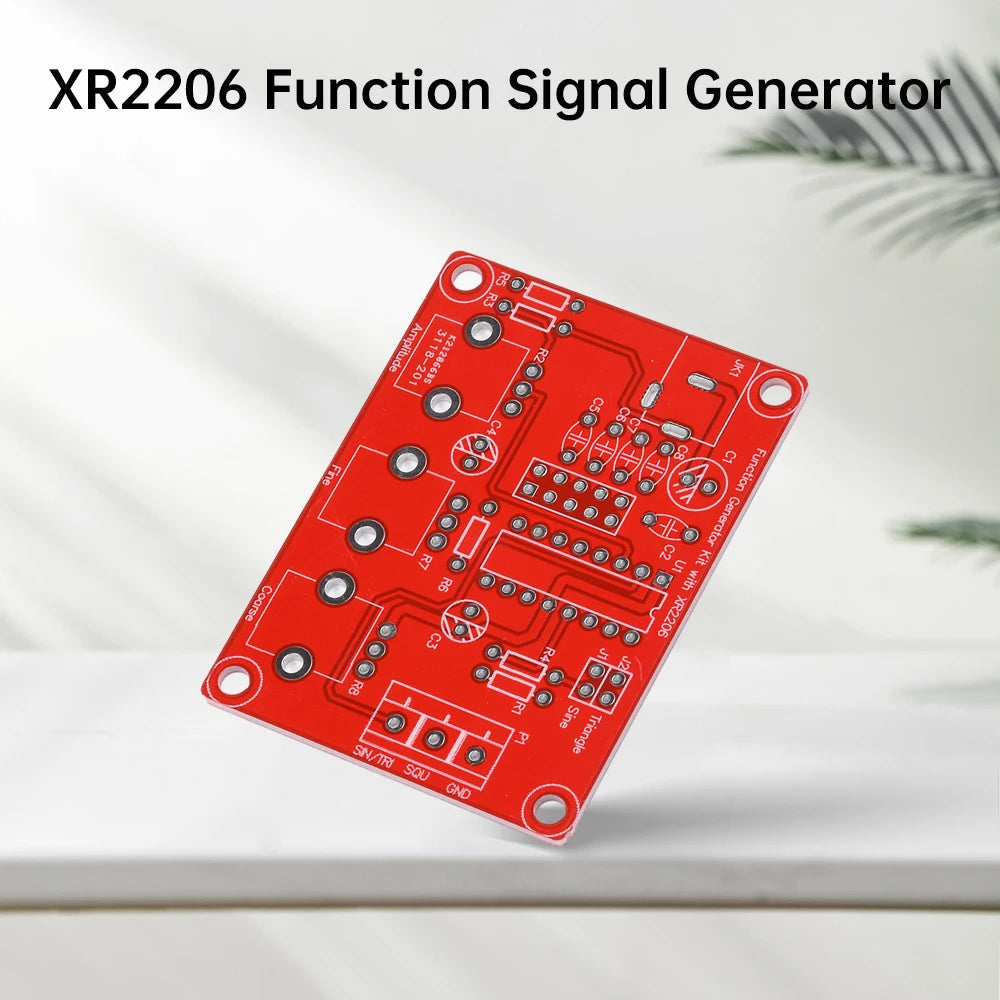

XR2206 Precision Signal Generator DIY Sine Triangle Square Waves 1Hz
$13.89
Sale price
$13.89
Regular price
$17.21
Shipping calculated at checkout.
Discover the XR2206 Precision Signal Generator DIY Sine Triangle Square Waves 1Hz — a standout hobbies & creative arts pick featuring adjustable, premium, compact design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Certification: NONE
DIY Supplies: Electrical
Semi-finishedproduct: No
Product Highlights:
1. Compact and elegant design with aesthetically arranged components
2. Constructed from premium materials for durability and practicality

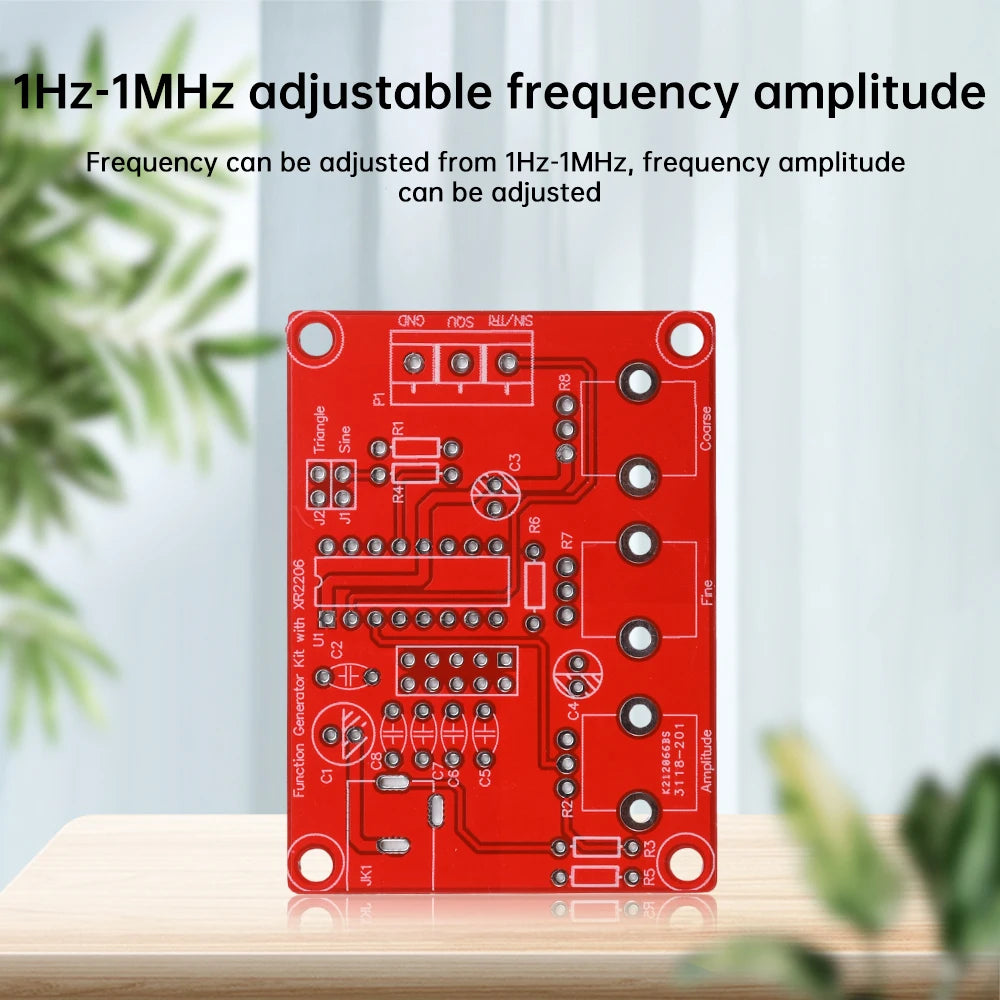

3. Adjustable frequency range from 1Hz to 1MHz with modulated amplitude
4. Wide power supply compatibility supporting 9-12V or 9V external power sources
5. Versatile applications suitable for various industrial DIY scenarios
Product Specifications:
Voltage Supply: DC 9-12V

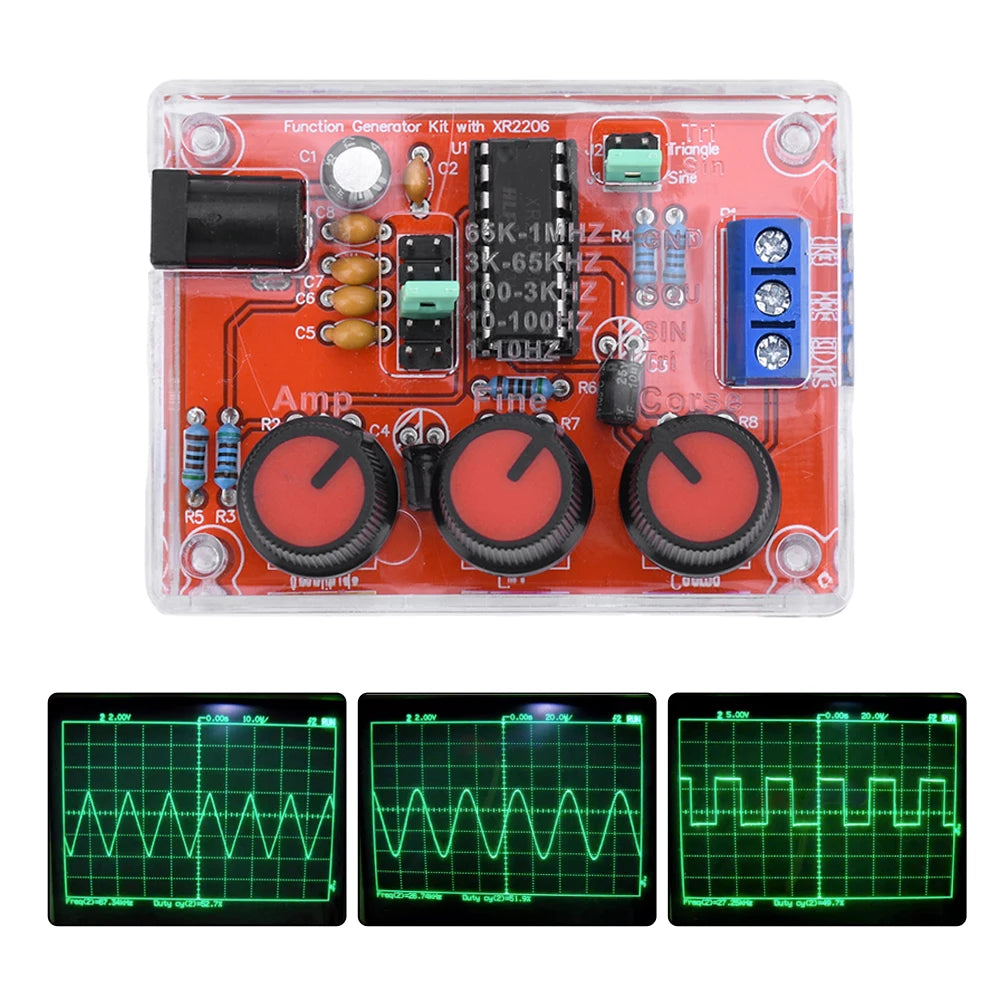

Waveforms: Square, Sine, and Triangle
Impedance: 600 ohms ±10%
Frequency: 1Hz-1MHz
Sine Wave:
Amplitude: 0-3V at 9V DC input
Distortion: <1%
Square Wave:
Amplitude: 8V (no load) at 9V DC input
Rise Time: <50ns
Fall Time: <30ns
Symmetry: <5% (at 1kHz)
Triangle Wave:
Amplitude: 0-3V at 9V DC input
Linearity: <1% (up to 100kHz) at 10mA
Package Contents:

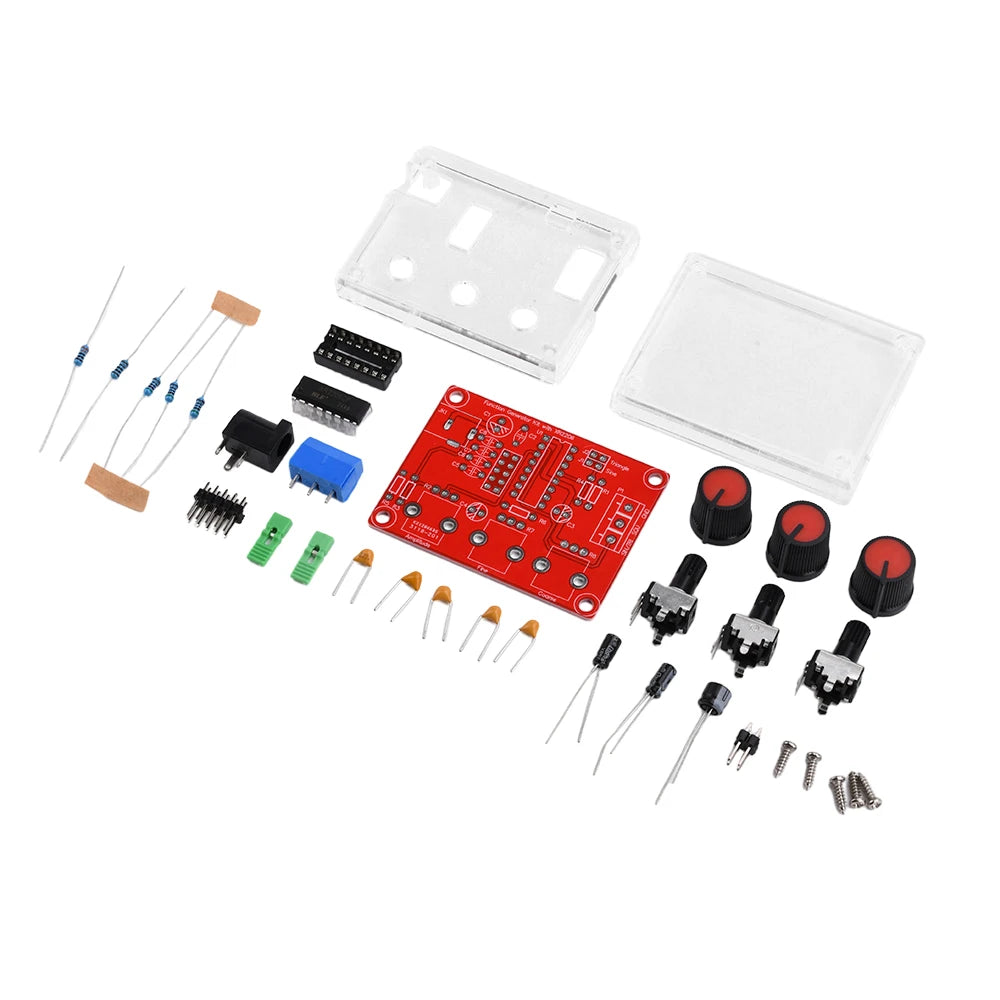

DIY Kit or Finished Product*1
Options
- Color: DIY, Finished Product
