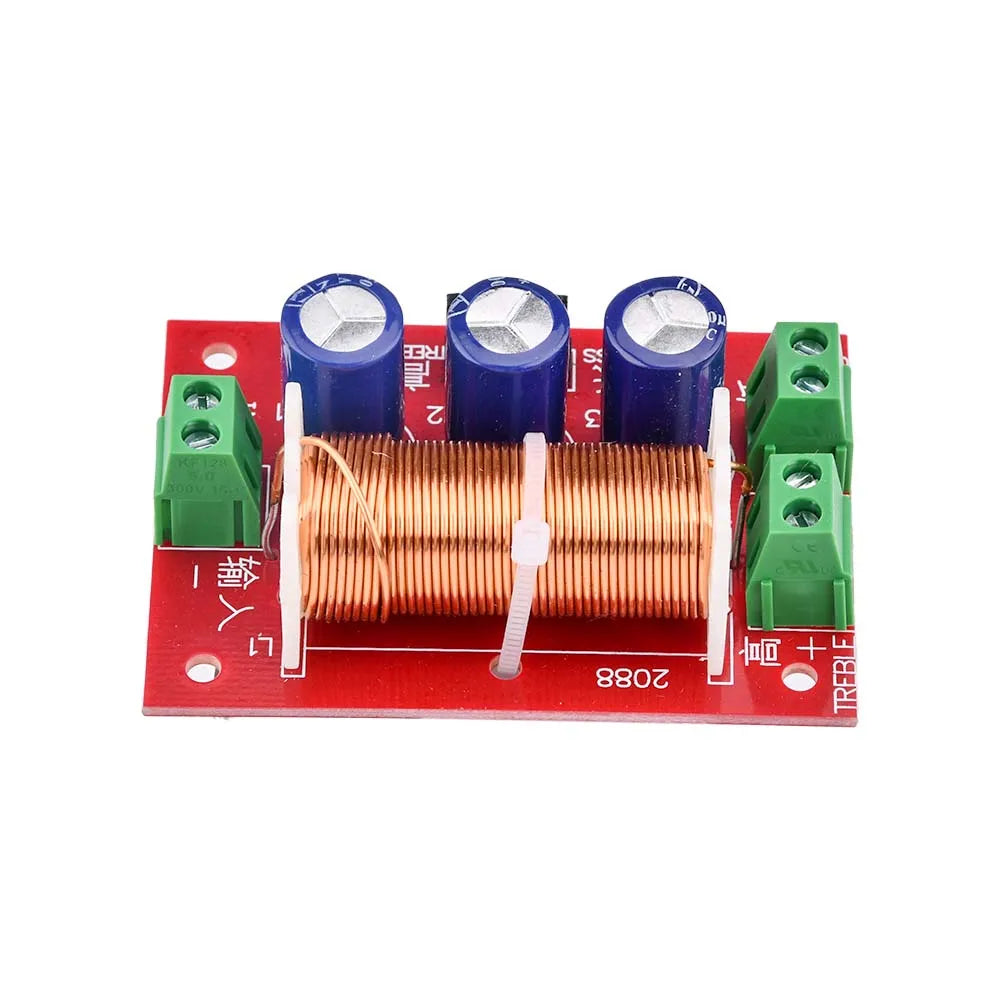

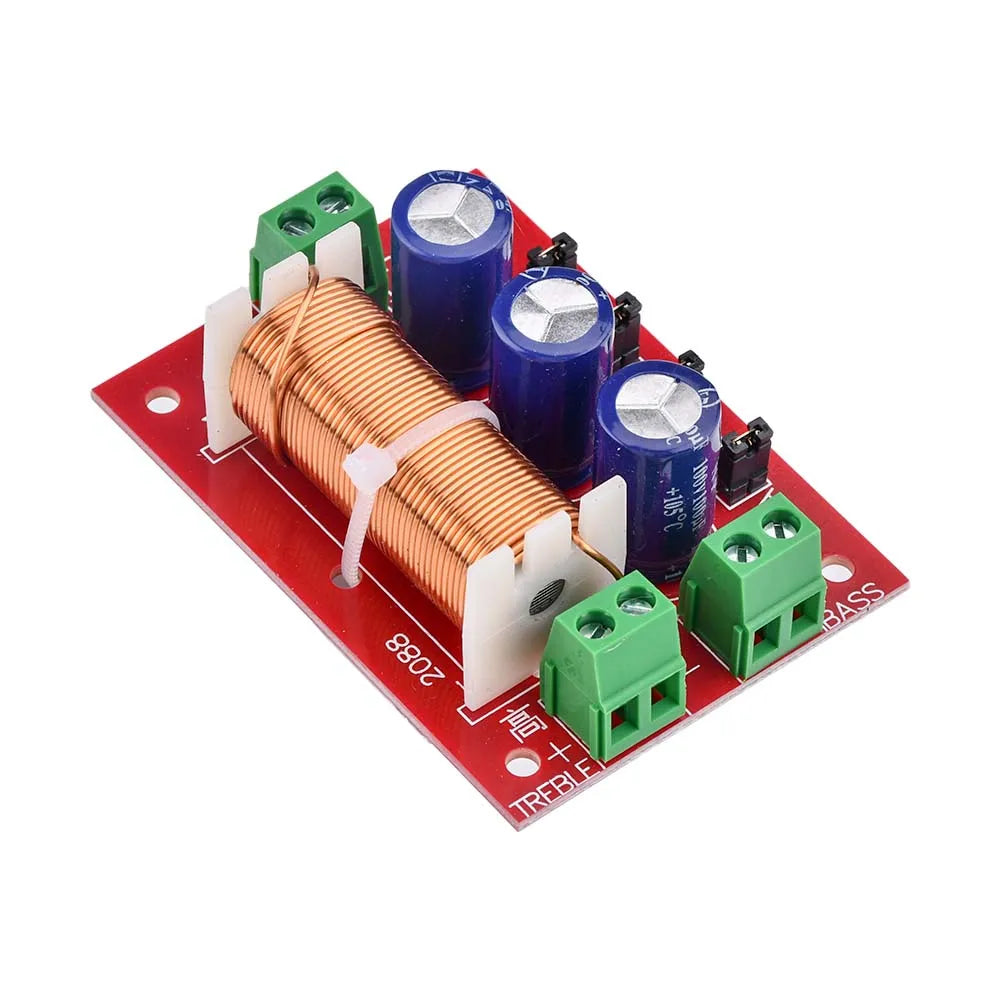

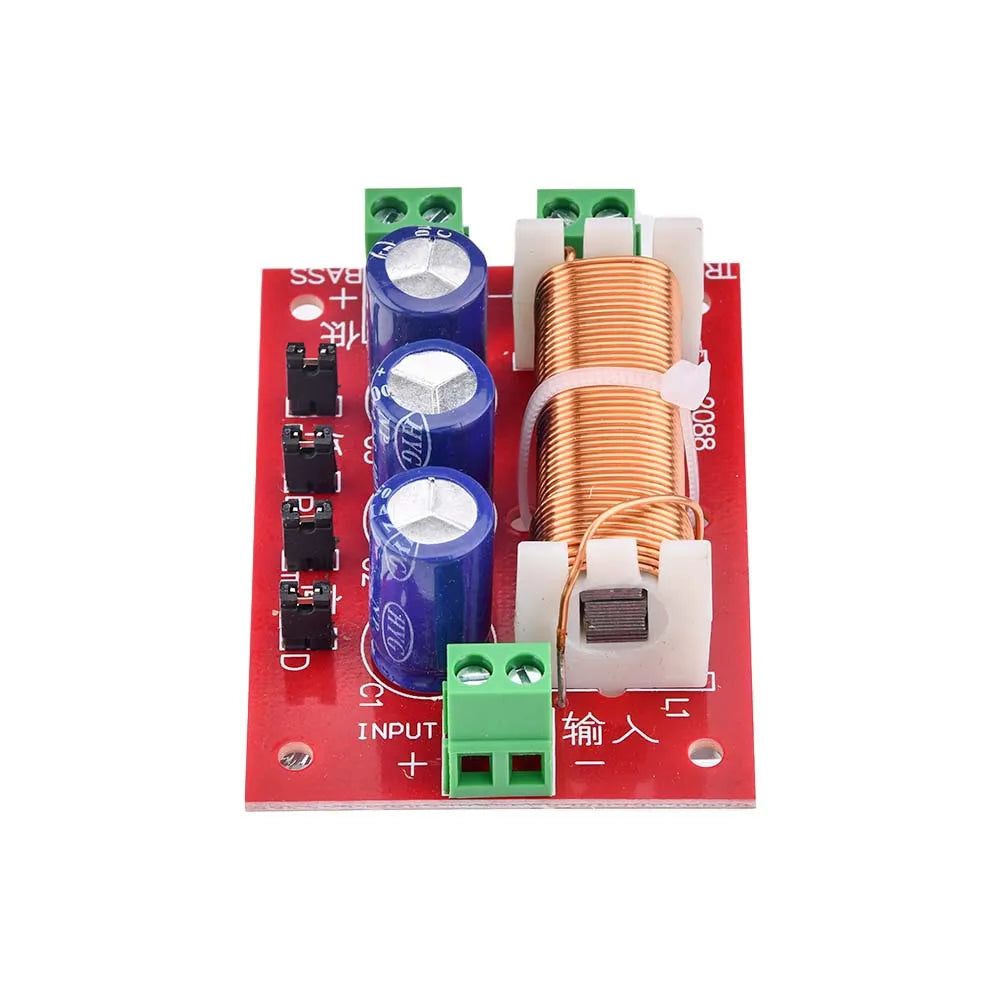

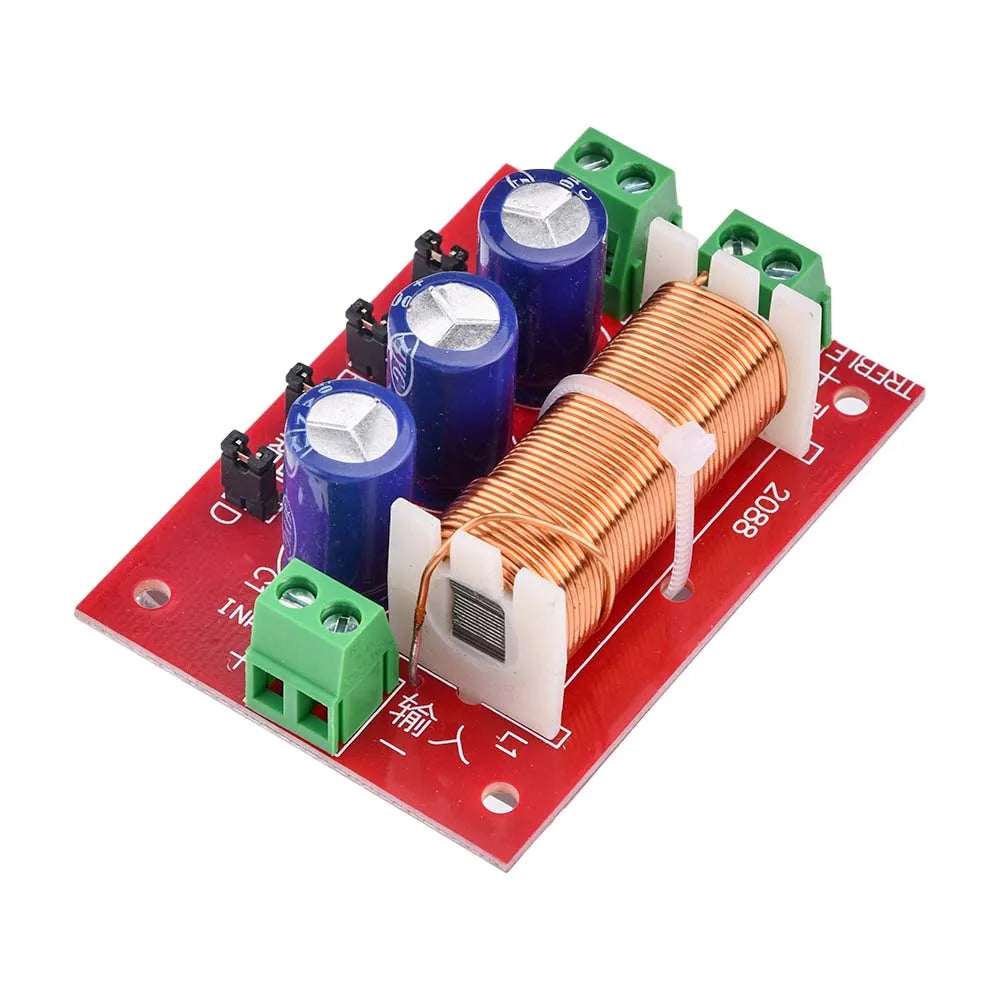

YLY-2088 2-Way Audio Speaker Crossover Filter Module 400W Full Range

Discover the YLY-2088 2-Way Audio Speaker Crossover Filter Module 400W Full Range — a standout decor pick featuring adjustable, long-lasting design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Audio Module

Output Voltage: Audio Module

Semi-finishedproduct: No

Size: Audio Module

Style: Audio Module

Features:

1. Made from high-quality materials for long-lasting durability

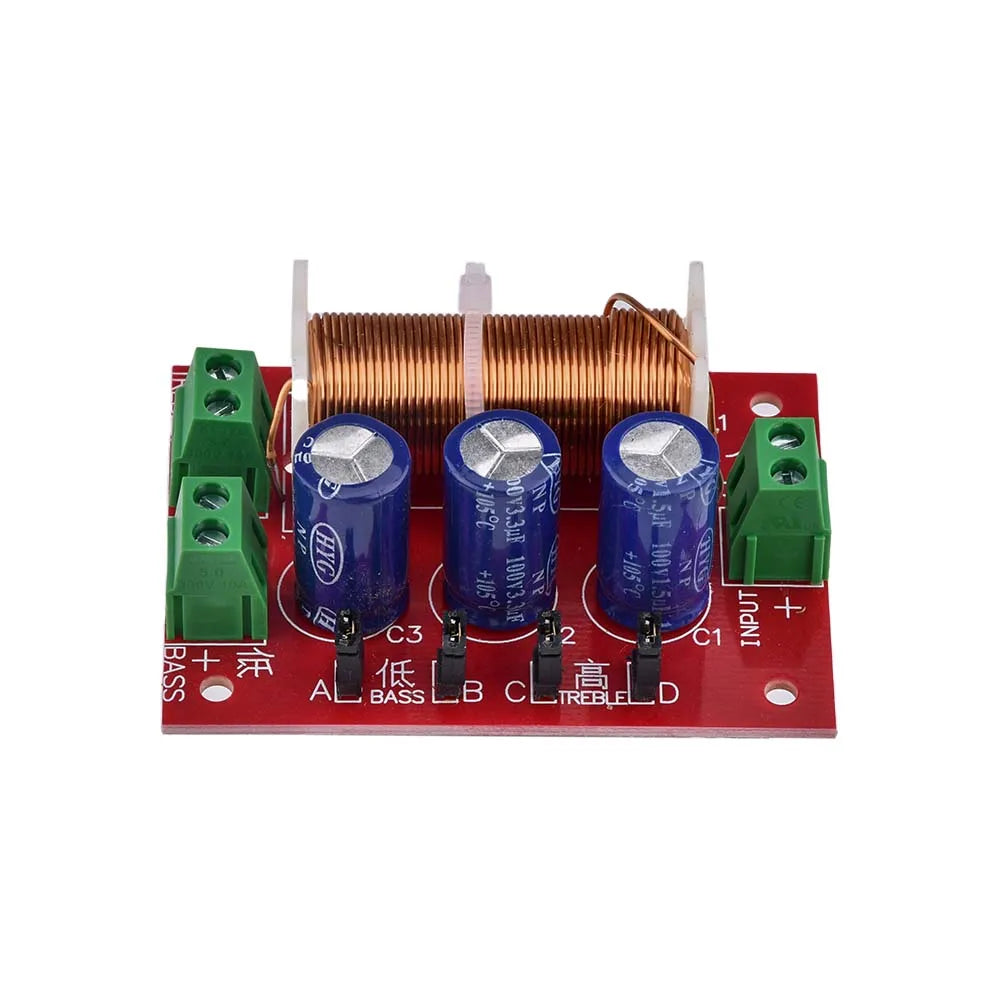

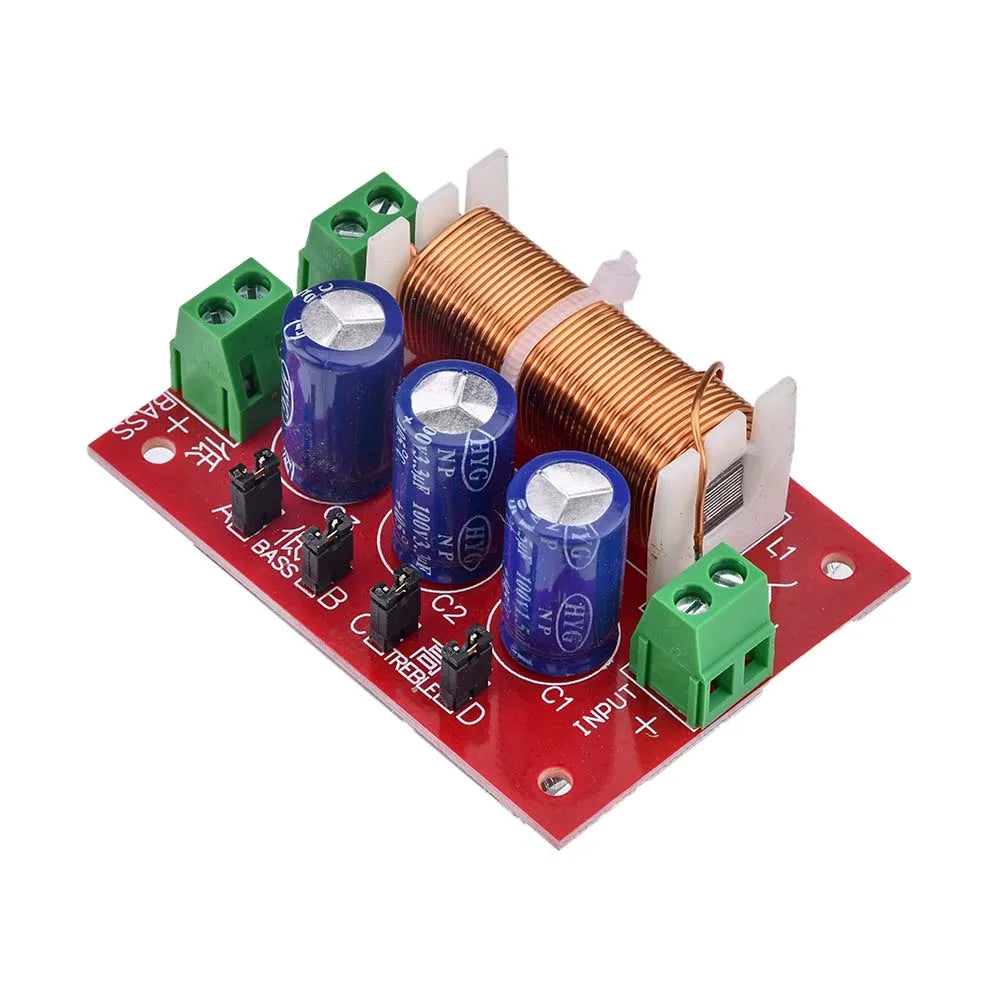

2. The crossover features four plug-in sockets; by inserting or removing these sockets from the circuit board, you can control different circuit configurations to adjust the sound quality

3. Solderless terminals allow for easy connection using a small flathead screwdriver, eliminating the need for a soldering iron

4. Attractive design with well-arranged components and high-quality manufacturing

5. Wide range of applications

Specifications:

Dimensions: 7 x 5 x 2.5 cm

Two-way crossover wiring:

INPUT: Connects to an amplifier or rear terminal block

TREBLE: Connects to the tweeter

BASS: Connects to the woofer

Full-range coaxial wiring method:

Connect the speaker to the BASS terminal, then use a short piece of wire to connect the positive terminal of the woofer to the positive terminal of the tweeter

Terminal block wiring procedure:

Use a small flathead screwdriver to loosen the screw counterclockwise. The clamping plate will slide down. Strip the wire insulation and insert it, then

tighten the screw clockwise

Tip: Hand torque is stronger than the terminal block’s mounting feet. To prevent deformation, hold the terminal block with your fingers while tightening. If it is too loose and the clamping plate won’t seat, flip the crossover over, screw the clamping plate into place, then return it to the original position.

Package Contents:

Crossover *1

Options

• Color: Red

Frequently Asked Questions

Q: What is the YLY-2088 2-Way Audio Speaker Crossover Filter Module 400W?

A: The YLY-2088 2-Way Audio Speaker Crossover Filter Module 400W is a quality decor pick. Made from high-quality materials for long-lasting durability 2.

Q: What is the YLY-2088 2-Way Audio Speaker Crossover Filter Module 400W made of?

A: The YLY-2088 2-Way Audio Speaker Crossover Filter Module 400W is made from Plastic Model Number, measuring Audio Module Style.

Q: Why choose the YLY-2088 2-Way Audio Speaker Crossover Filter Module 400W?

A: The YLY-2088 2-Way Audio Speaker Crossover Filter Module 400W stands out in our decor range — The crossover features four plug-in sockets; by inserting or removing these sockets from the circuit board, you can control different circuit configurations to adjust the sound quality 3.
