YLY-2088 400W 2-Way Speaker Crossover Frequency Divider

YLY-2088 400W Adjustable 2-Way Speaker Crossover Frequency Divider

Take full control of your audio system with the YLY-2088 400W Adjustable 2-Way Speaker Crossover. Designed for audiophiles, DIY speaker builders, and car audio enthusiasts alike, this compact frequency divider splits your audio signal into dedicated treble (high-frequency) and bass (low-frequency) channels — delivering cleaner, more accurate sound from your speaker setup. No soldering required, making it beginner-friendly without sacrificing professional performance.

Made in Mainland China.

Key Features

• Fully Adjustable & Versatile: Works with 2-way speaker systems, 2.1-channel satellite boxes, car full-range speakers, or standalone single high/low frequency configurations. Supports 4–16 ohm impedance speakers and up to 400W of power.
• No Soldering Required: Tool-free wiring via a screw-terminal connection socket — just loosen, insert your wire, and tighten. Perfect for quick installs and adjustments.

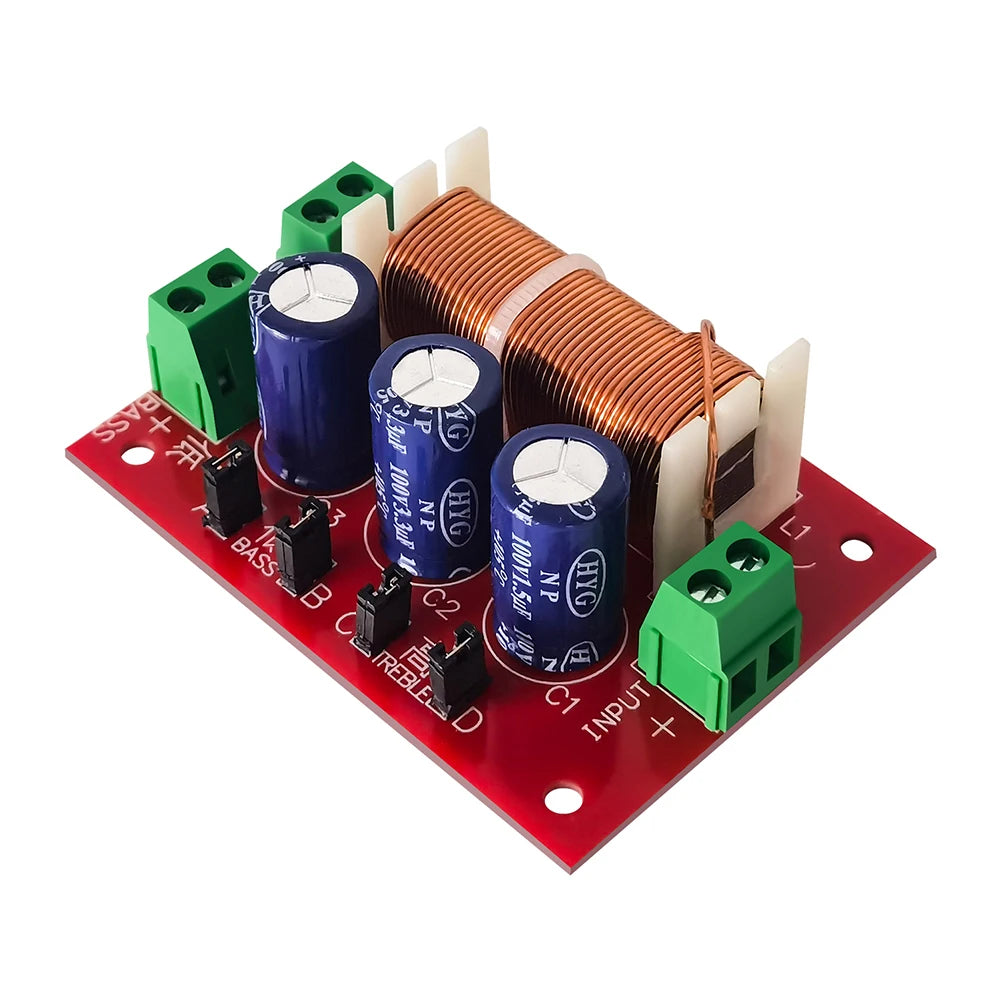

• Premium-Grade Components: Built with pure copper jumpers (A/B/C/D positions with 4 plug caps), high-quality copper wire inductors, capacitors, and sockets on a durable fiberglass circuit board.
• 0.8mm Oxygen-Free Copper Inductors: Precision-wound for minimal signal loss, paired with a large-capacity 100uF capacitor for deep, accurate bass reproduction.
• Multiple Sound Tuning Options:
  • High-frequency settings: Weak / Medium / Strong
  • Low-frequency settings: Full Sound / Low Sound / Strong Bass / Medium Sound
• Professional Point-Soldering Construction: Evenly sized, fully filled solder joints for reliable, long-lasting electrical connections.
• Multiple 6dB Circuit Combinations: Flexible crossover frequency configurations to suit your specific speaker setup and listening preferences.

Specifications

Wiring Guide

High/Low Split Frequency (Standard 2-Way Setup):

• INPUT: Connect to your power amplifier or rear junction box.
• TREBLE: Connect to your tweeter.
• BASS: Connect to your woofer/bass speaker.

Full-Range Coaxial Connection: Connect your speaker to the BASS terminal, then use a short wire to bridge the positive pole of the bass to the positive pole of the tweeter.

Wiring Tip: Use a small flat-head screwdriver — turn counter-clockwise to loosen, insert the stripped wire, then tighten clockwise. Hold the terminal base with your fingers while tightening to prevent deformation.

What's in the Box

• 1 × YLY-2088 Speaker Frequency Divider (Crossover Unit)

Related Products You May Like

• 10-Pack 22AWG Glass Tube Fuse Holder 5x20mm & 6x30mm Screw — great for protecting your audio circuits.
• 140W USB-C Fast Charger with Auto Power-Off Overcharge Protection — reliable power for your audio setup.

For further reading on speaker crossover design and audio frequency management, visit the National Institute of Standards and Technology (NIST) for technical standards reference, or explore audio engineering resources at CPSC.gov for consumer electronics safety guidelines.

Note: Due to differences in monitor calibration and lighting, actual product color may vary slightly from images. Please allow ±1–2 cm tolerance due to manual measurement.

Frequently Asked Questions

Q: What is a 2-way speaker crossover frequency divider and what does it do?

A: A 2-way speaker crossover (frequency divider) splits your incoming audio signal into two separate frequency ranges — high frequencies directed to your tweeter and low frequencies directed to your woofer or bass speaker. The YLY-2088 does this passively (no external power needed) and allows you to adjust the sound character with multiple tuning positions for both the treble and bass channels.

Q: Do I need soldering skills to install this crossover?

A: No soldering is required. The YLY-2088 uses screw-terminal connectors that you tighten with a small flat-head screwdriver. Simply strip the wire ends, insert them into the appropriate terminals, and tighten. It's designed to be beginner-friendly while still delivering professional audio quality.

Q: What speaker impedances and power levels does the YLY-2088 support?

A: The YLY-2088 supports speakers with impedances ranging from 4 to 16 ohms and handles up to 400W of power, making it compatible with a wide range of home audio, car audio, and DIY speaker systems.

Q: Can I use this crossover for a car audio system or a 2.1 home speaker setup?

A: Absolutely. The YLY-2088 is versatile enough for car full-range speakers, 2.1-channel satellite box setups, standard 2-way home speakers, or even single high-frequency or single low-frequency configurations — giving you excellent flexibility across different audio applications.
