433MHz Wireless Smart Wall Switch 1/2/3 Gang Remote Relay

Control Your Lights Without Rewiring — Wireless Freedom at Your Fingertips

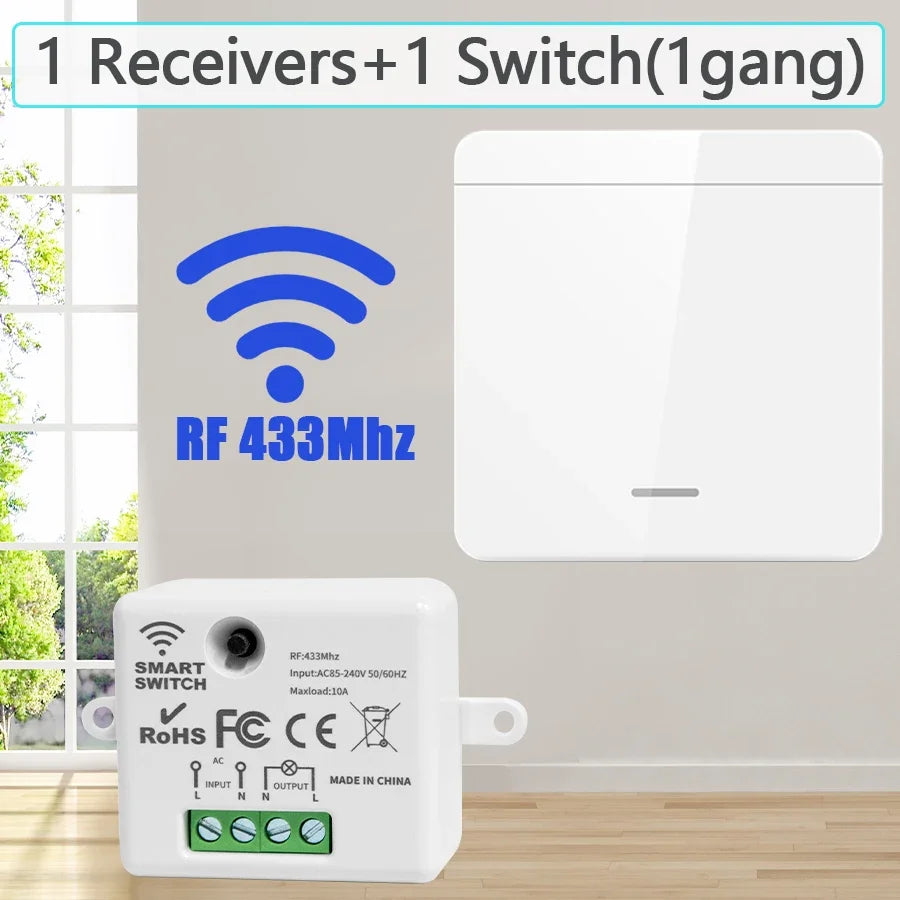

The GGBEE 433MHz Wireless Smart Wall Switch lets you add remote-controlled lighting to any room — no new wiring required. Whether you're upgrading your home, office, farm, or retail space, this sleek 86-panel switch pairs with the included RF relay receiver to give you effortless on/off control from up to 50 metres away. Available in 1, 2, or 3-gang configurations to suit any lighting setup.

Made in Mainland China.

Compatible with LED, CFL, and fluorescent lamps (up to 300W) as well as incandescent bulbs and ceiling fans (up to 2,500W), this system works with virtually any light fitting in your space. The ultra-low standby power draw (<1µA on the switch, <0.3W on the receiver) means you won't notice it on your electricity bill.

Key Features

• ✅ 433MHz RF Communication — Reliable wireless signal up to 50m (line of sight)

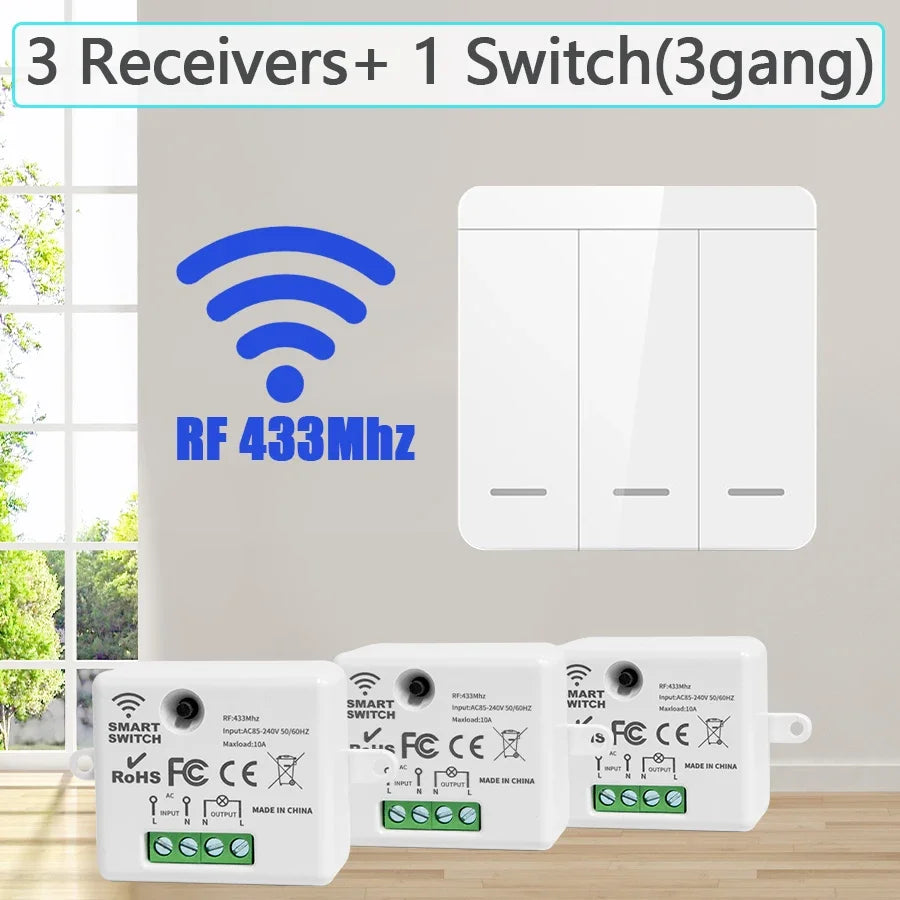

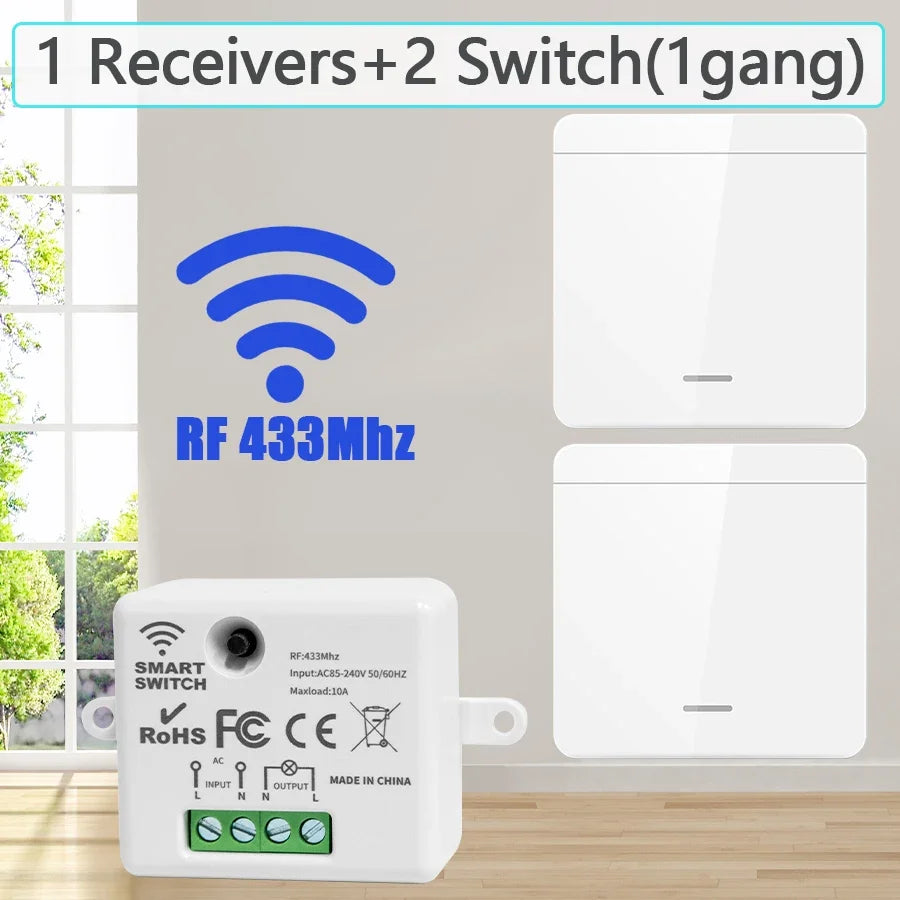

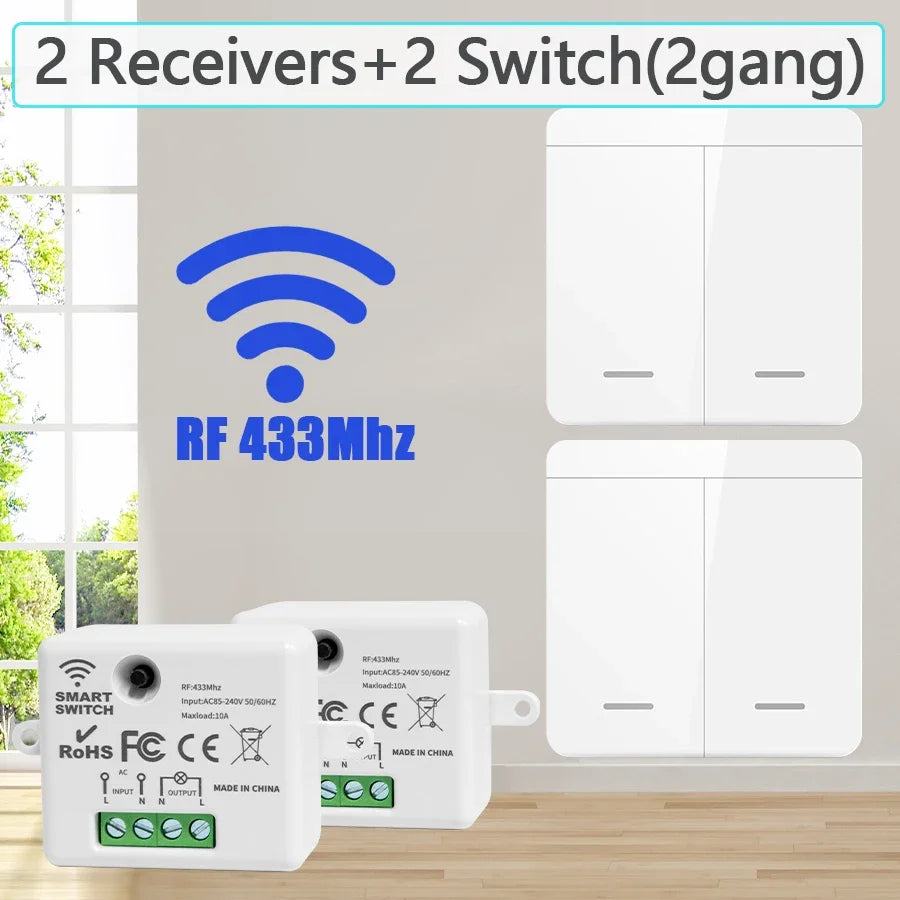

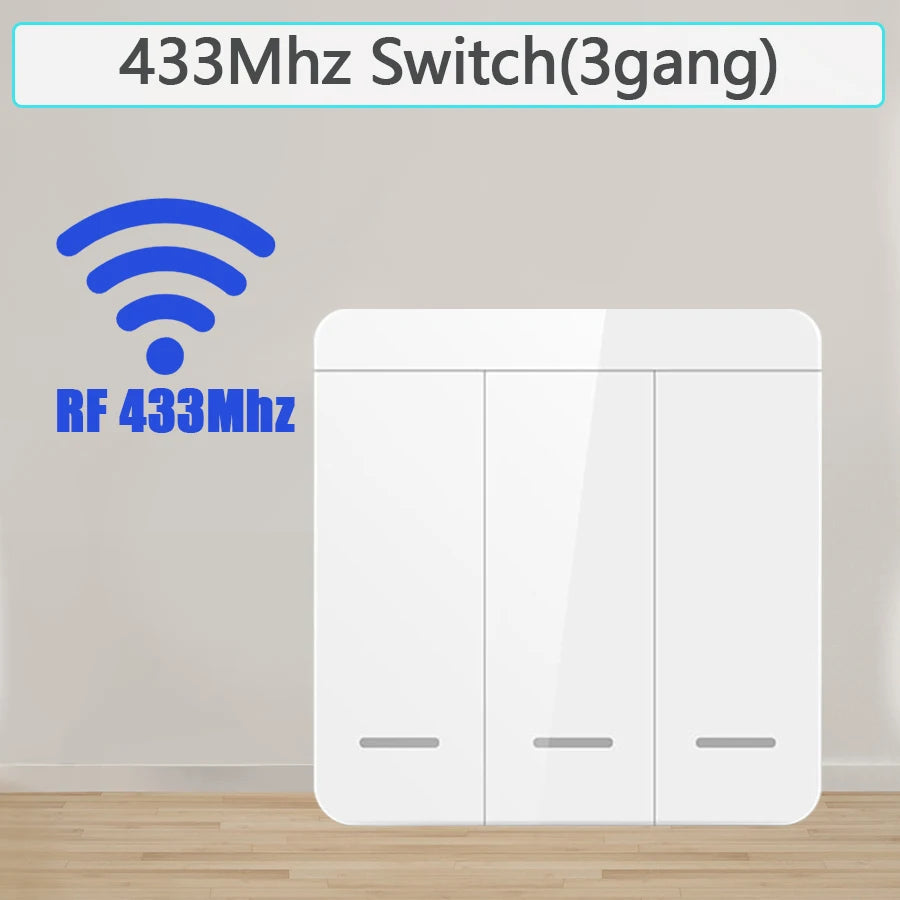

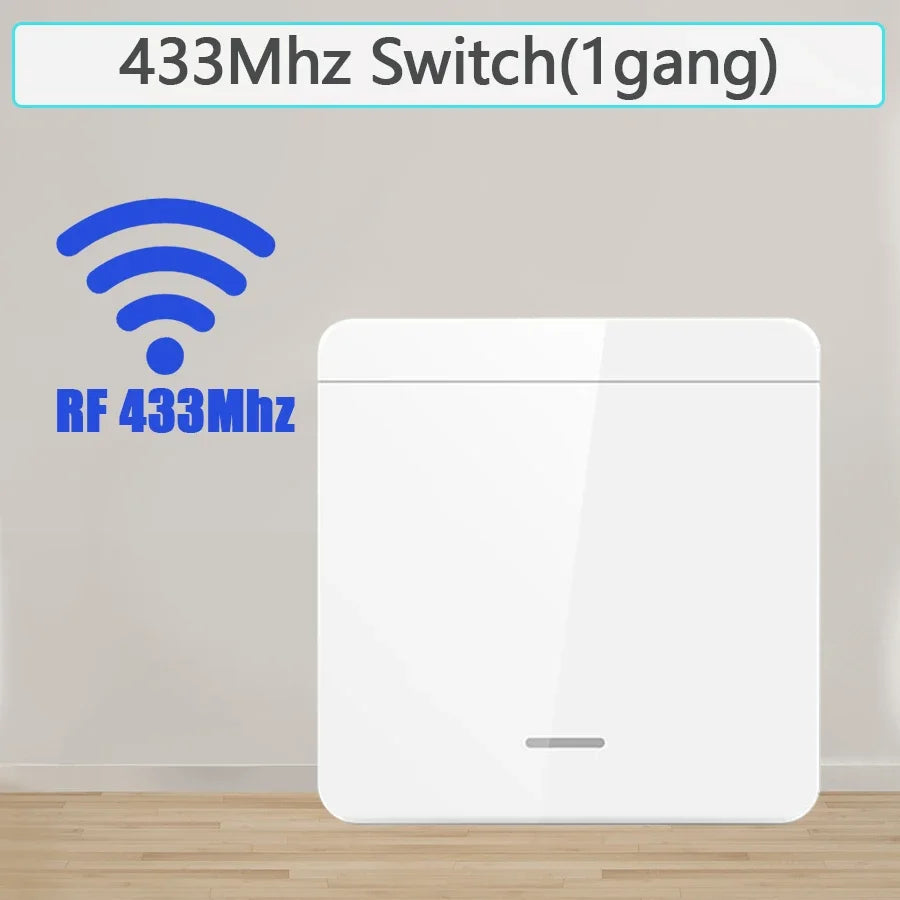

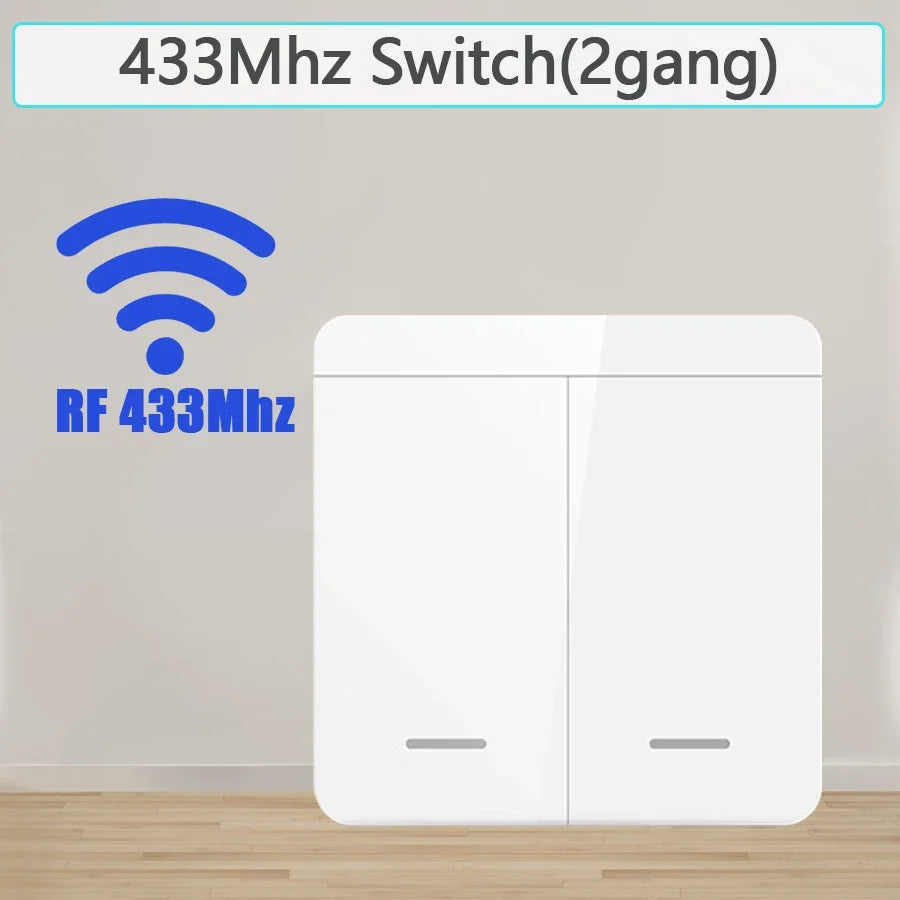

• ✅ 1, 2 or 3 Gang Options — Control one, two, or three light circuits independently
• ✅ Universal Voltage — Works on AC 85V–240V (110V & 220V compatible)
• ✅ EV1527 Learning Code IC — Pairs with most 433MHz learning-code receivers
• ✅ CE & RoHS Certified — Meets European safety and environmental standards
• ✅ No Neutral Wire Needed — Stick-on 86-panel design installs anywhere
• ✅ 10A / 1100W Relay Load — Suitable for most home lighting loads
• ✅ Wide Temperature Range — Operates from -10°C to +70°C
• ✅ Multi-Switch Compatible — Use multiple wall panels to control different receivers

Technical Specifications

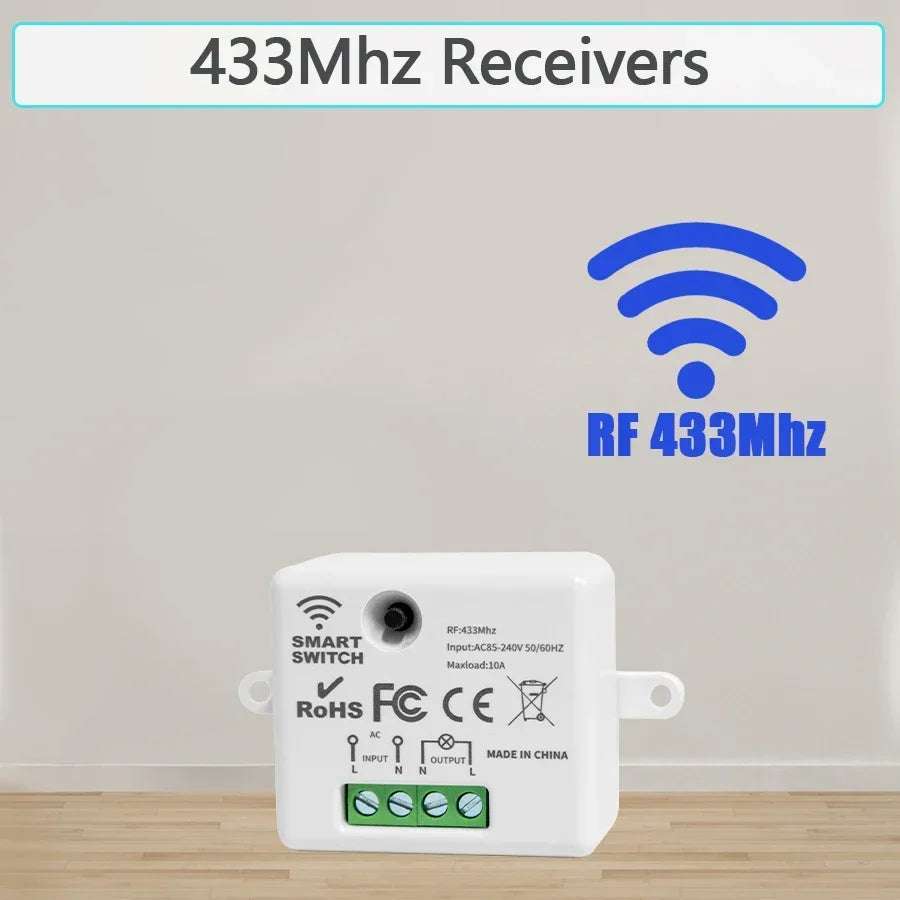

RF Receiver (Controller)

• Working Voltage: AC 85–240V, 50/60Hz
• Working Frequency: 433MHz
• Standby Power: <0.3W
• Load Power: <1,100W
• Receiving Sensitivity: -108dBm
• Coding: Learning Code (ASK Modulation)

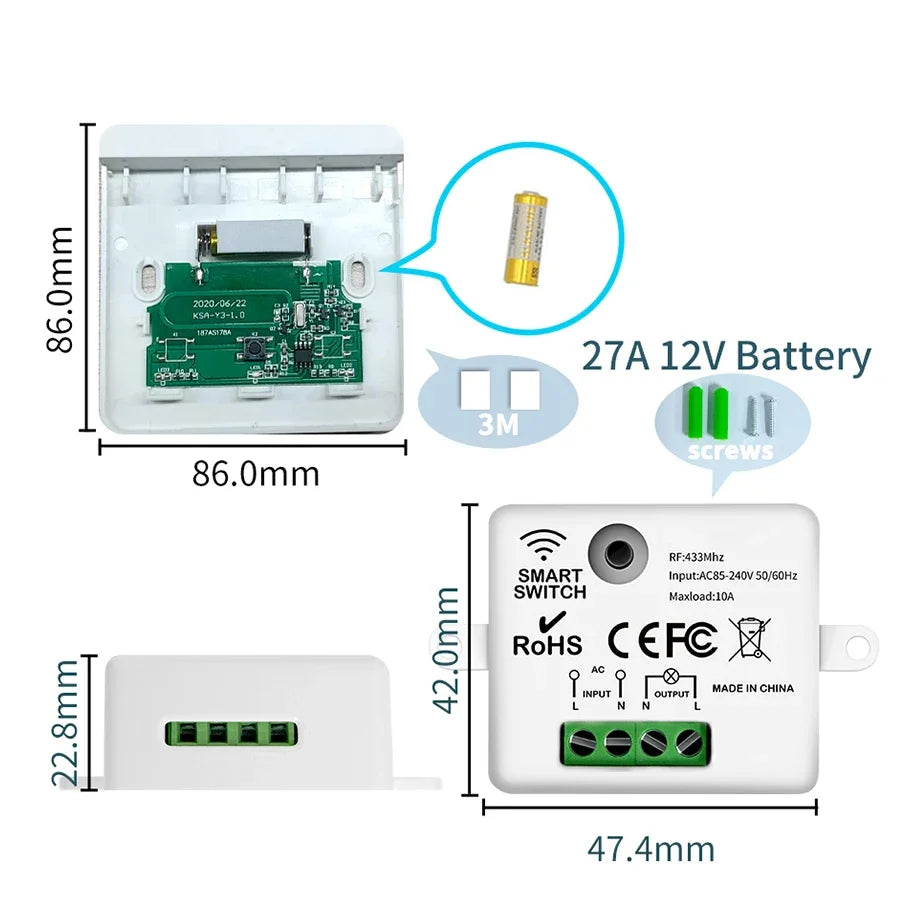

• Dimensions: 47.4 × 42 × 22.8mm

Wireless Wall Switch (Transmitter)

• Working Frequency: 433MHz
• Standby Power: <1µA
• Transmitter Power: <10mW
• IC Chip: EV1527 Learning Code
• Modulation: ASK
• Dimensions: 86 × 86 × 15mm

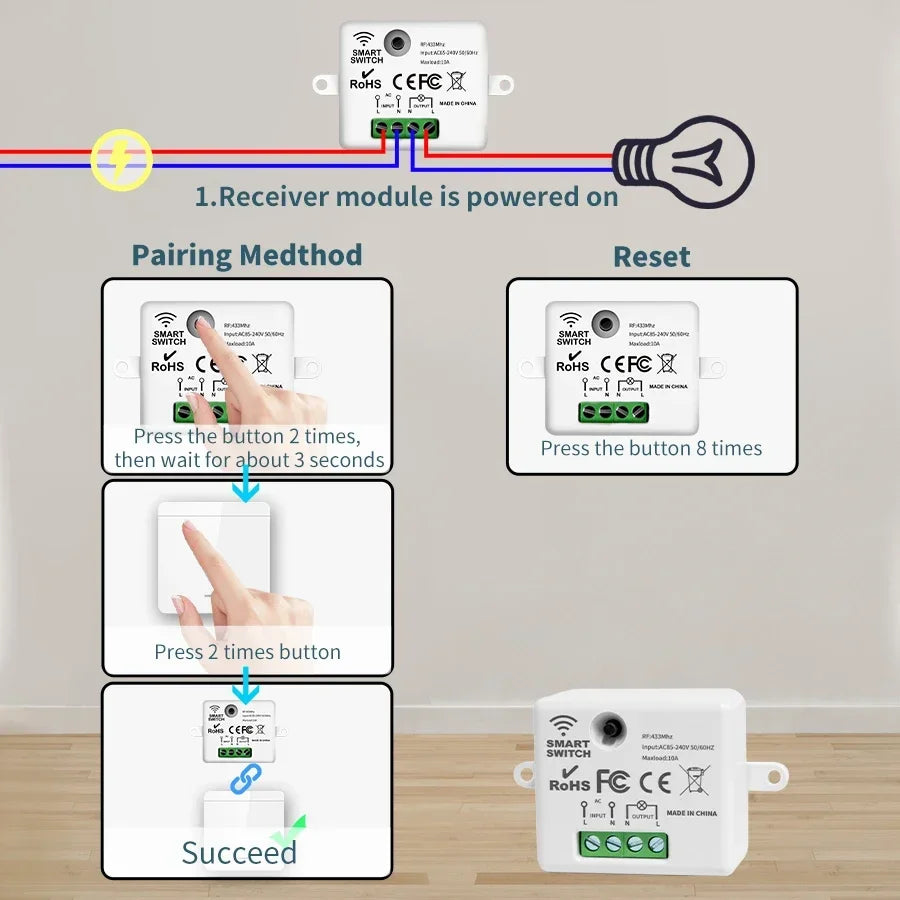

How to Pair & Clear

Pairing (Learning) the Signal:

1. Press the learning button on the Receiver twice. Wait 3 seconds.
2. Press one button on the wall switch remote. Wait 3 seconds. Pairing complete!

Clearing All Paired Codes:

1. Press the learning button on the Receiver 8 times. Wait 3 seconds. All codes cleared.

Perfect For

Home, apartment, office, farm, factory, supermarket — anywhere you want remote-controlled lighting without costly rewiring. Ideal for controlling LED downlights, ceiling fans, fluorescent fixtures, and more.

Related Products You May Like

• 1-Channel SCR Solid State Relay Module DC3-24V 40A Optocoupler
• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV

For general guidance on safe electrical product use and energy efficiency, visit the U.S. Department of Energy – Lighting Choices and learn about electrical safety from the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does the 433MHz wireless wall switch require a neutral wire for installation?

A: No! The 86 wall panel switch is battery-free and powered by the ultra-low RF transmitter circuit — it can be stuck onto any surface without any wiring. The RF relay receiver is the only unit that connects to your mains wiring.

Q: Will this 433MHz switch work with my existing LED lights?

A: Yes. The system is compatible with LED, CFL, and fluorescent lamps (up to 300W load) as well as incandescent bulbs, halogen lamps, and ceiling fans (up to 2,500W). It works on both 110V and 220V AC supplies (AC 85–240V).

Q: How far away can I control the lights with the wireless remote switch?

A: The theoretical remote control distance is up to 50 metres in open space. Walls, furniture, and other obstructions may reduce this range, but for most typical rooms and hallways, the range is more than sufficient.

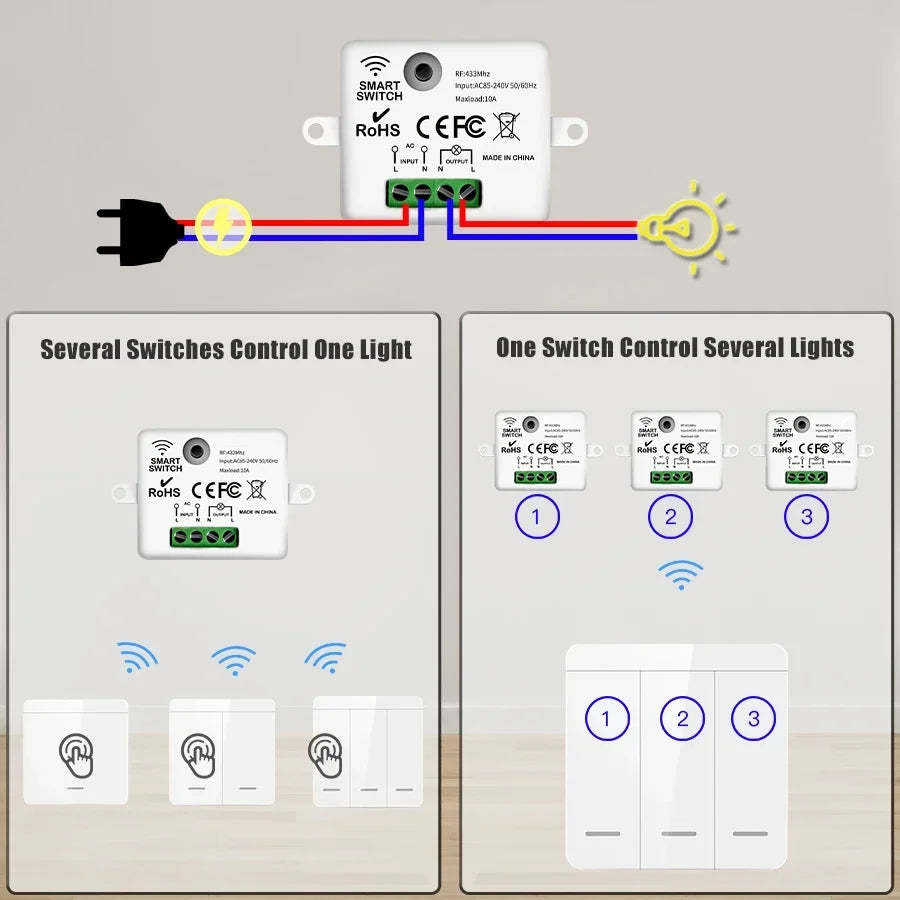

Q: Can I use multiple wall switches to control the same receiver or different receivers?

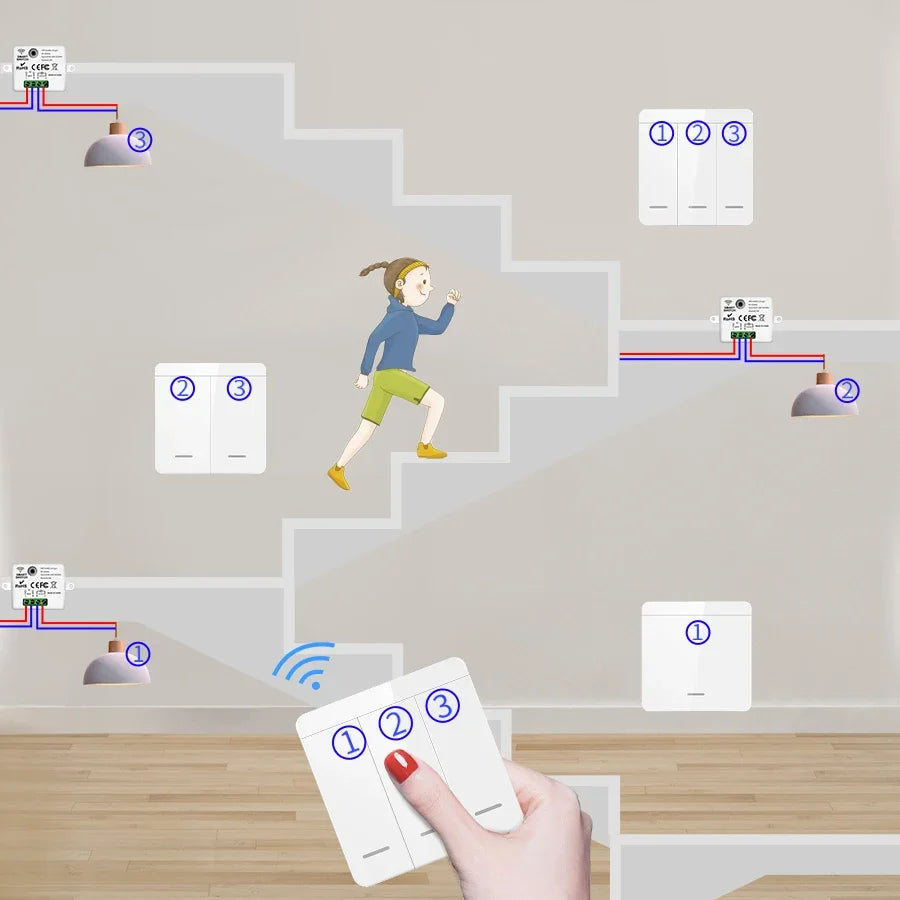

A: Yes. Multiple wall switches can be paired to the same receiver, and one switch can also be used to control multiple receivers — making this system very flexible for multi-room or multi-zone lighting control.

Q: Is this wireless switch kit CE and RoHS certified?

A: Yes. The GGBEE 433MHz Wireless Smart Switch is CE and RoHS certified, confirming it meets European electromagnetic compatibility and safety standards as well as hazardous-substance restrictions.
