ELM327 V1.5 Bluetooth 5.1 OBD2 Scanner – Real PIC18F25K80

ELM327 V1.5 Bluetooth 5.1 OBD2 Car Diagnostic Tool – Real PIC18F25K80 Dual PCB

Take full control of your vehicle's health with the Super Mini ELM327 V1.5 Bluetooth 5.1 OBD2 Code Reader. Powered by the genuine PIC18F25K80 chip on a dual-PCB (2PCB) design, this scanner delivers rock-solid stability, broader vehicle compatibility, and full OBD-II protocol support — including the SAE J1850 protocol that cheaper V2.1 clones simply cannot handle. Works wirelessly with iOS, Android, and Windows devices. Made in Mainland China.

Why Choose the Real 2PCB PIC18F25K80 Version?

• Genuine PIC18F25K80 Chip – More stable performance and wider car compatibility than low-cost clones.
• Firmware V1.5 (FW V1.5) – Supports ALL OBD-II protocols including SAE J1850 PWM & VPW, which FW V2.1 devices cannot.
• Bluetooth 5.1 – Fast, reliable wireless connection for iOS, Android, Windows, and Symbian devices.

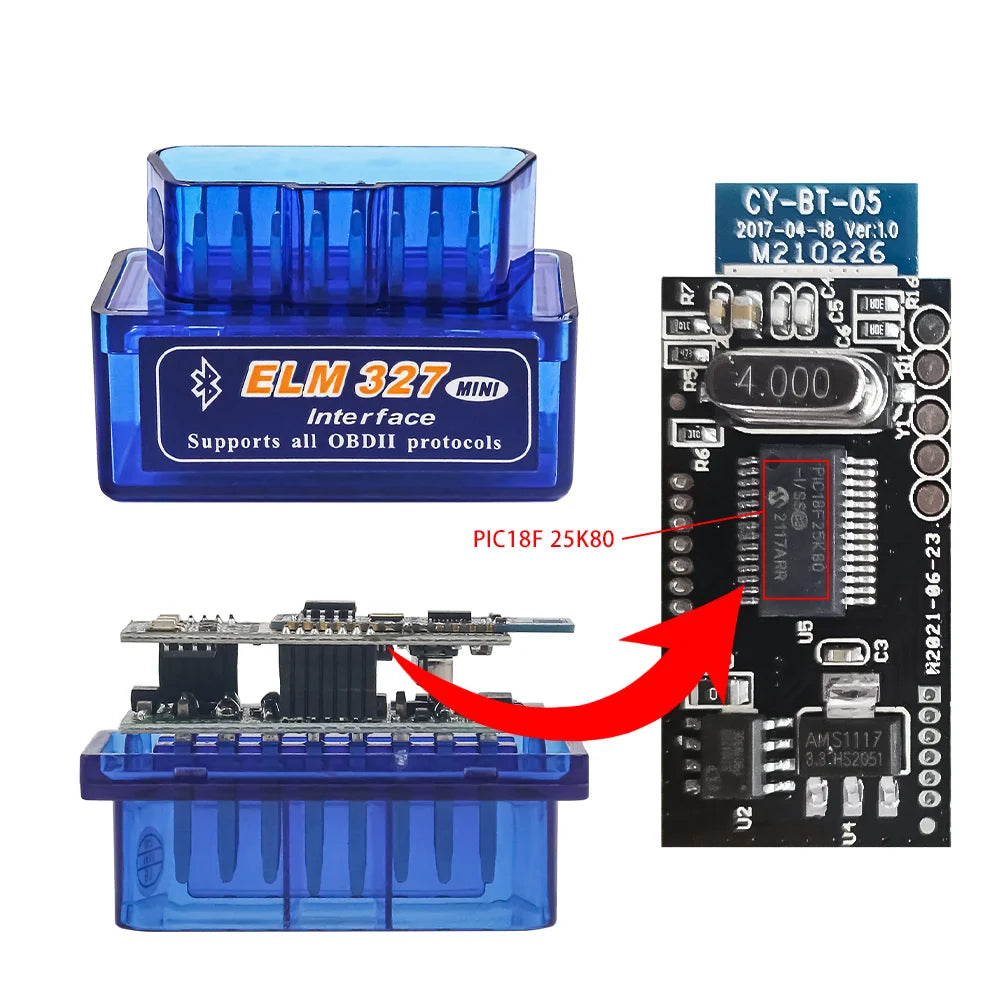

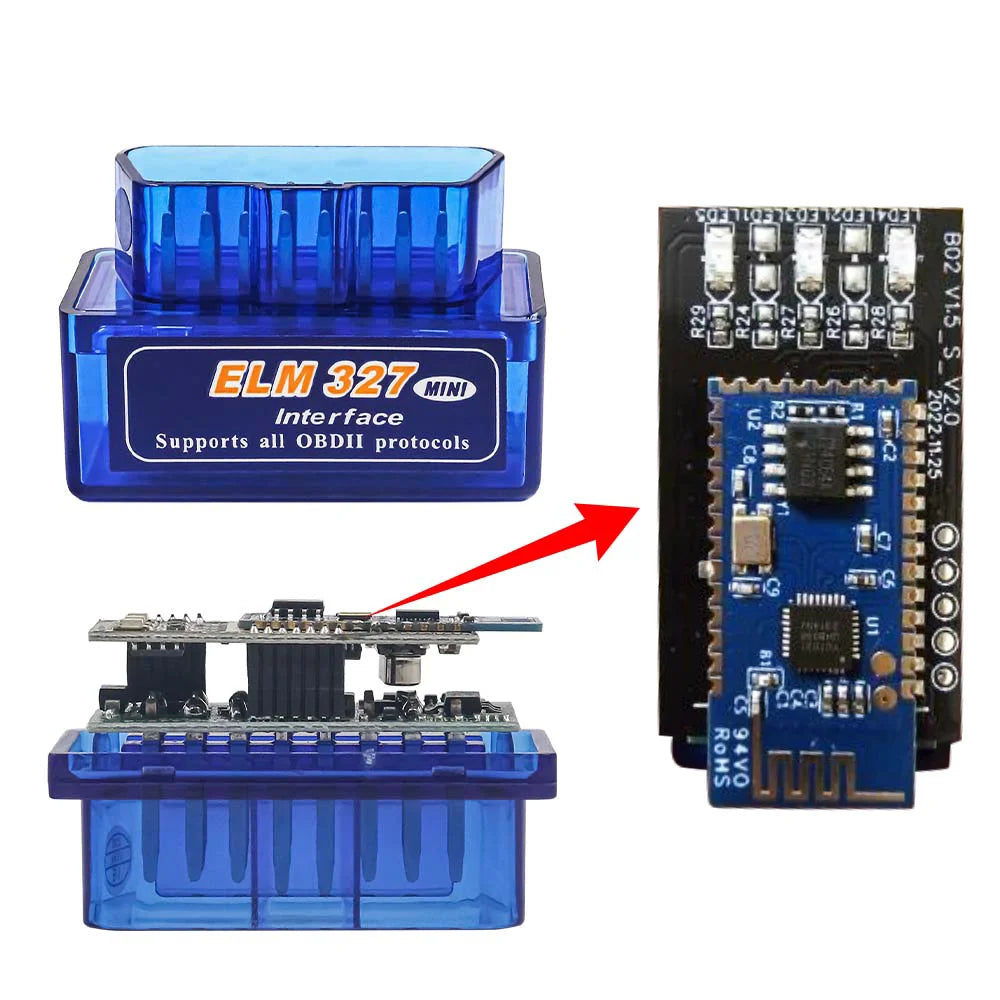

• Dual PCB Board – 4 MHz PIC chip + 16 MHz BT module for enhanced processing and communication speed.
• Software Updatable – Keep your scanner current with the latest diagnostic software (SW V2.1).
• Multi-Language Support – English, German, French, Spanish, Italian, Polish, Russian, Japanese, Turkish, Czech, Danish, Hungarian, Croatian, and Serbian.
• CE Certified – Meets international quality and safety standards.

⚠️ Important Notes:

• Compatible with most gasoline/petrol OBD-II vehicles. Does NOT support diesel engines.
• BT Pairing Passwords: 0000 / 1234 / 6789
• MAC Address: AA:BB:CC:11:22:33

Supported OBD-II Protocols (Full List)

1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
4. ISO 14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO 14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO 15765-4 CAN (11-bit ID, 500 Kbaud)
7. ISO 15765-4 CAN (29-bit ID, 500 Kbaud)
8. ISO 15765-4 CAN (11-bit ID, 250 Kbaud)
9. ISO 15765-4 CAN (29-bit ID, 250 Kbaud)
10. SAE J1939 CAN (29-bit ID, 250 Kbaud)
11. USER1 CAN (11-bit ID, 125 Kbaud)
12. USER2 CAN (11-bit ID, 50 Kbaud)

Real-Time Sensor Data You Can Monitor

• Vehicle Speed & RPM
• Engine Coolant Temperature
• Fuel Pressure, Level & Trim
• Calculated Engine Load
• Throttle Position
• Intake Manifold Pressure & Air Intake Temperature
• Mass Air Flow (MAF)
• Timing Advance
• Barometric Pressure
• EVAP System Vapor Pressure
• Fuel Consumption Estimate

Key Diagnostic Functions

• Read & clear Diagnostic Trouble Codes (DTCs) — generic and manufacturer-specific
• Access a database of over 3,000 generic code definitions
• Turn off the check engine / MIL light
• View freeze-frame data
• Supports ATAL and ATPPS commands

Technical Specifications

Related Products You May Like

• 100-Pack Disposable Nitrile Gloves – Latex-Free, White, Oil-Proof – Great for keeping hands clean during vehicle work.
• 12-Key Flashing Mechanical Keyboard Stress Relief Fidget Toy – A fun desk companion for garage downtime.

For more information on vehicle OBD-II standards and emissions diagnostics, visit the U.S. EPA's OBD Information Page.

Frequently Asked Questions

Q: What is the difference between the real PIC18F25K80 chip ELM327 and a generic clone?

A: The genuine PIC18F25K80 chip provides superior stability, faster response times, and compatibility with a wider range of gasoline vehicles compared to cheaper clone chips. It also supports advanced commands like ATAL and ATPPS that many clones do not.

Q: Why is Firmware V1.5 better than V2.1 for OBD2 scanning?

A: ELM327 Firmware V1.5 supports all 12 OBD-II protocols, including the SAE J1850 PWM and J1850 VPW protocols used by many older American vehicles. Firmware V2.1 (found in lower-cost units) does NOT support J1850, which means it will fail to connect to a significant number of cars — especially older Ford and GM models.

Q: Does this ELM327 Bluetooth OBD2 scanner work with my iPhone (iOS)?

A: Yes! Thanks to Bluetooth 5.1, this scanner is compatible with iOS (iPhone/iPad), Android smartphones and tablets, and Windows PCs. Use it with popular OBD apps such as OBD Fusion, Torque Pro, or Car Scanner ELM OBD2.

Q: Will this OBD2 reader work with my diesel car or truck?

A: No. This scanner is designed exclusively for gasoline/petrol vehicles equipped with a standard OBD-II port (typically all petrol cars from 1996 onwards). It does not support diesel engines.

Q: How do I connect the ELM327 Bluetooth scanner to my phone?

A: Plug the scanner into your car's OBD-II port (usually located under the dashboard, driver's side). Turn on your ignition, pair your phone via Bluetooth using one of the default passwords (0000, 1234, or 6789), then open your preferred OBD diagnostic app to start reading data.
