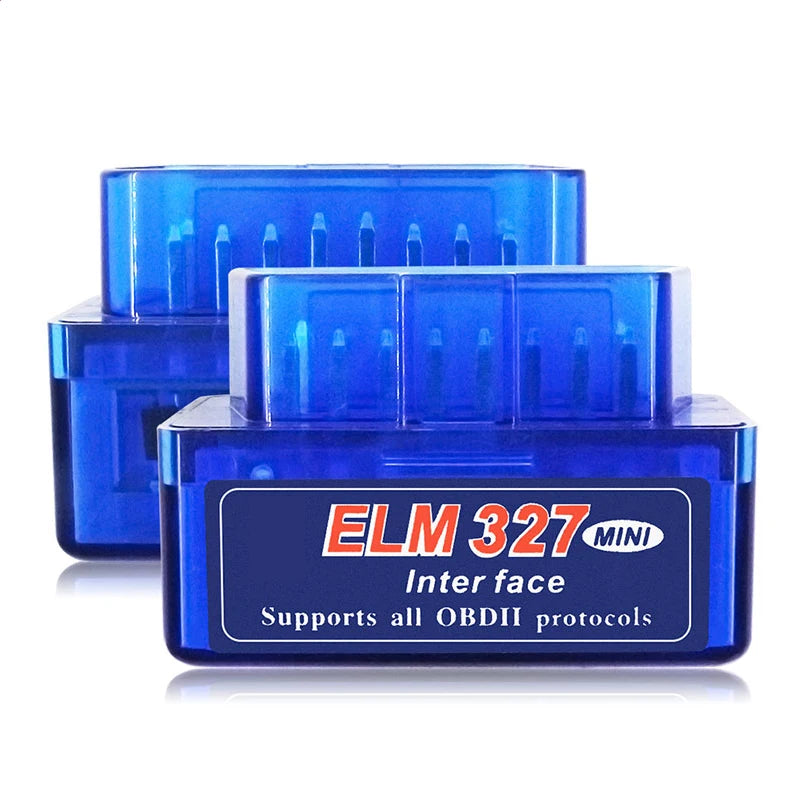

ELM327 V1.5 Bluetooth OBD2 Scanner – PIC18F25K80 Dual PCB

ELM327 V1.5 Bluetooth OBD2 Car Scanner with Real PIC18F25K80 Chip & Dual PCB

Stop guessing what that check-engine light means! The ELM327 V1.5 Bluetooth OBD2 Scanner plugs into your car's standard 16-pin OBD2 port and wirelessly streams real-time engine data straight to your Android smartphone or Windows PC. Powered by a genuine PIC18F25K80 chip and a dual (double) PCB design, this scanner is faster, more stable, and compatible with more vehicles than cheaper V2.1 clones.

Made in Mainland China.

For authoritative information on OBD vehicle emissions standards and diagnostic requirements, visit the U.S. EPA On-Board Diagnostics (OBD) page.

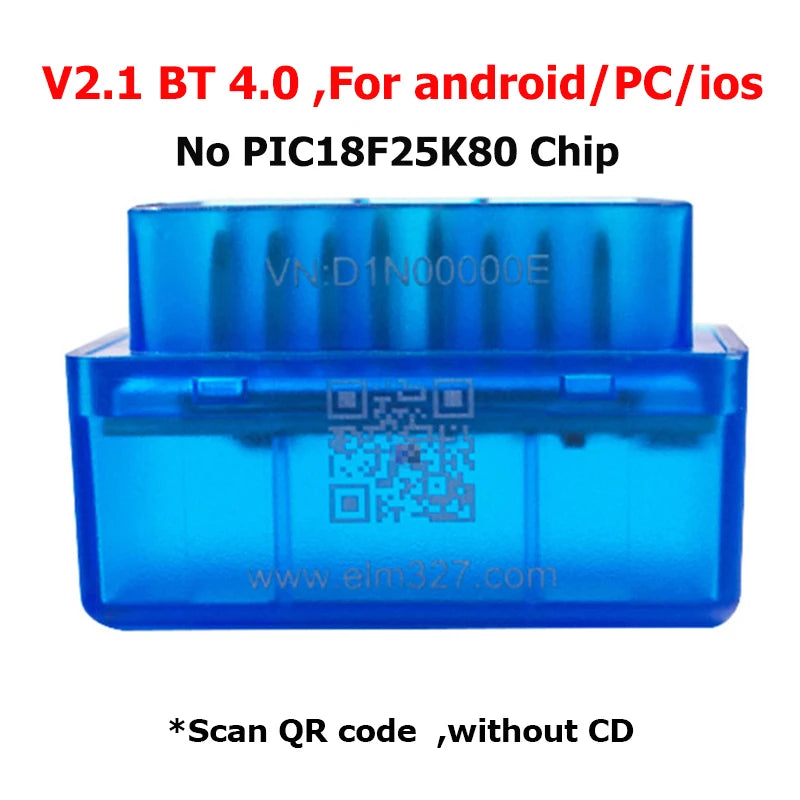

Why Choose Hardware V1.5 Over V2.1?

• More protocols supported: V1.5 supports all 9 OBD2 protocols, including SAE J1850 PWM & VPW — protocols the V2.1 chip cannot handle.

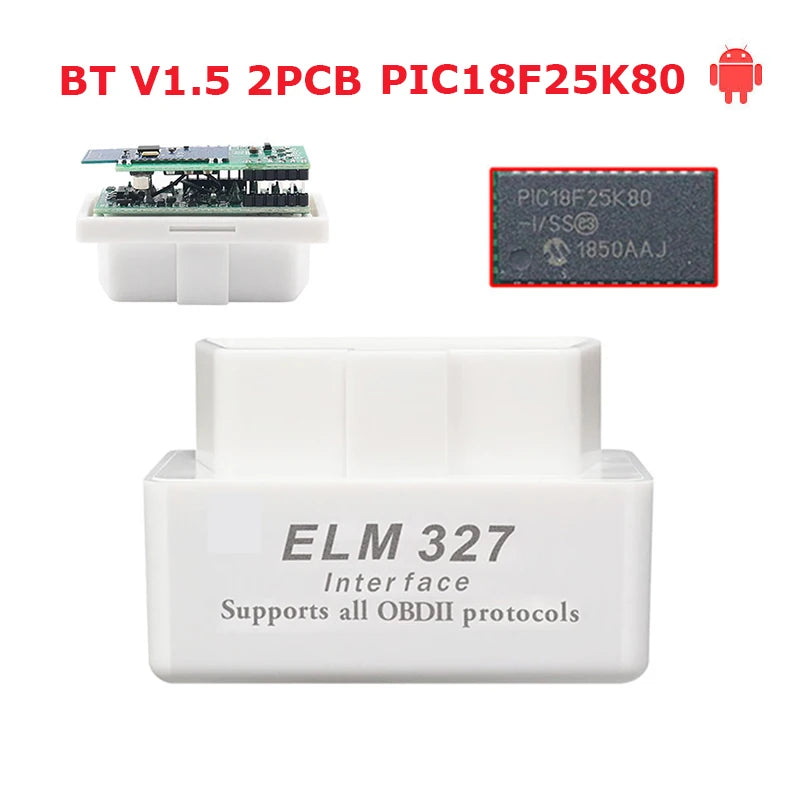

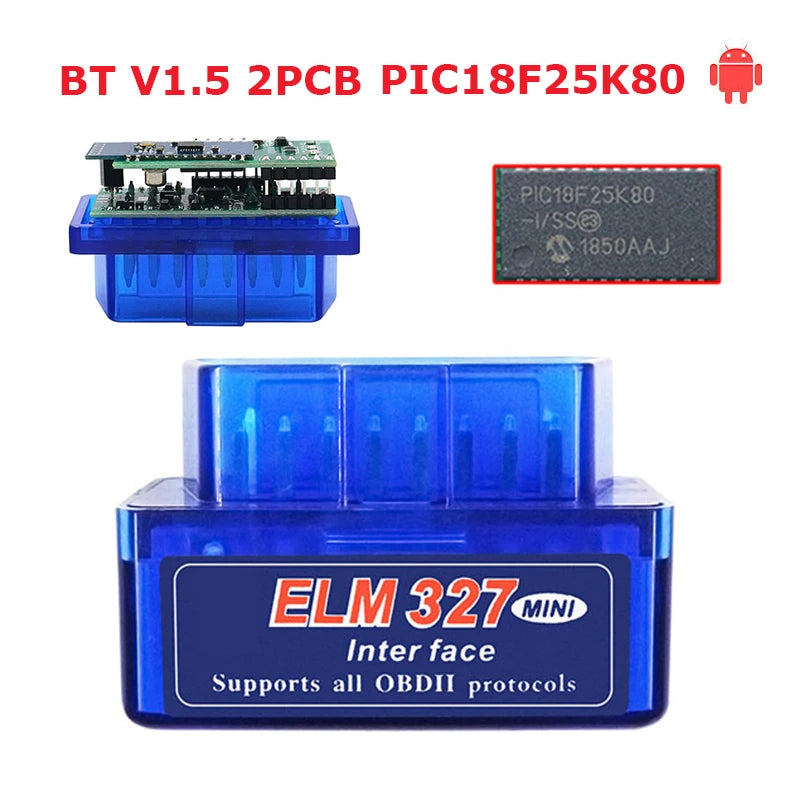

• Real PIC18F25K80 chip running at 4 MHz with a 16 MHz Bluetooth module — not a counterfeit or downgraded substitute.

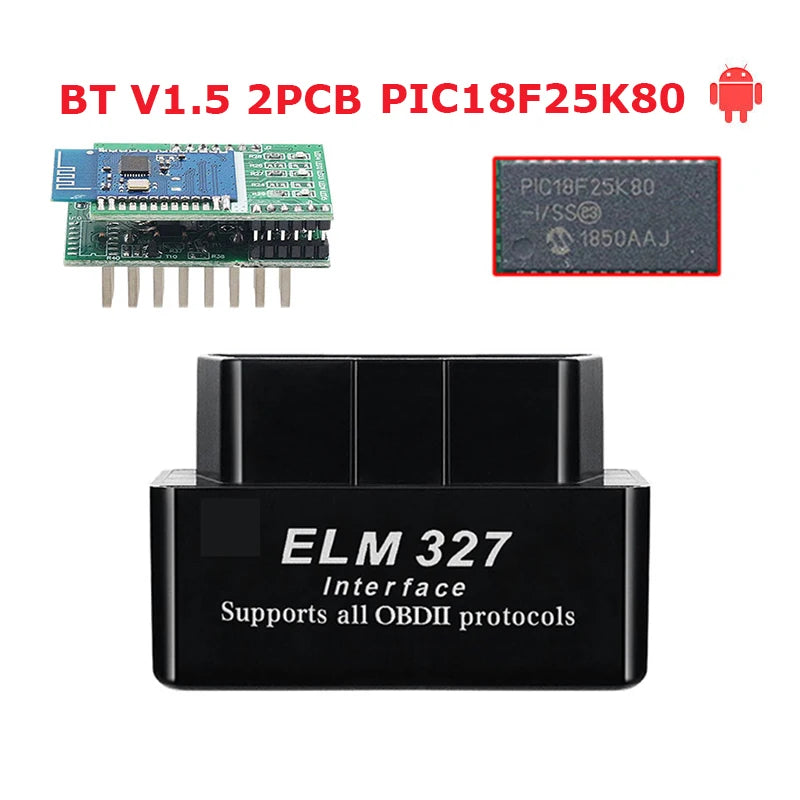

• Dual PCB board for better heat dissipation, signal stability, and longer lifespan.
• Bluetooth 2.0 — rock-solid pairing with Android devices and Windows computers.

Key Features

• ✅ Hardware Version 1.5 — more stable & broader vehicle support than V2.1
• ✅ Real PIC18F25K80 chip (4 MHz) + 16 MHz Bluetooth module
• ✅ Double PCB design for improved reliability
• ✅ Supports all 9 OBD2 protocols (SAE J1850 PWM, SAE J1850 VPW, ISO9141-2, ISO14230-4, ISO15765-4 CAN variants)
• ✅ Supports ATAL and ATPPS commands
• ✅ Bluetooth 2.0 — works with Android & Windows (not iOS — choose the WiFi version for iOS)
• ✅ Over 3,000 generic DTC code definitions in database
• ✅ Multi-language interface support

Supported OBD2 Protocols

1. SAE J1850 PWM (41.6 kbaud)
2. SAE J1850 VPW (10.4 kbaud)
3. ISO 9141-2 (5 baud init, 10.4 kbaud)
4. ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
5. ISO 14230-4 KWP (fast init, 10.4 kbaud)
6. ISO 15765-4 CAN (11-bit ID, 500 kbaud)
7. ISO 15765-4 CAN (29-bit ID, 500 kbaud)
8. ISO 15765-4 CAN (11-bit ID, 250 kbaud)
9. ISO 15765-4 CAN (29-bit ID, 250 kbaud)

Real-Time Sensor Data You Can Monitor

• Vehicle Speed & RPM
• Fuel Consumption & Fuel Level
• Engine Coolant Temperature
• Fuel Pressure & Fuel Trim
• Calculated Engine Load
• Throttle Position
• Intake Manifold Pressure & Air Intake Temp
• Mass Air Flow
• Timing Advance
• Barometric Pressure & EVAP System Vapor Pressure

Compatible Software

• Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM
• Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD
• Symbian: OBDScope

Compatible OS: Windows XP, Windows 7/8, Android, Symbian.

Vehicle Compatibility

Works with most OBD2-compliant gasoline passenger cars (not trucks). Your vehicle must have a 16-pin DLC (Data Link Connector) under the dashboard and display an OBD2 Compliance label.

• USA cars from 1998 onwards (Chrysler, Ford, GM, Jeep, and more)
• European cars from 2000 onwards (Alfa Romeo, SAAB, Acura, and more)
• Japanese & Korean cars from 2002 onwards (KIA, Isuzu, Honda, Mitsubishi, and more)
• Chinese cars from 2005 onwards
• Russian cars from 2012 onwards

Note: This scanner works with cars only — trucks are not supported. Compatibility may vary by model even within the same brand.

Important Notes

• Bluetooth Password: 0000 or 1234
• This is the Bluetooth version — it does NOT support iOS. For iPhone/iPad use, please purchase the WiFi version.
• Best used with Android 4.0+ and Windows XP/7 (32-bit, antivirus disabled during installation)
• If the included software CD is damaged, contact the seller for a download link.

What's in the Box

• 1× Bluetooth ELM327 OBD2 Interface
• 1× Software CD

Multi-Language Support

Czech, Danish, German, English, Spanish, French, Croatian, Hungarian, Italian, Polish, Serbian, Turkish, Russian

Looking for more diagnostic and automotive accessories? Check out these related products:

• 100W Dual-Port Car Charger – Fast Charging
• 140W Auto-Eject USB-C Cable – Anti-Overcharge Battery Guard

Frequently Asked Questions

Q: What is the difference between the ELM327 V1.5 Bluetooth and V2.1 Bluetooth OBD2 scanner?

A: The ELM327 V1.5 uses a genuine PIC18F25K80 chip and supports all 9 OBD2 protocols, including SAE J1850 PWM and VPW — protocols the V2.1 chip cannot handle. V1.5 also features a dual PCB board, making it more stable and broadly compatible with more vehicles than the V2.1 variant.

Q: Does this ELM327 Bluetooth OBD2 scanner work with iPhone or iOS devices?

A: No — the Bluetooth version of the ELM327 V1.5 is only compatible with Android smartphones and Windows PCs. If you need to use it with an iPhone or iPad (iOS), you will need to purchase the WiFi version of the ELM327 scanner instead.

Q: How do I connect the ELM327 V1.5 Bluetooth scanner to my car and phone?

A: Simply plug the scanner into your car's OBD2 port (the 16-pin DLC connector, usually located under the dashboard on the driver's side), turn your ignition to the "ON" position, then pair via Bluetooth on your Android device using the password 0000 or 1234. Open a compatible app such as Torque or OBD Car Doctor and start reading your car's data.

Q: Which cars are compatible with this ELM327 OBD2 Bluetooth scanner?

A: This scanner is compatible with most OBD2-compliant gasoline passenger cars — US cars from 1998+, European cars from 2000+, Japanese and Korean cars from 2002+, Chinese cars from 2005+, and Russian cars from 2012+. It does not support trucks or non-OBD2 vehicles. Check that your car has a 16-pin DLC connector and an OBD2 compliance label to confirm compatibility.
