FiatECUScan OBD2 Adapter Cable Kit – 6-Lead Diagnostic Set
Blue
$12.79
Sale price
$12.79
Regular price
$16.59
Skip to product information
FiatECUScan OBD2 Adapter Cable Kit – 6-Lead Diagnostic Set
$12.79
Sale price
$12.79
Regular price
$16.59
Shipping calculated at checkout.
Get full diagnostic access to your Fiat, Alfa Romeo, Lancia, Jeep, Chrysler, or Dodge vehicle with this comprehensive FiatECUScan / MultiECUScan OBD2 Adapter Cable Kit. This 6-lead color-coded set lets you connect any compatible OBD2 scanner to a wide range of vehicle systems — from Engine and ABS to Airbag, CAN bus, Electric Hood, and Control Modules — all with simple, foolproof color identification.
Whether you're a DIY mechanic or a professional technician, this adapter kit saves you time and money by giving you deep diagnostic access without the need for expensive dealer tools. Compatible with the popular MultiECUScan and FiatECUScan software platforms.
Made in Mainland China.

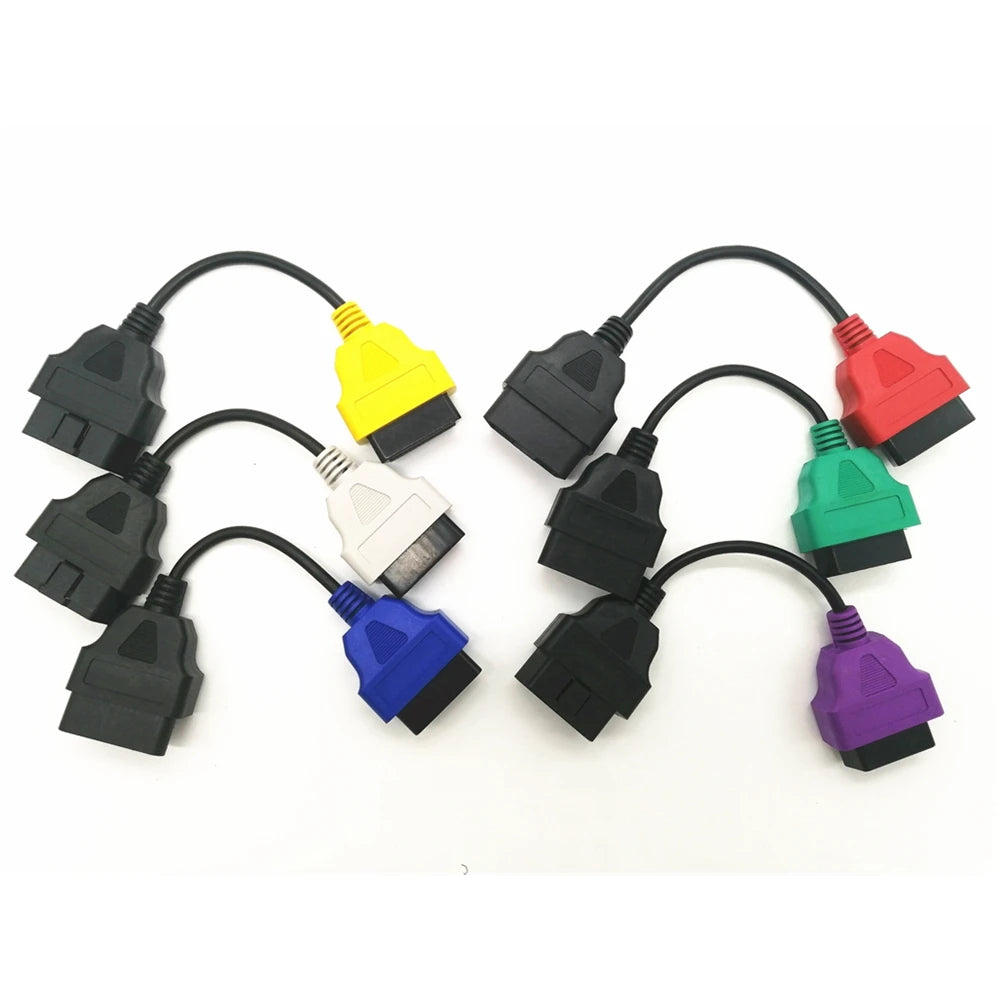

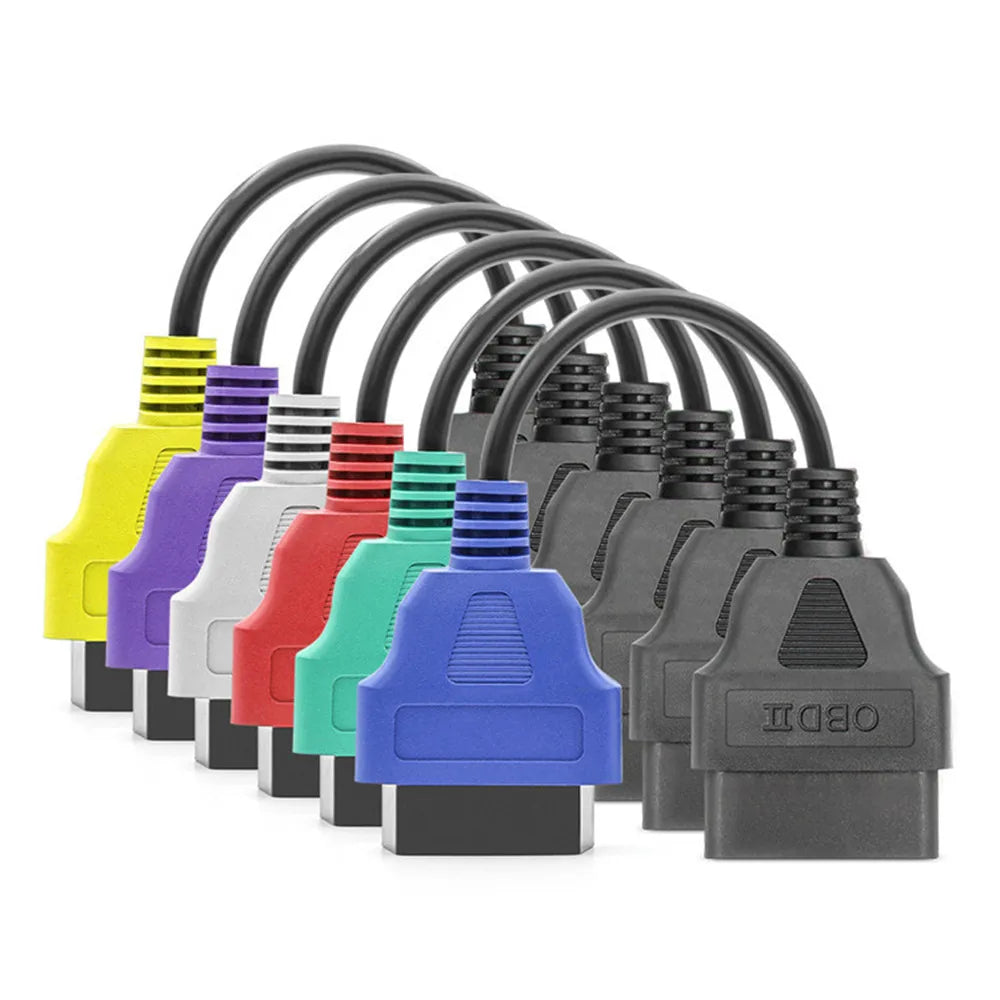

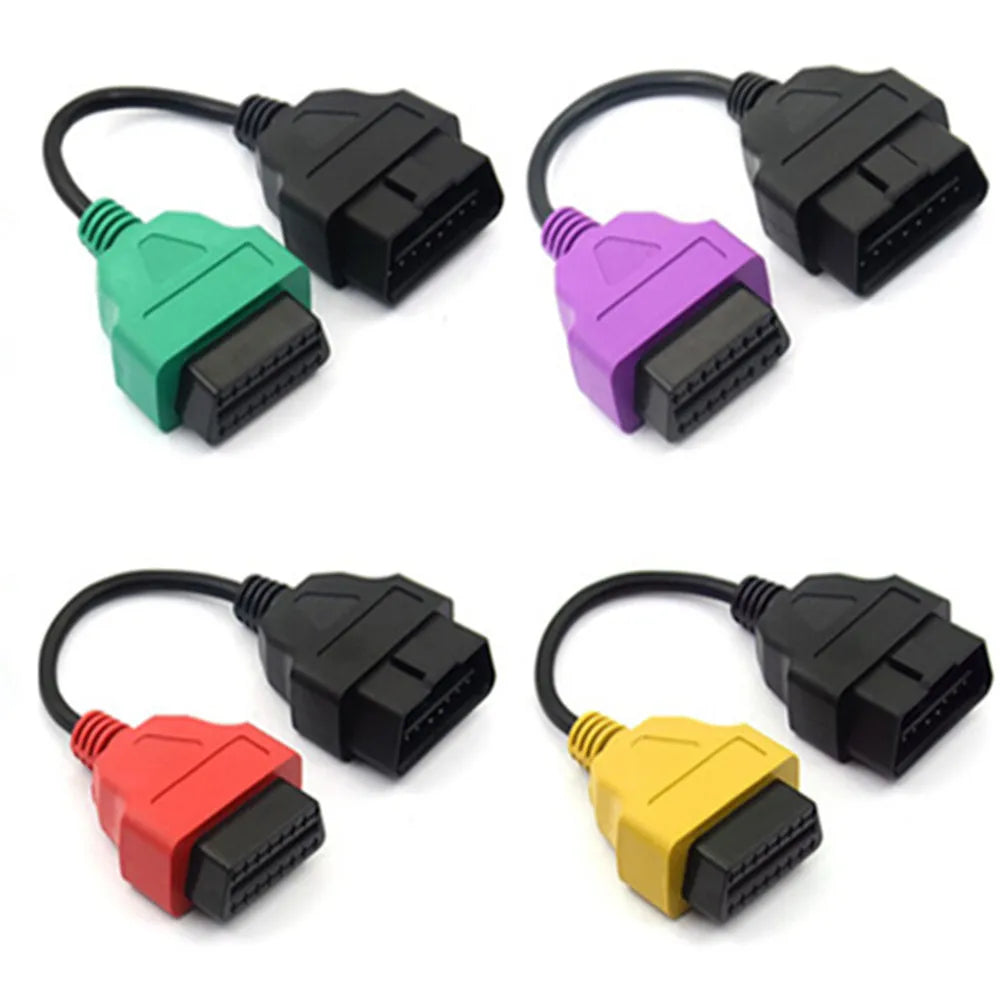

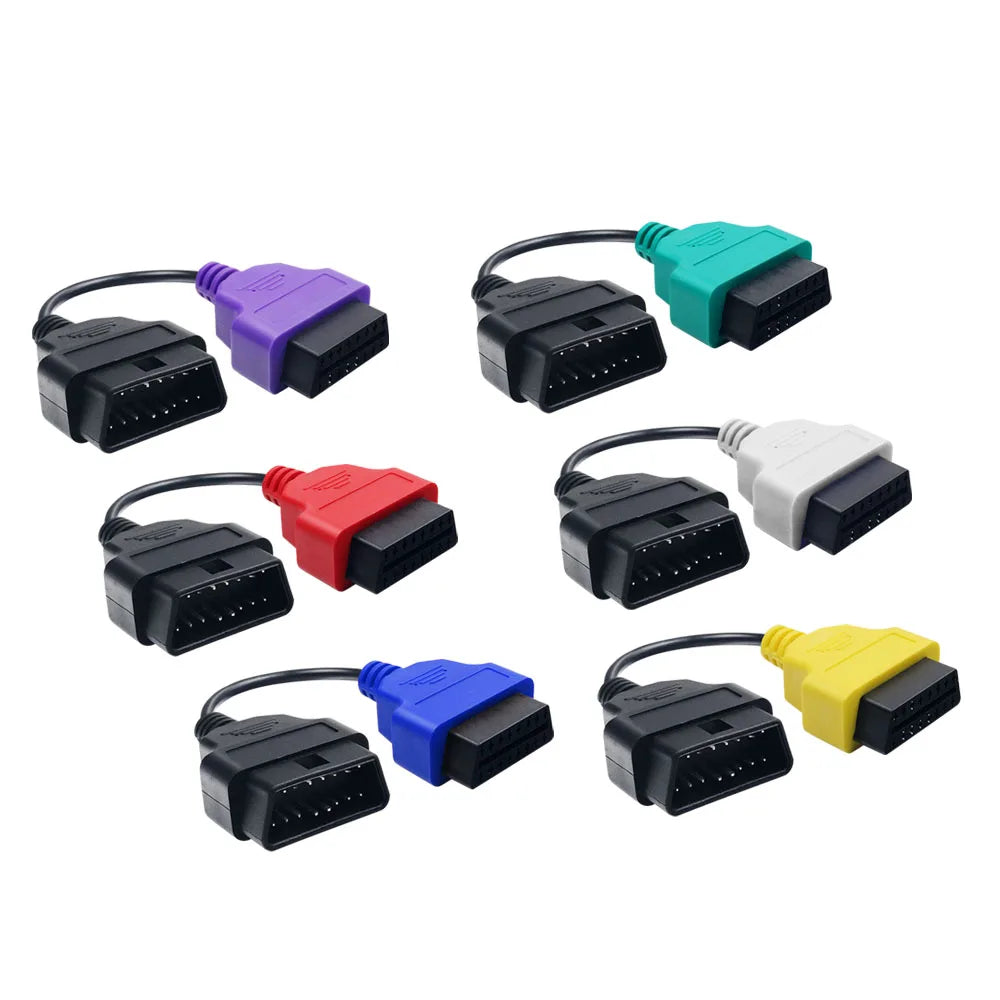

What's in the Kit? 6 Color-Coded Adapter Leads

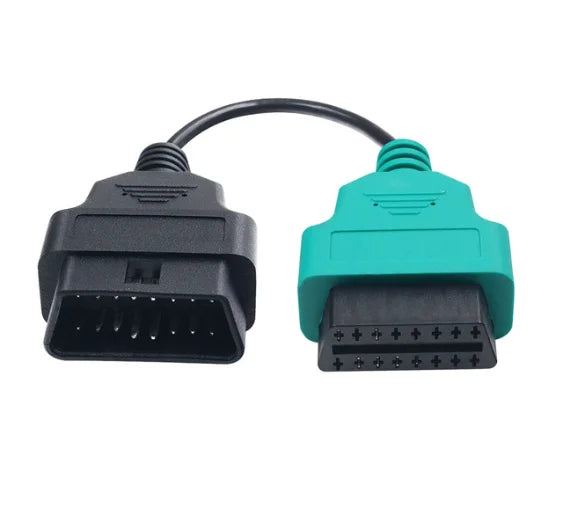

- 🟢 Green Lead (Adapter 1) – Engine, ABS & Power Steering: Connects diagnostic tool Pin 7 to car Pins 1, 7, 9 & 12. Ideal for accessing ABS and Power Steering ECUs on supported vehicles.

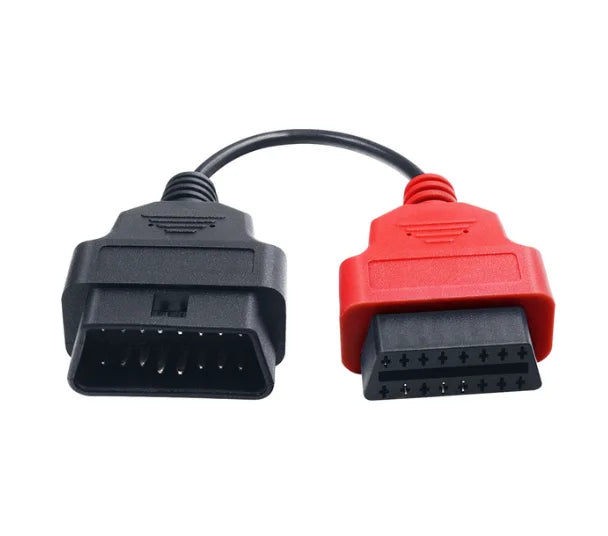

- 🔴 Red Lead (Adapter 2) – Airbag: Connects diagnostic tool Pin 7 to car Pin 3 only. Designed specifically for airbag system diagnostics and fault clearing.

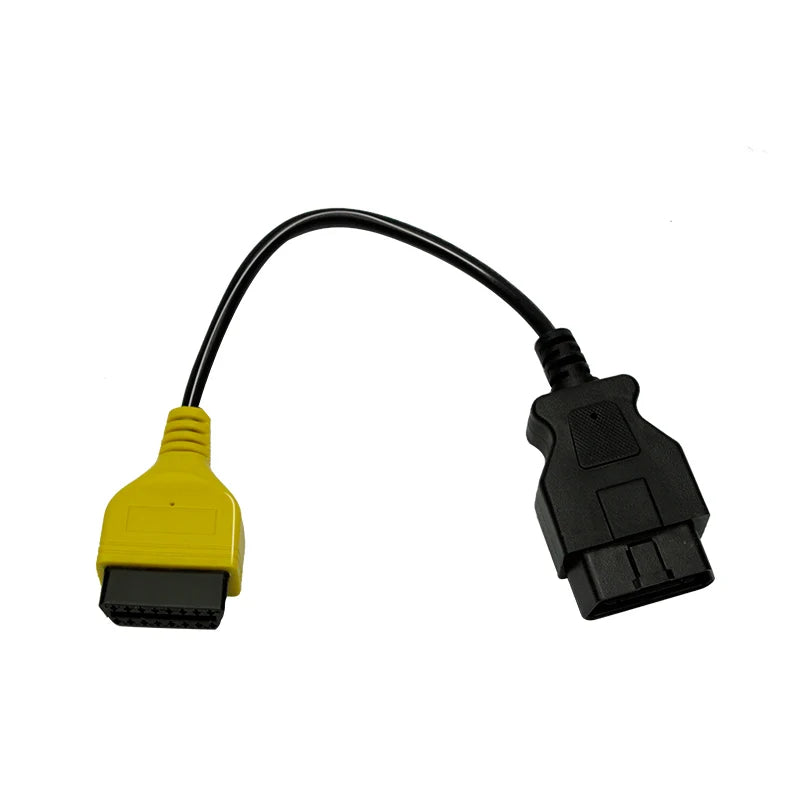

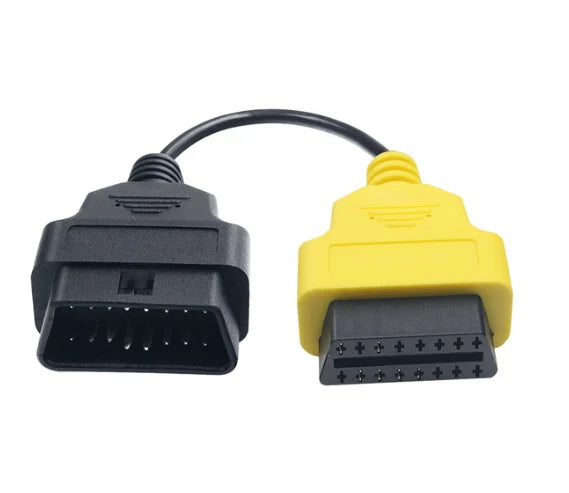

- 🟡 Yellow Lead (Adapter 3) – CAN Bus: Connects Pin 6 → Pin 1, Pin 14 → Pin 9, and Pin 7 → Pin 12. Enables access to the low-speed CAN network for in-depth system communication.

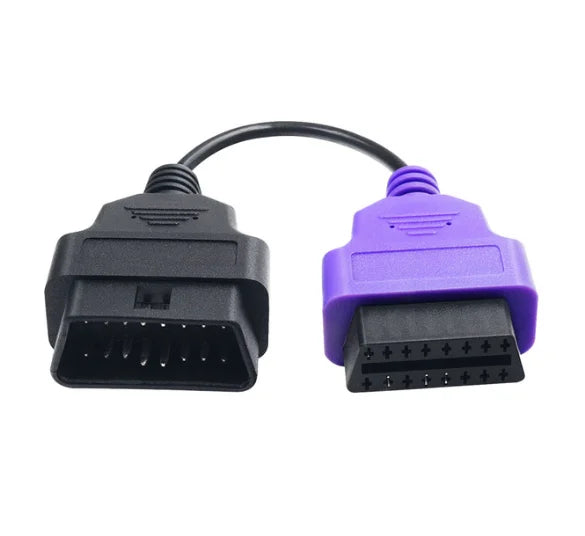

- 🟣 Purple Lead (Adapter 4) – Electric Hood: Connects diagnostic tool Pin 7 to car Pins 7, 8, 11 & 13. Designed for electric convertible hood/roof control systems.

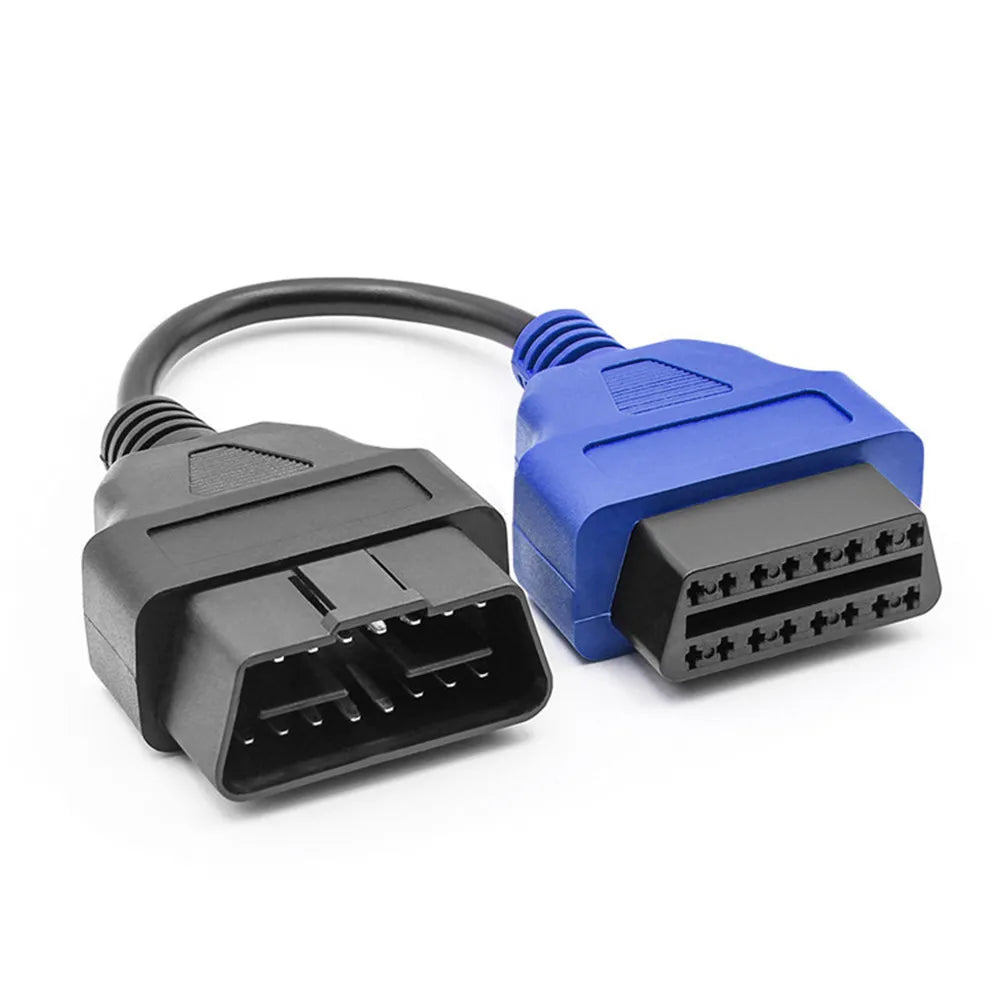

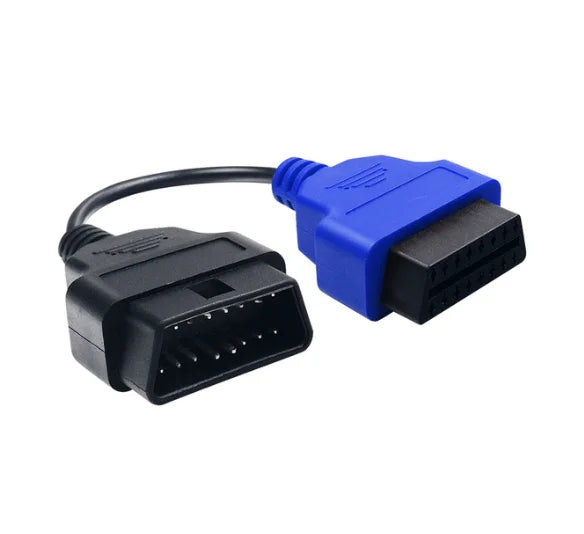

- 🔵 Blue Lead (Adapter 5) – Control Module: Provides access to enhanced vehicle features such as multimedia systems, blind-spot sensors, and more.
- ⚫ Gray Lead (Adapter 6) – Base Control Module: Allows access to basic vehicle functions including headlights, parking controller, ABS, and electric steering.
Compatible Vehicles
- Fiat
- Alfa Romeo
- Lancia
- Jeep
- Chrysler
- Dodge
Please refer to the official MultiECUScan website for a full list of supported models.
Pin Configuration Reference
| Color | System | Pin Mapping |
|---|---|---|
| Green | Engine / ABS / Power Steering | F-Pin 7 → M-Pins 1, 7, 9, 12 |
| Red | Airbag | F-Pin 7 → M-Pin 3 |
| Yellow | CAN Bus | F-6→M-1 / F-14→M-9 / F-7→M-12 |
| Purple | Electric Hood | F-Pin 7 → M-Pins 7, 8, 11, 13 |
| Blue | Enhanced Control Module | Multimedia, blind-spot, etc. |
| Gray | Base Control Module | Headlights, parking, ABS, steering |
Key Features
- ✅ CE Certified for quality and safety assurance
- ✅ 6 color-coded leads for quick, error-free identification
- ✅ Compatible with MultiECUScan & FiatECUScan software
- ✅ Covers Engine, ABS, Airbag, CAN, Hood, and Control Module systems
- ✅ No battery required — plug and diagnose
- ✅ Newest hardware & software version included
- ✅ English language interface support
Related Products You May Like
- 10-Pack 22AWG Glass Tube Fuse Holder 5x20mm & 6x30mm Screw
- 100W Dual-Port Car Charger – Fast Charging
- 140W USB-C Fast Charger with Auto Power-Off Overcharge Protection
Further Reading
For consumer safety information on automotive diagnostic tools and electronics, visit the U.S. Consumer Product Safety Commission (CPSC).
Learn more: Pico Technology
Frequently Asked Questions
Q: What vehicles is this FiatECUScan OBD2 adapter cable compatible with?
A: This diagnostic adapter kit is compatible with vehicles from Fiat, Alfa Romeo, Lancia, Jeep, Chrysler, and Dodge. It is designed to work with MultiECUScan and FiatECUScan software. Please check the official MultiECUScan website for a full, up-to-date list of supported vehicle models and years.
Q: Do I need special software to use this OBD2 diagnostic cable?
A: Yes, this adapter cable is designed to be used with MultiECUScan or FiatECUScan diagnostic software installed on a Windows PC or laptop. The cable connects your computer's OBD2 interface to the vehicle's diagnostic port using the appropriate color-coded adapter lead for the system you want to diagnose.
Q: What systems can I diagnose with this adapter kit?
A: The 6-lead kit covers a wide range of vehicle systems: Engine ECU, ABS (Anti-lock Braking System), Power Steering, Airbag/SRS, CAN Bus network, Electric Hood/Convertible Roof, and both enhanced and base Control Modules (including multimedia, blind-spot sensors, headlights, and parking systems).
Q: How do I know which color adapter lead to use?
A: Each lead is color-coded for easy identification — Green for Engine/ABS/Power Steering, Red for Airbag, Yellow for CAN Bus, Purple for Electric Hood, Blue for enhanced Control Modules, and Gray for base Control Module functions. Simply select the lead that corresponds to the system you wish to diagnose as directed by the MultiECUScan software.
Q: Is this adapter cable plug-and-play or does it require installation?
A: This adapter is essentially plug-and-play. No battery is required. Simply connect the appropriate color-coded lead between your OBD2 diagnostic tool and your vehicle's diagnostic connector, then launch your MultiECUScan or FiatECUScan software to begin scanning.
